Exploded View Legend

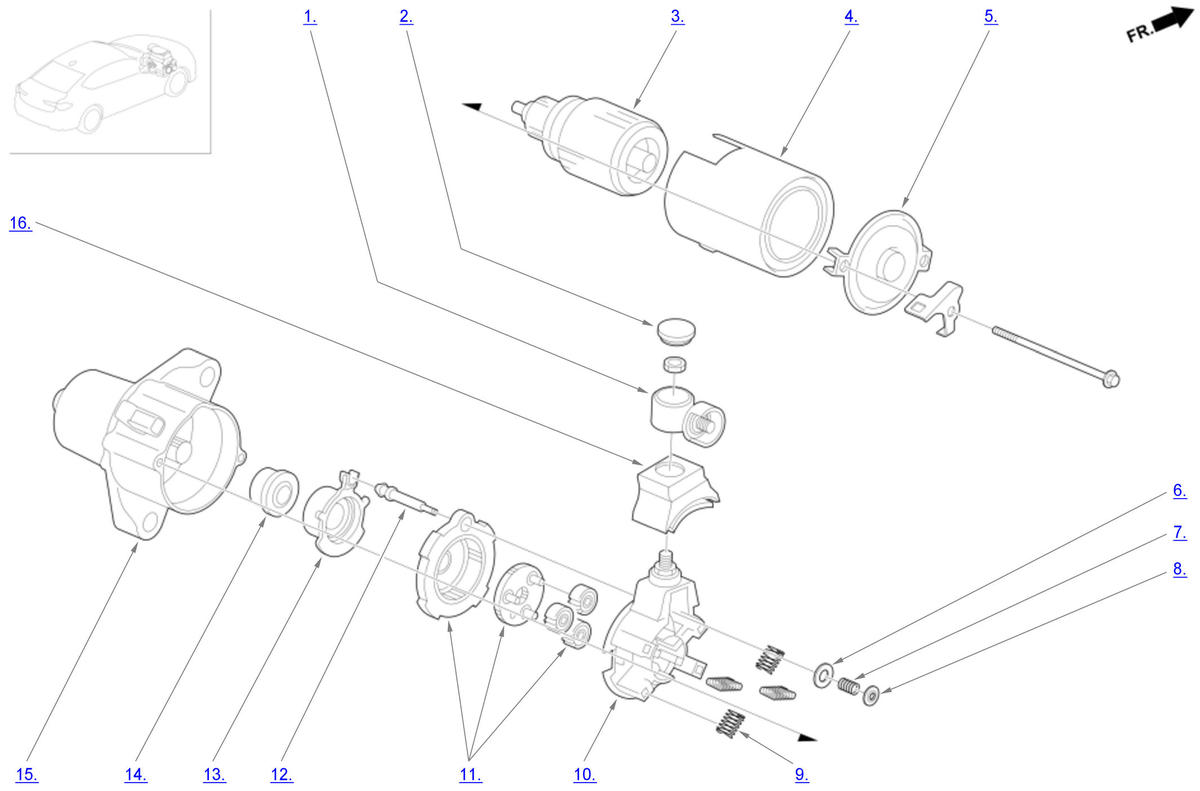

GHH562736Courtesy of HONDA, U.S.A., INC.
  1. Terminal
  2. Terminal Cap
  3. Armature
  4. Armature Housing
  5. End Cover
  6. Moving Contact
  7. Contact Spring
  8. Push Nut
  9. Brush Spring
  10. Brush Holder Assembly
  11. Planetary Gear Assembly
  12. Switch Shaft
  13. Switch Plunger
  14. Gear Plunger
  15. Gear Cover
  16. Switch Cover
