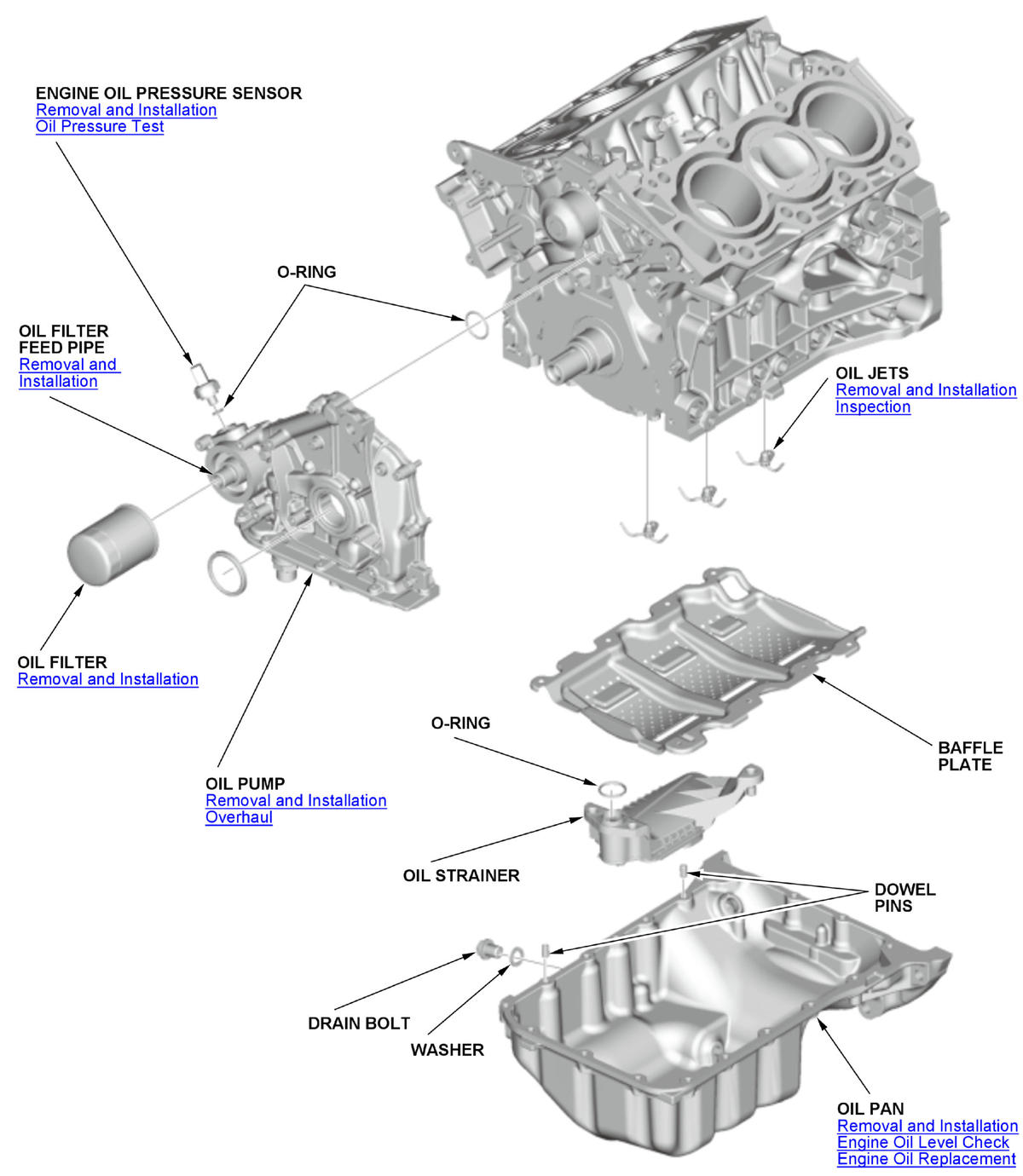

Engine Lubrication System Component Location Index (3.0L Engine)

GHH485194

Courtesy of HONDA, U.S.A., INC.
