Repair Procedure

How to use this manual .

Courtesy of HONDA, U.S.A., INC.

: Torque, N.m (lbf.ft)

: Replace

: Warning/Caution

: Inspection/Adjustment

*: Learning

: SPL Tool

: Required Removal

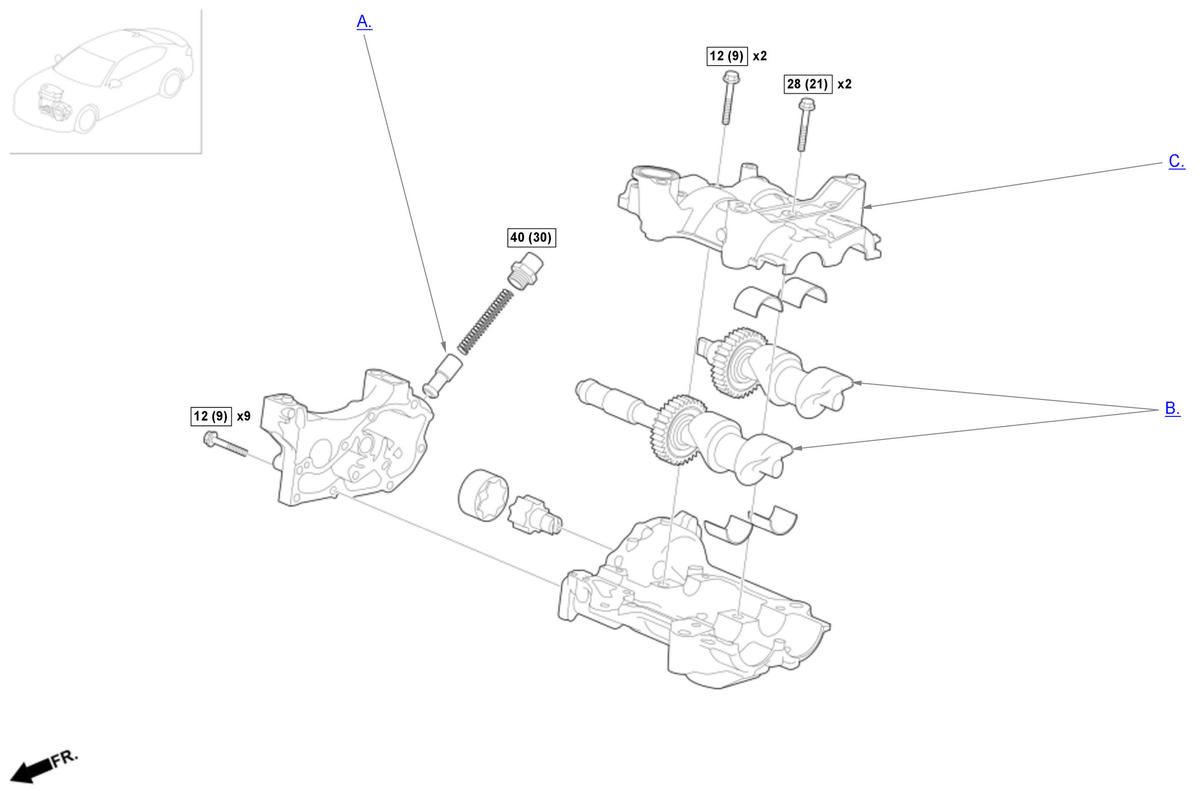

1. A.-

   Sub-Procedure

   NOTE:  Check the relief valve must slide freely in the housing bore. Replace if scored.

   Installation

   Lubricant Specifications

   Object	Type
   Relief Valve	Engine Oil

2. B.-

   Sub-Procedure

   Courtesy of HONDA, U.S.A., INC.

   Installation

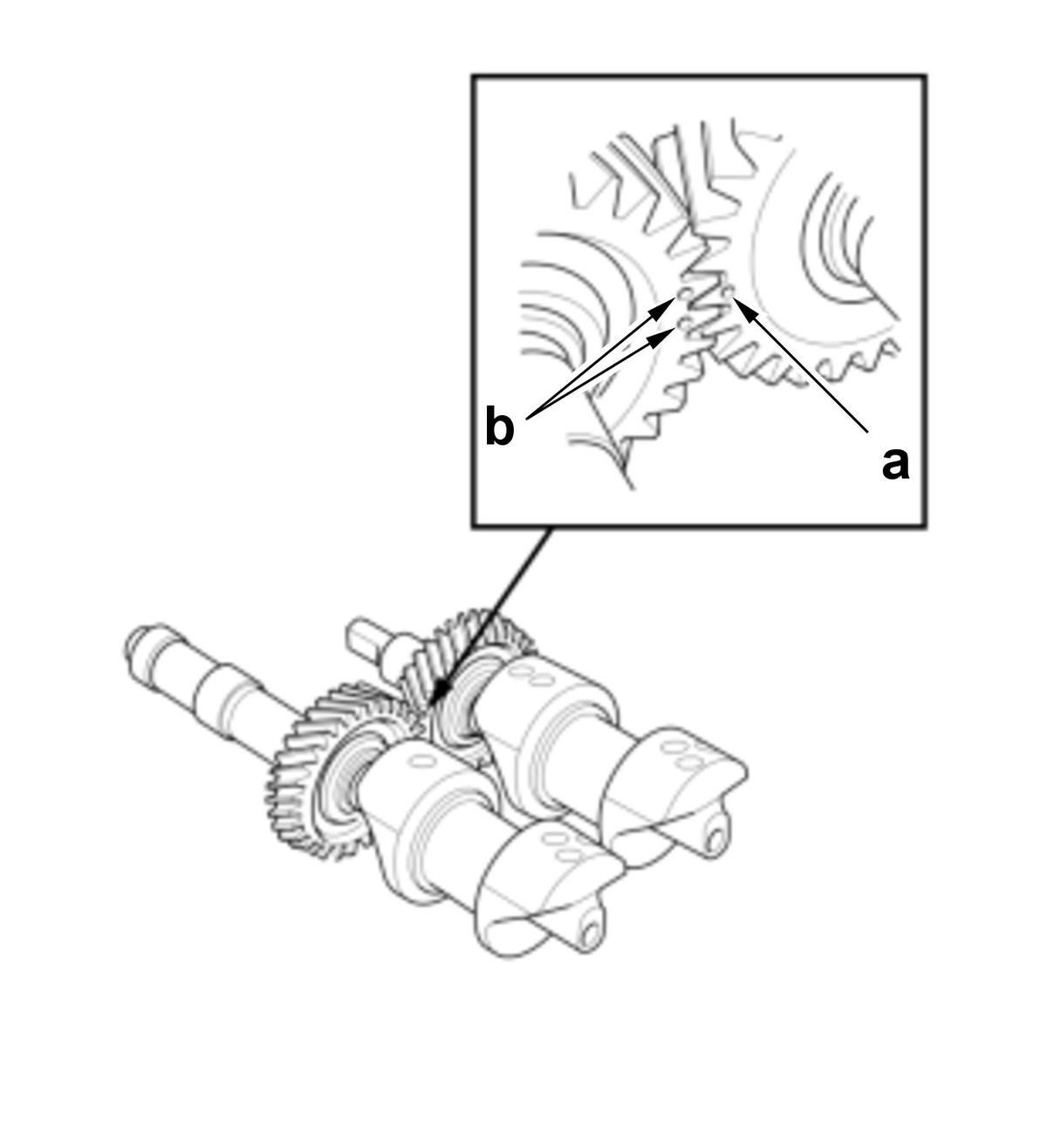

   • Align the punch mark on the rear balancer shaft (a) in the center of the two punch marks on the front balancer shaft (b), then install the balancer shafts on the lower balancer shaft holder.
3. C.-

   Sub-Procedure

   Installation

   Lubricant Specifications

   Position	Type
   Threads of M8 Bolts Flange of M8 Bolts	Engine Oil
