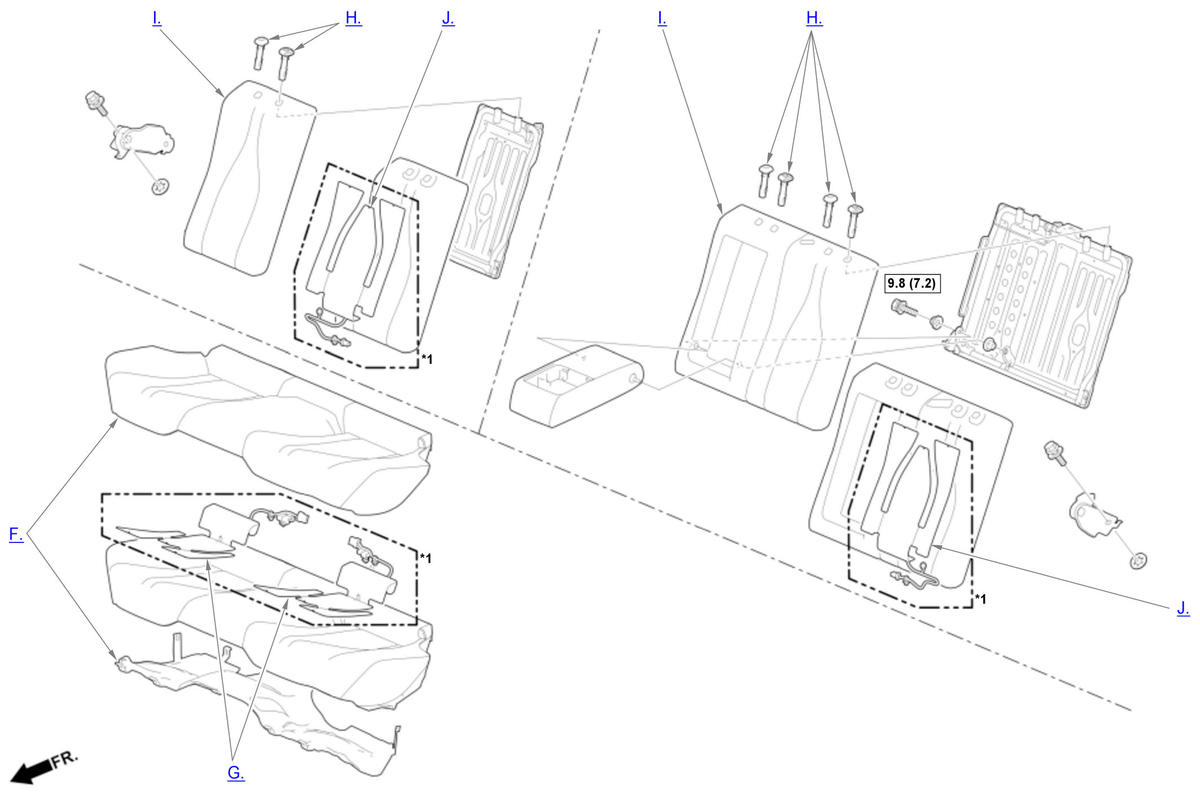

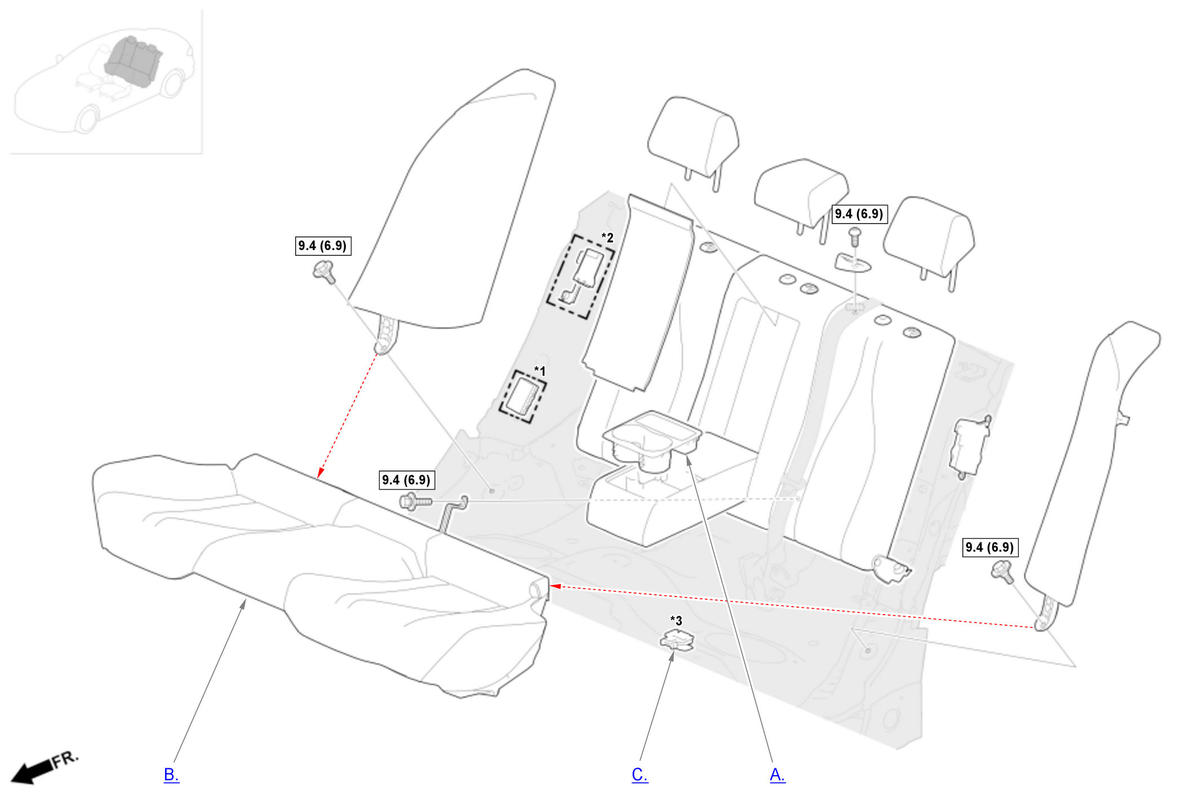

Repair Procedure

How to use this manual .

Courtesy of HONDA, U.S.A., INC.

: Torque, N.m (lbf.ft)

: Replace

: Warning/Caution

: Inspection/Adjustment

*: Learning

: ■SPL Tool

: Required Removal

Courtesy of HONDA, U.S.A., INC.

: Torque, N.m (lbf.ft)

: Replace

: Warning/Caution

: Inspection/Adjustment

*: Learning

: ■SPL Tool

: Required Removal

Courtesy of HONDA, U.S.A., INC.

: Torque, N.m (lbf.ft)

: Replace

: Warning/Caution

: Inspection/Adjustment

*: Learning

: ■SPL Tool

: Required Removal

1. A.-

   Sub-Procedure

   Figure 1

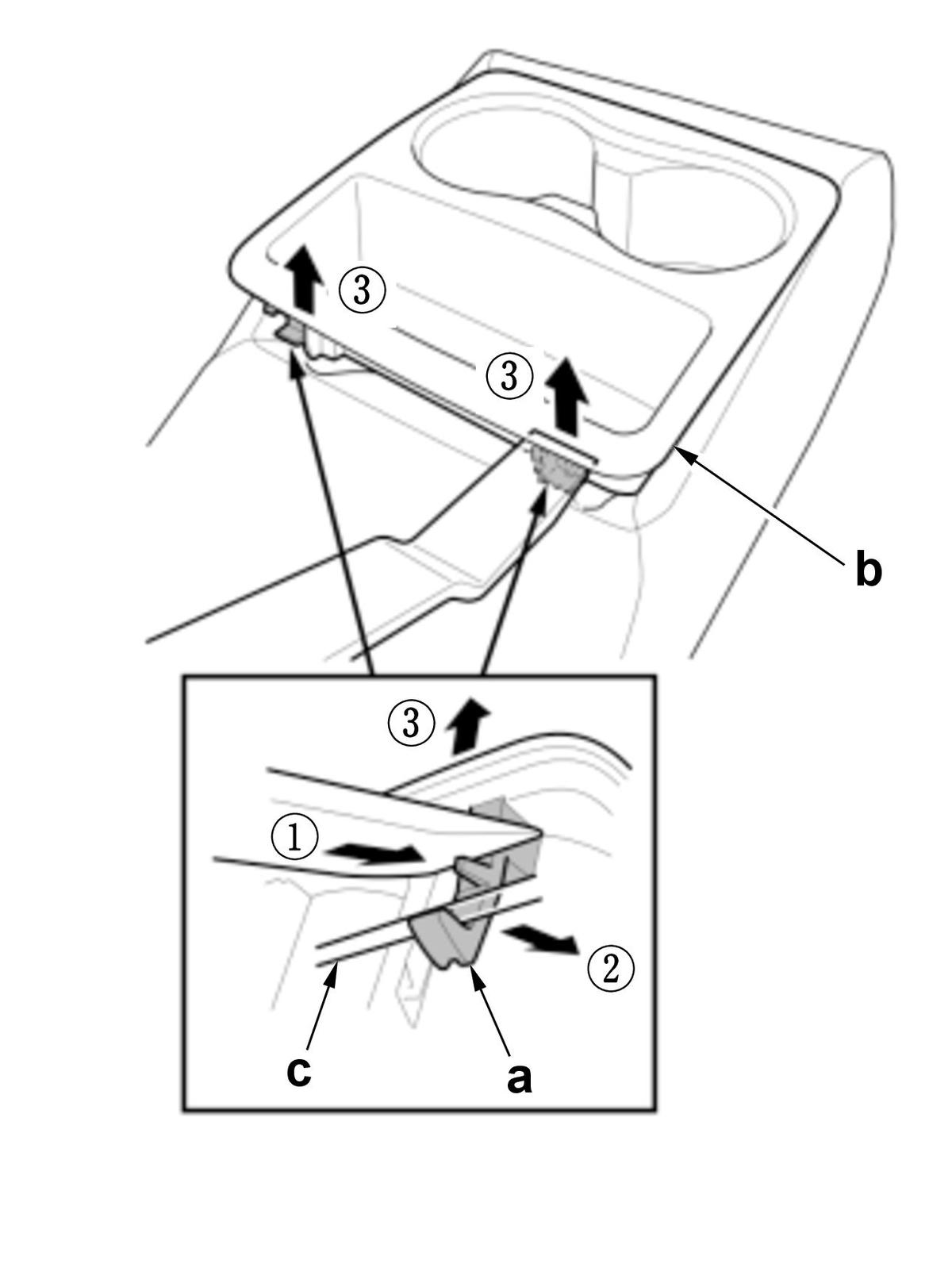

   1. Release the hooks (a) of the rear seat armrest beverage holder (b) from the rod (c) with the appropriate trim tool. (Figure 1)

   Courtesy of HONDA, U.S.A., INC.

   Removal

   Figure 2

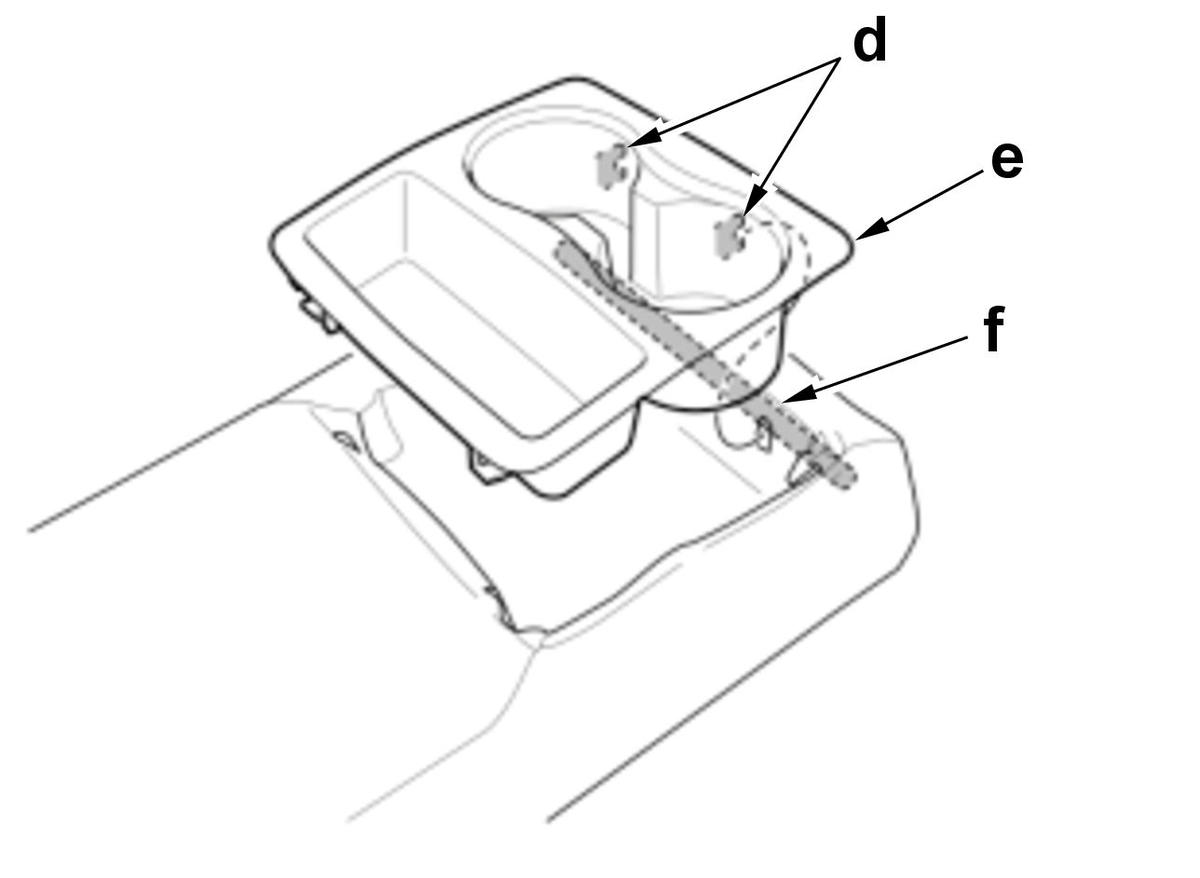

   2. Release the hooks (d) of the rear seat armrest beverage holder (e) from the rod (f), then remove the beverage holder. (Figure 2)

   Courtesy of HONDA, U.S.A., INC.

2. B.-

   Sub-Procedure

   Courtesy of HONDA, U.S.A., INC.

   Removal

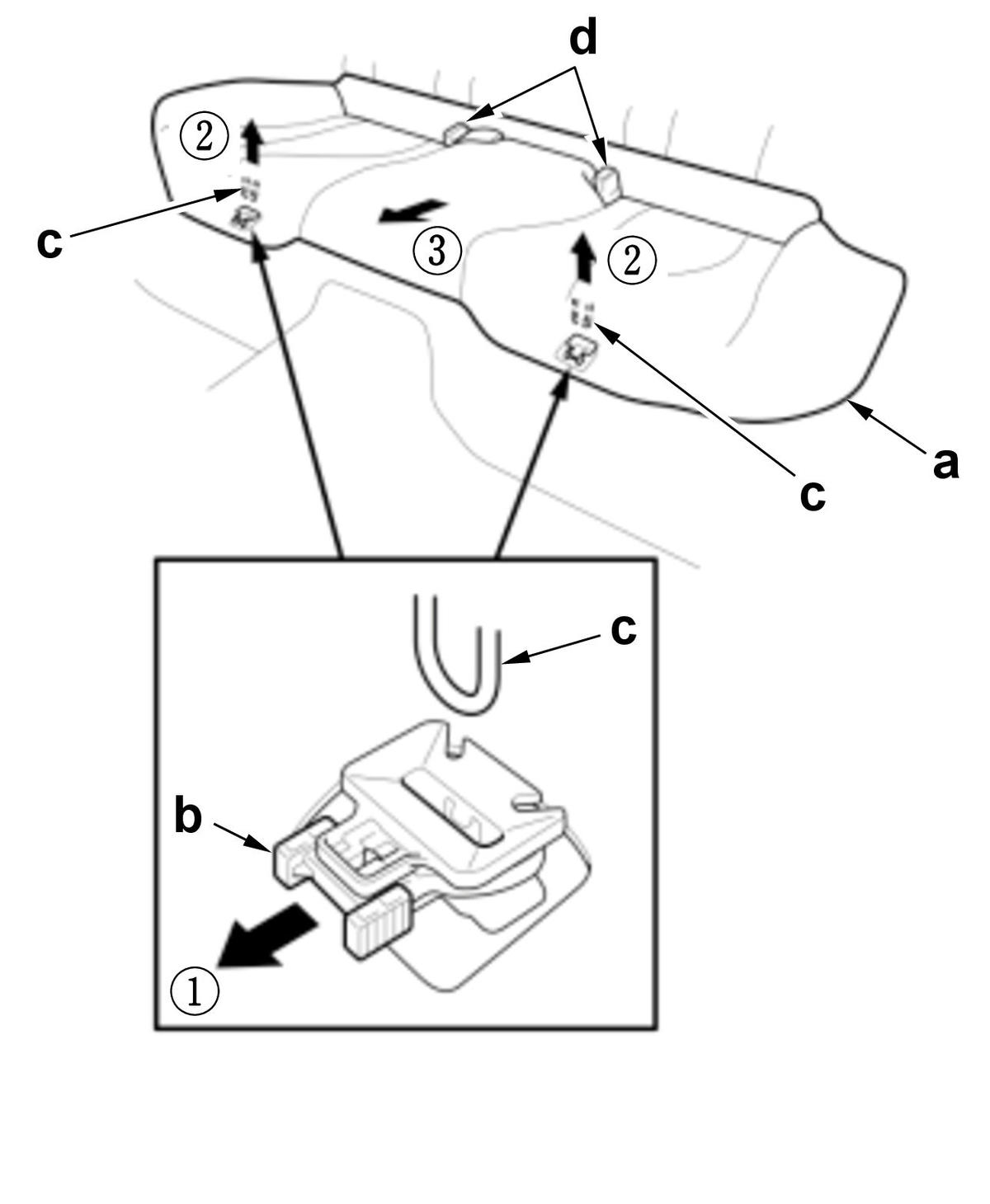

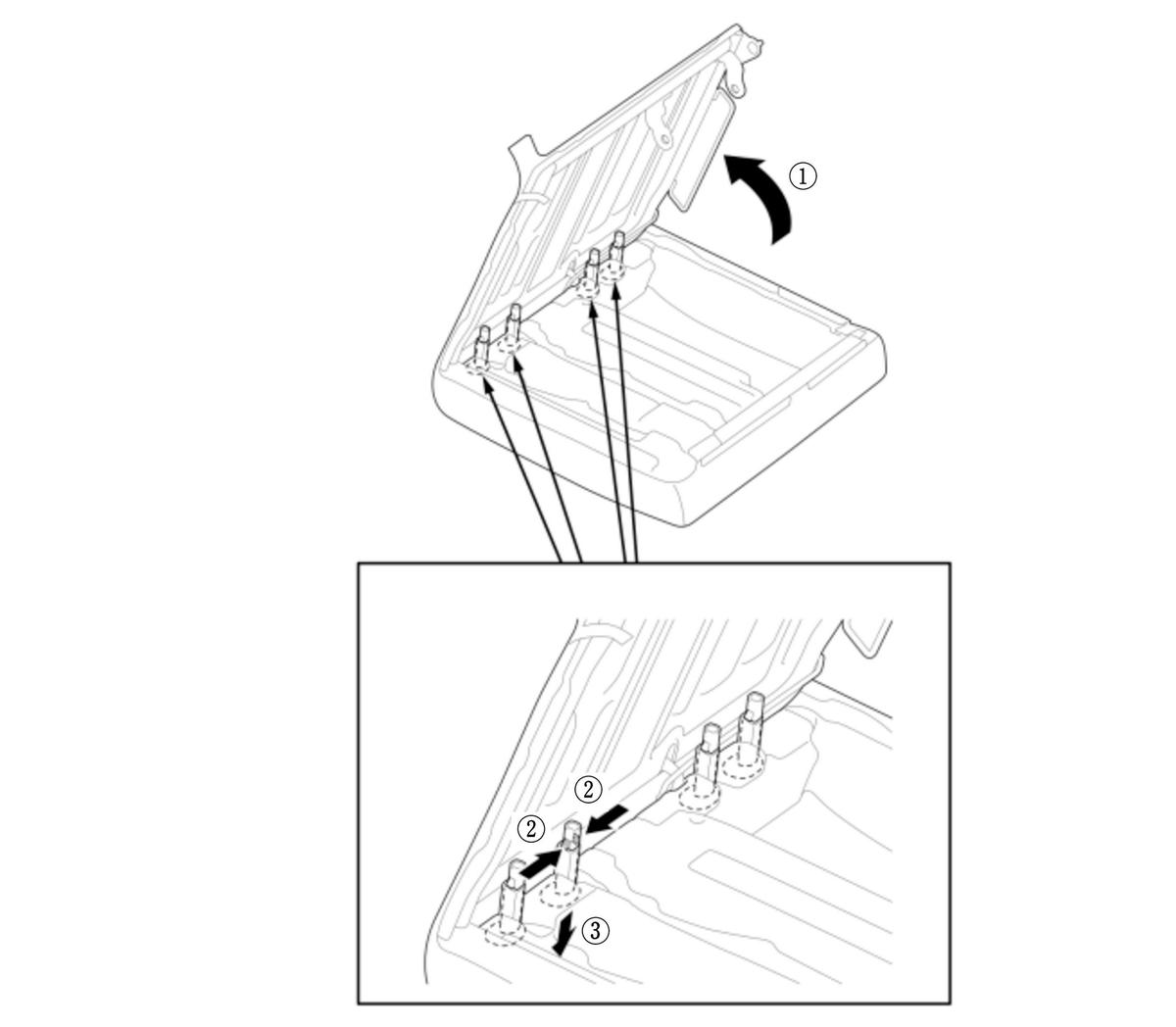

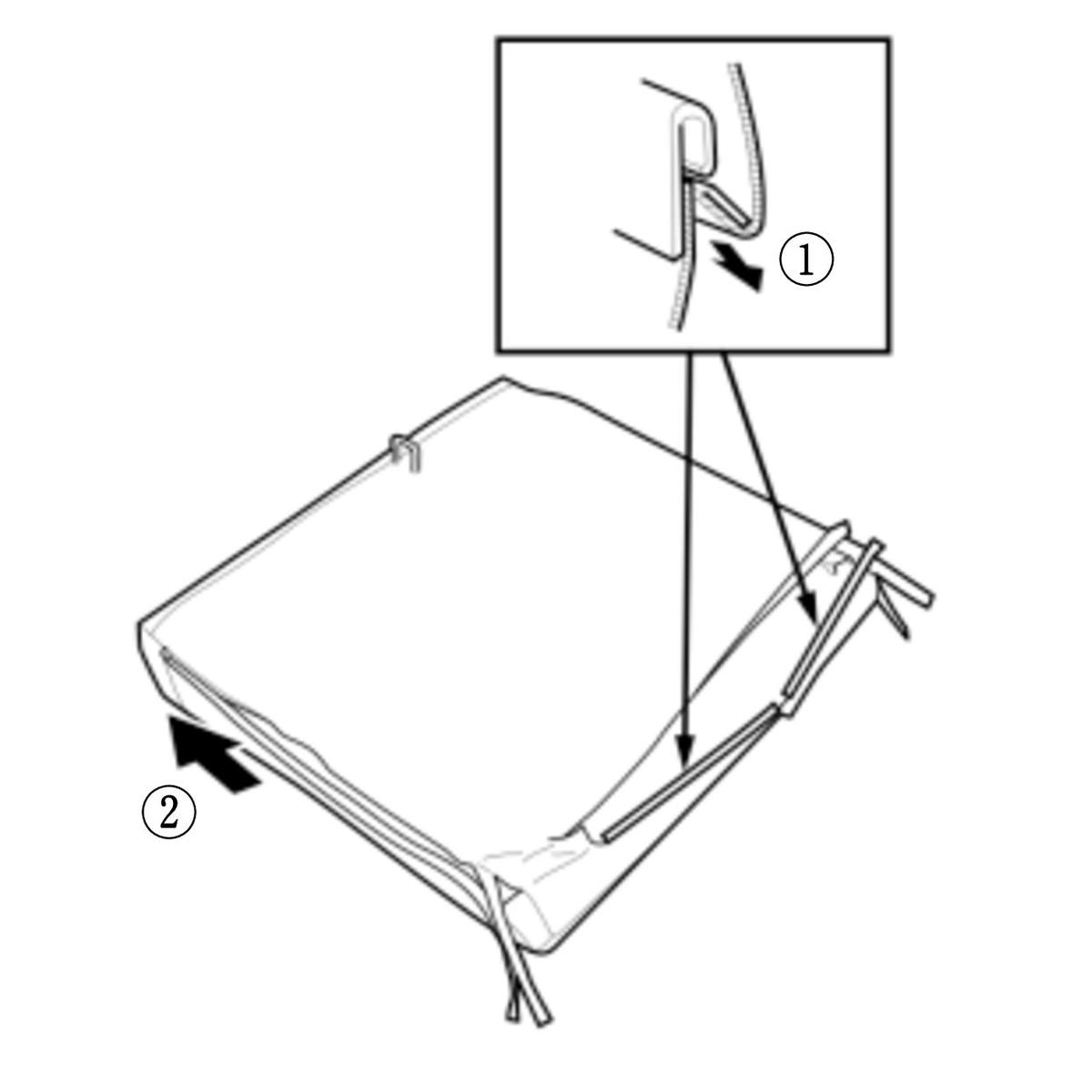

   1. While pushing down on the rear seat cushion (a), pull the seat hook handles (b) to release the hooks (c).

   2. Pull back the rear seat cushion to pull off the seat belt buckles (d) from the slits in the rear seat cushion, and remove it.

3. C.-

   Sub-Procedure

   Courtesy of HONDA, U.S.A., INC.

   Removal

   • Refer to the figure.

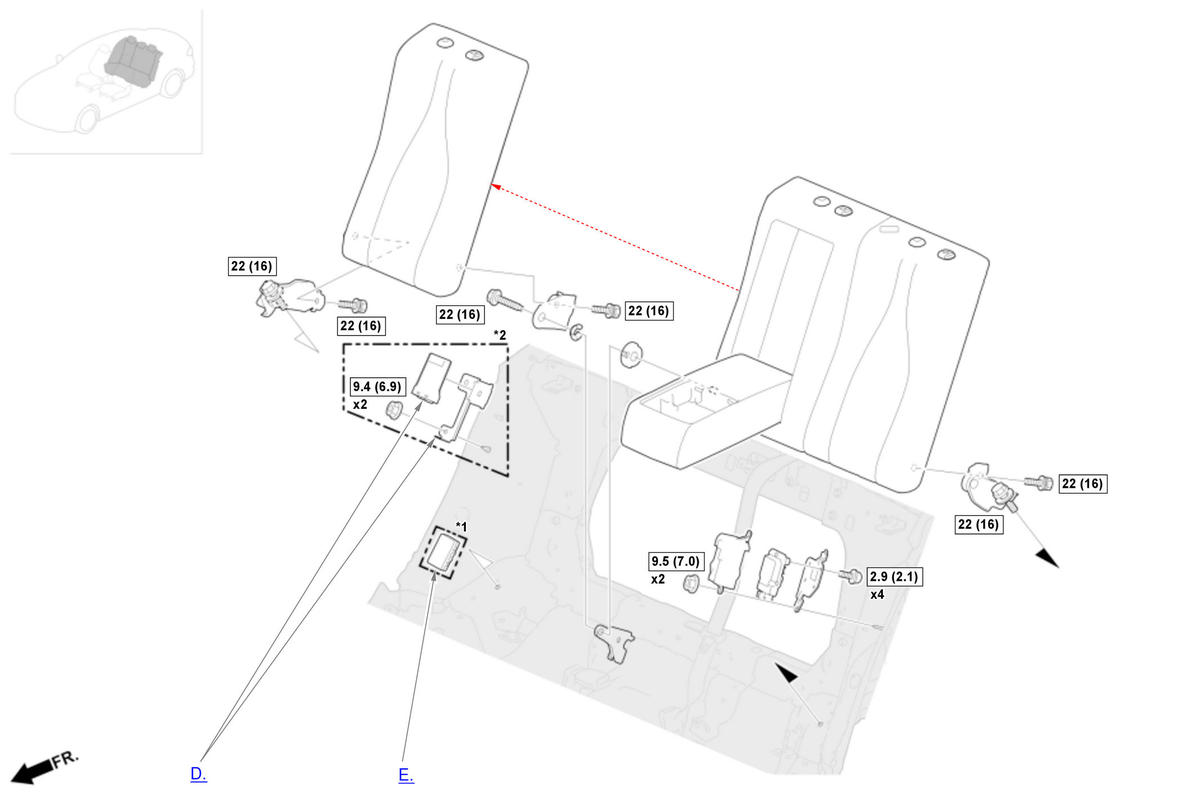

4. D.-

   Sub-Procedure

   Courtesy of HONDA, U.S.A., INC.

   Removal

   • Refer to the figure.
5. E.-

   Sub-Procedure

   Courtesy of HONDA, U.S.A., INC.

   Removal

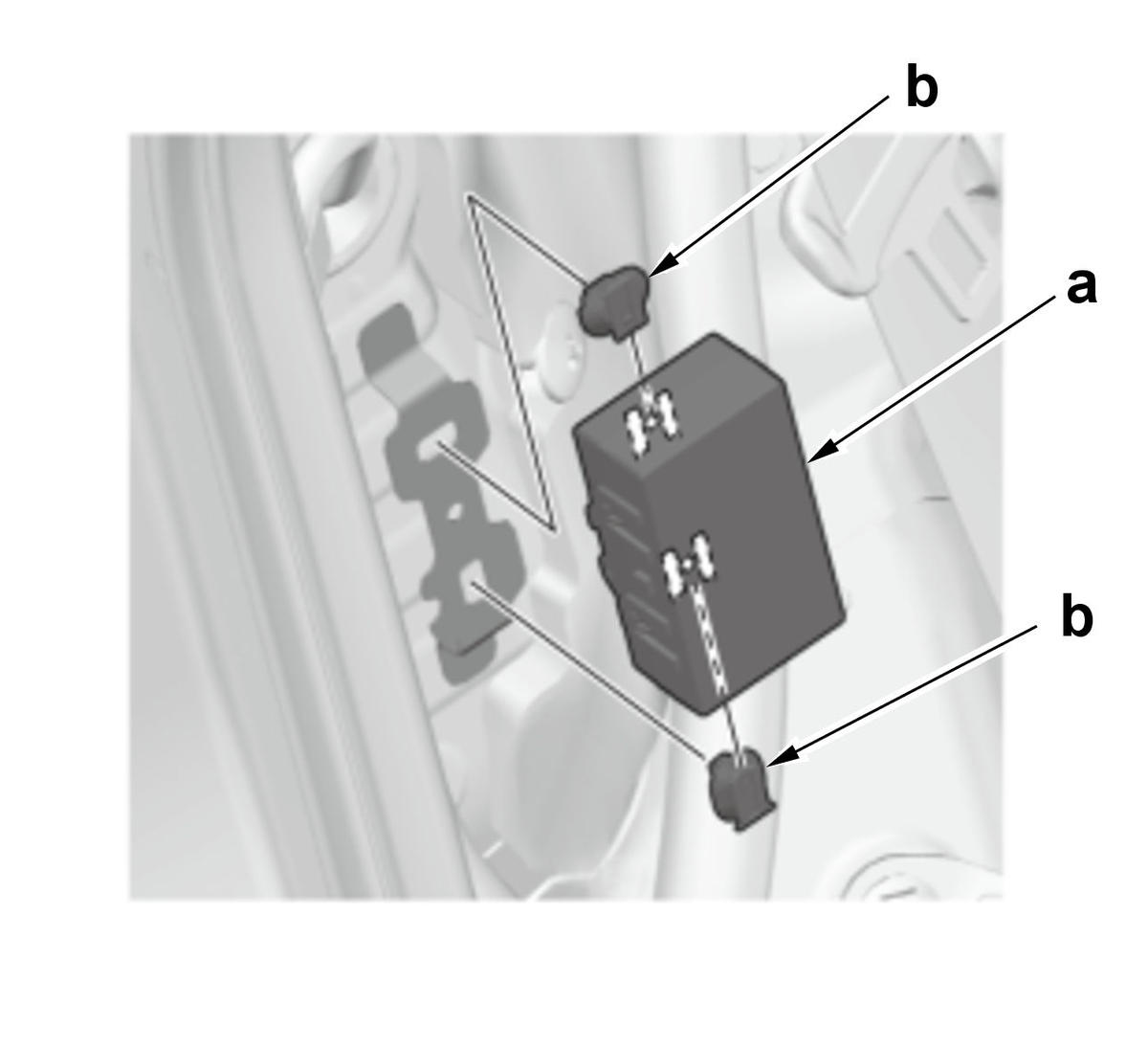

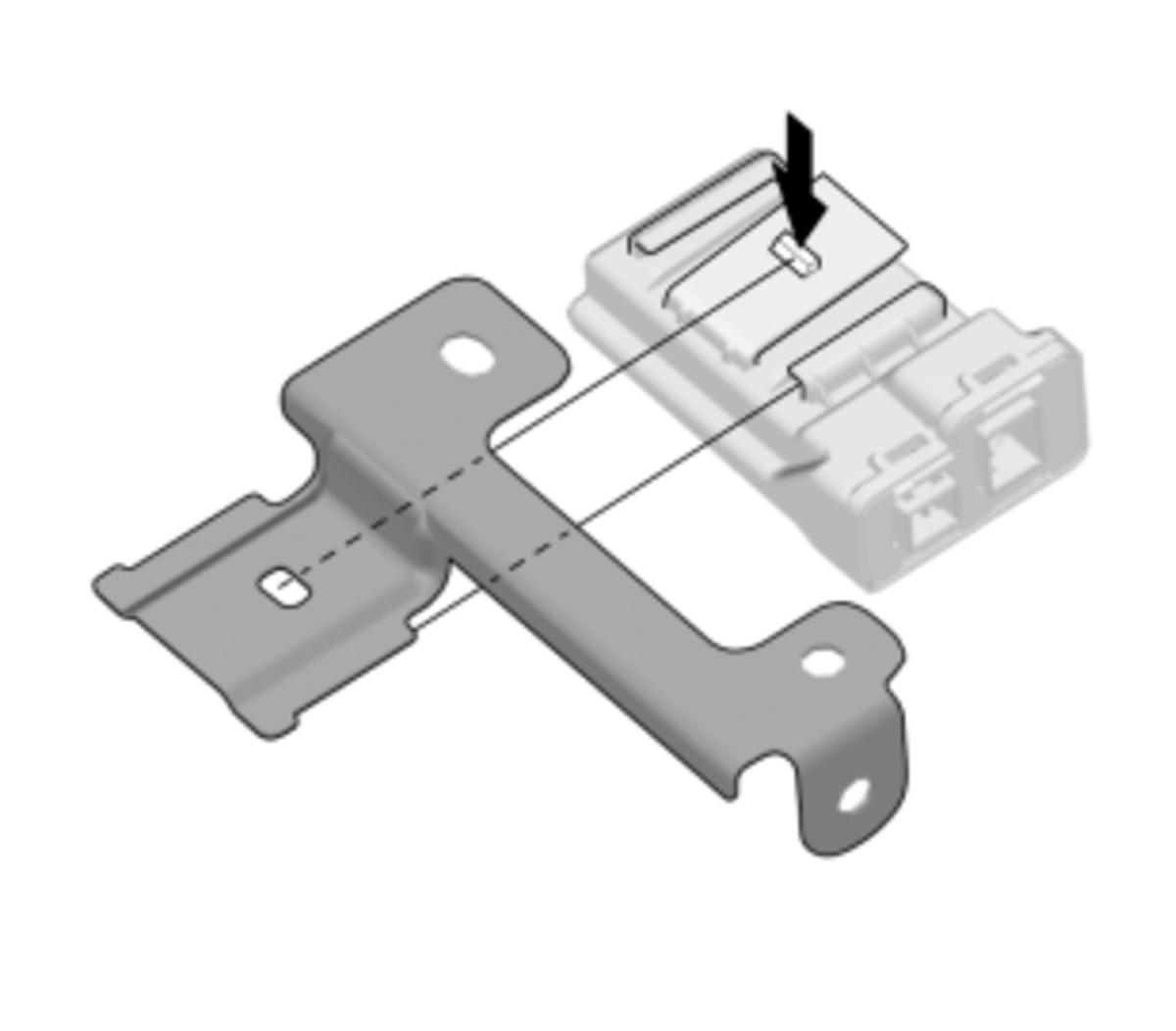

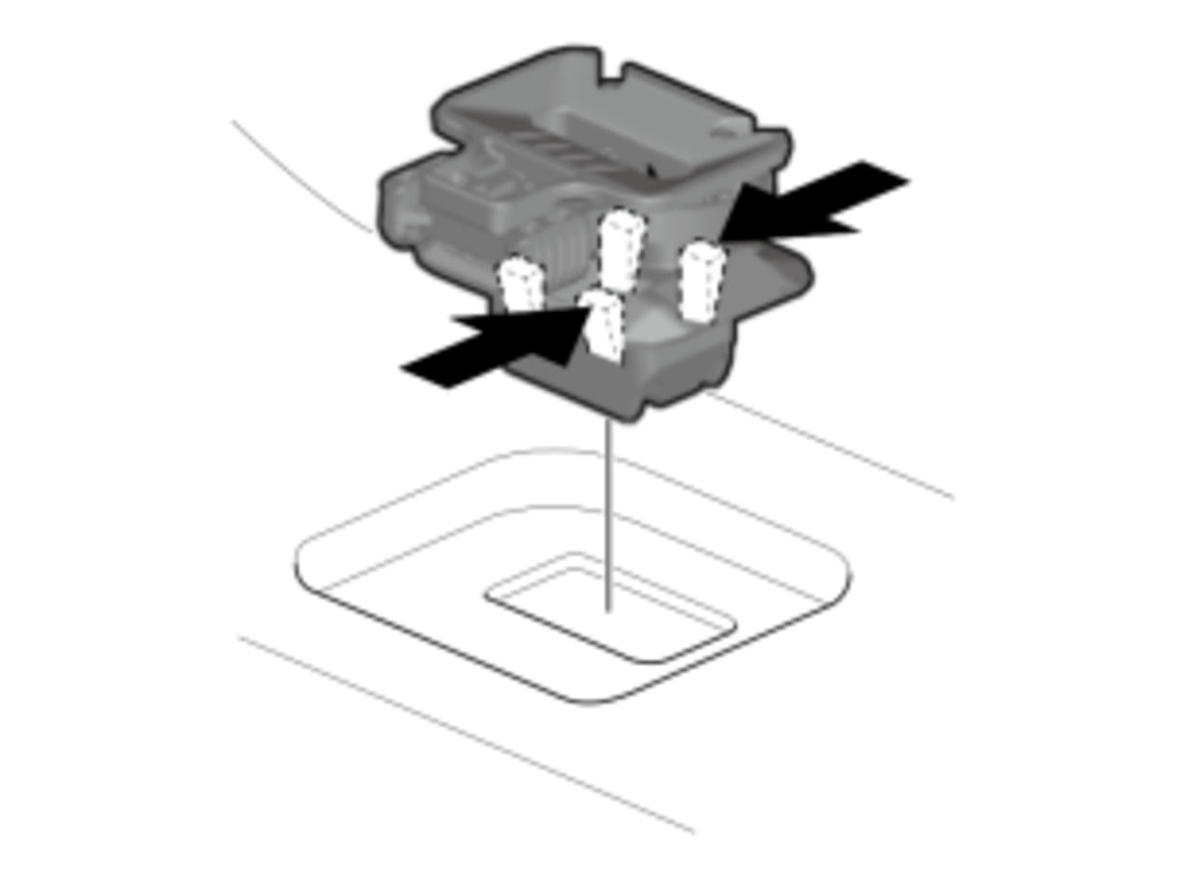

   1. Remove the seat heater control unit (a) with the clips (b).

   2. If necessary, remove the clip.

6. F.-

   Sub-Procedure

   Removal

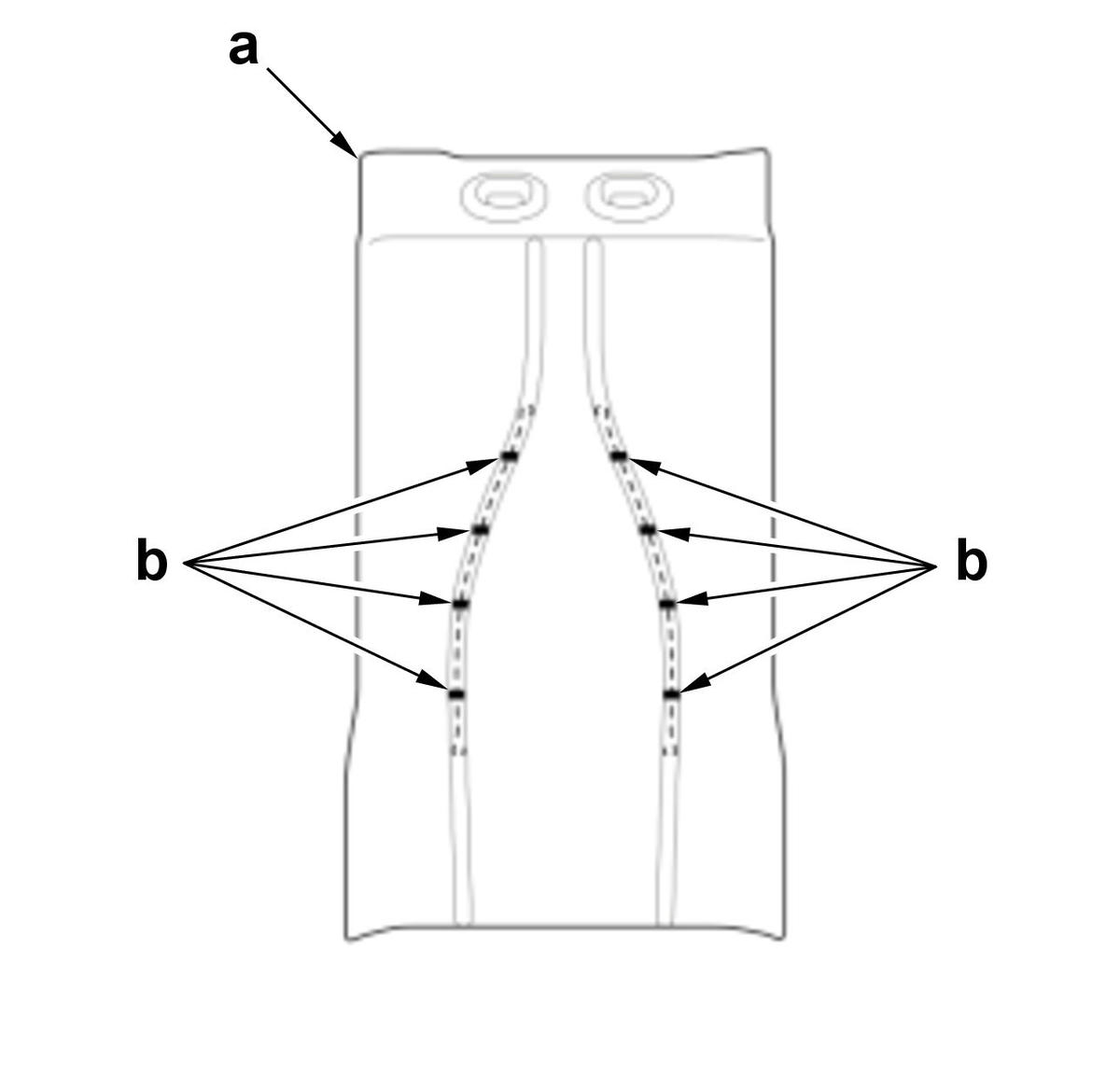

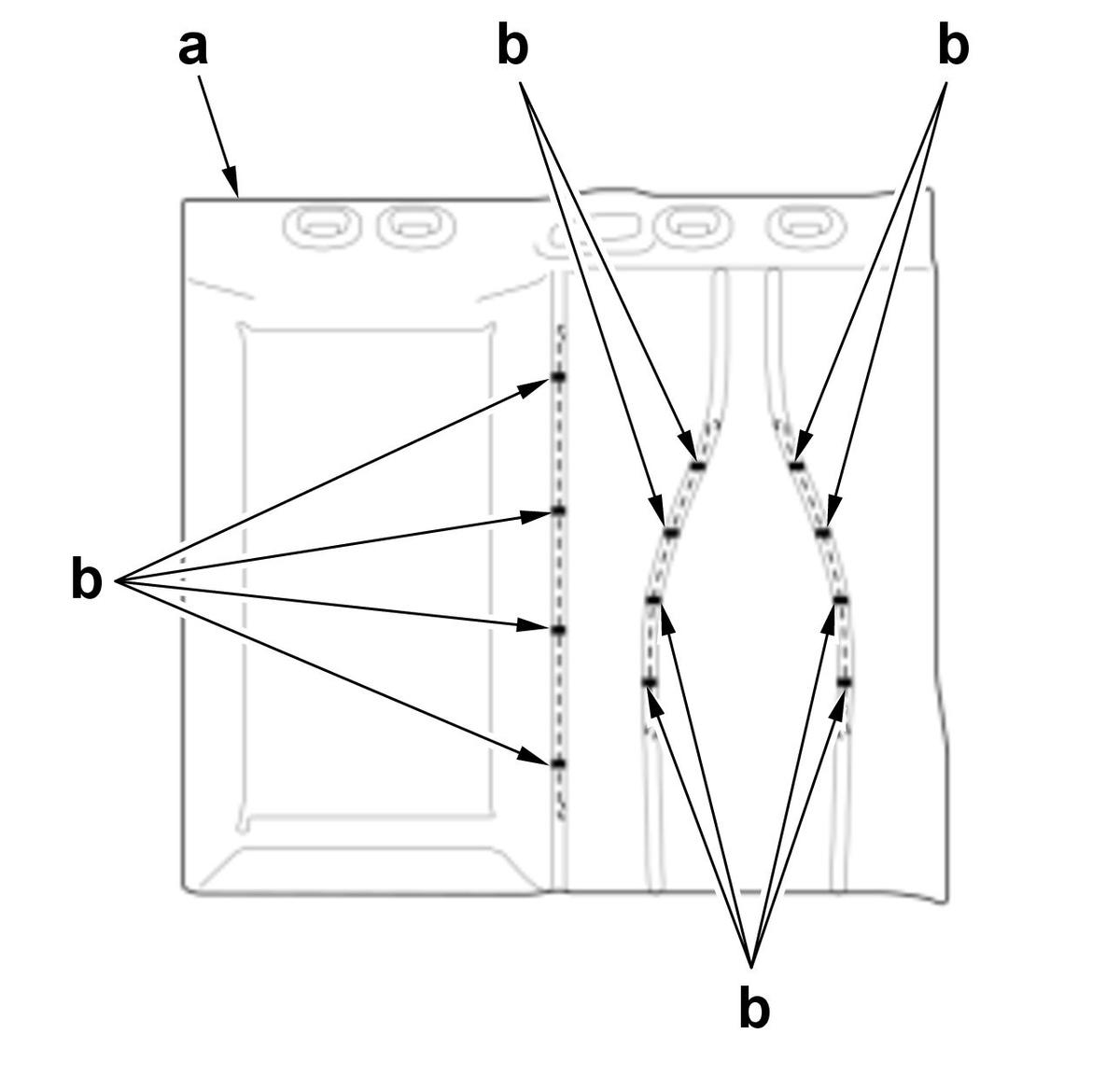

   1. Remove the upholstery rings (a), and then remove the rear seat cushion cover (b). (Figure 1 and 2)

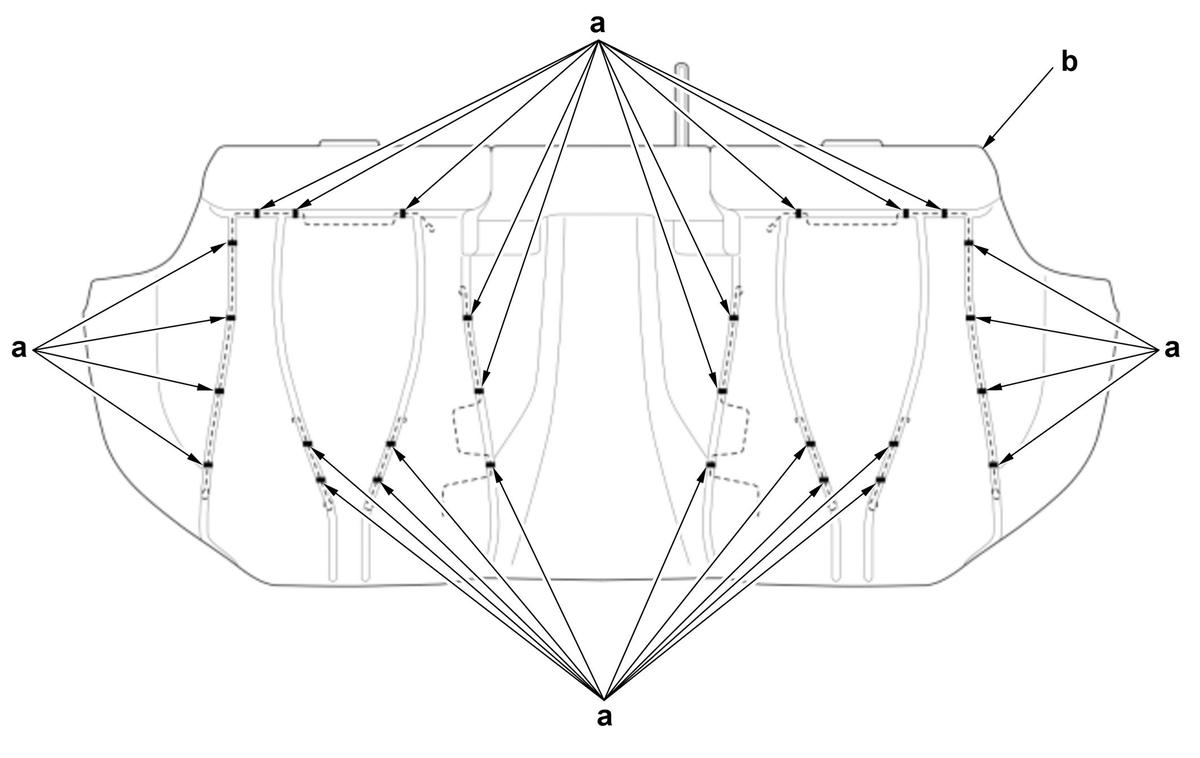

   Figure 1

   Courtesy of HONDA, U.S.A., INC.

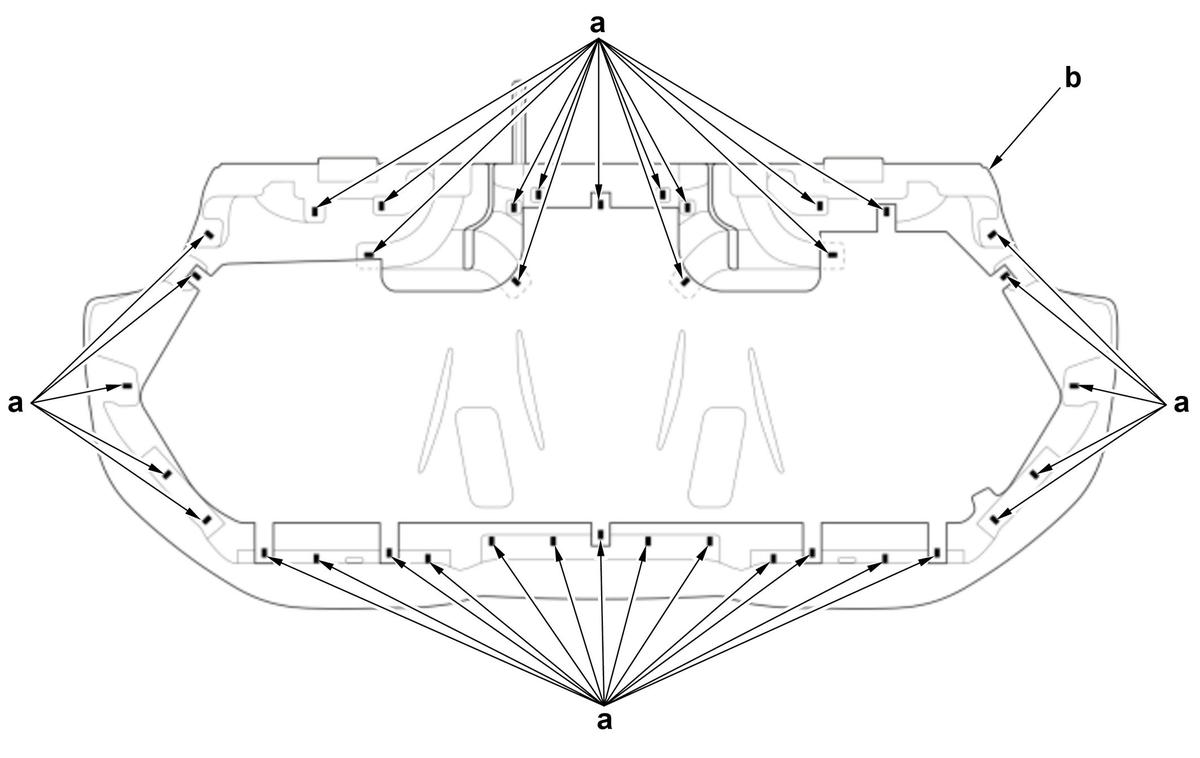

   Figure 2

   Courtesy of HONDA, U.S.A., INC.

   Figure 3

   Installation

   • Refer to the figure 3.

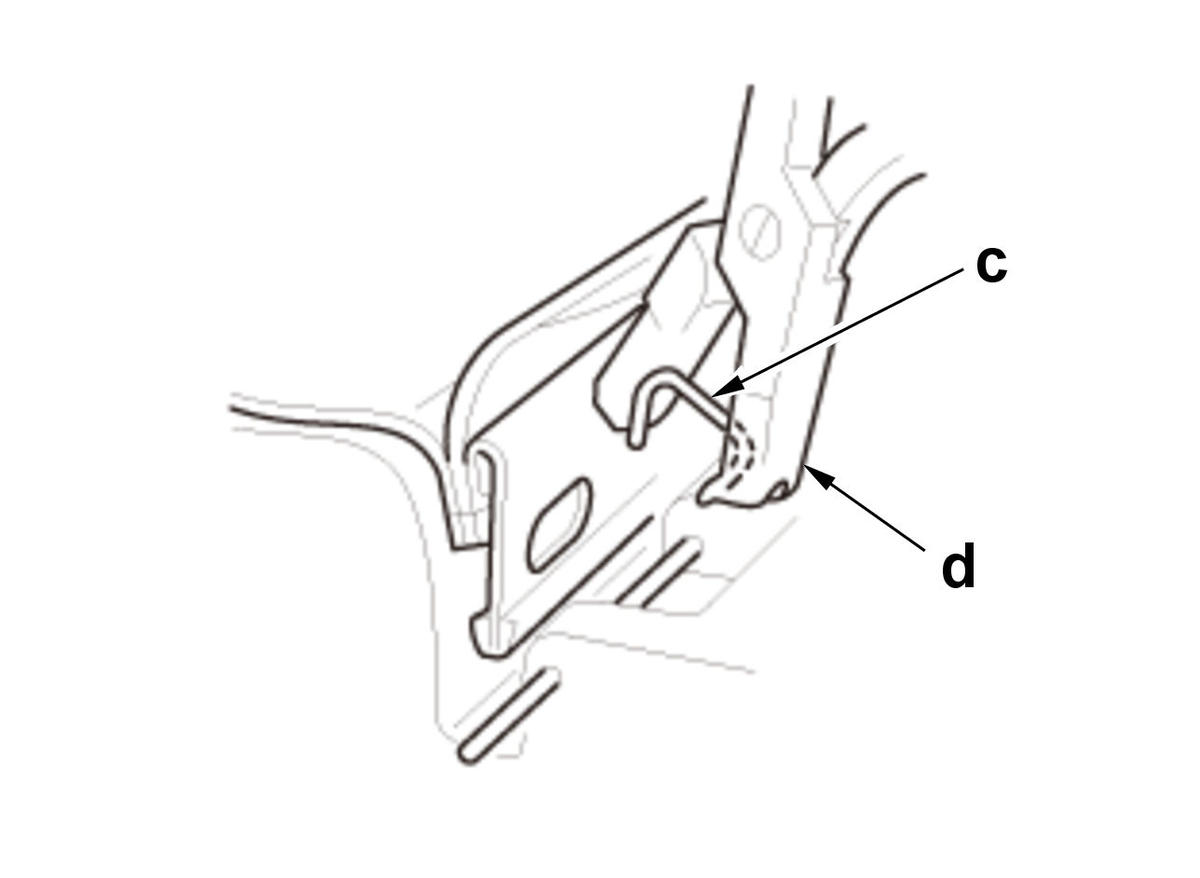

     NOTE:  Replace all of the upholstery rings (c) with new ones, and fasten the rear seat cushion cover to the wires using pliers (d).

   Tool Details (Figure 3)

   Name
   d	Pliers (Commercially Available)

   Courtesy of HONDA, U.S.A., INC.

7. G.-

   Sub-Procedure

   Removal

   NOTE:  The rear seat cushion heater is glued to the rear seat-back pad. When you are removing it, take care not to damage the rear seat cushion pad.

   Installation

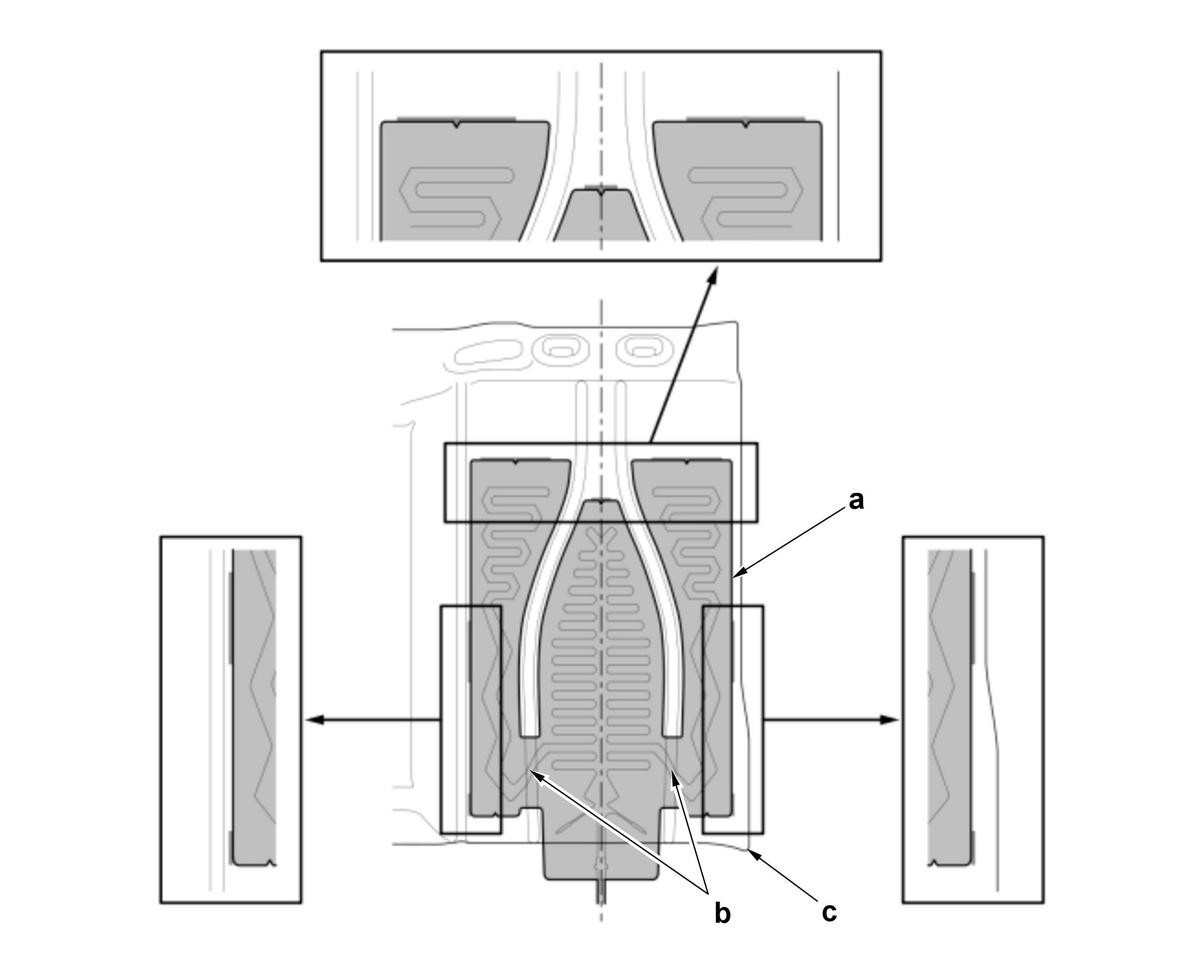

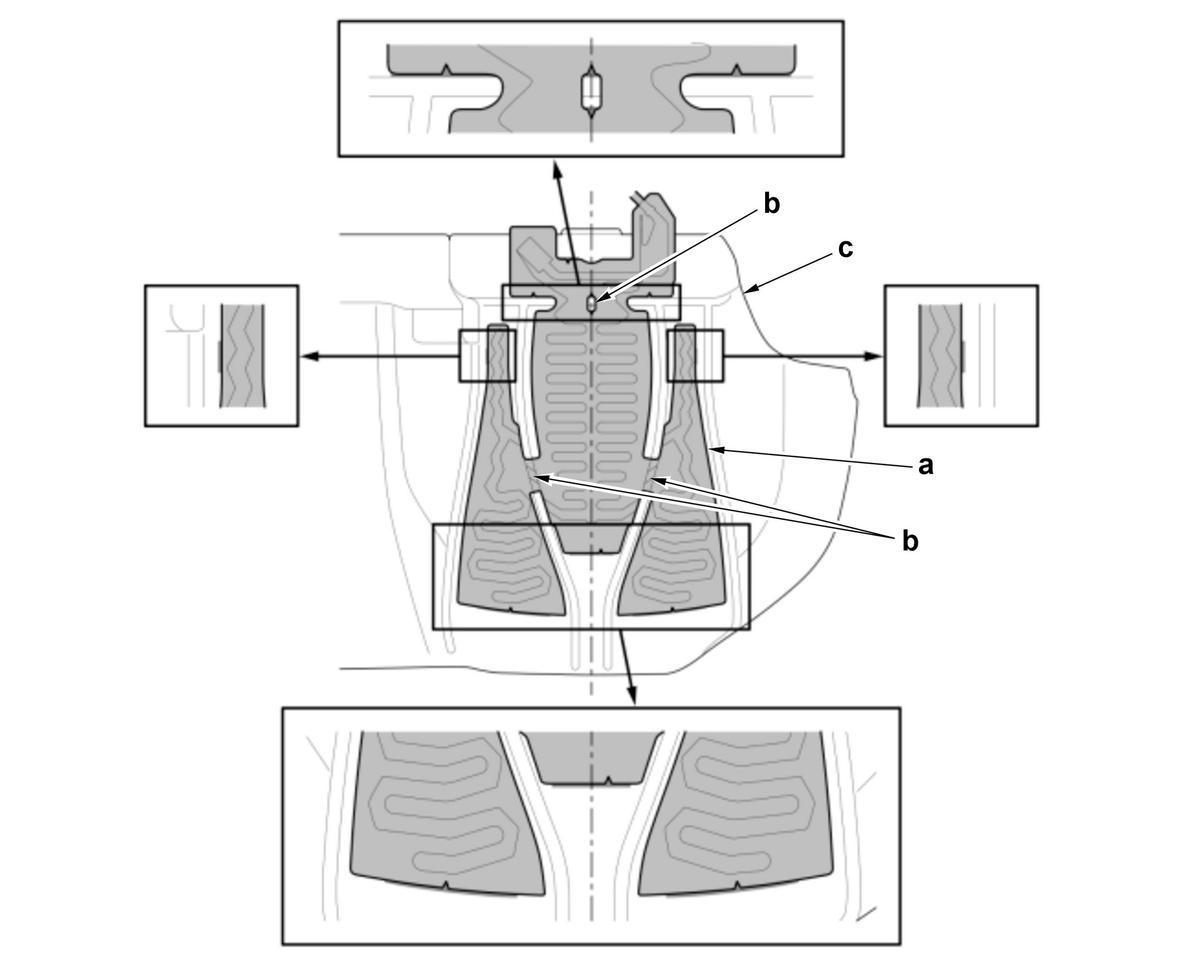

   • Attach the seat cushion heater (a) to the reference position.

     NOTE:  Once the seat cushion heater is in place on the seat cushion, tuck the bridge folds (b) of the seat cushion heater evenly into the grooves of the seat cushion pad (c).

   Courtesy of HONDA, U.S.A., INC.

8. H.-

   Sub-Procedure

   Removal

   • Refer to the figure 1 and 2.

   Figure 1

   Courtesy of HONDA, U.S.A., INC.

   Figure 2

   Courtesy of HONDA, U.S.A., INC.

9. I.-

   Sub-Procedure

   Figure 1

   1. Refer to the figure 1.

   Courtesy of HONDA, U.S.A., INC.

   Removal

   Figure 2 (Left Side)

   Courtesy of HONDA, U.S.A., INC.

   Figure 3 (Right Side)

   Courtesy of HONDA, U.S.A., INC.

   2. Pull back the edge of the rear seat-back cover (a) all the way around, and release the upholstery rings (b), then remove the rear seat-back cover. (Figure 2 and 3)

   Figure 4

   Courtesy of HONDA, U.S.A., INC.

   Installation

   • Refer to the figure 4.

     NOTE:  Replace all of the upholstery rings (c) with new ones, and fasten the rear seat-back cover to the wires using pliers (d).

   Tool Details (Figure 2)

   Name
   d	Pliers (Commercially Available)

10. J.-

    Sub-Procedure

    Removal

    NOTE:  The rear seat-back heater is glued to the rear seat-back pad. When you are removing it, take care not to damage the rear seat-back pad.

    Installation

    • Attach the seat-back heater (a) to the reference position.

      NOTE:  Once the seat-back heater is in place on the seat-back, tuck the bridge folds (b) of the seat-back heater evenly into the grooves of the seat-back pad (c).

    Courtesy of HONDA, U.S.A., INC.
