Repair Procedure

How to use this manual .

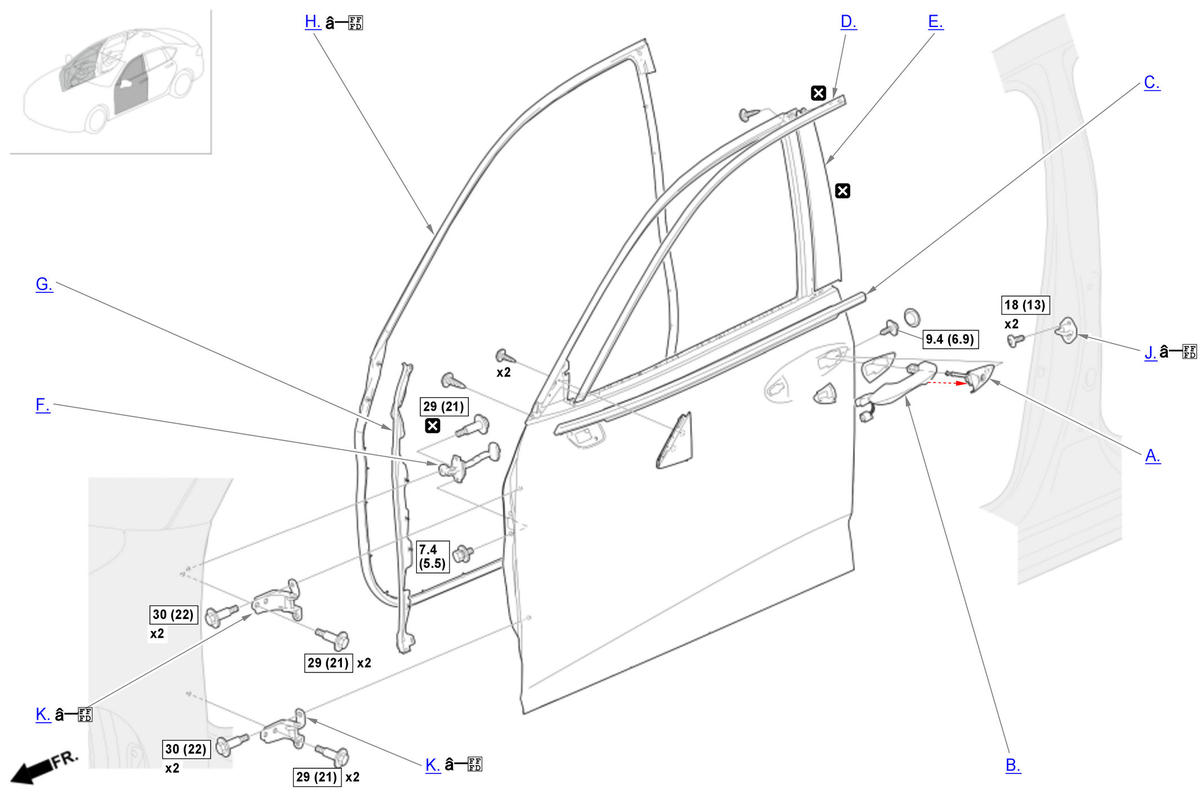

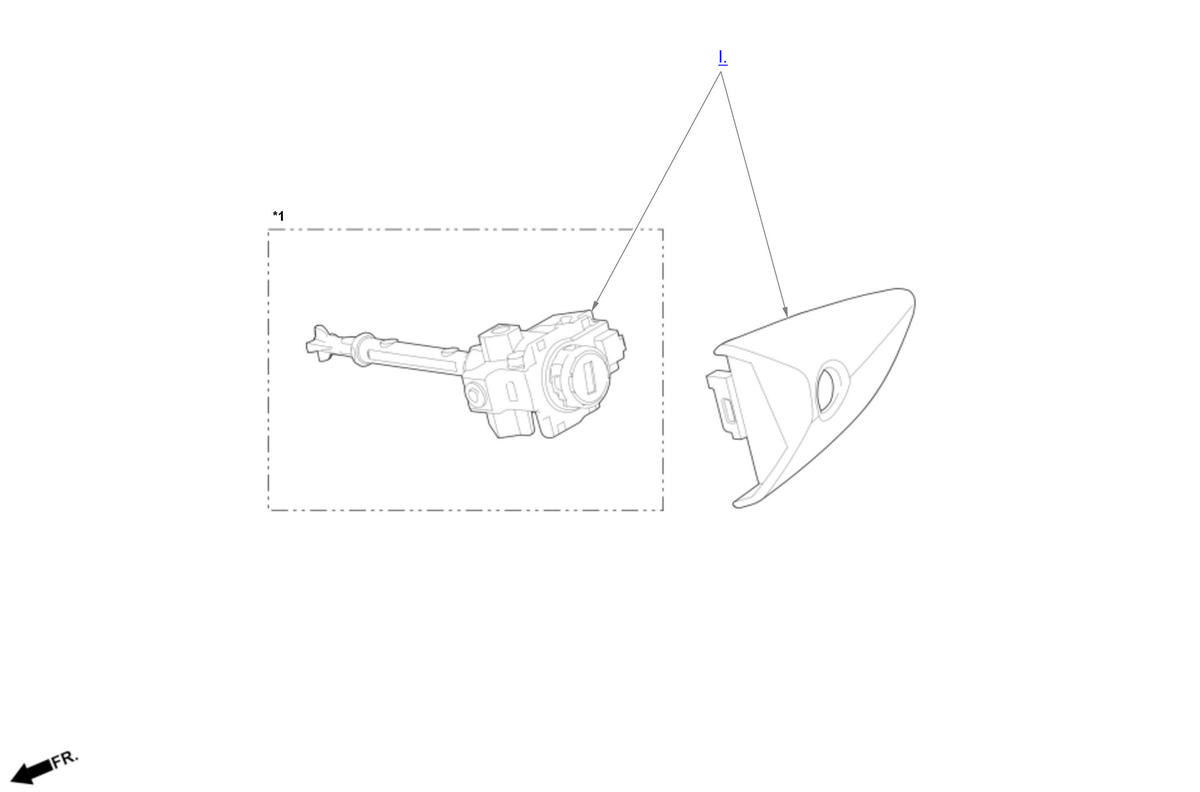

NOTE:  In the illustration, only one side is shown because the component parts and the removal/installation procedure are the same.

Courtesy of HONDA, U.S.A., INC.

: Torque, N.m (lbf.ft)

: Replace

: Warning/Caution

: Inspection/Adjustment

*: Learning

■: SPL Tool

: Required Removal

Courtesy of HONDA, U.S.A., INC.

: Torque, N.m (lbf.ft)

: Replace

: Warning/Caution

: Inspection/Adjustment

*: Learning

■: SPL Tool

: Required Removal

1. A.-

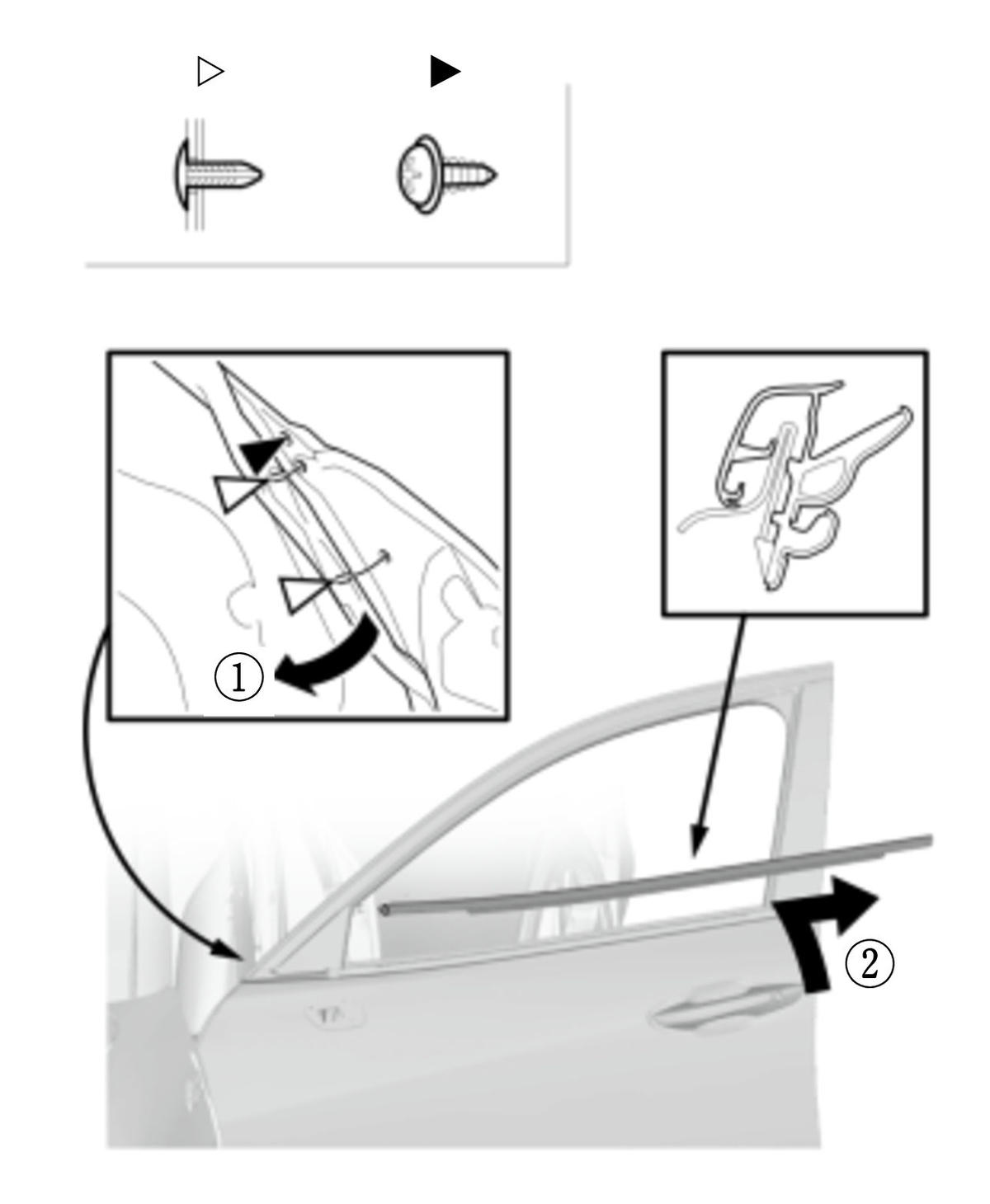

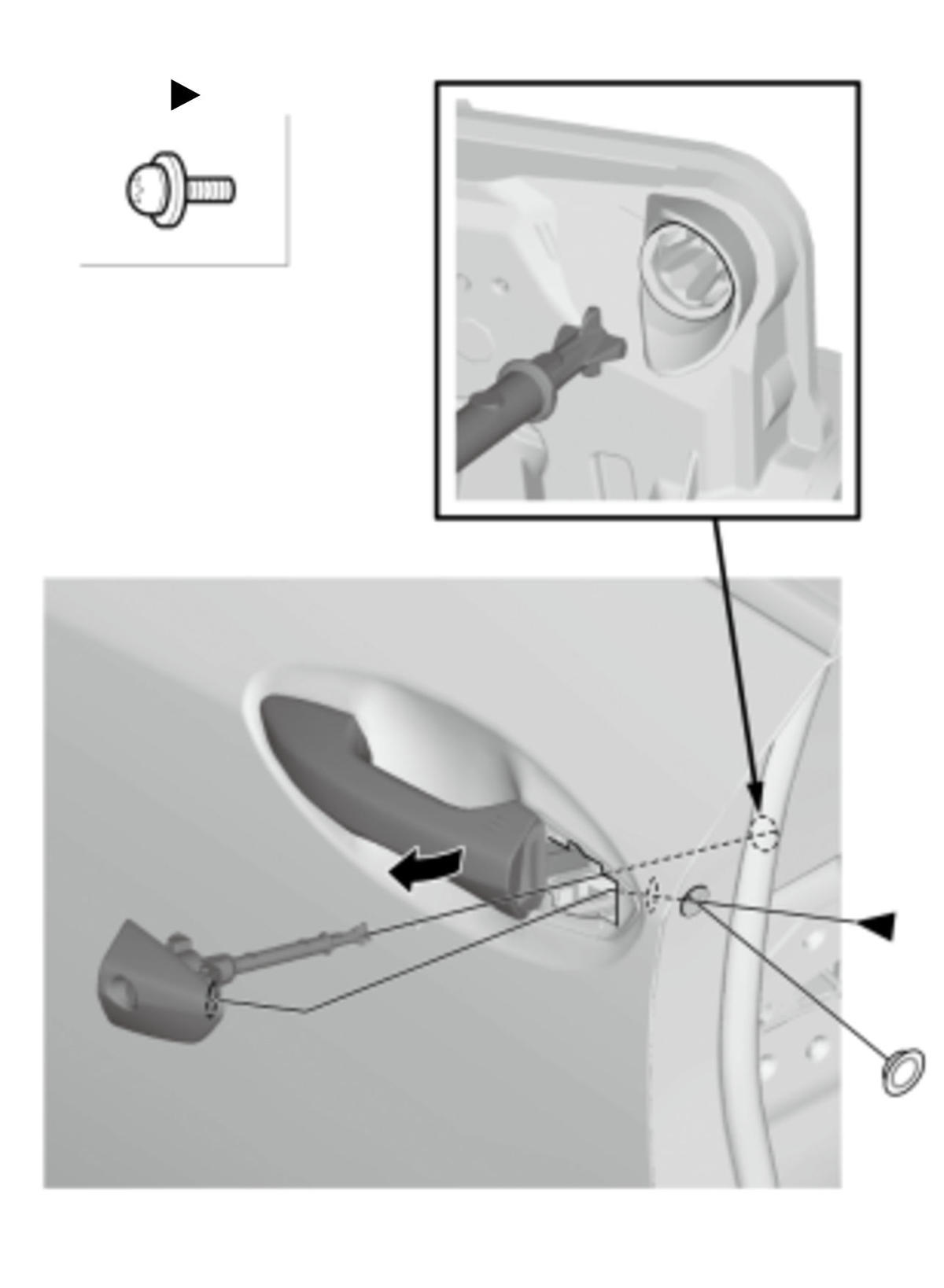

   Figure 1

   Courtesy of HONDA, U.S.A., INC.

   Sub-Procedure

   Removal

   • Refer to the figure 1.

   Figure 2

   Courtesy of HONDA, U.S.A., INC.

   Installation

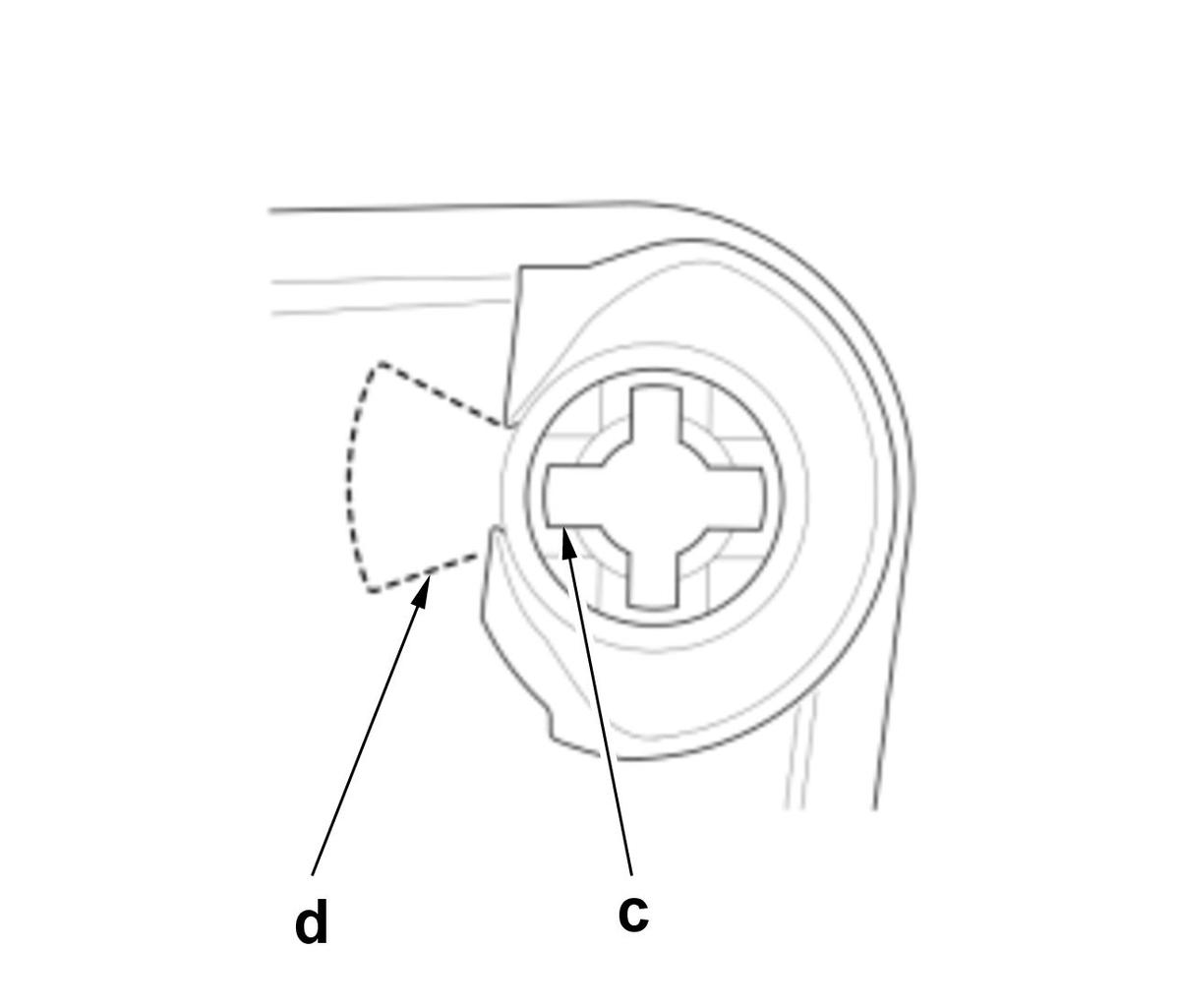

   NOTE:  Make sure the groove (c) is within the range (d). (Figure 2)

2. B.-

   Key Information

   Do the following before starting your work.

   Remove:

   • Front Door Panel Barrier B

   Sub-Procedure

   Removal

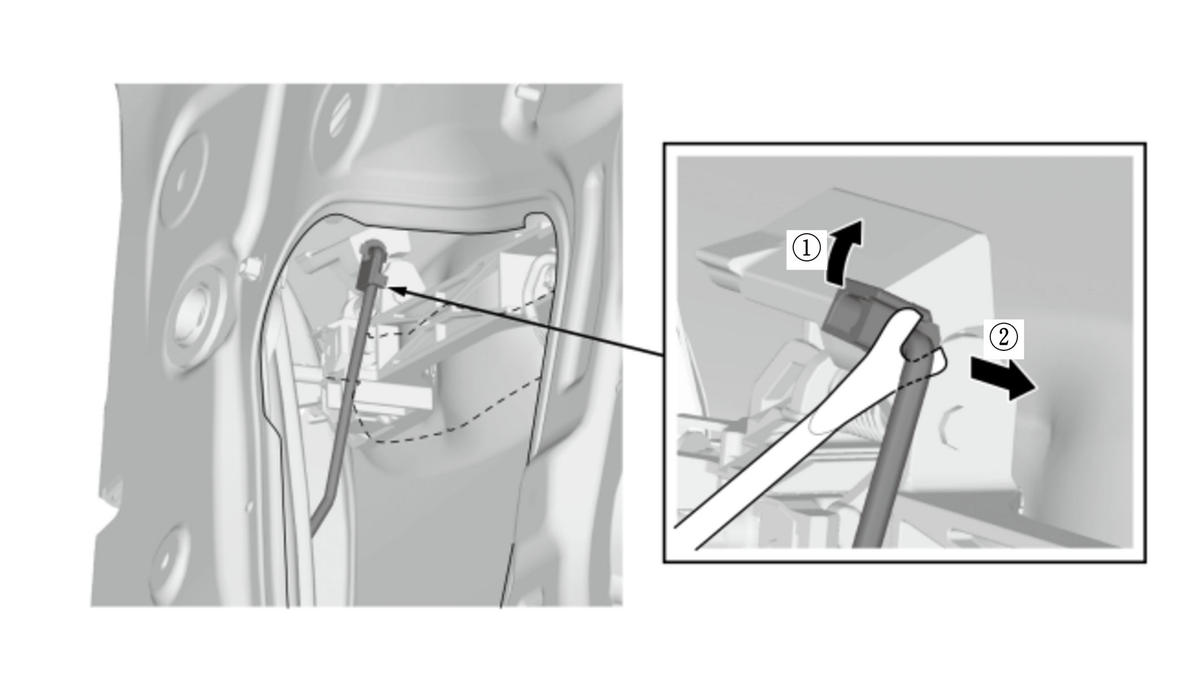

   • Refer to the figure 1 and 2.

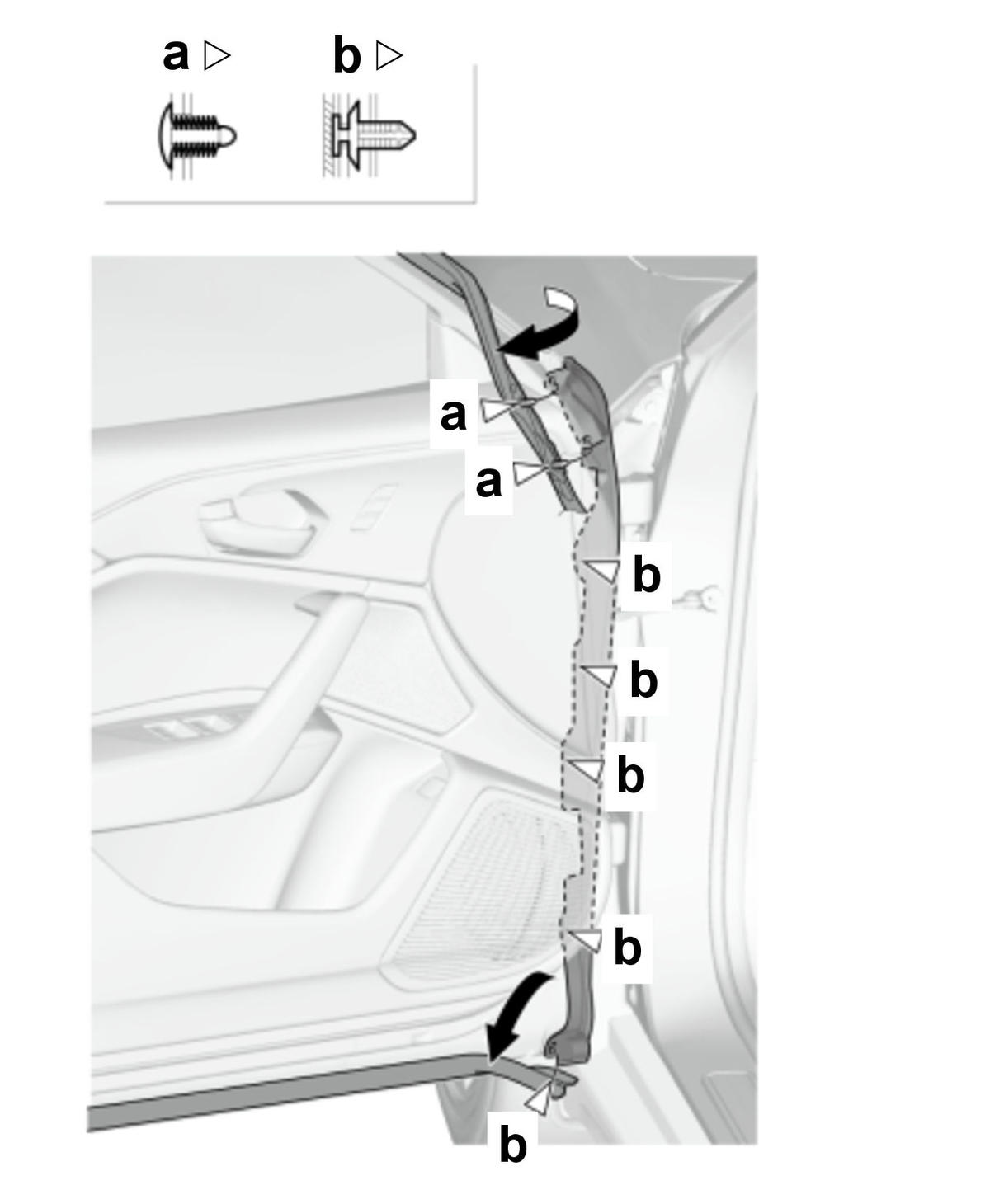

   Figure 1

   Courtesy of HONDA, U.S.A., INC.

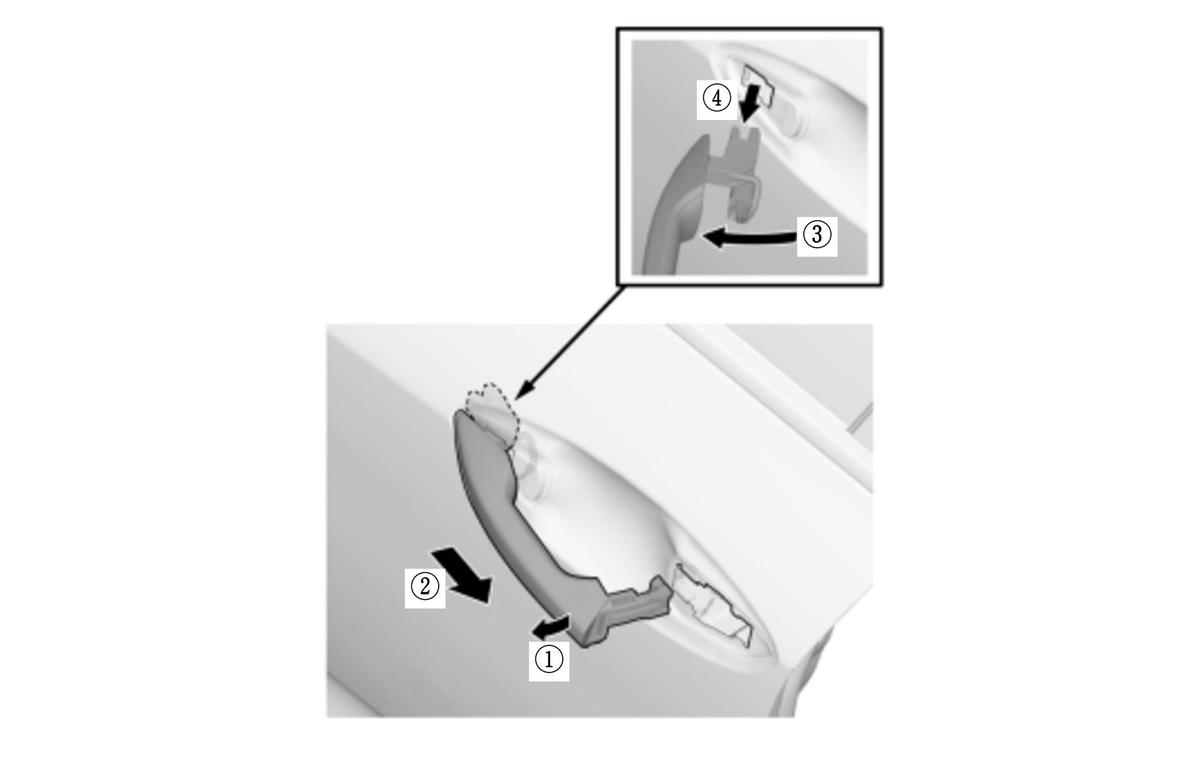

   Figure 2

   Courtesy of HONDA, U.S.A., INC.

3. C.-

   Sub-Procedure

   Courtesy of HONDA, U.S.A., INC.

   Removal

   • Refer to the figure.
4. D.-

   Sub-Procedure

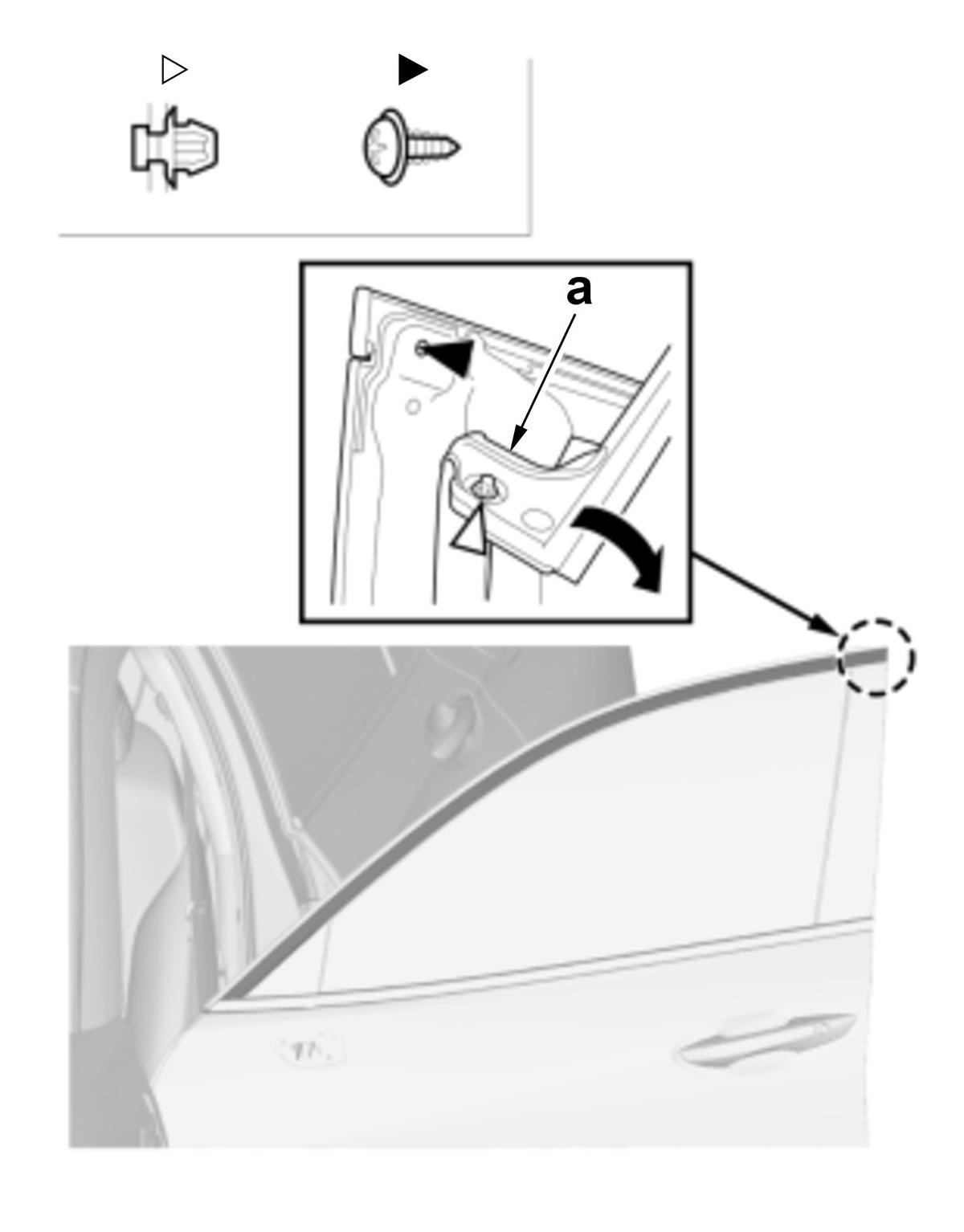

   Figure 1

   Courtesy of HONDA, U.S.A., INC.

   Removal

   1. Pull away the front door weatherstrip (a) and remove the clip. (Figure 1)

   2. Remove the screw. (Figure 1)

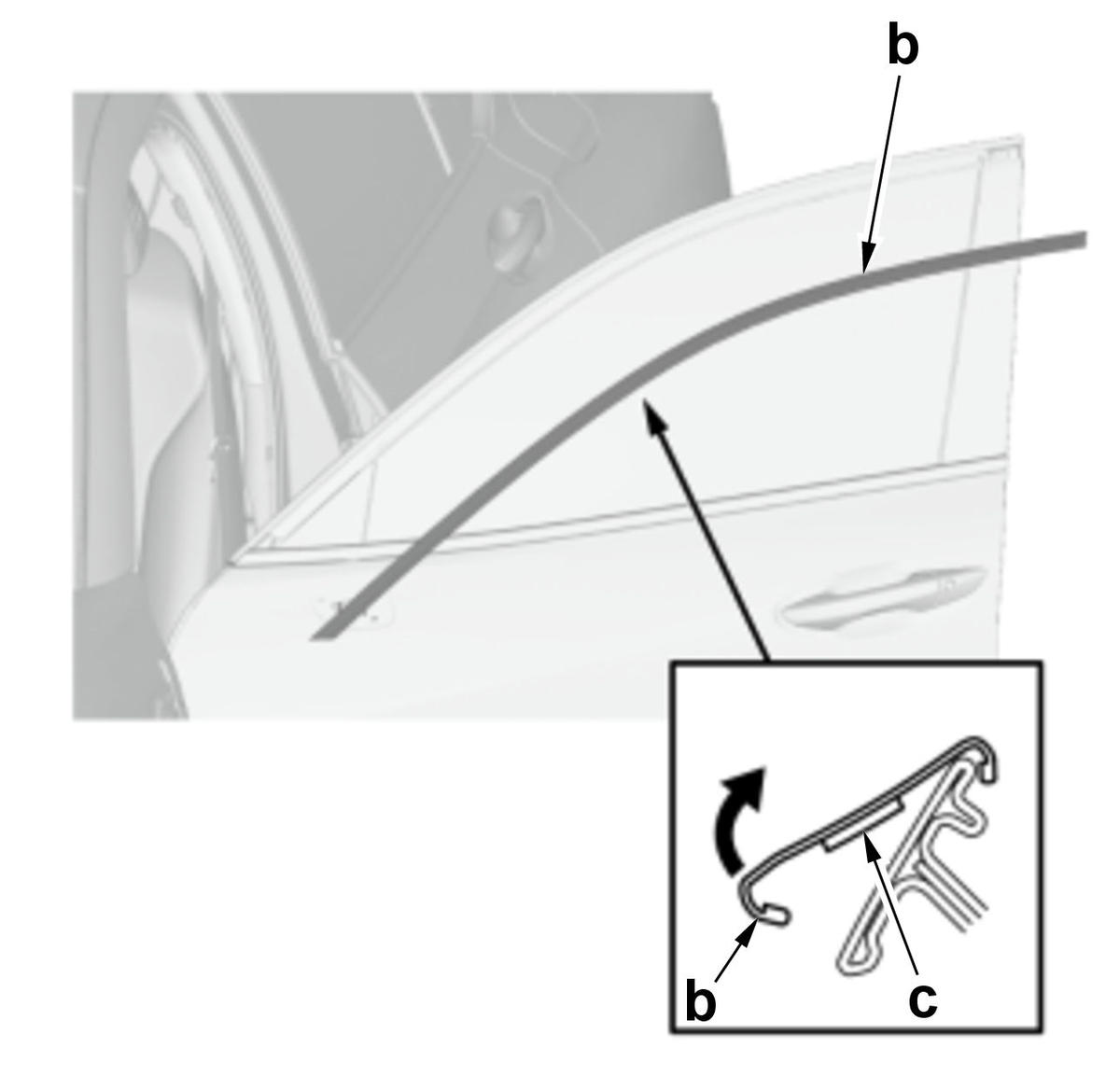

   Figure 2

   Courtesy of HONDA, U.S.A., INC.

   3. Pull out the edge of the front door outer molding (b) from the edge of the sash, and cut the double-sided adhesive tape (c) with a utility knife, then remove the front door outer molding from the sash. (Figure 2)

5. E.-

   Sub-Procedure

   Figure 1

   Courtesy of HONDA, U.S.A., INC.

   Removal

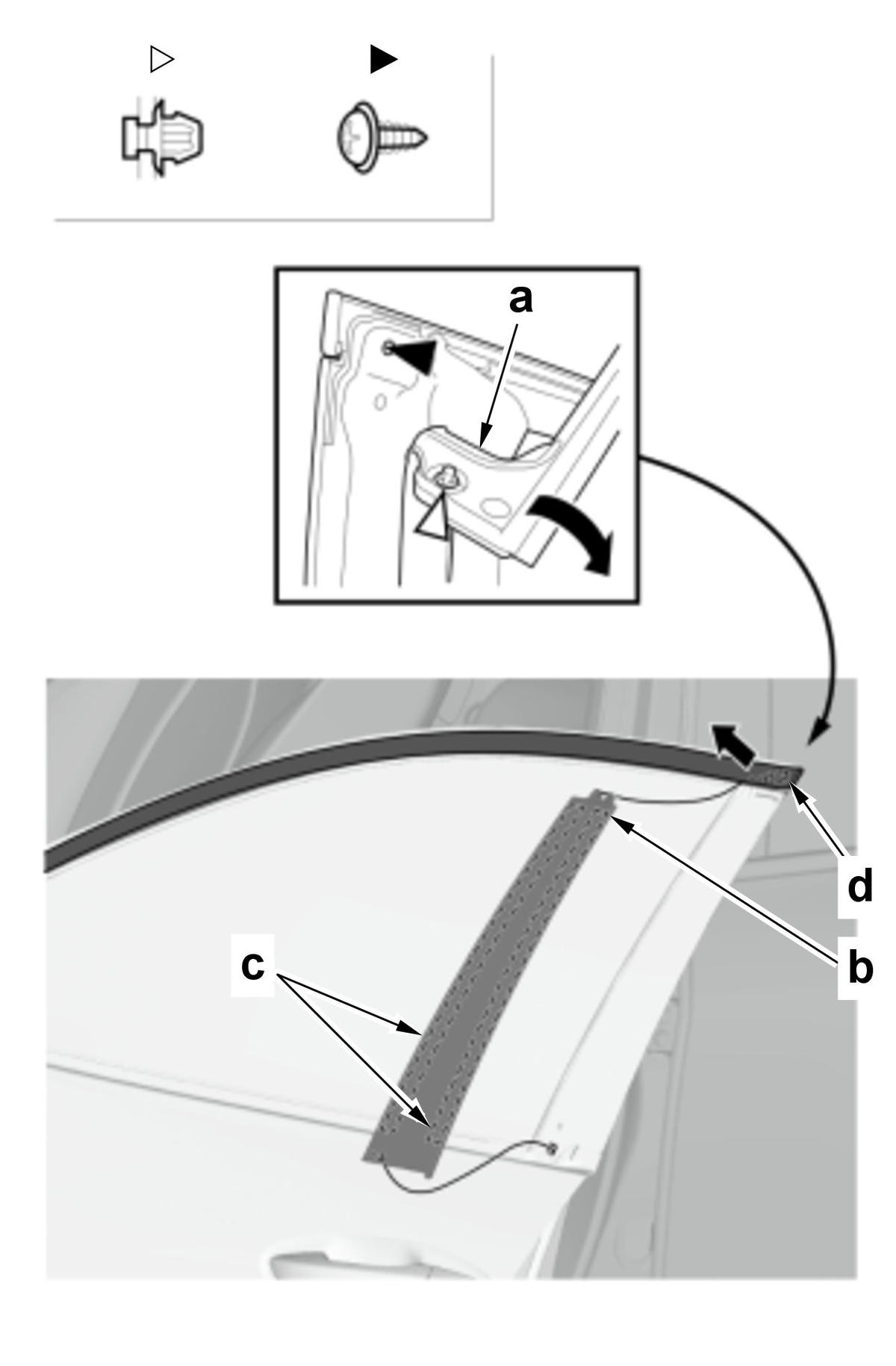

   1. Pull away the front door weatherstrip (a) and remove the clip. (Figure 1)

   2. Remove the screw. (Figure 1)

   3. Pull out the upper edge of the front door sash outer trim (b) from the edge of the front door sash, and cut the double-sided adhesive tapes (c) with a utility knife, then remove the front door sash outer trim from the front door sash. (Figure 1)

   NOTE:

   Pull the front door outer molding (d) only as needed to remove the upper edge of the front door sash outer trim. Excessive pulling will cause the molding to get damaged resulting in replacement. (Figure 1)

   4. Rub off the remaining double-sided adhesive tapes from the front door sash outer trim and the front door sash, then clean the front door sash outer trim surfaces and the front door sash surfaces with a sponge dampened with isopropyl alcohol. After cleaning, keep oil, grease, and water from getting on the clean surface.

6. F.-

   Key Information

   Do the following before starting your work.

   Remove:

   • Front Door Panel Barrier A
7. G.-

   Sub-Procedure

   Courtesy of HONDA, U.S.A., INC.

   Removal

   • Refer to the figure.
8. H.-

   Key Information

   Do the following before starting your work.

   Remove:

   • Front Door Checker

   Sub-Procedure

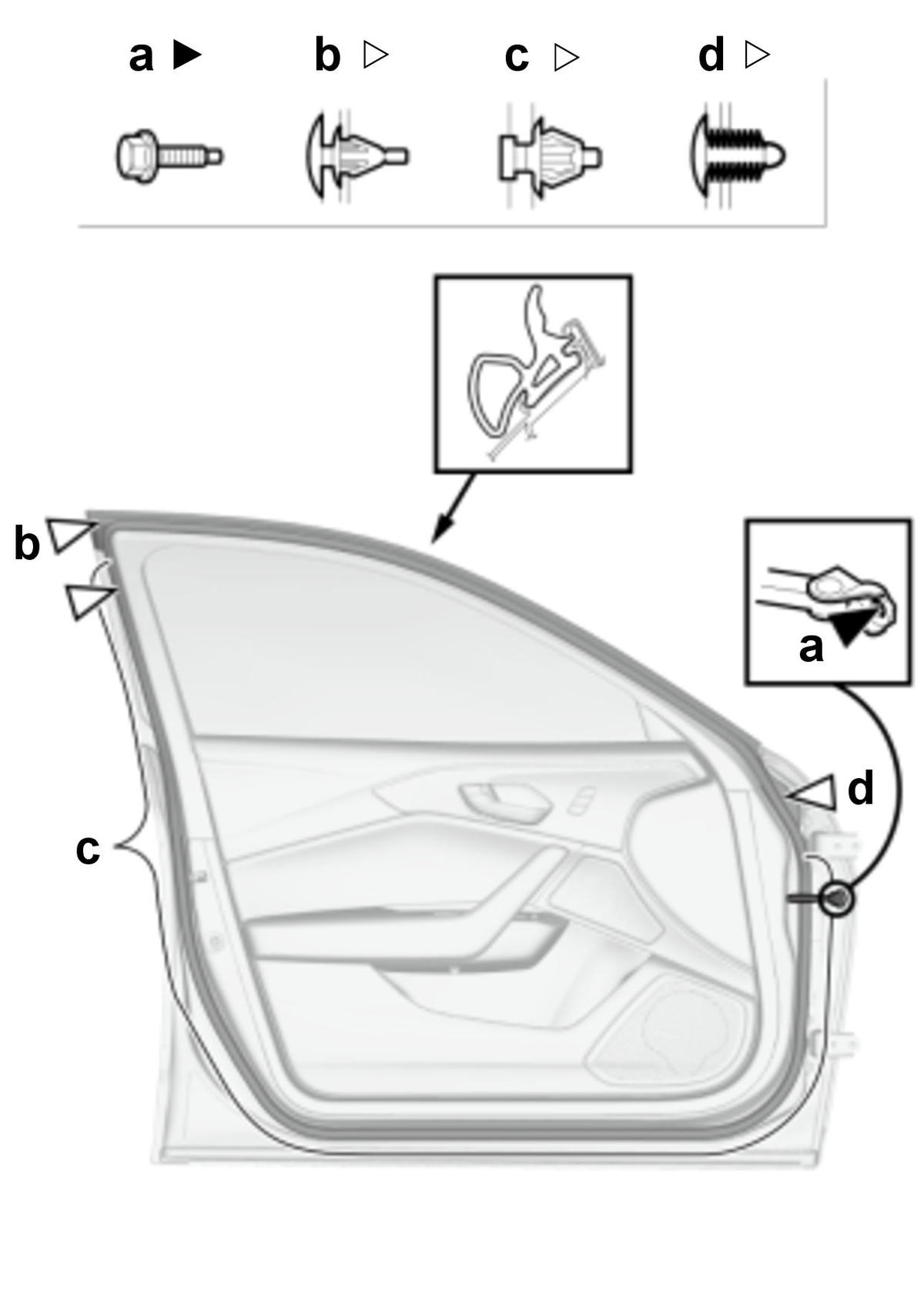

   Courtesy of HONDA, U.S.A., INC.

   Removal

   • Refer to the figure.

   After Installation

   • Water Leak Check
9. I.-

   Sub-Procedure

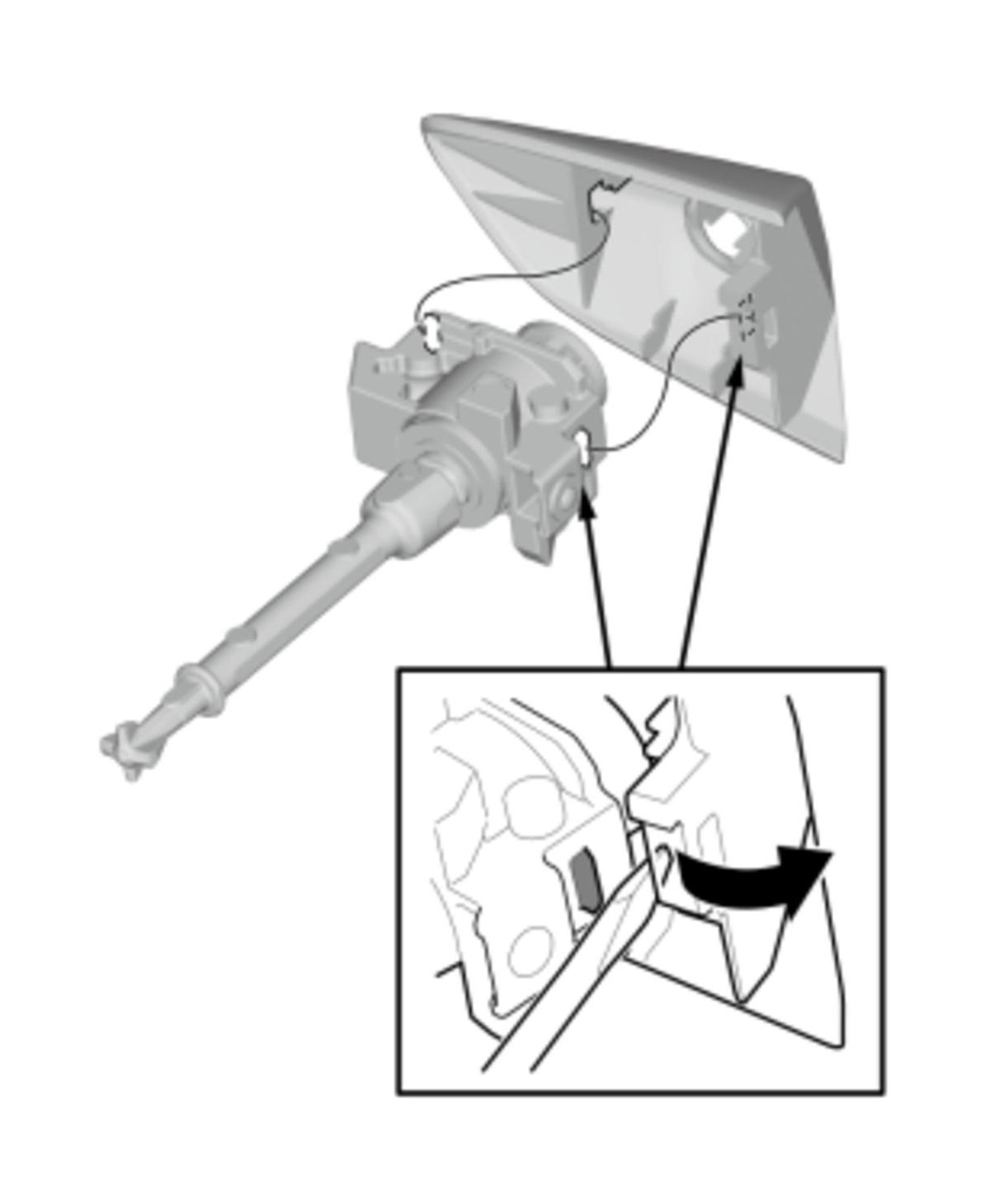

   Courtesy of HONDA, U.S.A., INC.

   Removal

   • Refer to the figure.
10. J.-

    After Installation

    • Front Door Striker Adjustment
11. K.-

    After Installation

    • Front Door Position Adjustment
