Relay Locations

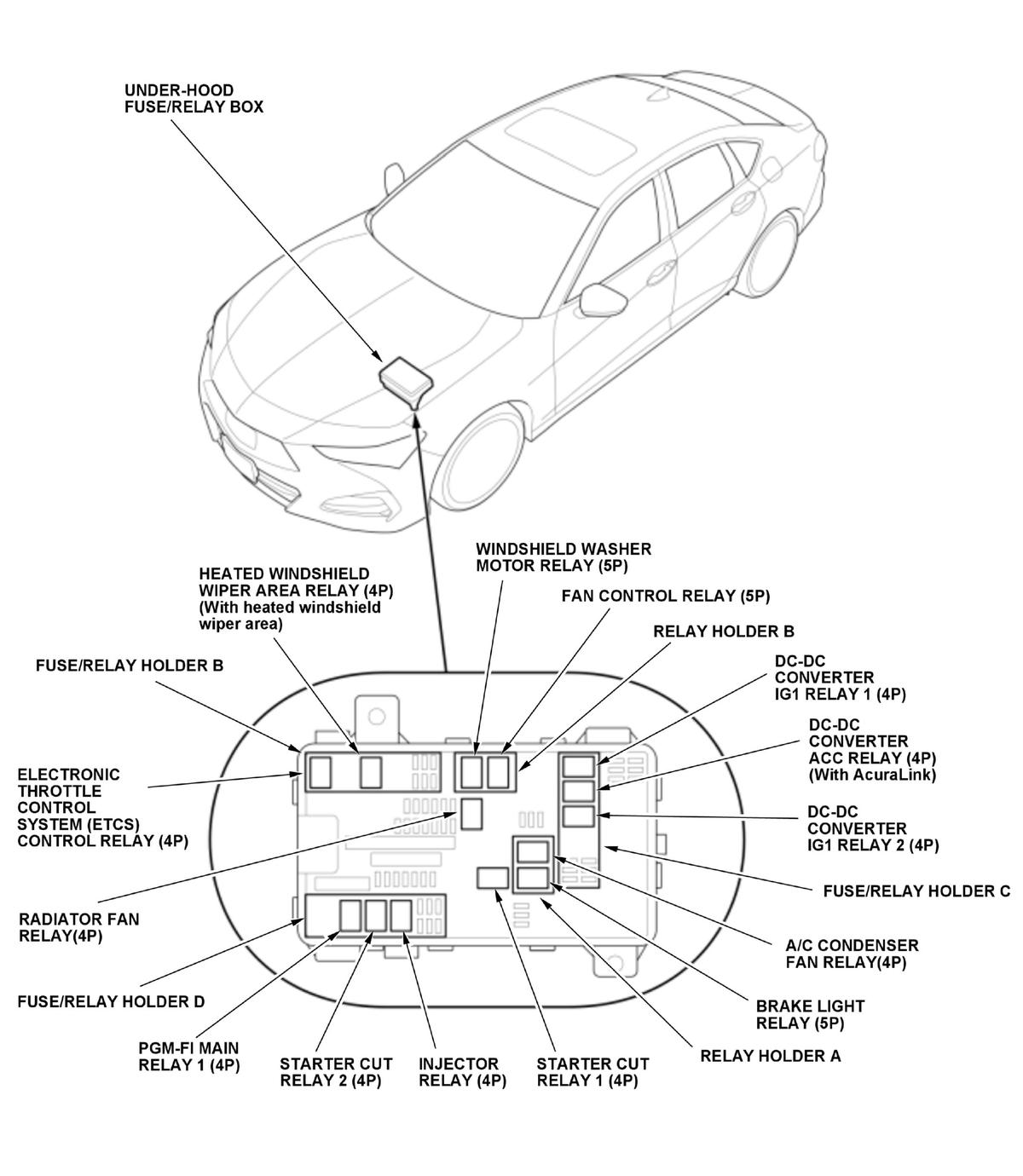

Engine Compartment - 1/22.0 L Engine

Courtesy of HONDA, U.S.A., INC.

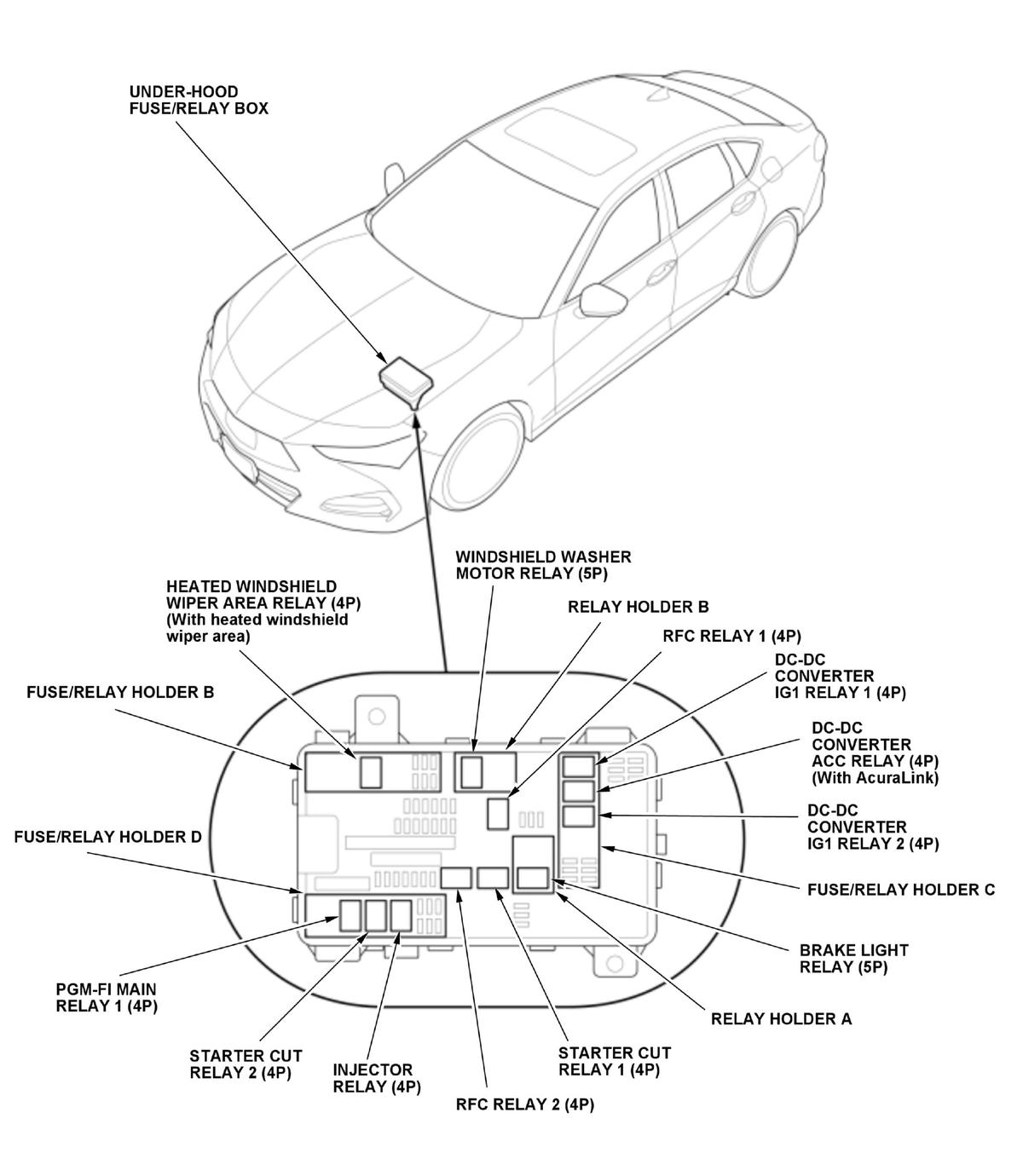

Engine Compartment - 2/23.0 L Engine

Courtesy of HONDA, U.S.A., INC.

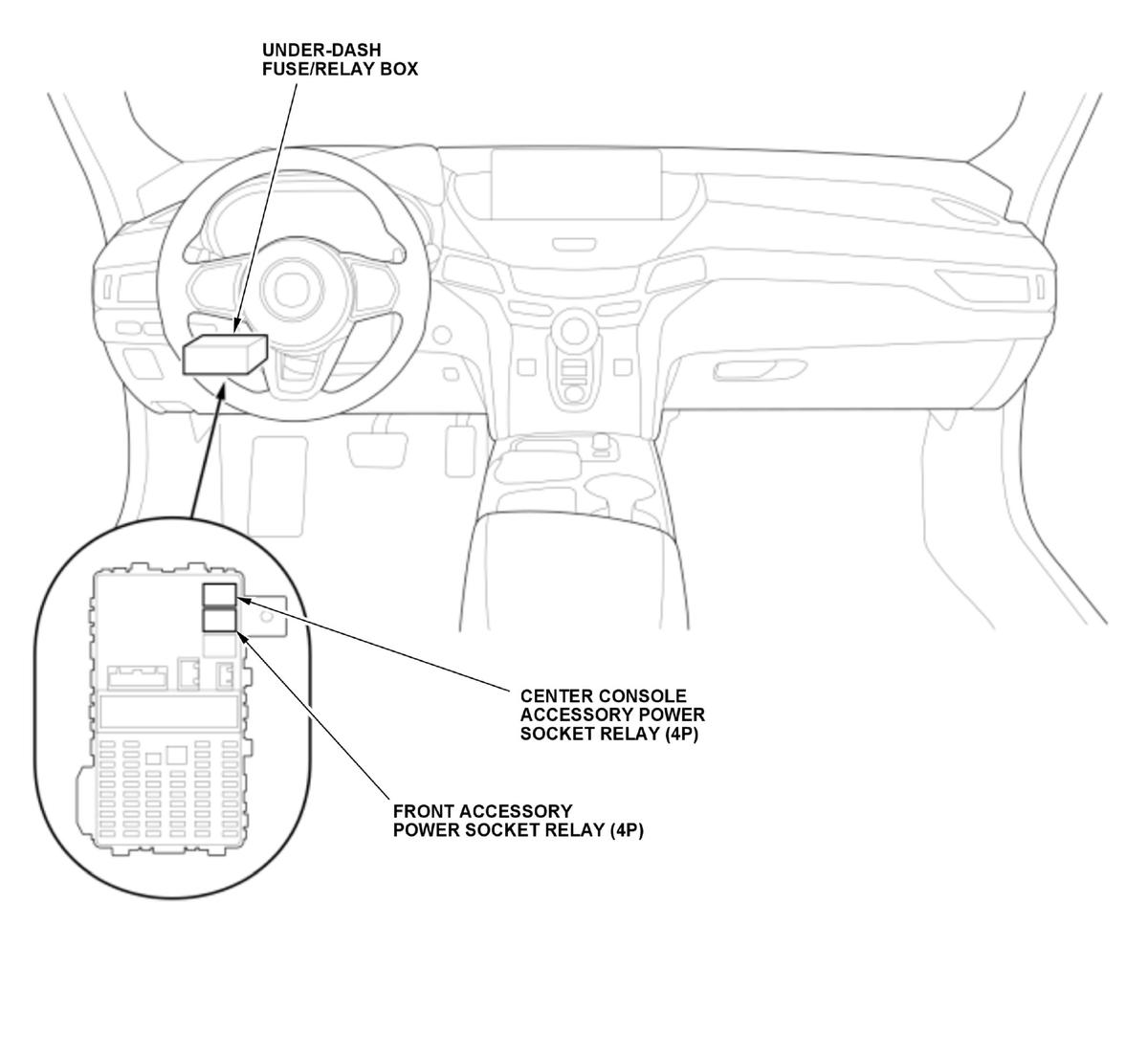

Dashboard

Courtesy of HONDA, U.S.A., INC.

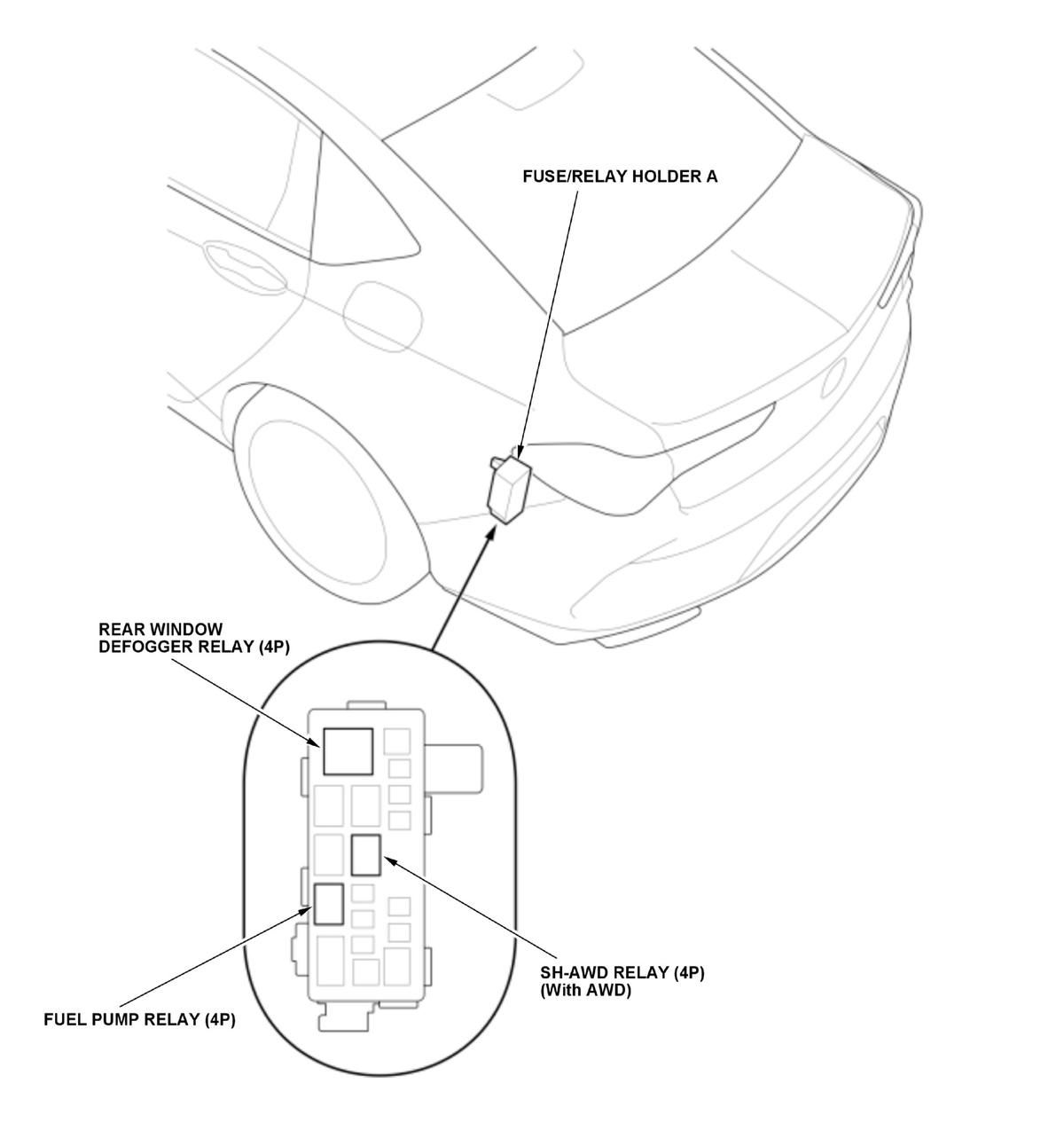

Rear

Courtesy of HONDA, U.S.A., INC.
