Repair Procedure

How to use this manual .

Courtesy of HONDA, U.S.A., INC.

: Torque, N.m (lbf.ft)

: Replace

: Warning/Caution

: Inspection/Adjustment

*: Learning

: SPL Tool

: Required Removal

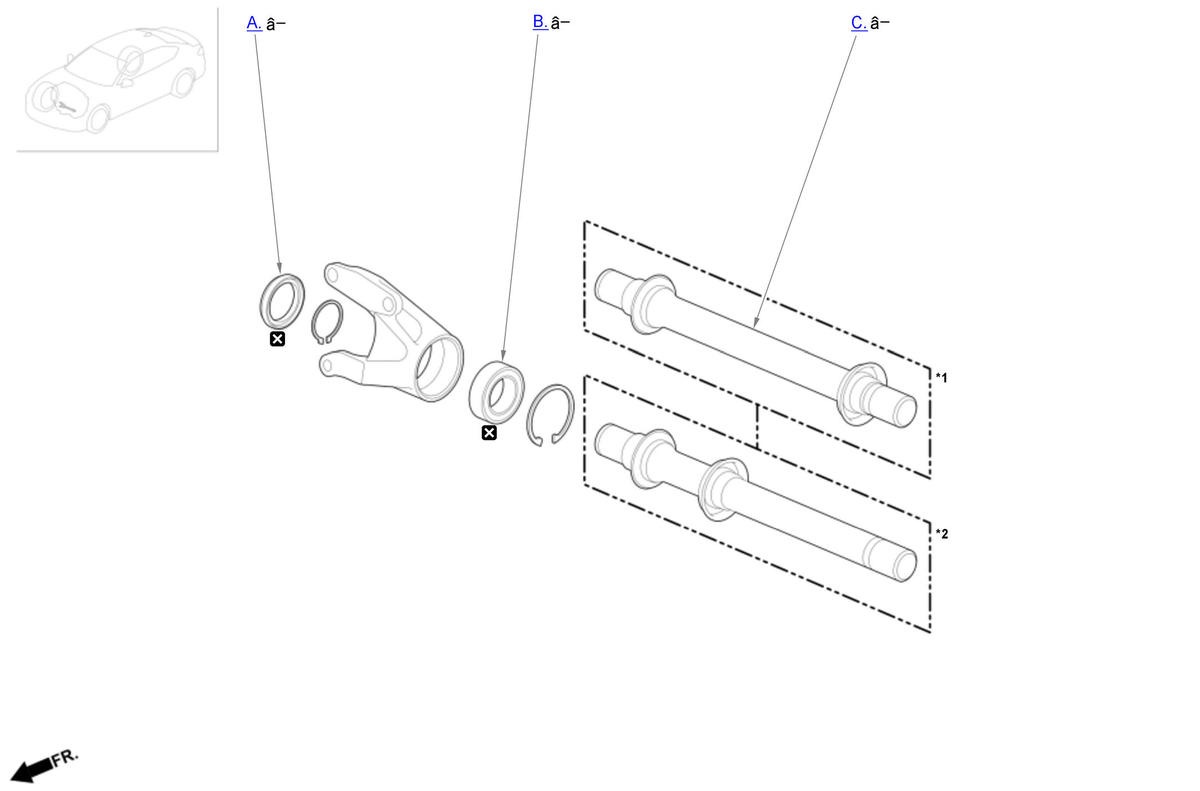

1. A.-

   Sub-Procedure

   Courtesy of HONDA, U.S.A., INC.

   Installation

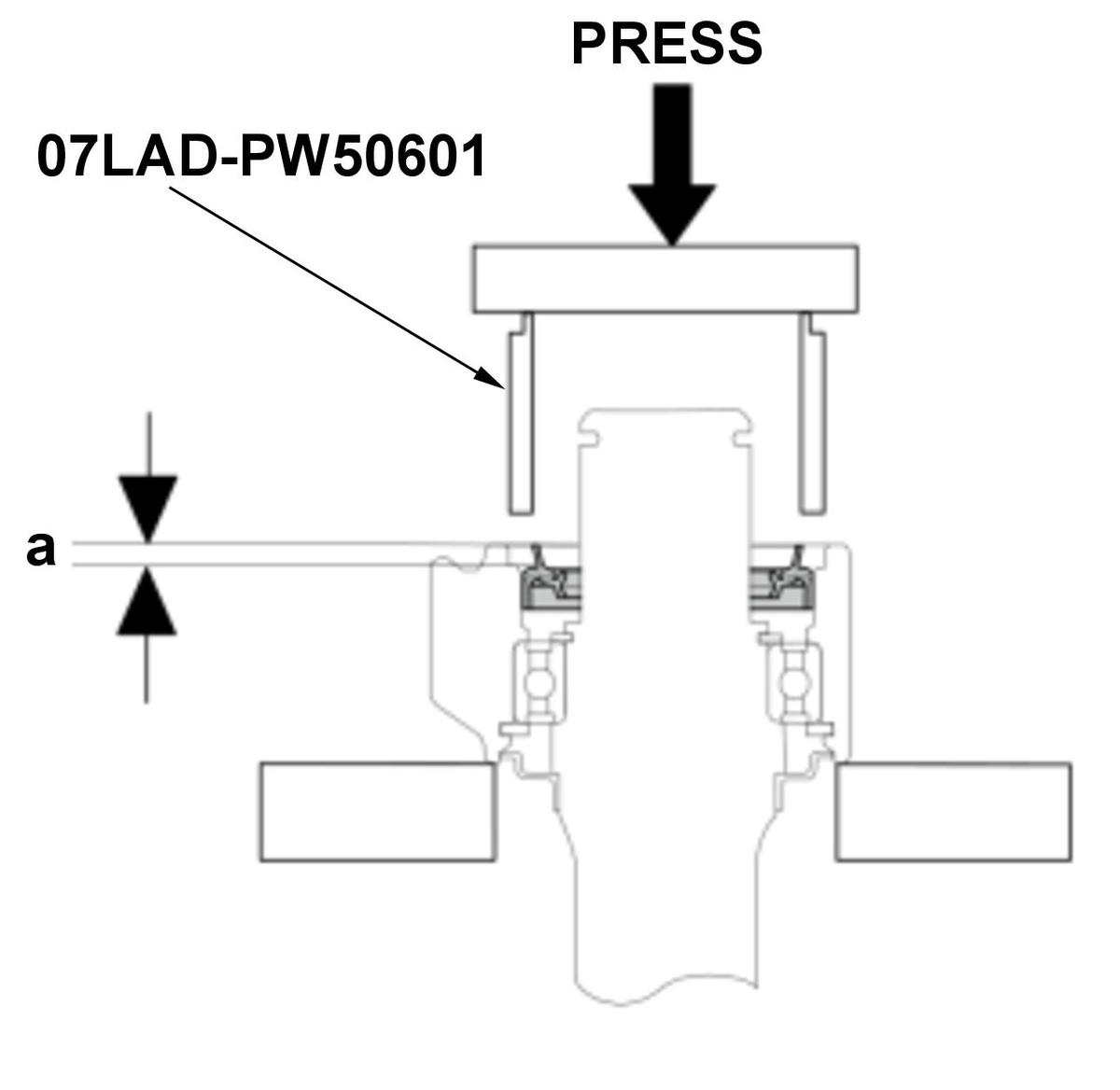

   Specifications

   Standard Value
   a	3.8 - 4.4 mm (0.150 - 0.173 in)

2. B.-

   Sub-Procedure

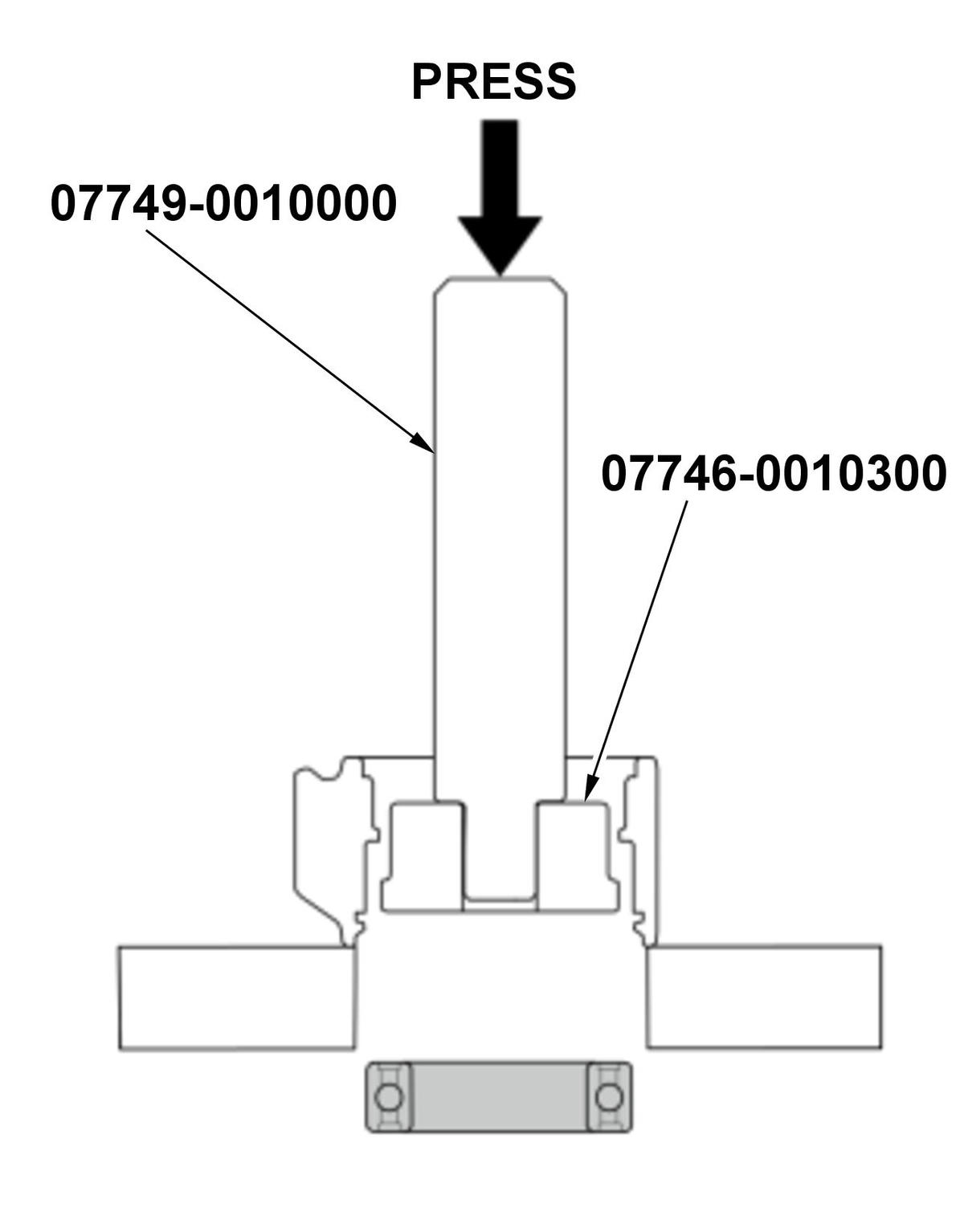

   Figure 1

   Courtesy of HONDA, U.S.A., INC.

   Removal

   • Refer to the figure 1.

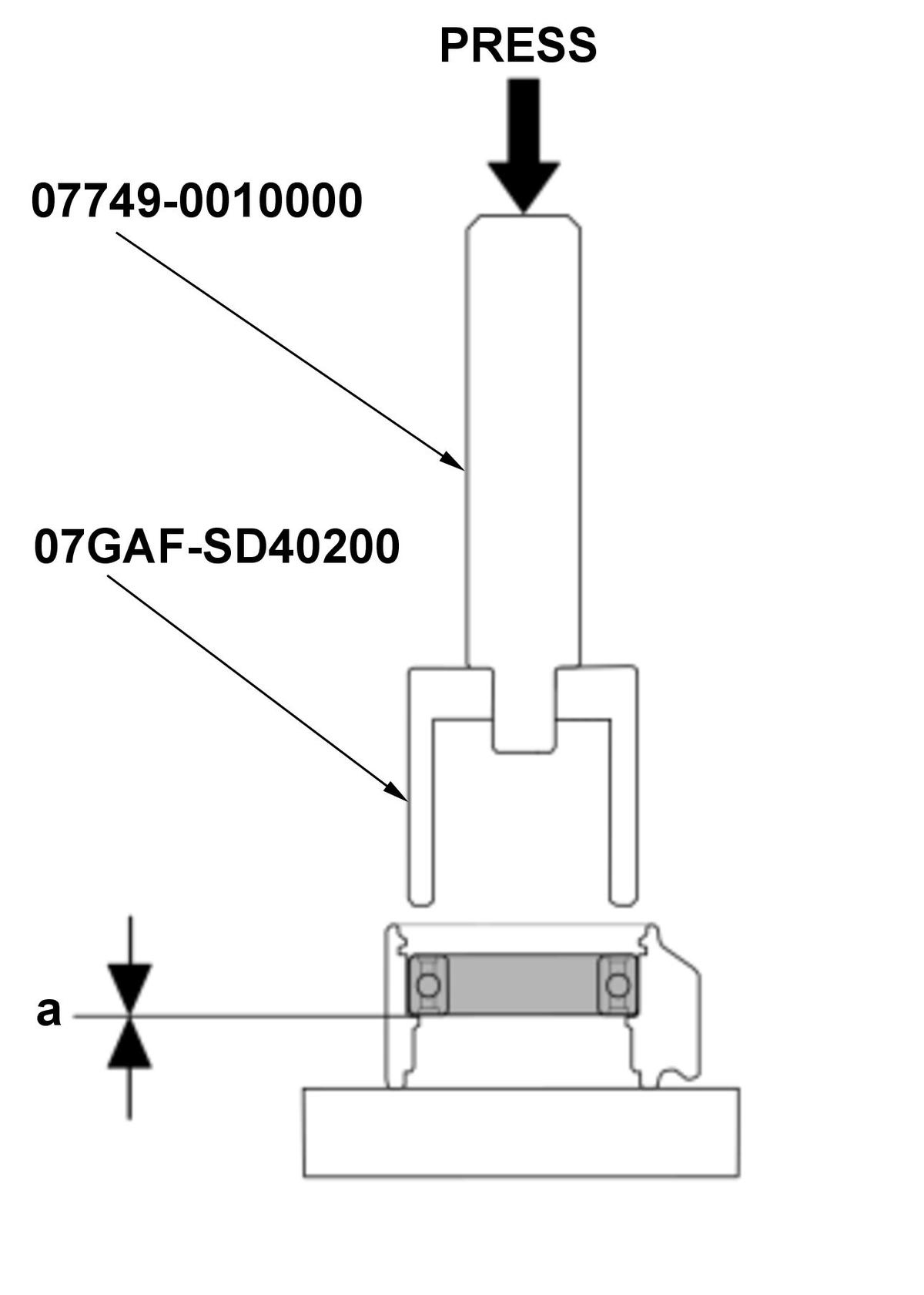

   Figure 2

   Courtesy of HONDA, U.S.A., INC.

   Installation

   Specifications (Figure 2)

   Specification
   a	No Clearance

3. C.-

   Sub-Procedure

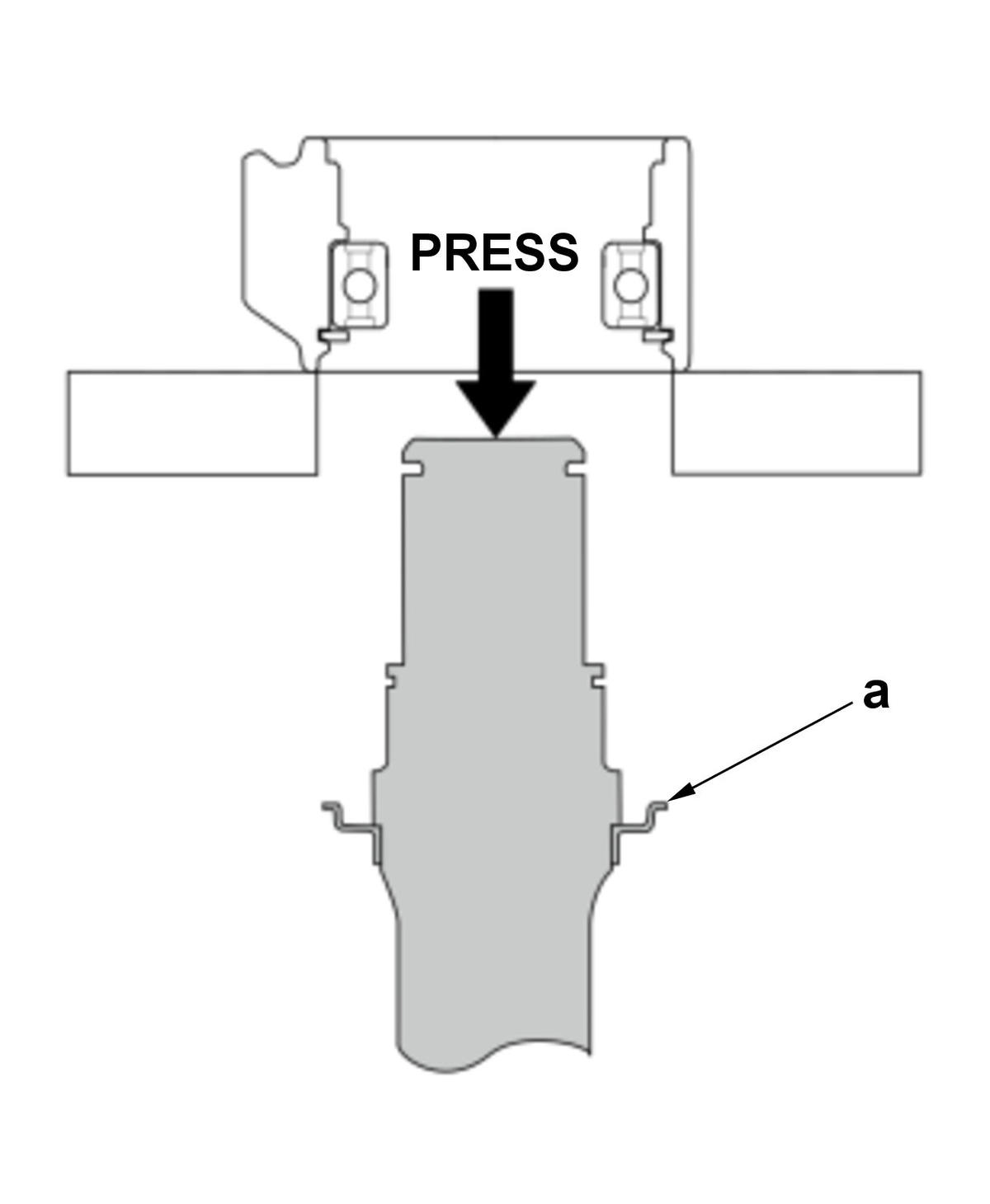

   Figure 1

   Courtesy of HONDA, U.S.A., INC.

   Removal

   • Be careful not to damage the bearing support ring (a). (Figure 1)

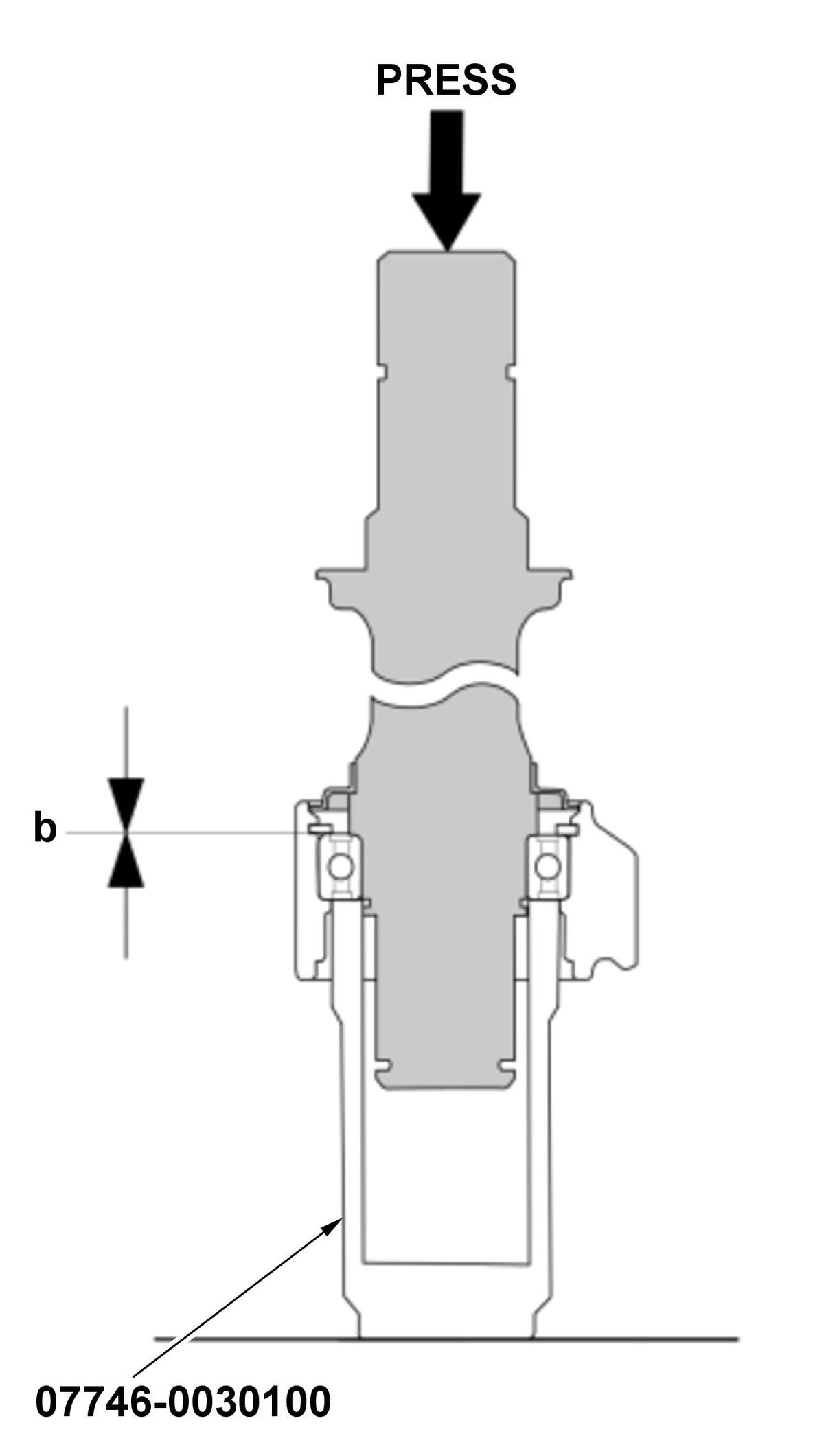

   Figure 2

   Courtesy of HONDA, U.S.A., INC.

   Installation

   Specifications (Figure 2)

   Specification
   b	No Clearance
