DTC U3003-68: Inspection

+B_ABS/VSA_FRS, GND Circuit Inspection

Test Procedure

• Preparation
• 1. -

     VSA modulator-control unit 46P connector: disconnected

• Procedure
• 1. -

     Perform the inspection according to the following table.

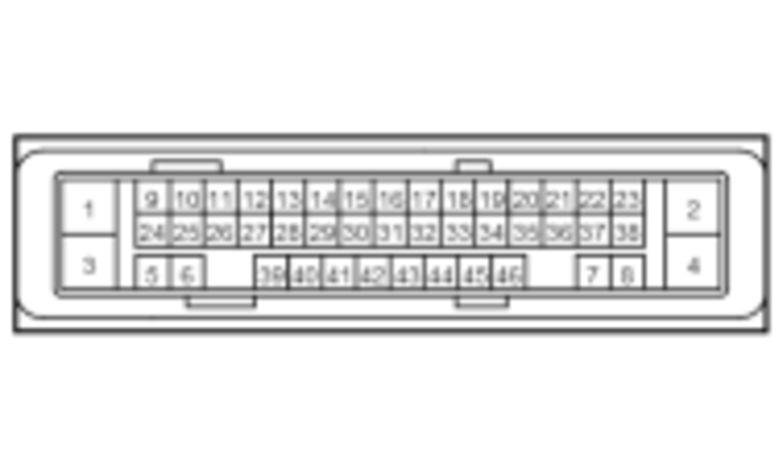

			(Disconnected) VSA modulator-control unit 46P connector emale terminals
		IG Mode	Courtesy of HONDA, U.S.A., INC.	Normal Conditions
	+B_ABS/VSA_FRS circuit Inspection	OFF		12 V battery voltage[circuit type 1]
	GND open wire inspection	OFF		There is less than 1 Ohm

Results

• If abnormal, there is a problem in the circuit.

  NOTE:  If the power supply inspection of the above table showed abnormally, do the additional Power Supply Inspection , to locate the failure.

• If normal, there is a problem with the VSA modulator-control unit.
