Electric Parking Brake Switch Test: Test

How to use this manual .

1. Electric Parking Brake Switch - Test

   Preconditions

   • Electric Parking Brake Switch Removed

   Procedure/Specifications

   • Check the switch according to the table. (Figure 1 and 2)

     NOTICE:

     • When an LED is located between terminals, check if the LED illuminates by connecting power and ground to the LED.
     • Note this important operating characteristic; diode bias causes a diode to fully conduct electricity in one direction (forward), while not at all in the opposite direction (reverse).

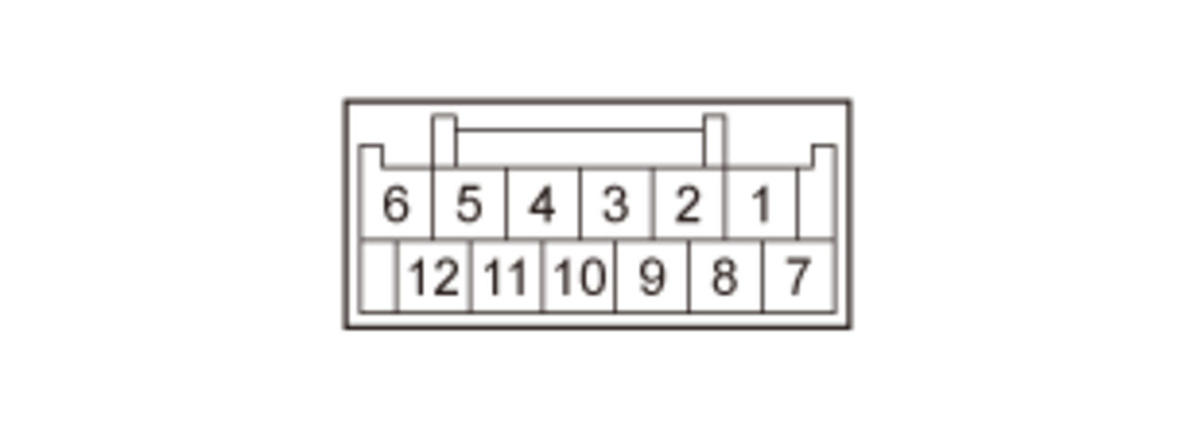

   Figure 1

   Courtesy of HONDA, U.S.A., INC.

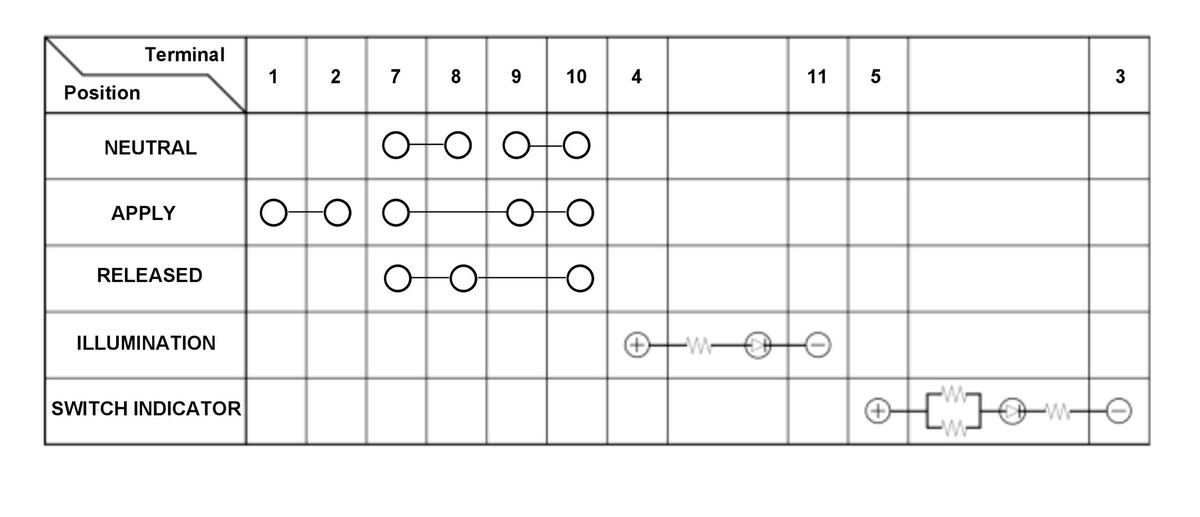

   Figure 2

   Courtesy of HONDA, U.S.A., INC.

   Result

   • If the result is not as specified, replace the electric parking brake switch.
