Keyless Access Power Control Unit - Diagnostics
>>
DTC Troubleshooting
>>
DTC B12F3
>>
Inspection Outline

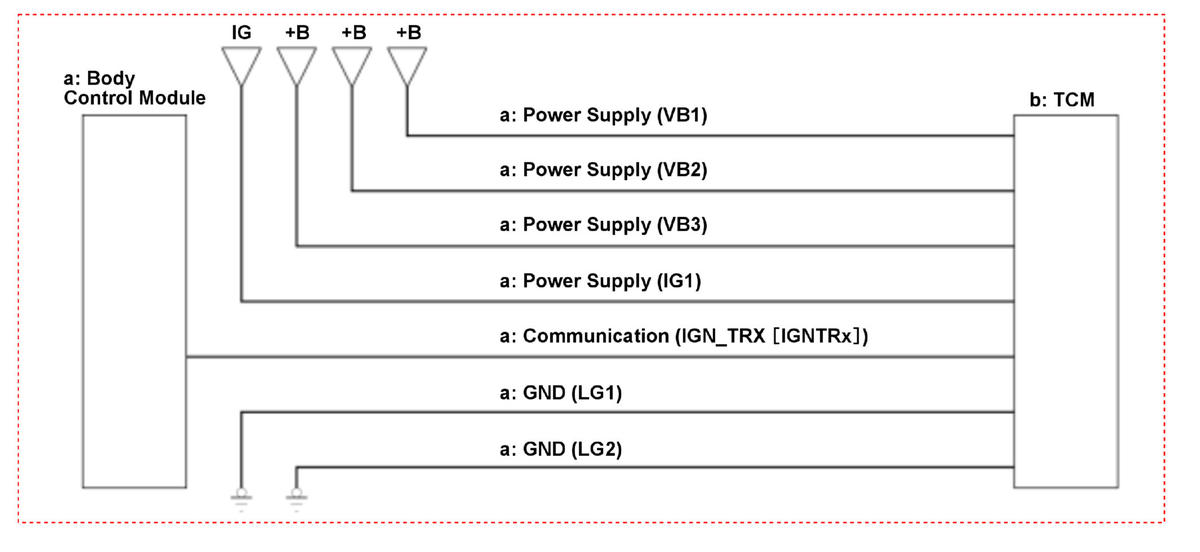

Inspection Outline
The components to be tested are indicated by a dotted line.
Courtesy of HONDA, U.S.A., INC.
Inspection Items
Work Items
a
External Circuit
VB1, VB2, VB3, IG1, LG1, LG2, IGN_TRX [IGNTRx] Circuit Inspection
b
TCM
TCM Inspection
c
Body Control Module
Body Control Module Inspection
