Keyless Access Power Control Unit - Diagnostics
>>
DTC Troubleshooting
>>
DTC B12D2
>>

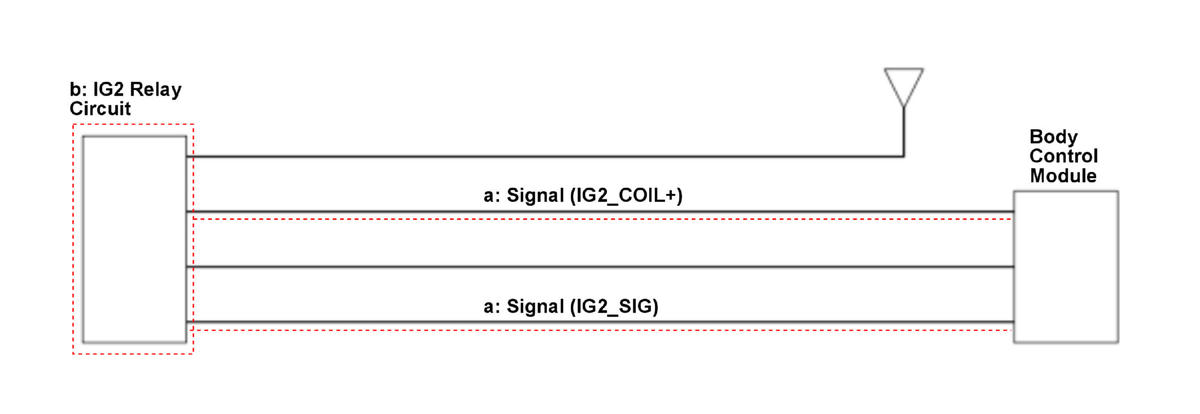

Inspection Outline
Inspection Outline
The components to be tested are indicated by a dotted line.
Courtesy of HONDA, U.S.A., INC.
Inspection Items
Work Items
a
External Circuit
IG2_SIG, IG2_COIL+ Circuit Inspection
b
IG2 Relay Circuit
Courtesy of HONDA, U.S.A., INC.
