DTC B1660: Inspection

EXT_F+, EXT_F- Open Wire Inspection

Test Procedure

• Preparation
• 1. -

     Front interior LF antenna 2P connector: disconnected

  2. -

     Body control module connector F (36P): disconnected

• Procedure
• 1. -

     Perform the inspection according to the following table.

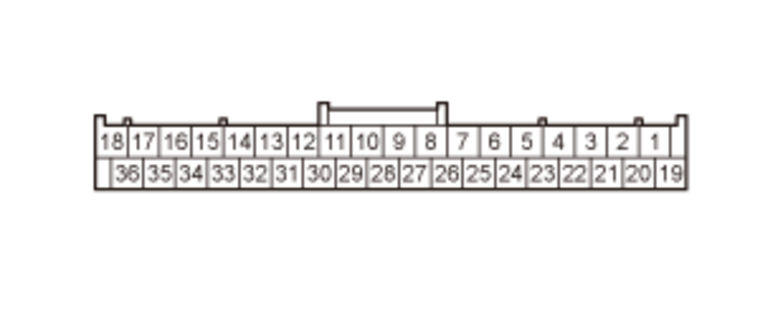

			(Disconnected) Front interior LF antenna 2P connector female terminals	(Disconnected)Body control module connector F (36P) female terminals
		IG Mode	Courtesy of HONDA, U.S.A., INC.	Courtesy of HONDA, U.S.A., INC.	Normal Conditions
	EXT_F+ open wire inspection	OFF			There is less than 1 Ohm
	EXT_F- open wire inspection	OFF			There is less than 1 Ohm

Results

• If abnormal, there is a problem in the circuit.

Body Control Module Inspection

Preconditions

NOTE:  This procedure can be done before any other inspections are completed because this test procedure includes all of the following inspection items. However, if this test fails, it will be necessary to continue with each inspection item individually to determine which item failed.

• External circuit is normal

Test Procedure

• Preparation
• 1. -

     Front interior LF antenna/initiator 2P connector: disconnected

• Procedure
• 1. -

     Perform the inspection according to the following table.

			(Disconnected) Front interior LF antenna 2P connector female terminals
		IG Mode	Courtesy of HONDA, U.S.A., INC.	Normal Conditions
	Module internal circuit inspection	ON*1		Voltage

*1: If the matter whether the vehicle mode ON or OFF (LOCK) because of the permanent power supply.

Results

• If it is abnormal, there is a problem with the body control module.

Front Interior LF Antenna Inspection

Test Procedure

• If the other inspection item(s) indicated a normal condition, then it is determined that the remaining front interior LF antenna is the cause.

Results

• There is a problem with the front interior LF antenna.
