DTC B1648
>>
Inspection Outline

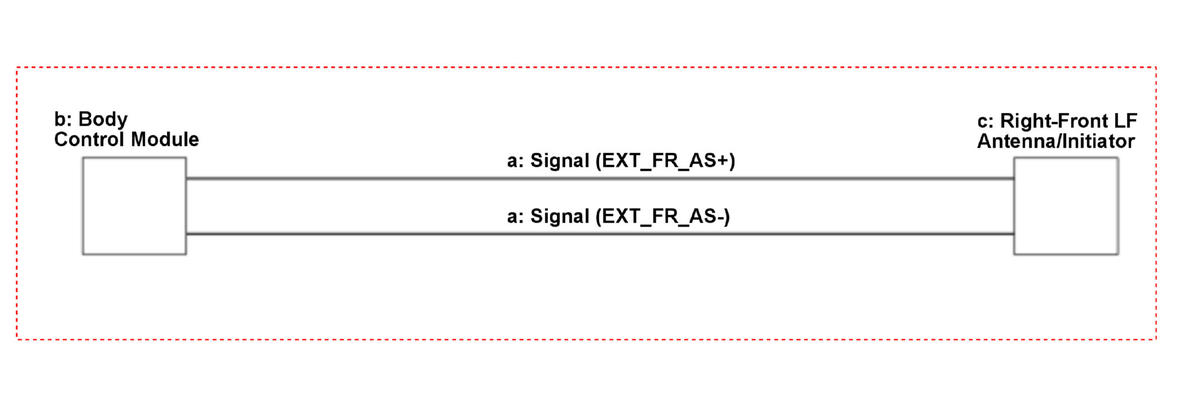

Inspection Outline
The components to be tested are indicated by a dotted line.
Courtesy of HONDA, U.S.A., INC.
Inspection Items
Work Items
a
External Circuit
EXT_FR_AS+, EXT_FR_AS- Open Wire Inspection
b
Body Control Module
Body Control Module Inspection
c
Right-Front LF Antenna/Initiator
Right-Front LF Antenna/Initiator Inspection
