Inspection Outline

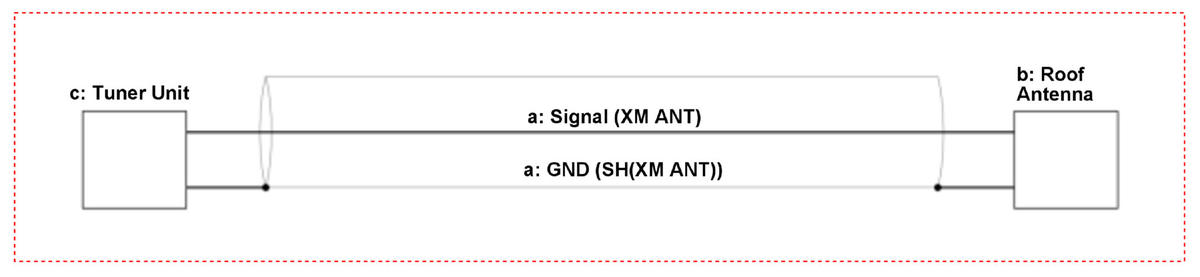

The components to be tested are indicated by a dotted line.

Courtesy of HONDA, U.S.A., INC.

NOTE: For more efficient troubleshooting, you may be able to eliminate some inspection items as potential failures based on the conditions of the failure and vehicle.

Go into the System Diagnostic Mode, and use the System Links to check the XM TUNER status .
- XM TUNER icon is green:
- XM TUNER icon is red:

Inspection Items		Work Items
a	External Circuit	SH(XM ANT), XM ANT Circuit Inspection	o
b	Roof Antenna	Roof Antenna Inspection	o
c	Tuner Unit	Tuner Unit Inspection	o	o
