BSI Radar Unit Aiming Inspection: Adjustment
- After replacing or removing and reinstalling one or both of the BSI radar units.
- After repairing the rear side outer panel(s) where the BSI radar unit(s) mount.
- For any of the following DTCs:
- Park the vehicle on level ground (within 1 degree of slope) with at least 4 m (13 ft) of space on both sides and behind the vehicle. Do not do this procedure with the vehicle on a lift or with the tires on steel plates or rollers.
- Keep the front wheels in the straight ahead position.
Before Inspection:
- Do not make any bumper repairs in the areas over or near the two radar units on vehicles equipped with the blind spot information (BSI) system. The composition of the repair materials, and/or increased material thickness in the repaired area, may interfere with BSI radar unit operation.
- Clean the surface of the BSI radar unit.
- Make sure the vehicle does not have aftermarket suspension.
- Make sure that all of the tires are the correct size and inflated to the proper pressure.
- Make sure the fuel tank is full.
- Remove all cargo from the vehicle except the tool kit and the spare tire.
- Make sure the steering wheel is pointed straight ahead, and do not turn it after setting the vehicle.
Prepare the items shown:
- Tape measure and ruler
- Felt-tip pen
- Tape
- BSI Radar Unit Aiming - Inspect
Preconditions
- Transmission P Position/Mode
- Parking Brake Applied
- Rear Bumper Removed
Figure 1
Procedure/Specifications
1. Set the target on the stand.

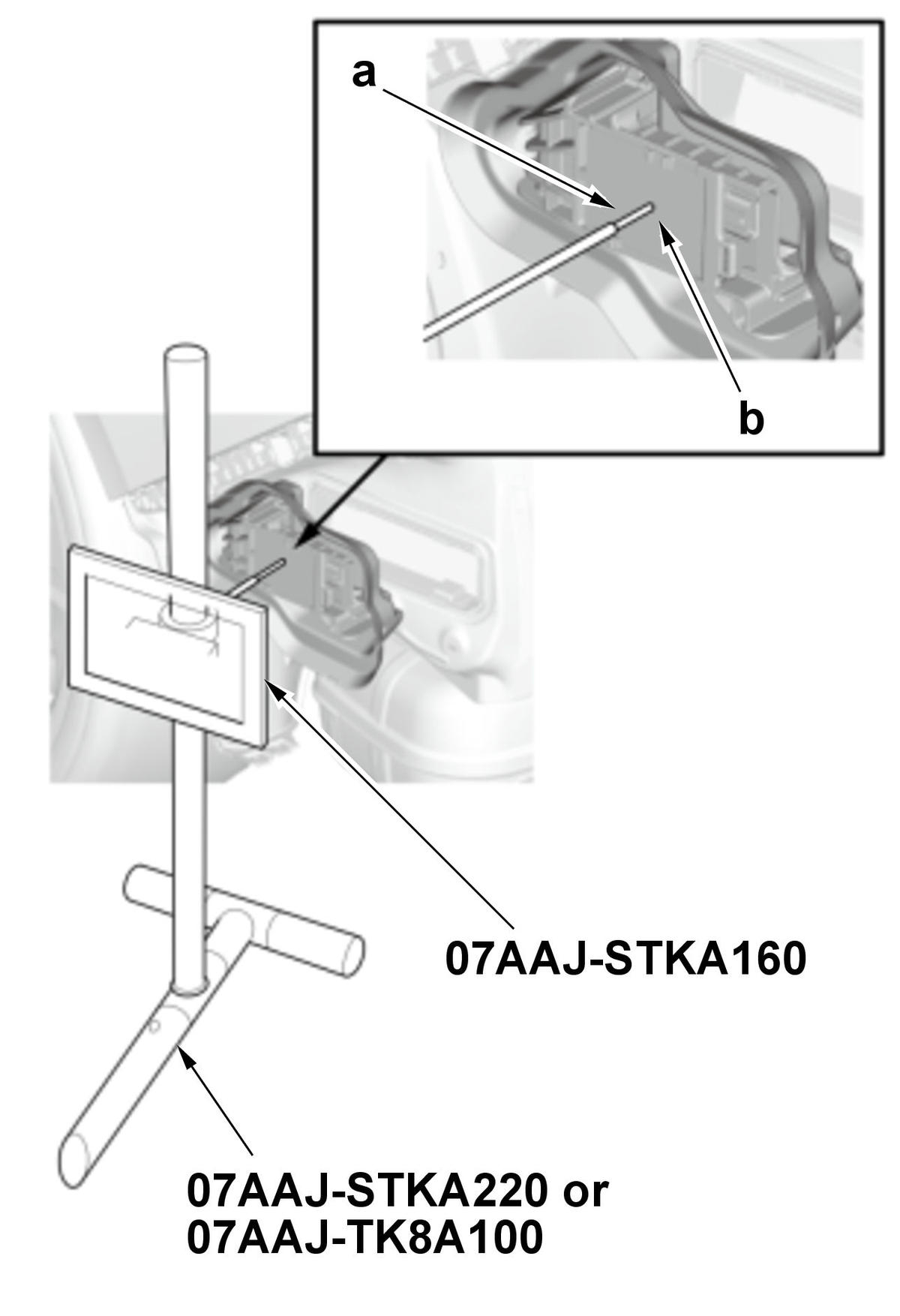

2. Set the tip (a) of the target at the same height as the center (b) of the BSI radar unit. (Figure 1)
Figure 2

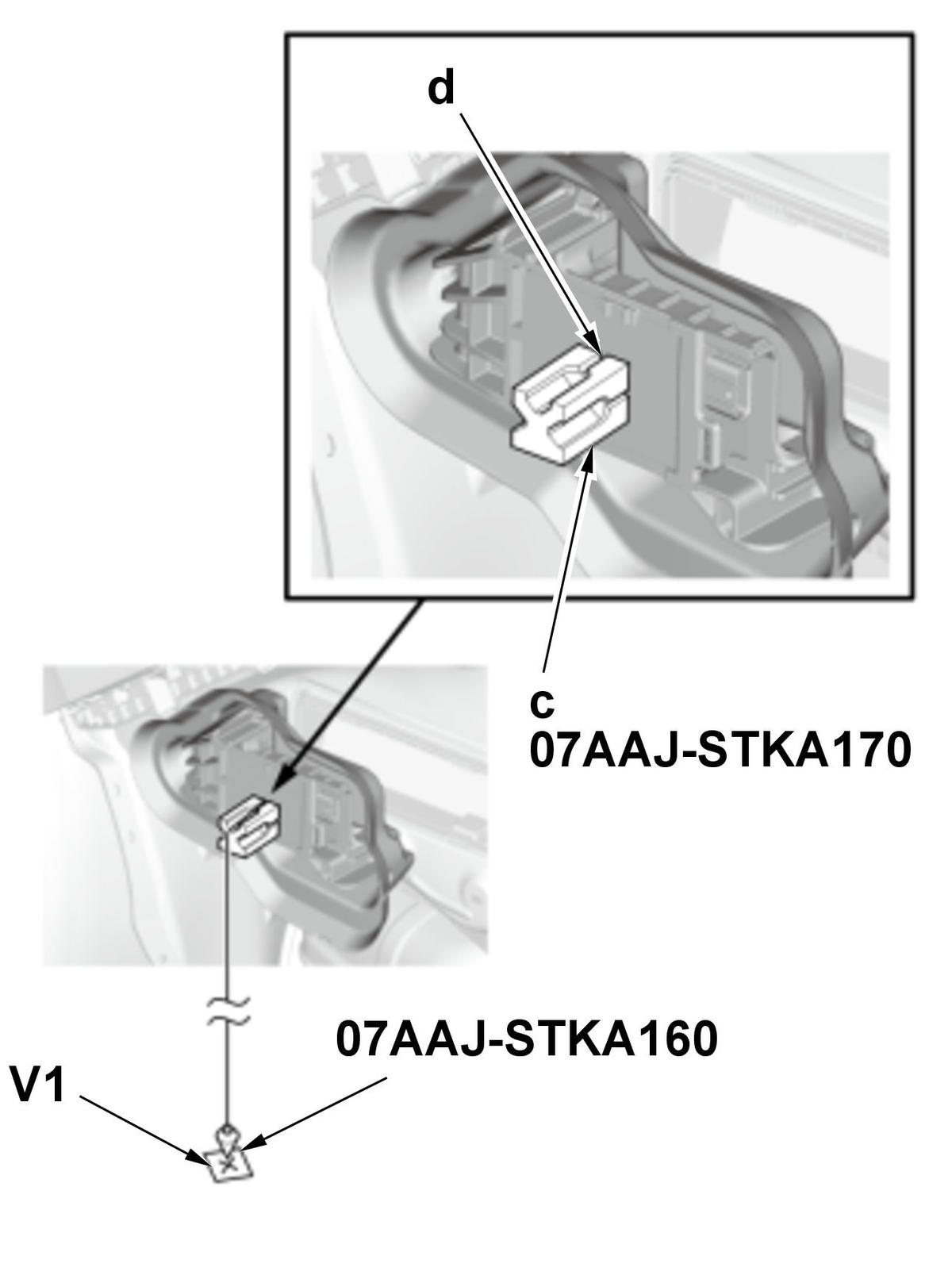

3. Set the angle gauge (c) against the BSI radar unit, and align the cutout of the angle gauge with the center (d) of the BSI radar unit. (Figure 2)
NOTE: The angle gauge can be set to any angle setting for this step.4. Hang the plumb bob from the angle gauge, and mark a point V1 on the floor surface where the tip of the plumb bob touches the floor surface.
Figure 3

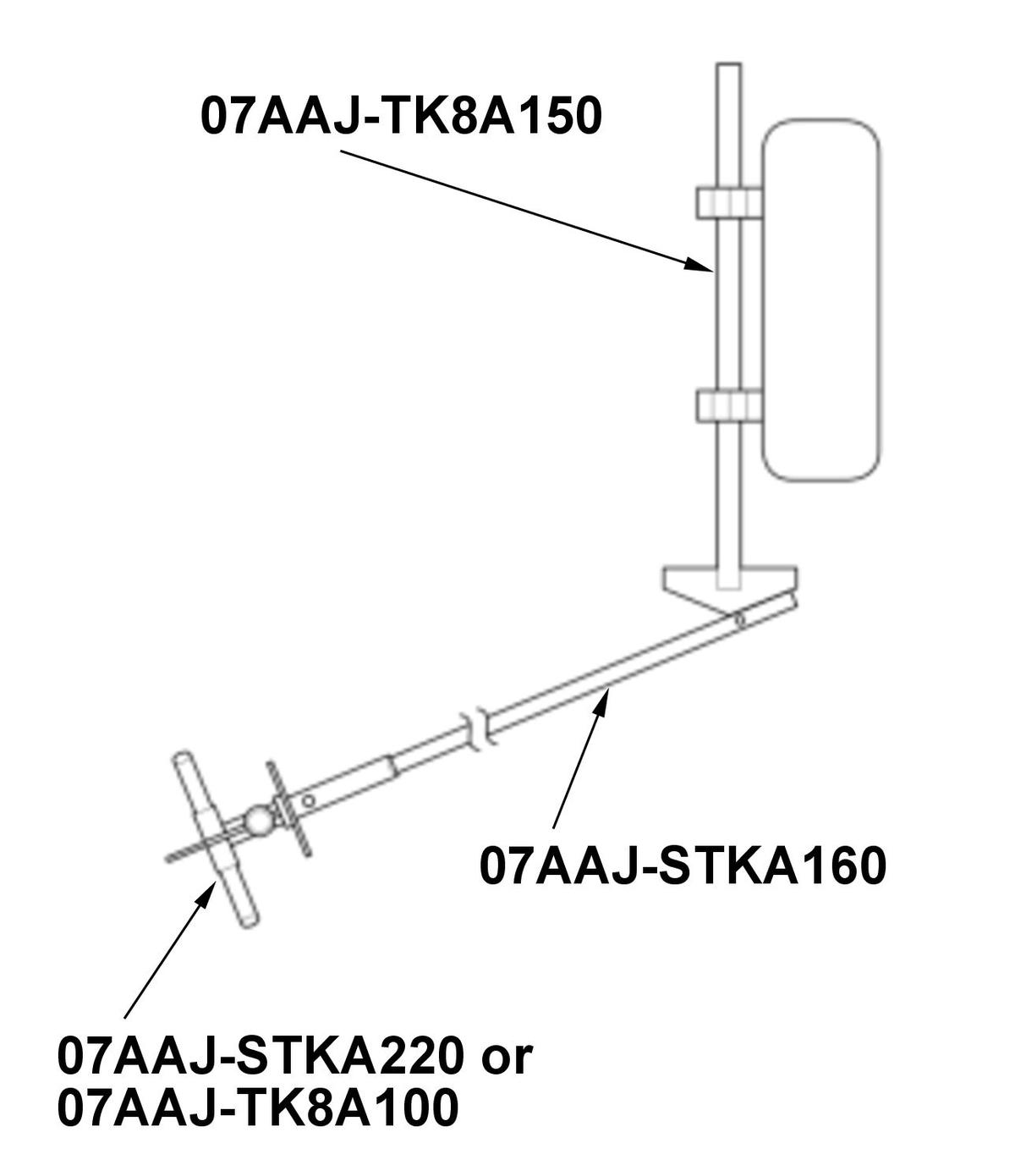

5. Place the rim frame by the rear wheel on the side of the vehicle you are aiming. Adjust the spacers (e) to fit against the wheel rim to make the rim frame parallel with the wheel. (Figure 3)

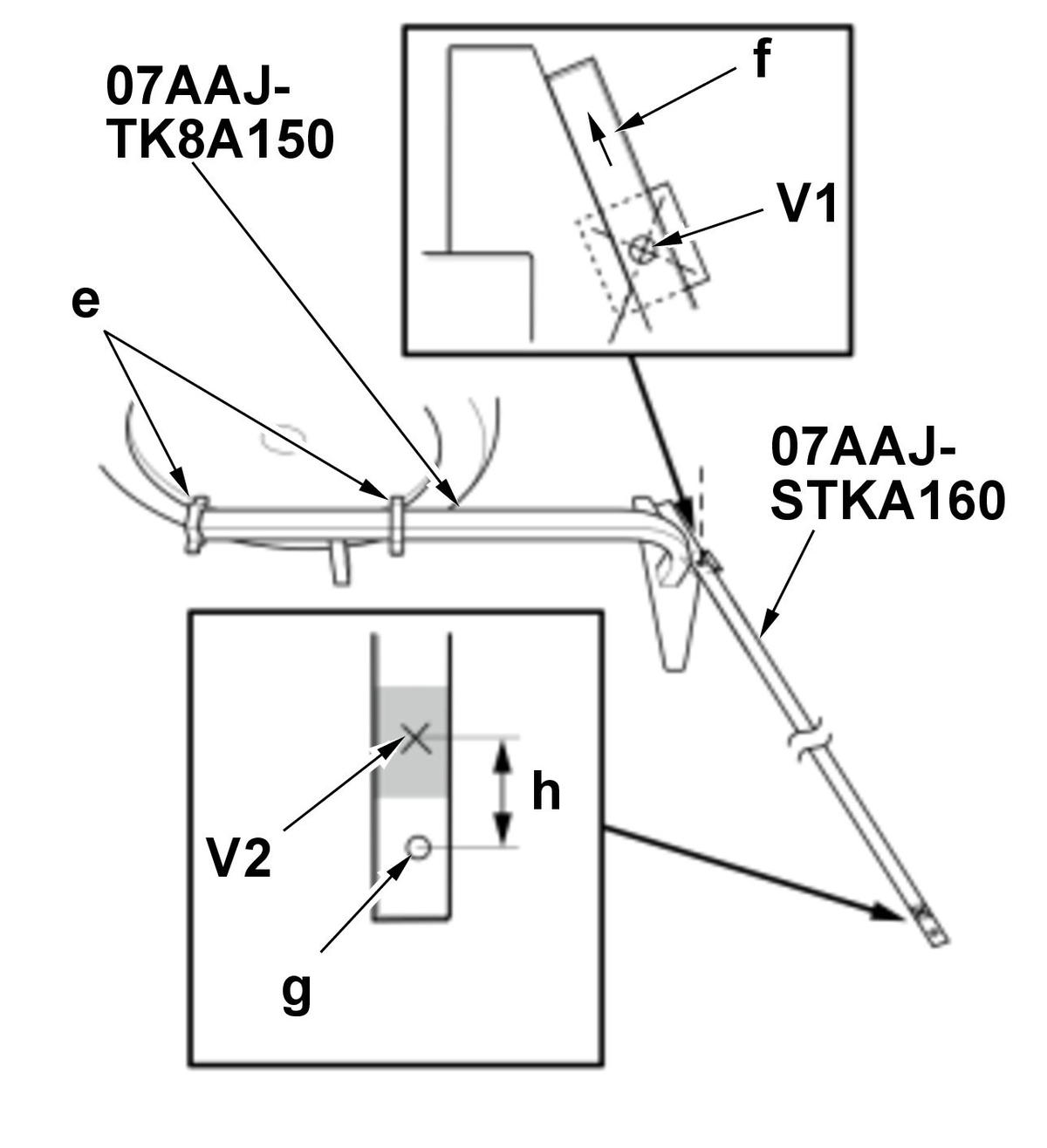

NOTE: Make sure the spacers are touching the wheel rim.6. Assemble the two sections of the straightedge, then place the hole on the end of the straightedge over point V1 that you made on the floor surface in the previous step. Slide the rim frame rearward until the rim frame and the straightedge meet. (Figure 3)
NOTE: Set the straightedge according to the arrow (f). (Figure 3)7. Mark a point V2 from the hole (g) on the end of the straightedge. (Figure 3)Specifications (Figure 3)
Value h 41 mm (1.61 in) Figure 4

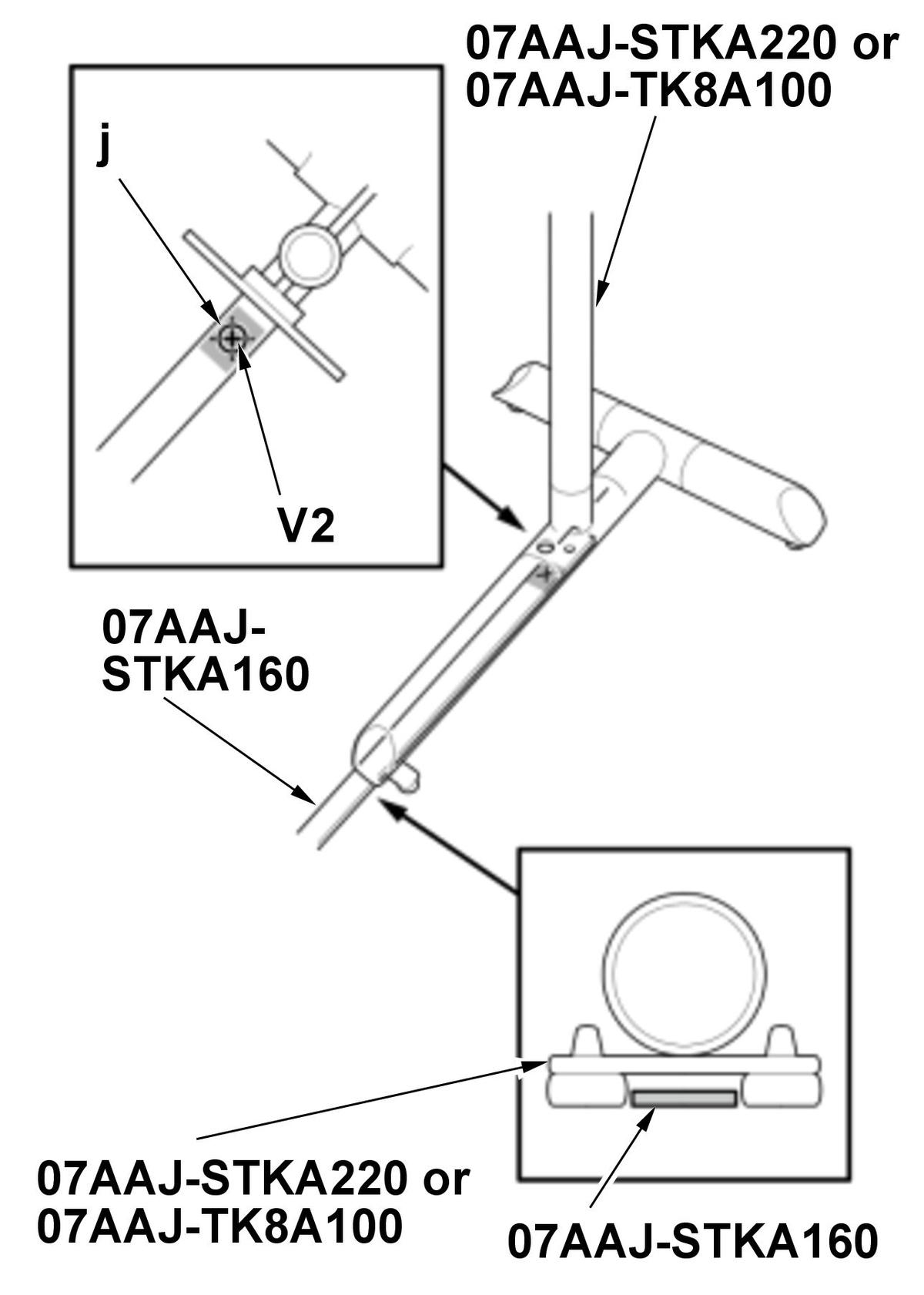

8. Place the target over the other end of the straightedge, and align the hole (j) at the base of the target with point V2 on the straightedge. (Figure 4)
Figure 5
9. With the angle gauge facing up at the 2 degree setting (indicated on the angle gauge), set the angle gauge against the BSI radar unit. Align the cutout in the angle gauge with the center of the BSI radar unit.

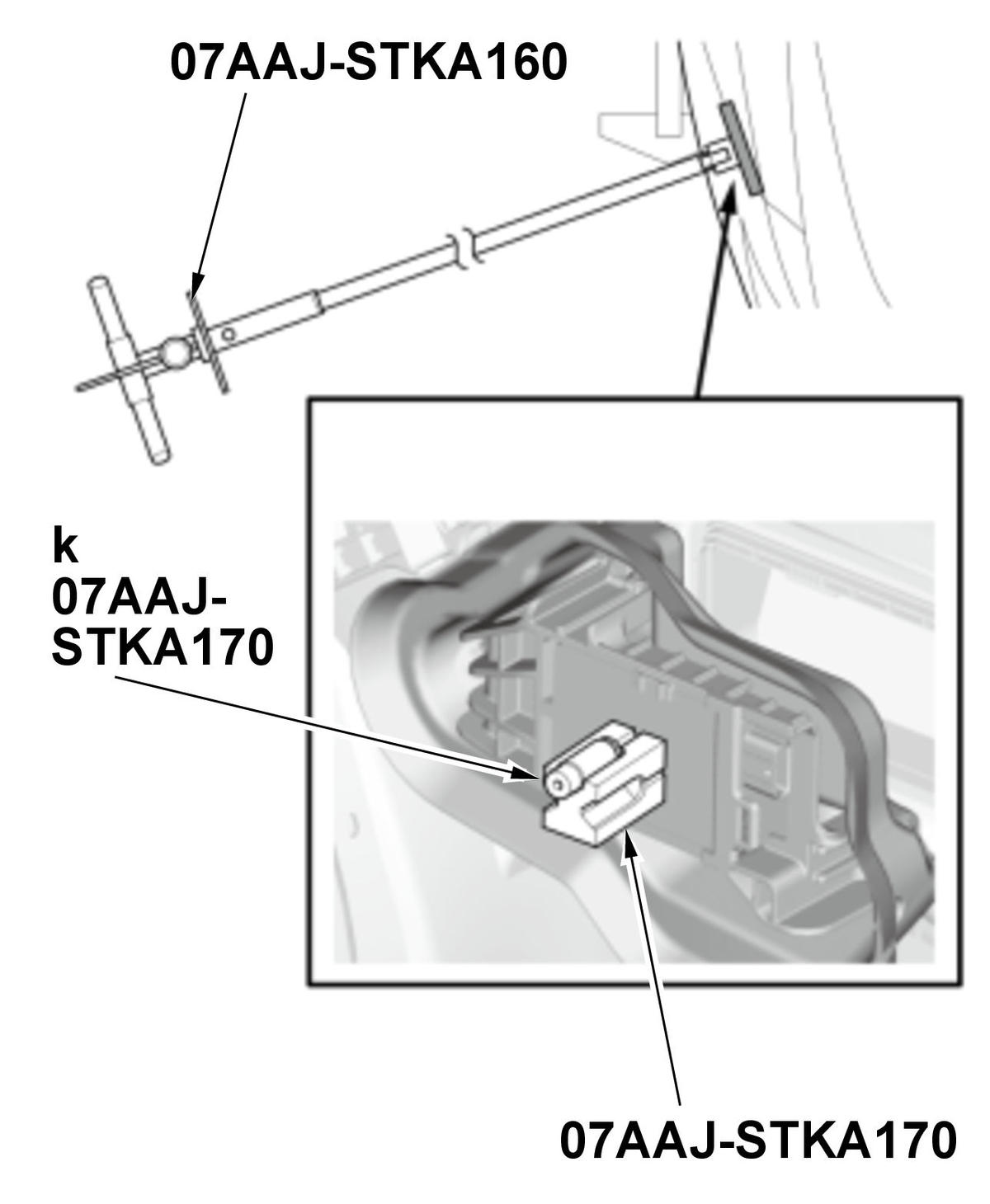

WARNING: Do not aim the laser beam at anyone's eyes.10. Turn on the laser pointer (k), and set it on the angle gauge so that the beam hits on the target. (Figure 5)
Figure 6

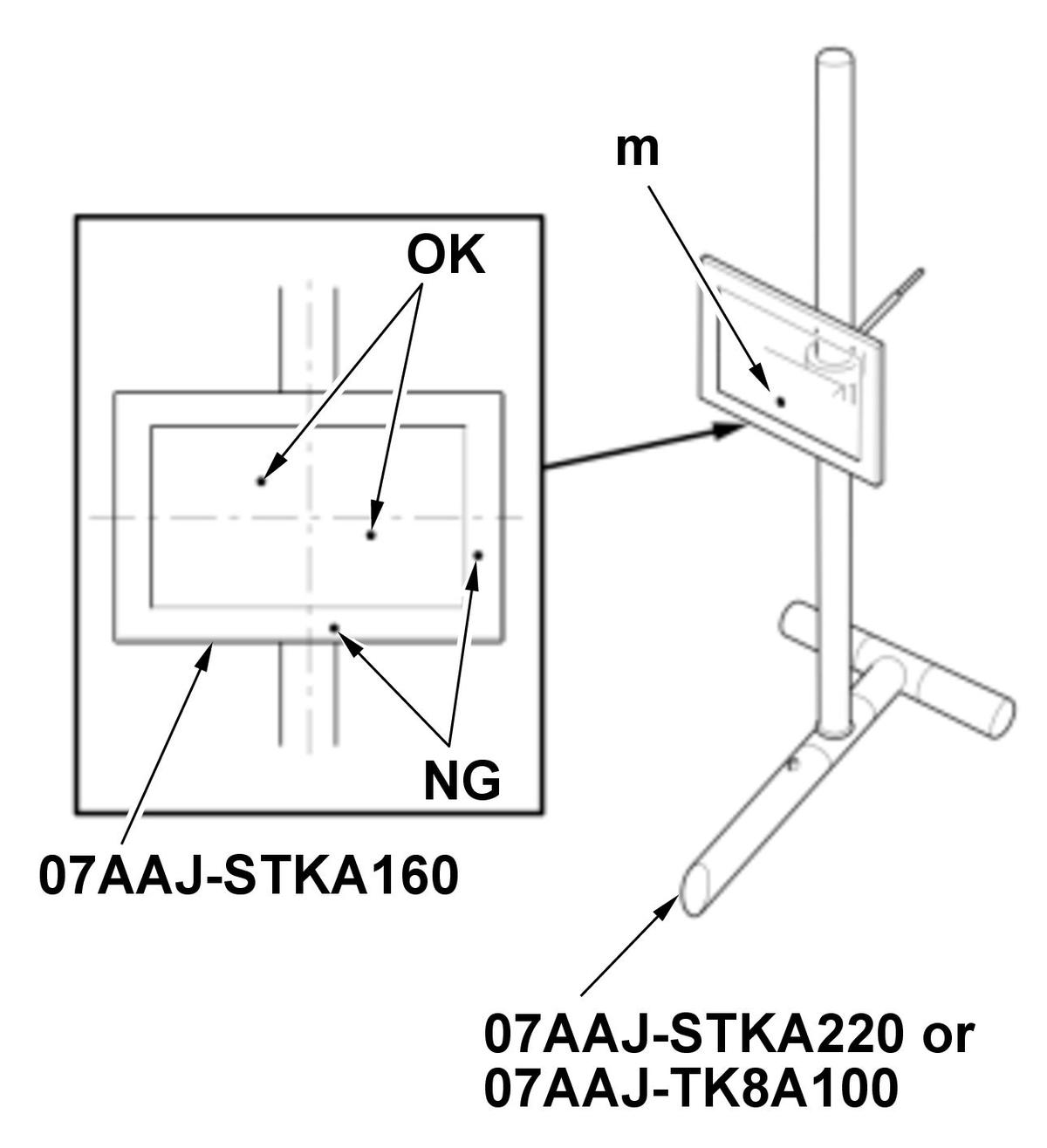

11. Check the point (m) where the laser beam hits the target. (Figure 6)
Specifications (Figure 6)
detail Laser beam is within the inner square of the target Result
- If it is abnormal, check the BSI radar unit mounting area - Refer to: BSI Radar Unit Mounting Area Check or BSI Radar Unit Aiming Inspection .
