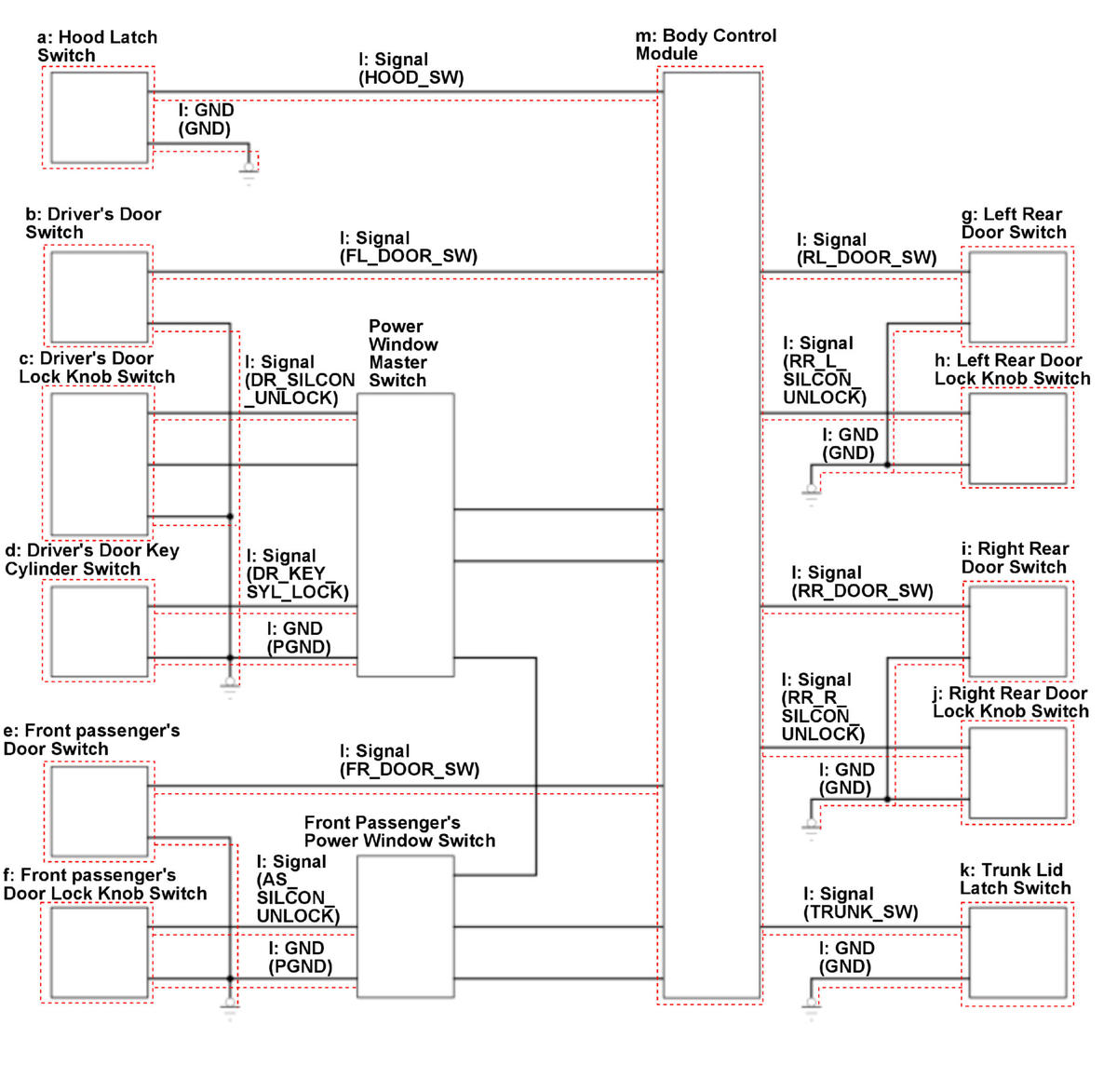

Inspection Outline

The components to be tested are indicated by a dotted line.

Courtesy of HONDA, U.S.A., INC.

NOTE: For more efficient troubleshooting, you may be able to eliminate some inspection items as potential failures based on the conditions of the failure and vehicle.

Do the HDS [Parameter Check].
- HDS [Security Hood Switch] is abnormal:
- HDS [Driver's Door Switch] is abnormal:
- HDS [Driver's Door Lock Knob Switch(UNLOCK)] is abnormal:
- HDS [Driver's Door Key Cylinder Switch(LOCK)] is abnormal:
- HDS [Passenger's Door Switch] is abnormal:
- HDS [Passenger's Door Lock Knob Switch(UNLOCK)] is abnormal:
- HDS [Driver's Rear Door Switch] is abnormal:
- HDS [Driver's Rear Door Lock Knob Switch(UNLOCK)] is abnormal:
- HDS [Passenger's Rear Door Switch] is abnormal:
- HDS [Passenger's Rear Door Lock Knob Sw. (UNLOCK)] is abnormal:
- HDS [Trunk Lid/Tailgate Switch] is abnormal:

Troubleshoot any DTCs listed or indicated systems below first.
- Body Electrical System [Body Electrical]: Go to the indicated DTC's troubleshooting

Inspection Items		Work Items
a	Hood Latch Switch	Do the Hood Latch Switch Test	o
b	Driver's Door Switch	Do the Driver's Door Switch Test		o
c	Driver's Door Lock Knob Switch	Do the Driver's Door Lock Knob Switch Test			o
d	Driver's Door Key Cylinder Switch	Do the Door Key Cylinder Switch Test				o
e	Front Passenger's Door Switch	Do the Front Passenger's Door Switch Test					o
f	Front Passenger's Door Lock Knob Switch	Do the Passenger's Door Lock Knob Switch Test						o
g	Left Rear Door Switch	Do the Left Rear Door Switch Test							o
h	Left Rear Door Lock Knob Switch	Do the Left Rear Door Lock Knob Switch Test								o
i	Right Rear Door Switch	Do the Right Rear Door Switch Test									o
j	Right Rear Door Lock Knob Switch	Do the Right Rear Door Lock Knob Switch Test										o
k	Trunk Lid Latch Switch	Do the Trunk Lid Latch Switch Test											o
l	External Circuit	HOOD_SW, GND Circuit Inspection	o
		FL_DOOR_SW, PGND Open Wire Inspection		o
		DR_SILCON_UNLOCK, PGND Circuit Inspection			o
		DR_KEY_CYL_LOCK, PGND Circuit Inspection				o
		FR_DOOR_SW, PGND Open Wire Inspection					o
		AS_SILCON_UNLOCK, PGND Circuit Inspection						o
		RL_DOOR_SW, GND Open Wire Inspection							o
		RR_L_SILCON_UNLOCK, GND Circuit Inspection								o
		RR_DOOR_SW, GND Open Wire Inspection									o
		RR_R_SILCON_UNLOCK, GND Circuit Inspection										o
		TRUNK_SW, GND Circuit Inspection											o
m	Body Control Module	Body Control Module Inspection	o	o	o	o	o	o	o	o	o	o	o
