Keyless Buzzer Circuit Troubleshooting: Inspection

SMART_BUZZER, GND Circuit Inspection

Test Procedure

• Preparation
• • Keyless buzzer 3P connector: disconnected
  • Body control module connector E (24P): disconnected
• Procedure
• • Perform the inspection according to the following table.

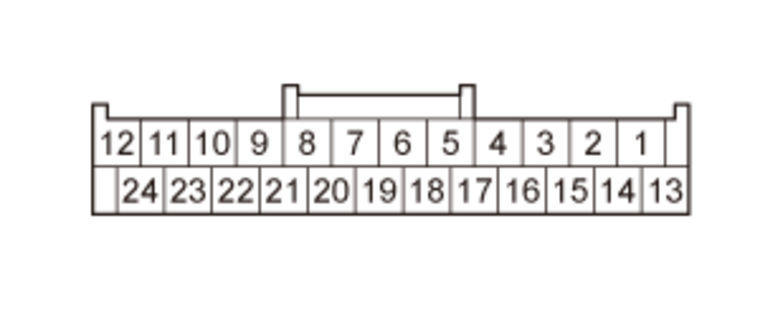

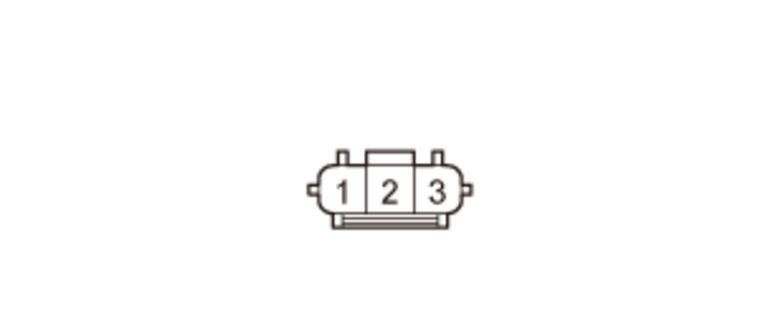

			(Disconnected)Keyless buzzer 3P connectorfemale terminals	(Disconnected)Body control module connector E (24P) female terminals

		IG Mode	Courtesy of HONDA, U.S.A., INC.	Courtesy of HONDA, U.S.A., INC.	Normal Conditions
	SMART_BUZZER open wire inspection	OFF			There is less than 1 Ohm
	GND open wire inspection	OFF			There is less than 1 Ohm
	NOTE: Refer to the Open/Shorted Wire Inspection Description for the method to inspect the shorted circuit below, then start to inspect according to circumstances.
	SMART_BUZZER shorted to ground inspection	OFF			Not shorted

Results

• If it is abnormal, there is a problem in the circuit.

Keyless Buzzer Inspection

Test Procedure

• Install a known-good keyless buzzer and attempt to reproduce the failure.

Results

• If the failure is reproduced, there is a problem with other related components.
• If the symptom/DTC goes away, the keyless buzzer must be faulty.

Body Control Module Inspection

Test Procedure

• If the other inspection item(s) indicated a normal condition, then it is determined that the remaining body control module is the cause.

Results

• There is a problem with the body control module.
