Security System / Keyless Entry System - Testing & Troubleshooting
>>
Troubleshooting
>>
Keyless Buzzer Circuit Troubleshooting
>>
Inspection Outline
Inspection Outline

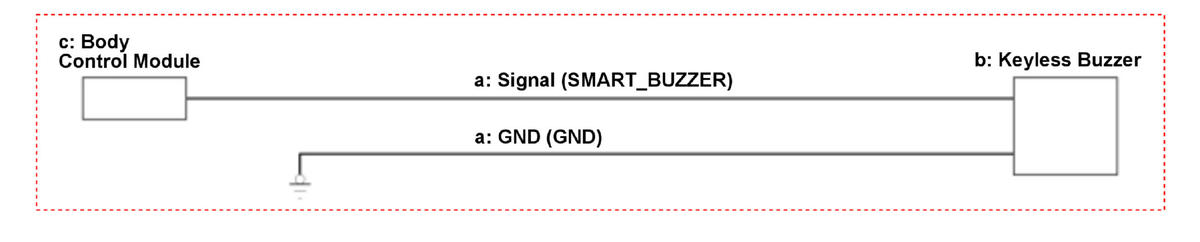

The components to be tested are indicated by a dotted line.
Courtesy of HONDA, U.S.A., INC.
Inspection Items
Work Items
a
External Circuit
SMART_BUZZER, GND Circuit Inspection
b
Keyless Buzzer
Keyless Buzzer Inspection
c
Body Control Module
Body Control Module Inspection
Courtesy of HONDA, U.S.A., INC.
