Keyless Access System Touch Sensor Circuit Troubleshooting: Inspection

VOUT_FR_DR, TS_FR_DR, DL_FR_DR, PGND Circuit Inspection

Test Procedure

• Preparation
• • Driver's door outer handle 4P connector: disconnected
  • Body control module connector G (32P): disconnected
• Procedure
• • Perform the inspection according to the following table.

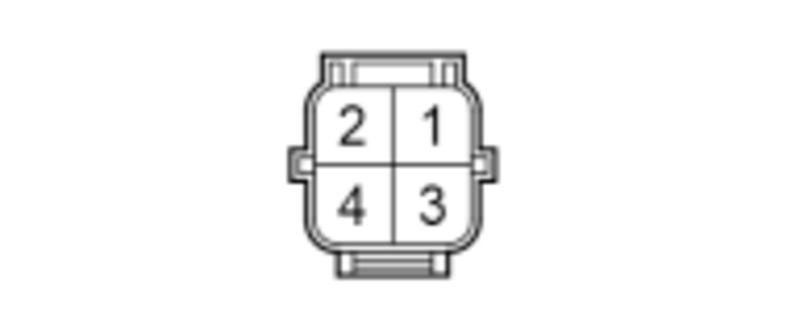

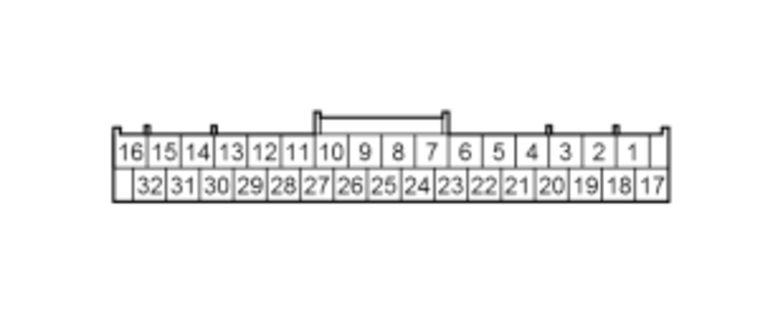

			(Disconnected)Driver's door outer handle 4P connectorfemale terminals	(Disconnected)Body control module connector G (32P) female terminals

		IG Mode	Courtesy of HONDA, U.S.A., INC.	Courtesy of HONDA, U.S.A., INC.	Normal Conditions
	VOUT_FR_DR open wire inspection	OFF			There is less than 1 Ohm
	TS_FR_DR open wire inspection	OFF			There is less than 1 Ohm
	DL_FR_DR open wire inspection	OFF			There is less than 1 Ohm
	PGND open wire inspection	OFF			There is less than 1 Ohm
	NOTE: Refer to the Open/Shorted Wire Inspection Description for the method to inspect the shorted circuit below, then start to inspect according to circumstances.
	VOUT_FR_DR shorted to ground inspection	OFF			Not shorted
	TS_FR_DR shorted to ground inspection	OFF			Not shorted
	DL_FR_DR shorted to ground inspection	OFF			Not shorted

Results

• If it is abnormal, there is a problem in the circuit.

VOUT_FR_AS, TS_FR_AS, DL_FR_AS, PGND Circuit Inspection

Test Procedure

• Preparation
• • Front passenger's door outer handle 4P connector: disconnected
  • Body control module connector G (32P): disconnected
• Procedure
• • Perform the inspection according to the following table.

			(Disconnected)Front passenger's door outer handle 4P connectorfemale terminals	(Disconnected)Body control module connector G (32P) female terminals

		IG Mode	Courtesy of HONDA, U.S.A., INC.	Courtesy of HONDA, U.S.A., INC.	Normal Conditions
	VOUT_FR_AS open wire inspection	OFF			There is less than 1 Ohm
	TS_FR_AS open wire inspection	OFF			There is less than 1 Ohm
	DL_FR_AS open wire inspection	OFF			There is less than 1 Ohm
	PGND open wire inspection	OFF			There is less than 1 Ohm
	NOTE: Refer to the Open/Shorted Wire Inspection Description for the method to inspect the shorted circuit below, then start to inspect according to circumstances.
	VOUT_FR_AS shorted to ground inspection	OFF			Not shorted
	TS_FR_AS shorted to ground inspection	OFF			Not shorted
	DL_FR_AS shorted to ground inspection	OFF			Not shorted

Results

• If it is abnormal, there is a problem in the circuit.

VOUT_RR_L, TS_RR_L, DL_RR_L, GND Circuit Inspection

Test Procedure

• Preparation
• • Left rear door outer handle 4P connector: disconnected
  • Body control module connector G (32P): disconnected
• Procedure
• • Perform the inspection according to the following table.

			(Disconnected)Left rear door outer handle 4P connectorfemale terminals	(Disconnected)Body control module connector G (32P) female terminals

		IG Mode	Courtesy of HONDA, U.S.A., INC.	Courtesy of HONDA, U.S.A., INC.	Normal Conditions
	VOUT_RR_L open wire inspection	OFF			There is less than 1 Ohm
	TS_RR_L open wire inspection	OFF			There is less than 1 Ohm
	DL_RR_L open wire inspection	OFF			There is less than 1 Ohm
	GND open wire inspection	OFF			There is less than 1 Ohm
	NOTE: Refer to the Open/Shorted Wire Inspection Description for the method to inspect the shorted circuit below, then start to inspect according to circumstances.
	VOUT_RR_L shorted to ground inspection	OFF			Not shorted
	TS_RR_L shorted to ground inspection	OFF			Not shorted
	DL_RR_L shorted to ground inspection	OFF			Not shorted

Results

• If it is abnormal, there is a problem in the circuit.

VOUT_RR_R, TS_RR_R, DL_RR_R, GND Circuit Inspection

Test Procedure

• Preparation
• • -

    Right rear door outer handle 4P connector: disconnected

  • -

    Body control module connector G (32P): disconnected

• Procedure
• • -

    Perform the inspection according to the following table.

			(Disconnected)Right rear door outer handle 4P connectorfemale terminals	(Disconnected)Body control module connector G (32P) female terminals

		IG Mode	Courtesy of HONDA, U.S.A., INC.	Courtesy of HONDA, U.S.A., INC.	Normal Conditions
	VOUT_RR_R open wire inspection	OFF			There is less than 1 Ohm
	TS_RR_R open wire inspection	OFF			There is less than 1 Ohm
	DL_RR_R open wire inspection	OFF			There is less than 1 Ohm
	GND open wire inspection	OFF			There is less than 1 Ohm
	NOTE: Refer to the Open/Shorted Wire Inspection Description for the method to inspect the shorted circuit below, then start to inspect according to circumstances.
	VOUT_RR_R shorted to ground inspection	OFF			Not shorted
	TS_RR_R shorted to ground inspection	OFF			Not shorted
	DL_RR_R shorted to ground inspection	OFF			Not shorted

Results

• If it is abnormal, there is a problem in the circuit.

Driver's Door Outer Handle Inspection

Test Procedure

• Install a known-good driver's door outer handle and attempt to reproduce the failure.

Results

• If the failure is reproduced, there is a problem with other related components.
• If the symptom/DTC goes away, the driver's door outer handle must be faulty.

Front Passenger's Door Outer Handle Inspection

Test Procedure

• Install a known-good front passenger's door outer handle and attempt to reproduce the failure.

Results

• If the failure is reproduced, there is a problem with other related components.
• If the symptom/DTC goes away, the front passenger's door outer handle must be faulty.

Left Rear Door Outer Handle Inspection

Test Procedure

• Install a known-good left rear door outer handle and attempt to reproduce the failure.

Results

• If the failure is reproduced, there is a problem with other related components.
• If the symptom/DTC goes away, the front passenger's door outer handle must be faulty.

Right Rear Door Outer Handle Inspection

Test Procedure

• Install a known-good right rear door outer handle and attempt to reproduce the failure.

Results

• If the failure is reproduced, there is a problem with other related components.
• If the symptom/DTC goes away, the front passenger's door outer handle must be faulty.

Body Control Module Inspection

Test Procedure

• If the other inspection item(s) indicated a normal condition, then it is determined that the remaining body control module is the cause.

Results

• There is a problem with the body control module.
