Keyless Access System Symptom Troubleshooting - Cannot Select ON Mode With Keyless Access, But Can Select ON Mode With The Keyless Remote Touching The Engine Start/Stop Switch: Inspection

SS1(+), SS2(-) Open Wire Inspection

Test Procedure

• Preparation
• • Engine start/stop switch 10P connector: disconnected
  • Body control module connector G (32P): disconnected
• Procedure
• • Perform the inspection according to the following table.

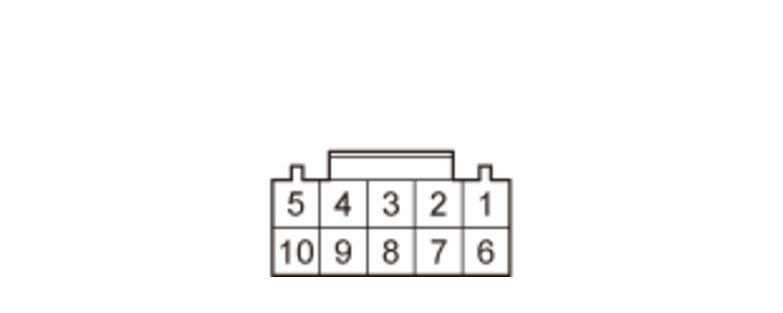

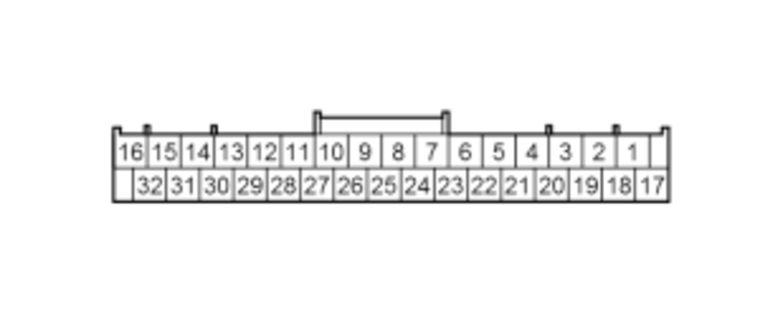

			(Disconnected)Engine start/stop switch 10P connectorfemale terminals	(Disconnected)Body control module connector G (32P) female terminals
		IG Mode	Courtesy of HONDA, U.S.A., INC.	Courtesy of HONDA, U.S.A., INC.	Normal Conditions
	SS1(+) open wire inspection	OFF			There is less than 1 Ohm
	SS2(-) open wire inspection	OFF			There is less than 1 Ohm

Results

• If abnormal, there is a problem in the circuit.

Body Control Module Inspection

Test Procedure

• If the other inspection item(s) indicated a normal condition, then it is determined that the remaining body control module is the cause.

Results

• There is a problem with the body control module.
