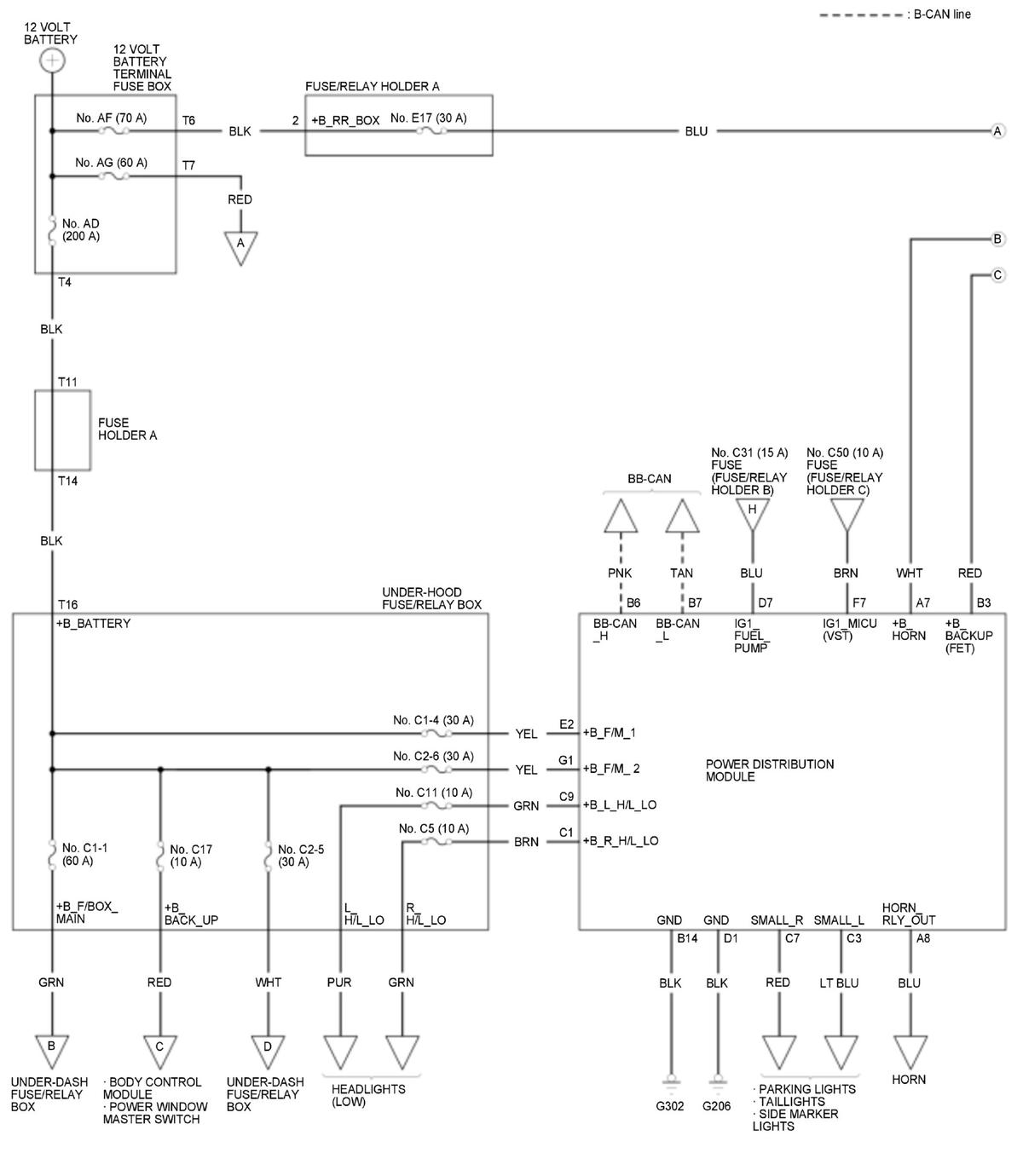

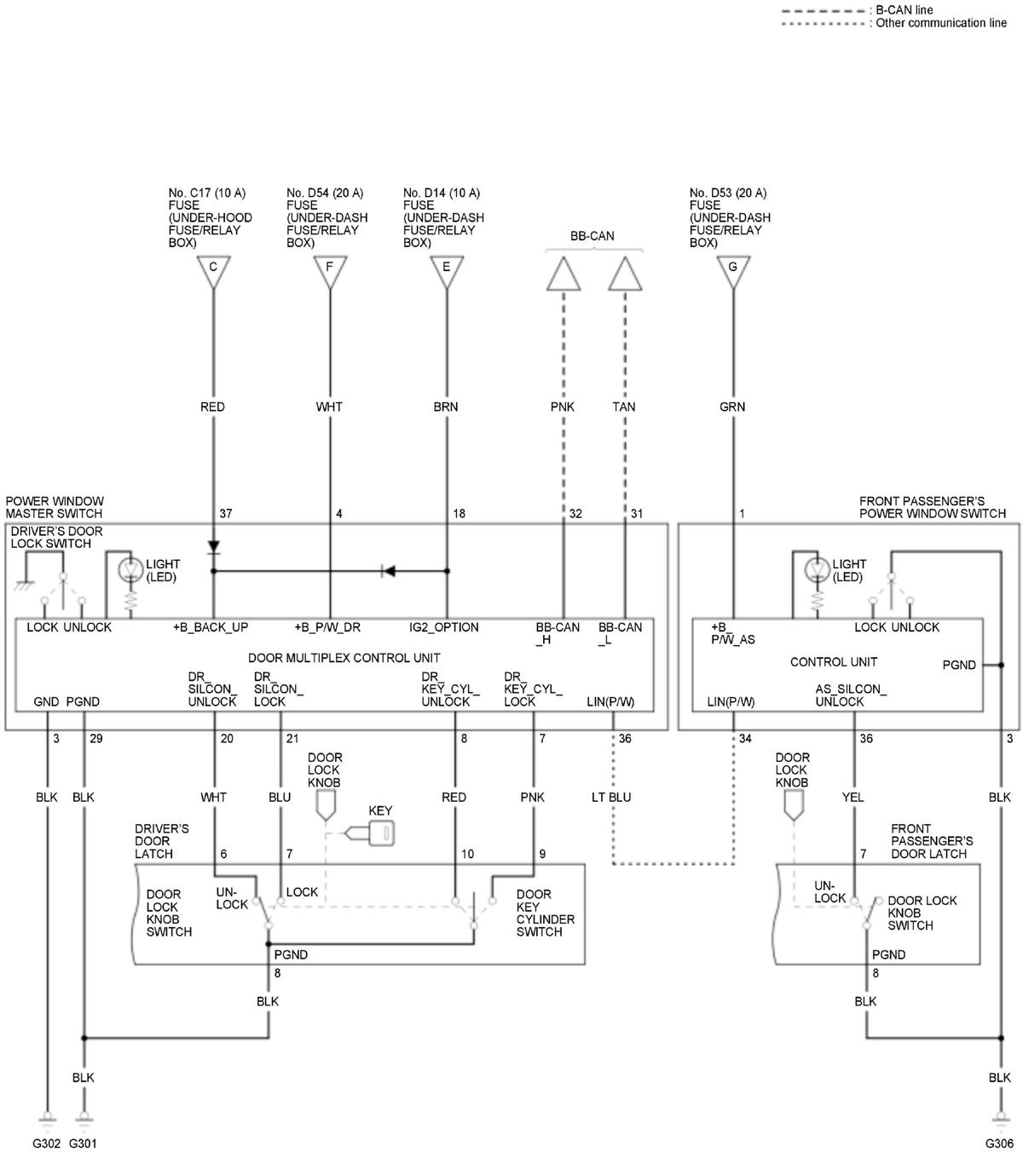

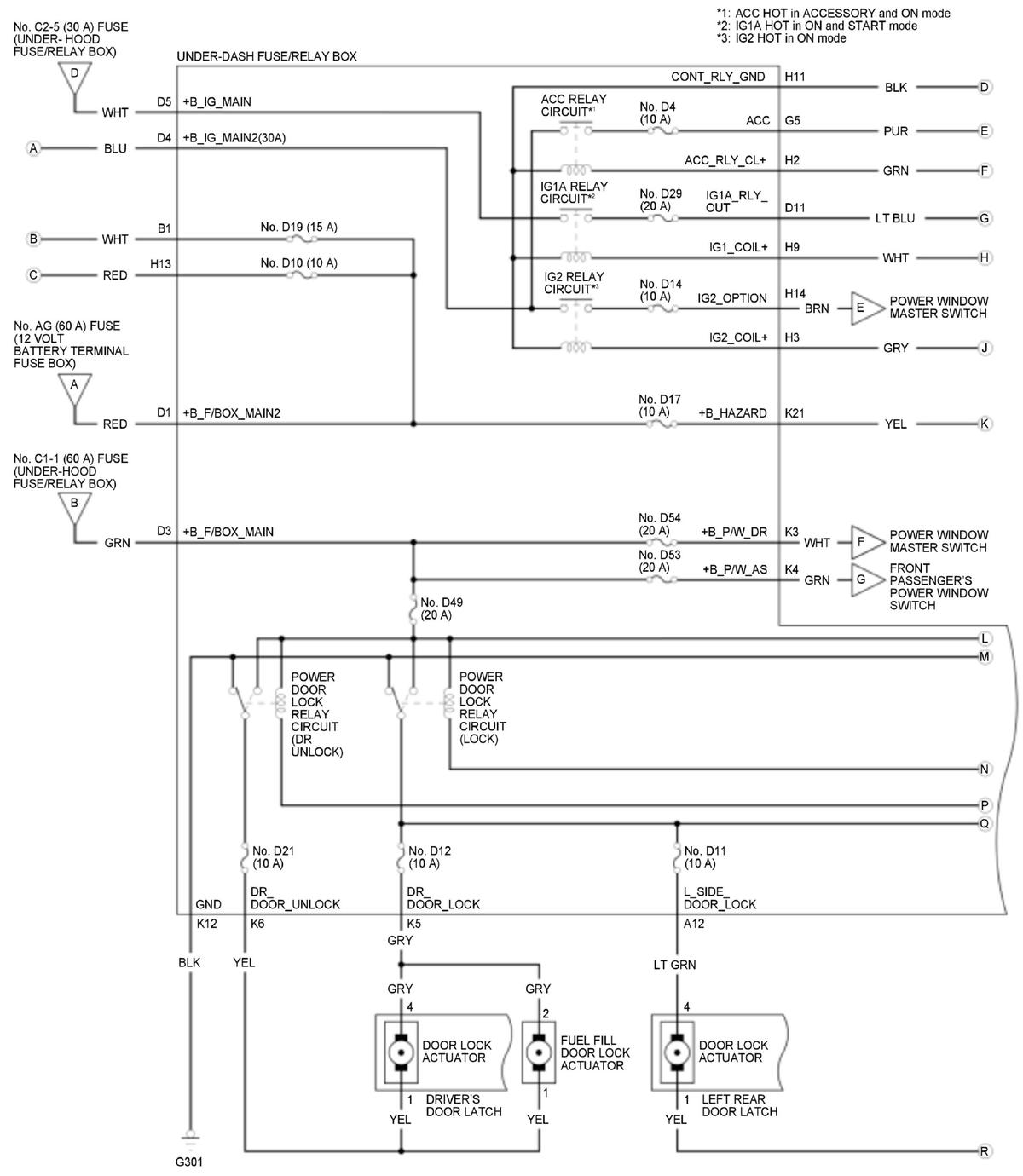

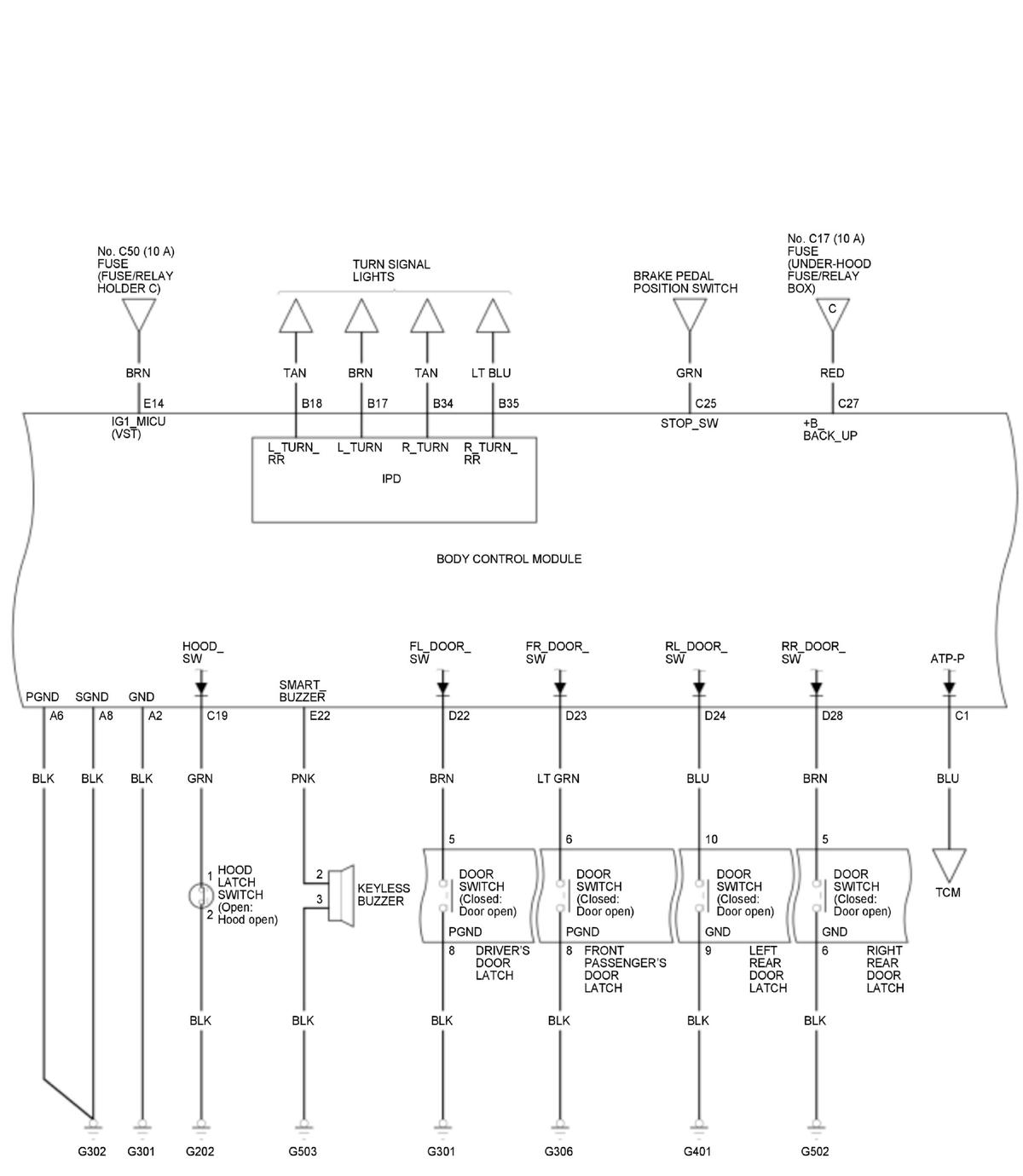

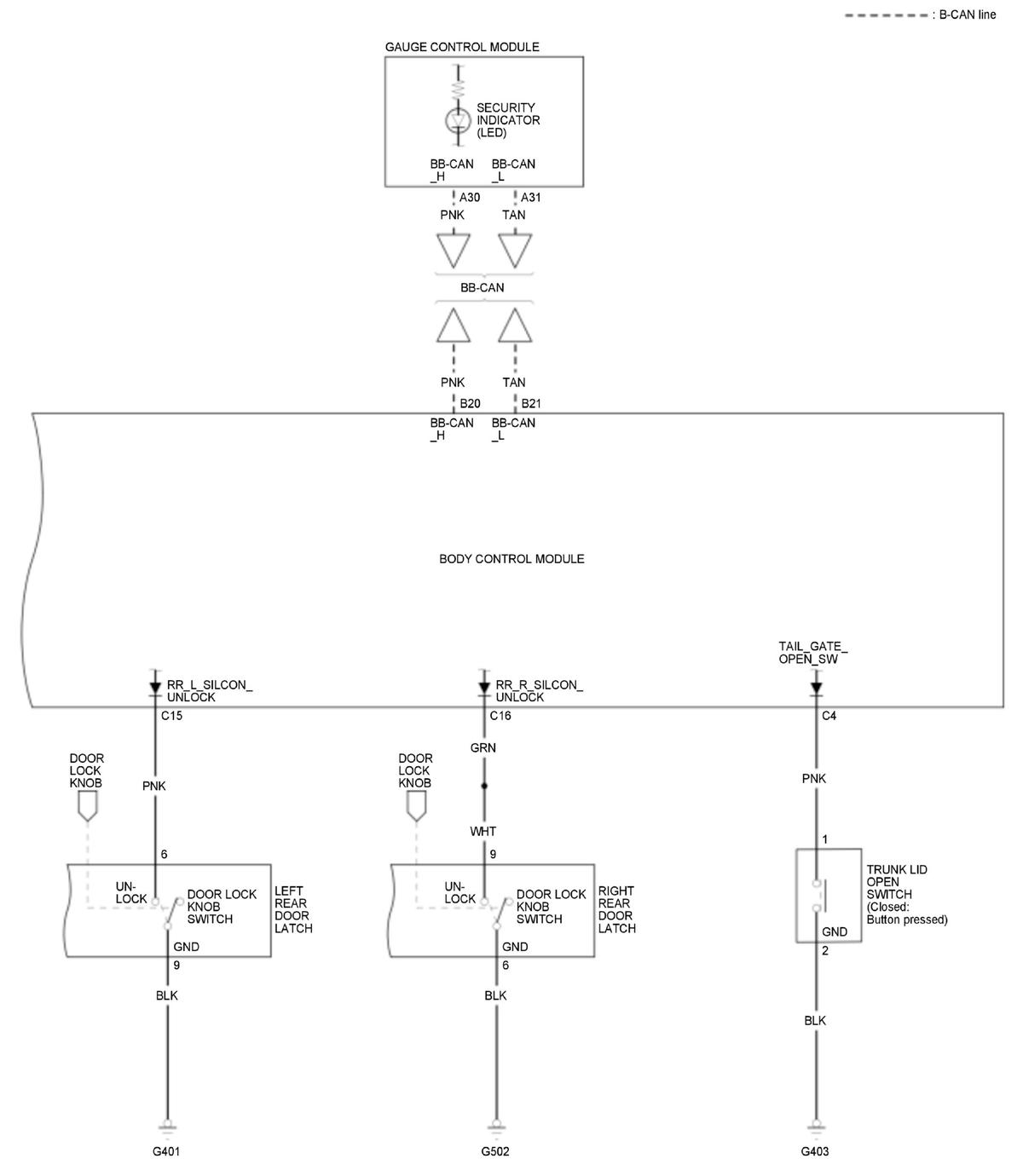

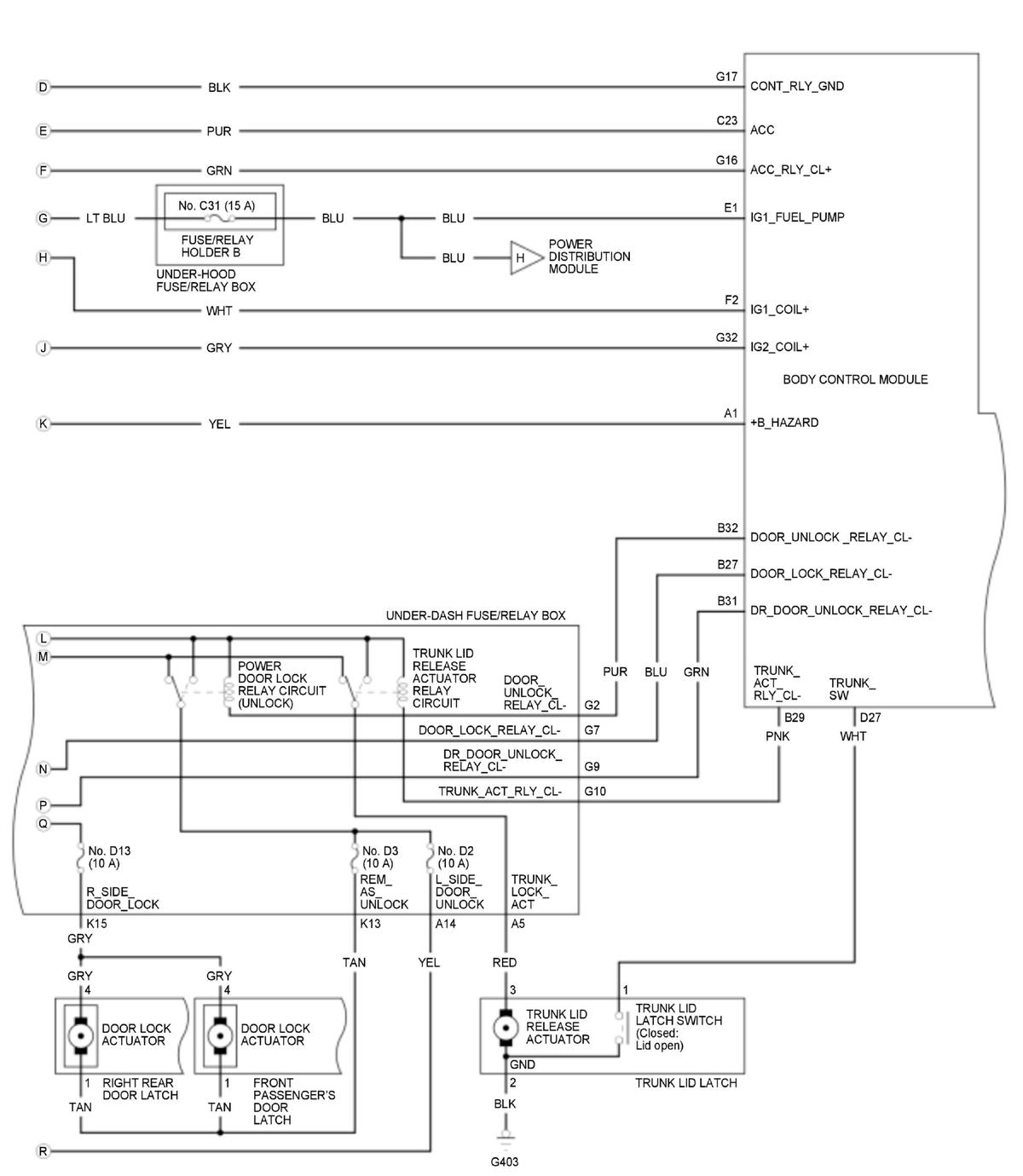

Keyless/Power Door Locks/Security System Circuit Diagram
NOTE:
For details of the CAN circuit, refer to the Network Communications Circuit Diagram.
