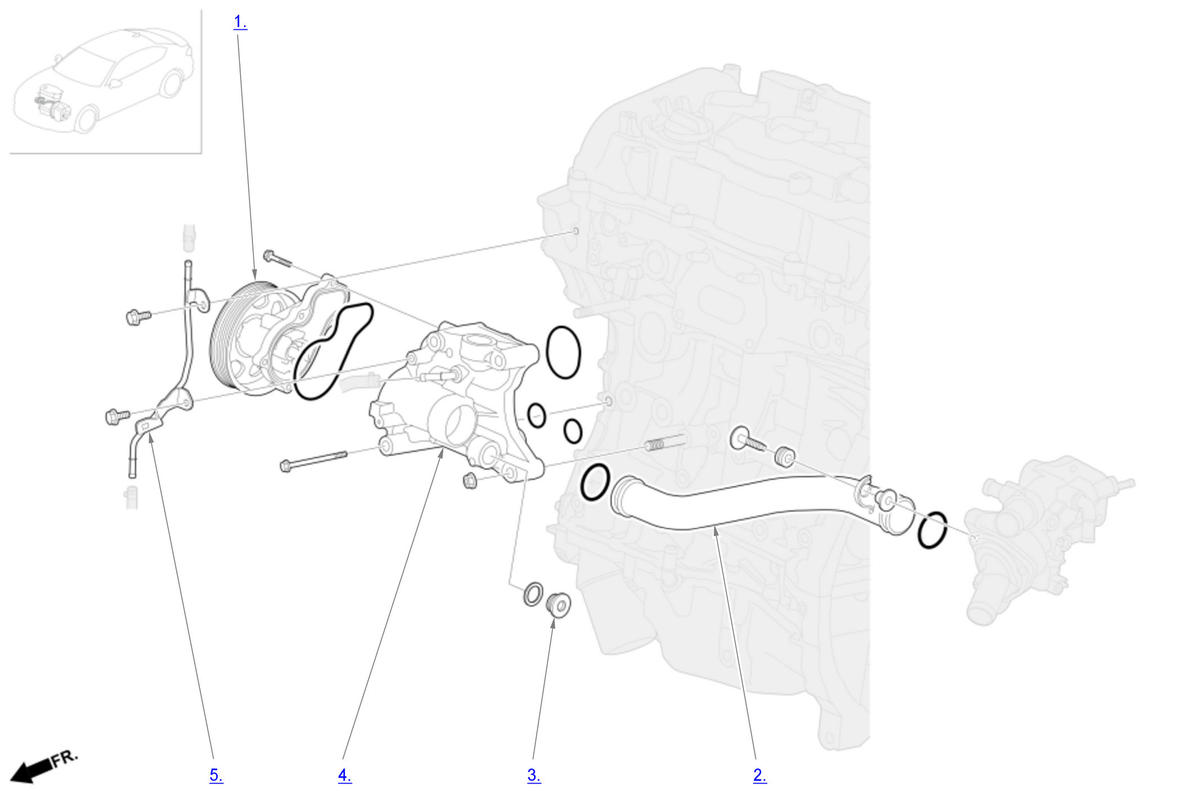

Exploded View Legend
For Replacement of components listed below, see Repair Procedure
Water Pump Area Components
| Component Name | Callout |
|---|---|
| Water Pump | 1 |
| Connecting Pipe | 2 |
| Sealing Bolt | 3 |
| Water Passage | 4 |
| Turbocharger Bypass Control Valve Solenoid Pipe B | 5 |
For Replacement of components listed below, see Repair Procedure
| Component Name | Callout |
|---|---|
| Water Pump | 1 |
| Connecting Pipe | 2 |
| Sealing Bolt | 3 |
| Water Passage | 4 |
| Turbocharger Bypass Control Valve Solenoid Pipe B | 5 |
