Exploded View Legend
For Replacement of components listed below, see Repair Procedure
| *1: For some models *2: Part(s) are shown for one side only as the procedure is the same for both sides. |
Trunk Lid
| Component Name | Callout |
|---|---|

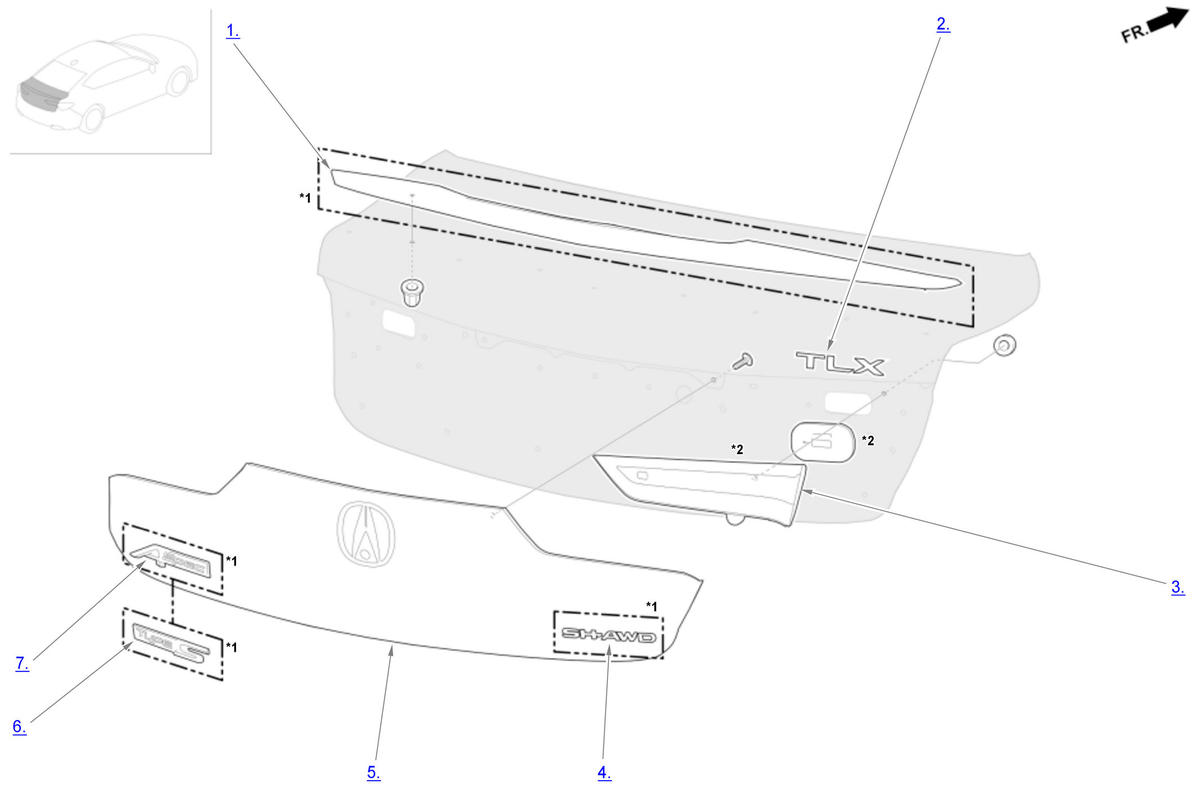

| Trunk Lid Spoiler | 1 |
| Rear "TLX" Emblem | 2 |
| Inner Taillight | 3 |
| Rear "SH-AWD" Emblem | 4 |
| Trunk Lid Lower Trim | 5 |
| Rear Type S Emblem | 6 |
| Rear A-spec Emblem | 7 |
| Foam Seal | 8 |

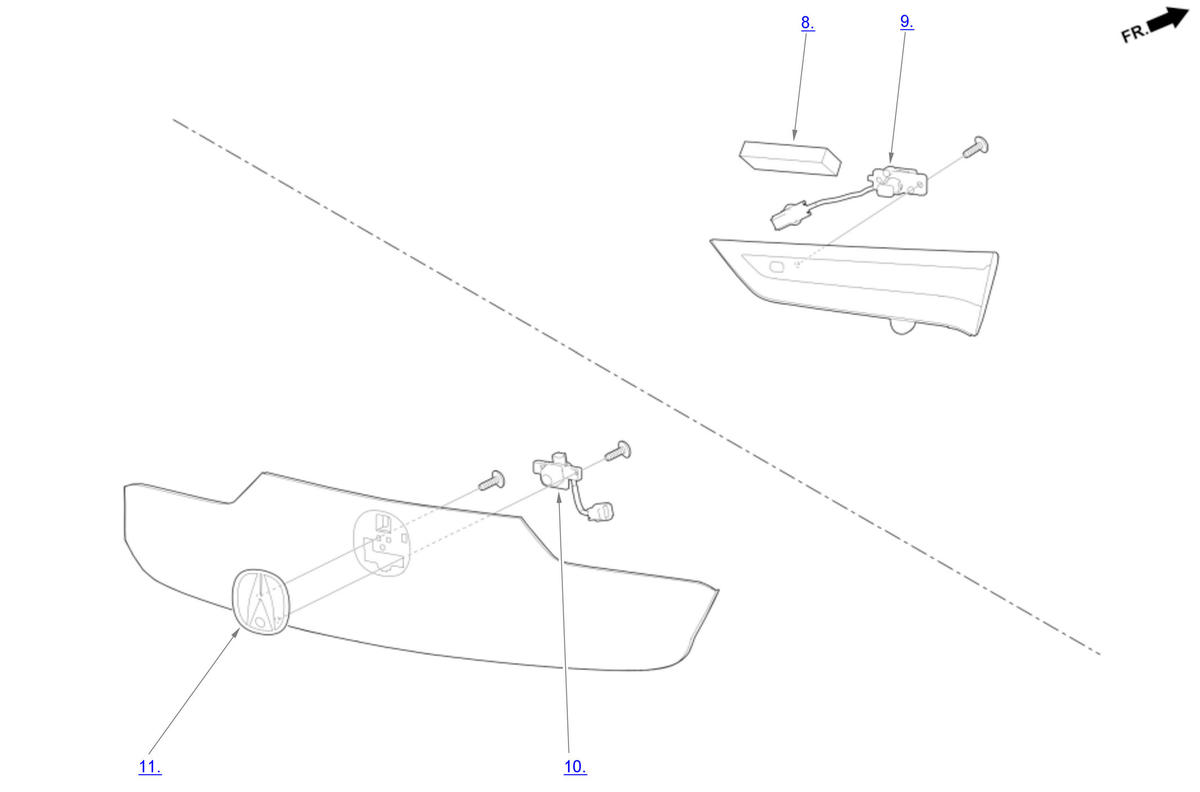

| Trunk Lid Opener Switch | 9 |
| Rearview Camera | 10 |
| Rear "A" Emblem Assembly | 11 |

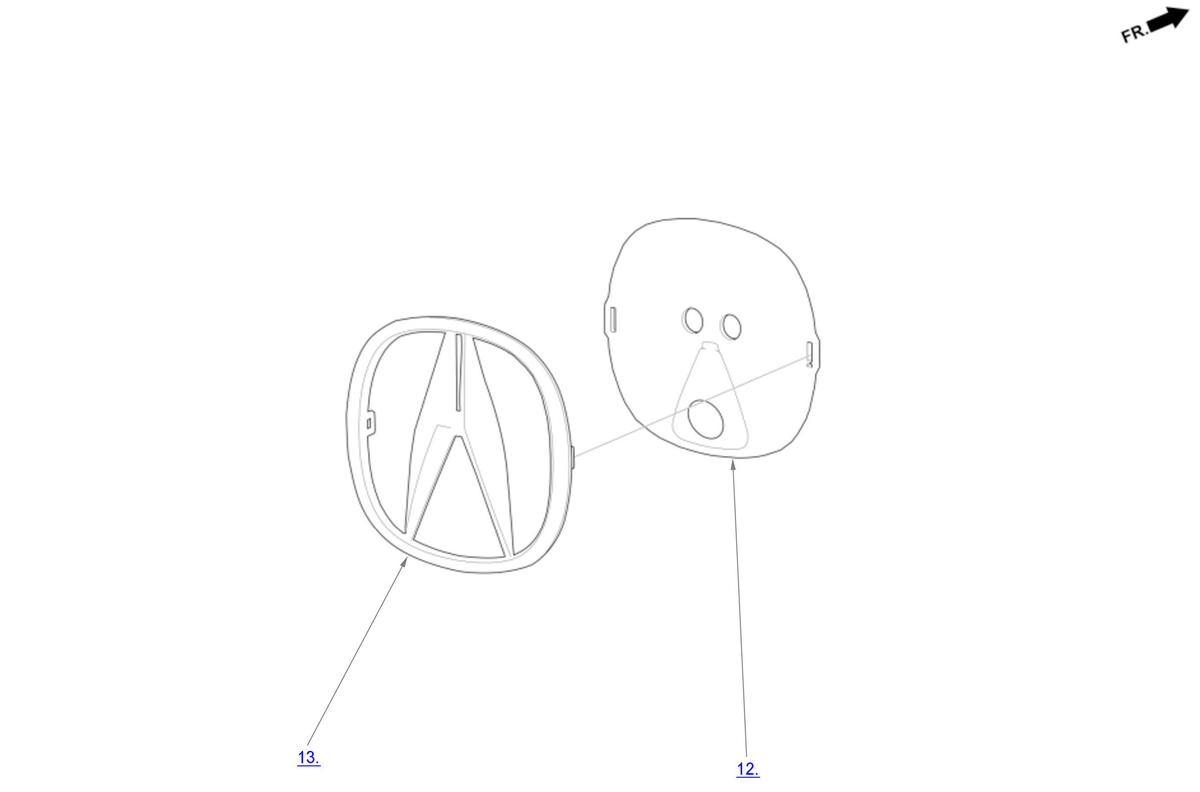

| Rear "A" Emblem Back Plate | 12 |
| Rear "A" Emblem | 13 |
