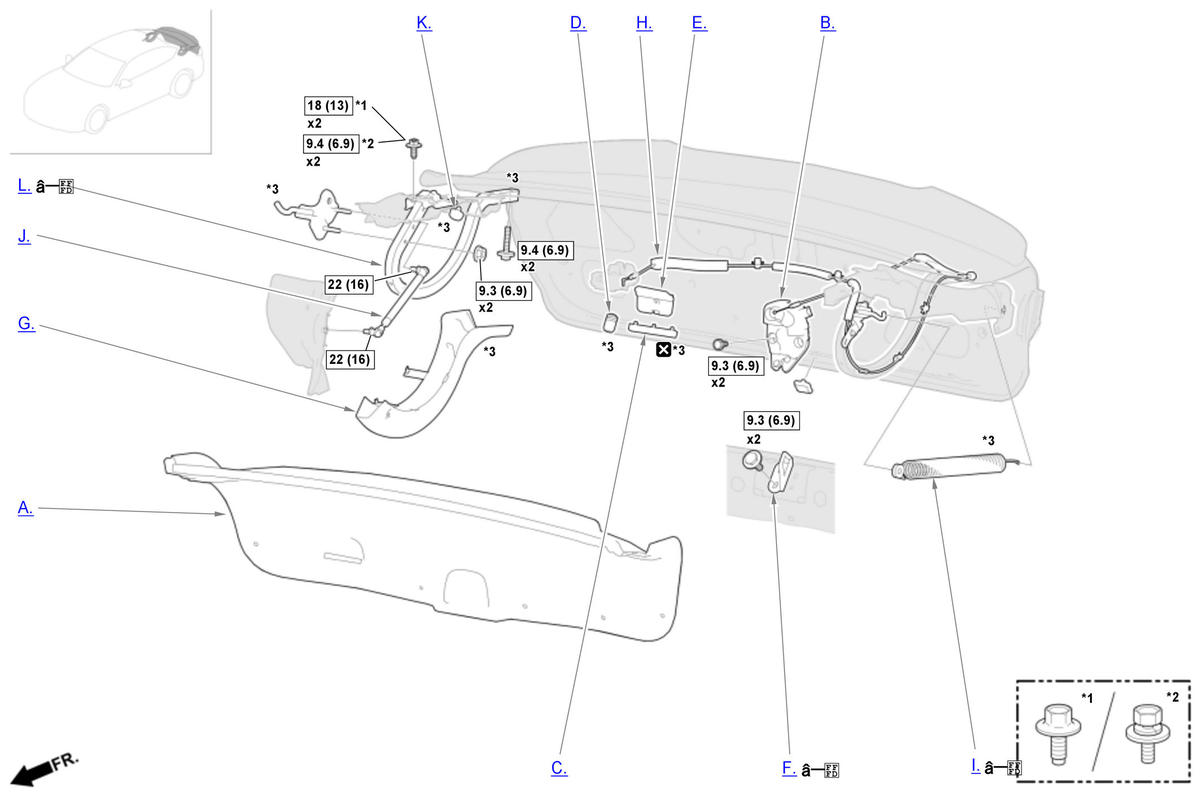

Repair Procedure

How to use this manual .

Courtesy of HONDA, U.S.A., INC.

: Torque, N.m (lbf.ft)

: Replace

: Warning/Caution

: Inspection/Adjustment

*: Learning

:■ SPL Tool

: Required Removal

1. A.-

   Courtesy of HONDA, U.S.A., INC.

2. B.-

   Sub-Procedure

   Courtesy of HONDA, U.S.A., INC.

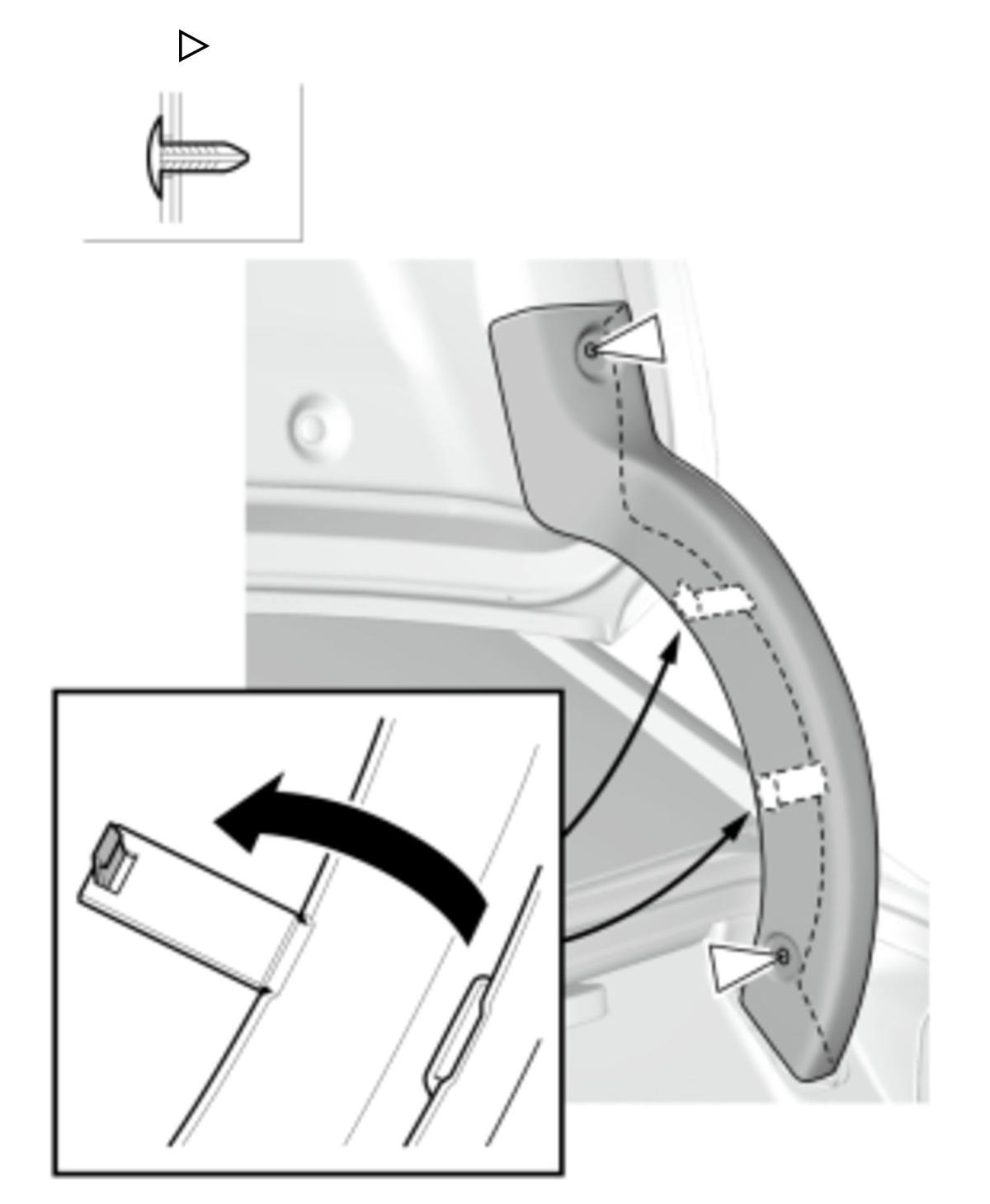

   Removal

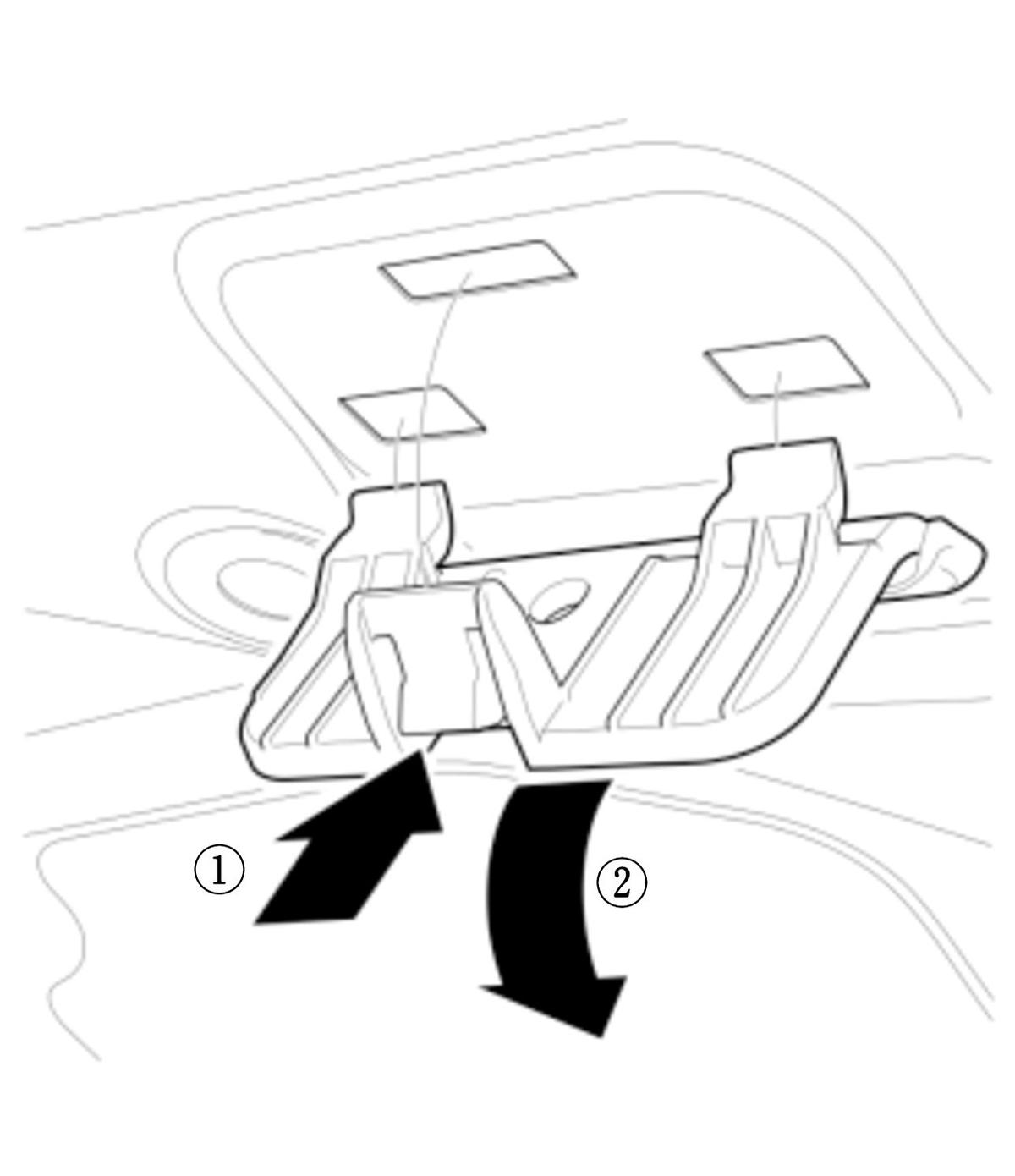

   • Refer to the figure.
3. C.-

   Sub-Procedure

   Courtesy of HONDA, U.S.A., INC.

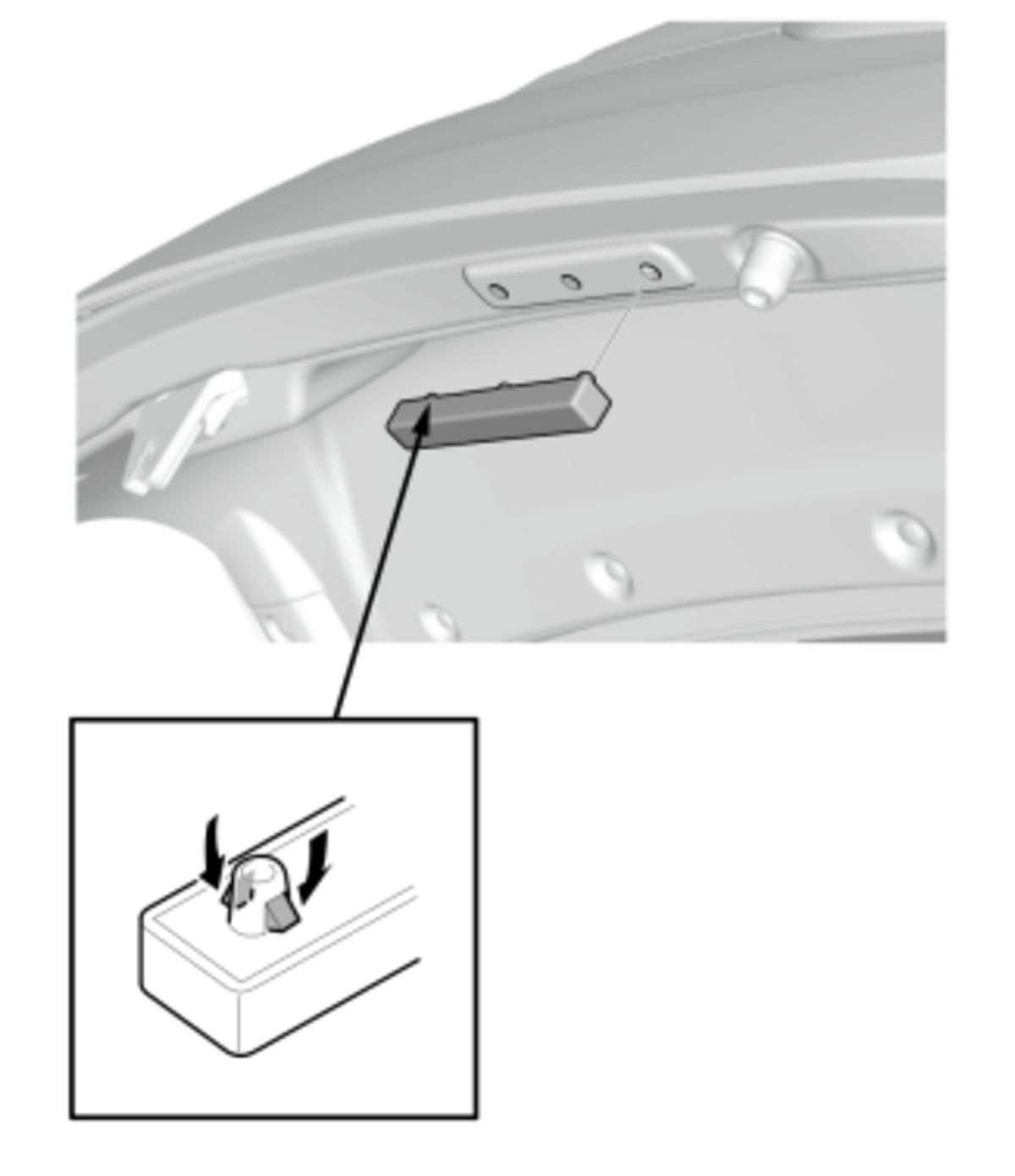

   Removal

   • Refer to the figure.
4. D.-

   After Installation

   • Trunk Lid Adjustment
5. E.-

   Sub-Procedure

   Courtesy of HONDA, U.S.A., INC.

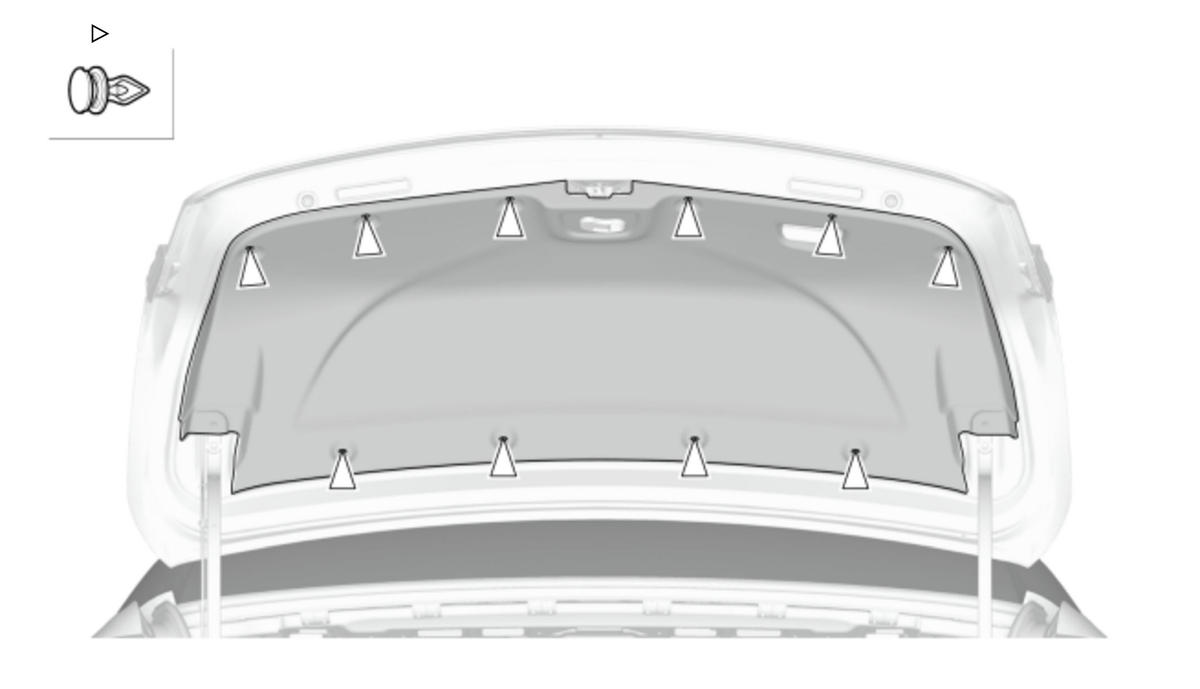

   Removal

   • Refer to the figure.
6. F.-

   After Installation

   • Trunk Lid Adjustment
7. G.-

   Sub-Procedure

   Courtesy of HONDA, U.S.A., INC.

   Removal

   • Refer to the figure.
8. H.-

   Key Information

   Do the following before starting your work.

   Remove:

   • Left Trunk Rear Side Trim Panel (as needed)
   • Key Cylinder

   Sub-Procedure

   Courtesy of HONDA, U.S.A., INC.

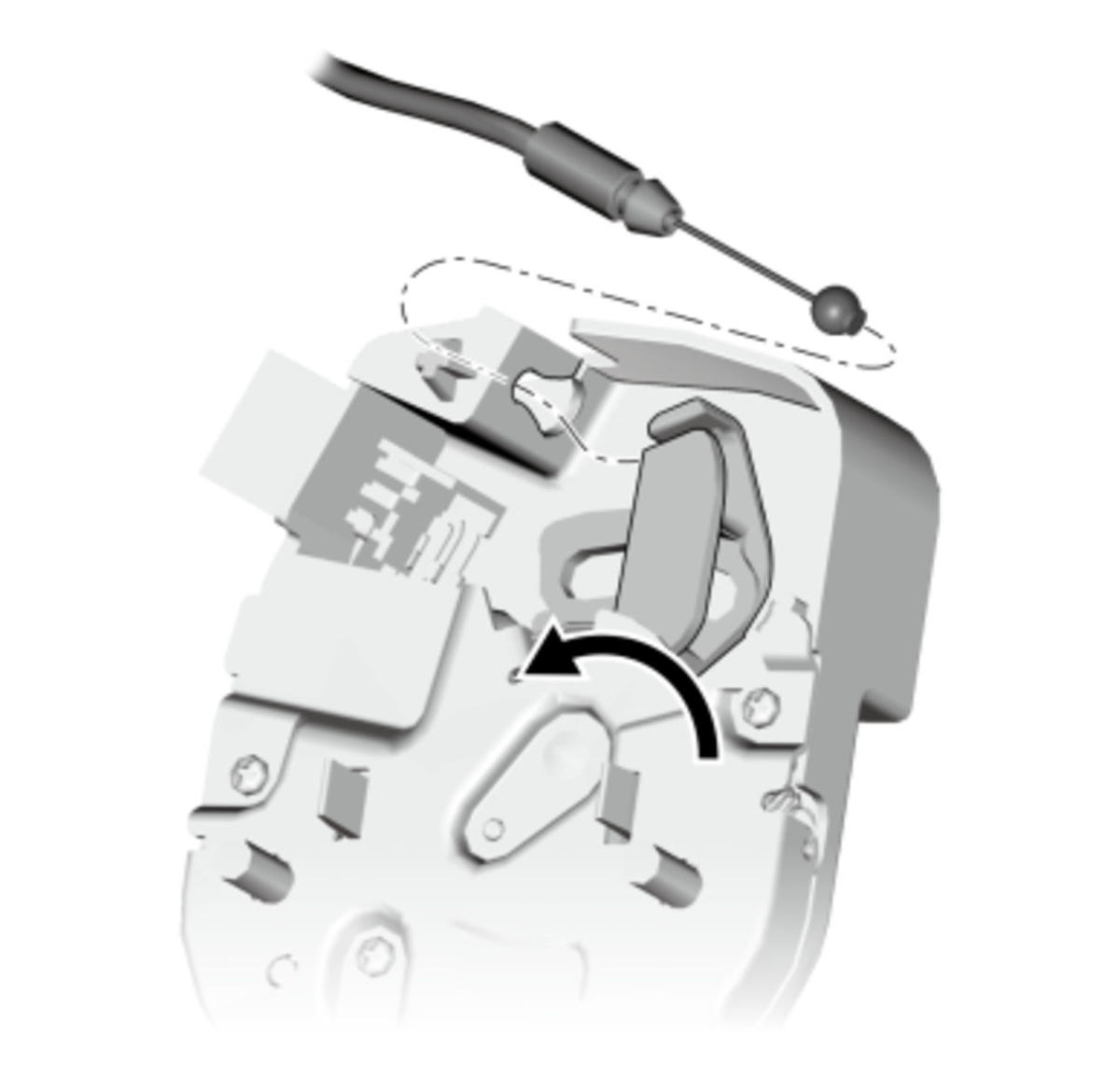

   Removal

   • Refer to the figure.
9. I.-

   Key Information

   Do the following before starting your work.

   Remove:

   • Left Trunk Rear Side Trim Panel (as needed)

   Sub-Procedure

   Removal

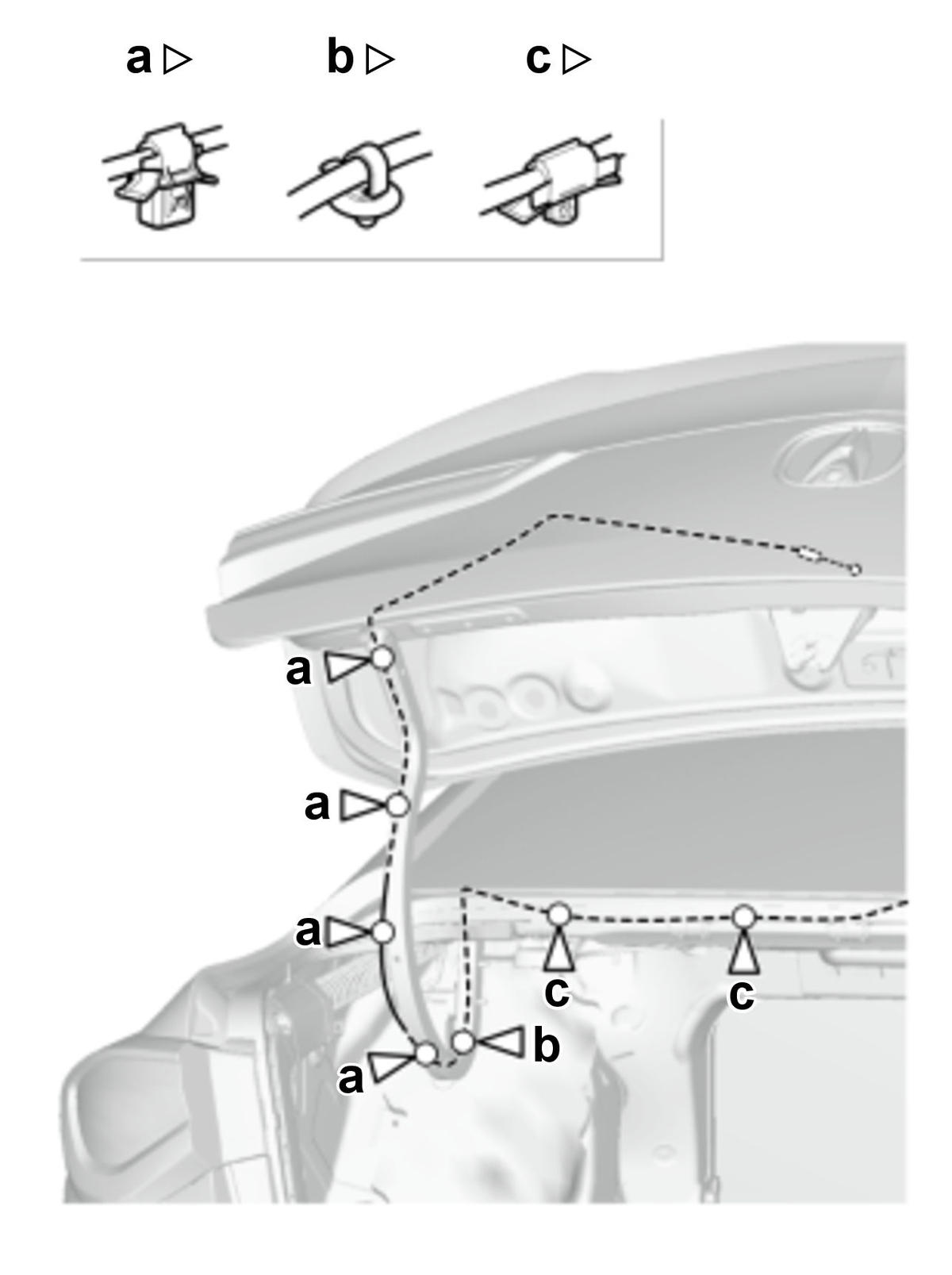

   • Refer to the figure 1.

   Figure 1

   Courtesy of HONDA, U.S.A., INC.

   Installation

   • Refer to the figure 2 and 3.

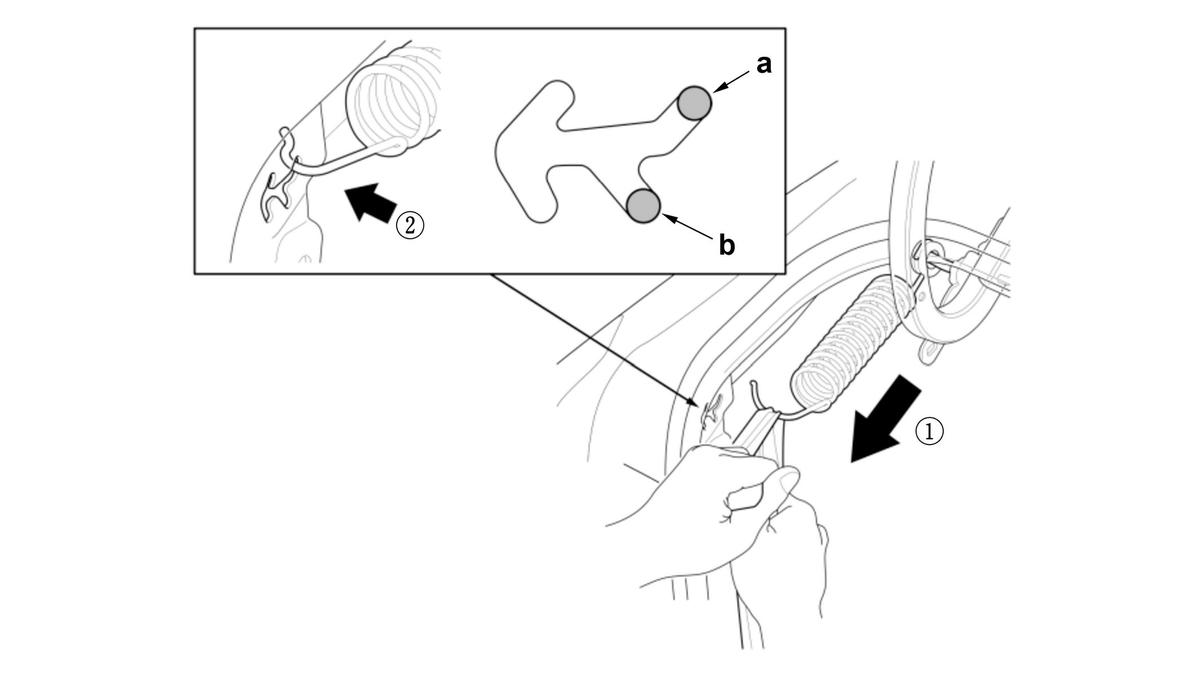

   Installation Directions (Figure 2)

   Position	Object
   a	Without trunk lid spoiler
   b	With trunk lid spoiler

   Figure 3

   Courtesy of HONDA, U.S.A., INC.

10. J.-

    Key Information

    Do the following before starting your work.

    Remove:

    • Trunk Open Coil Spring

    Sub-Procedure

    Removal

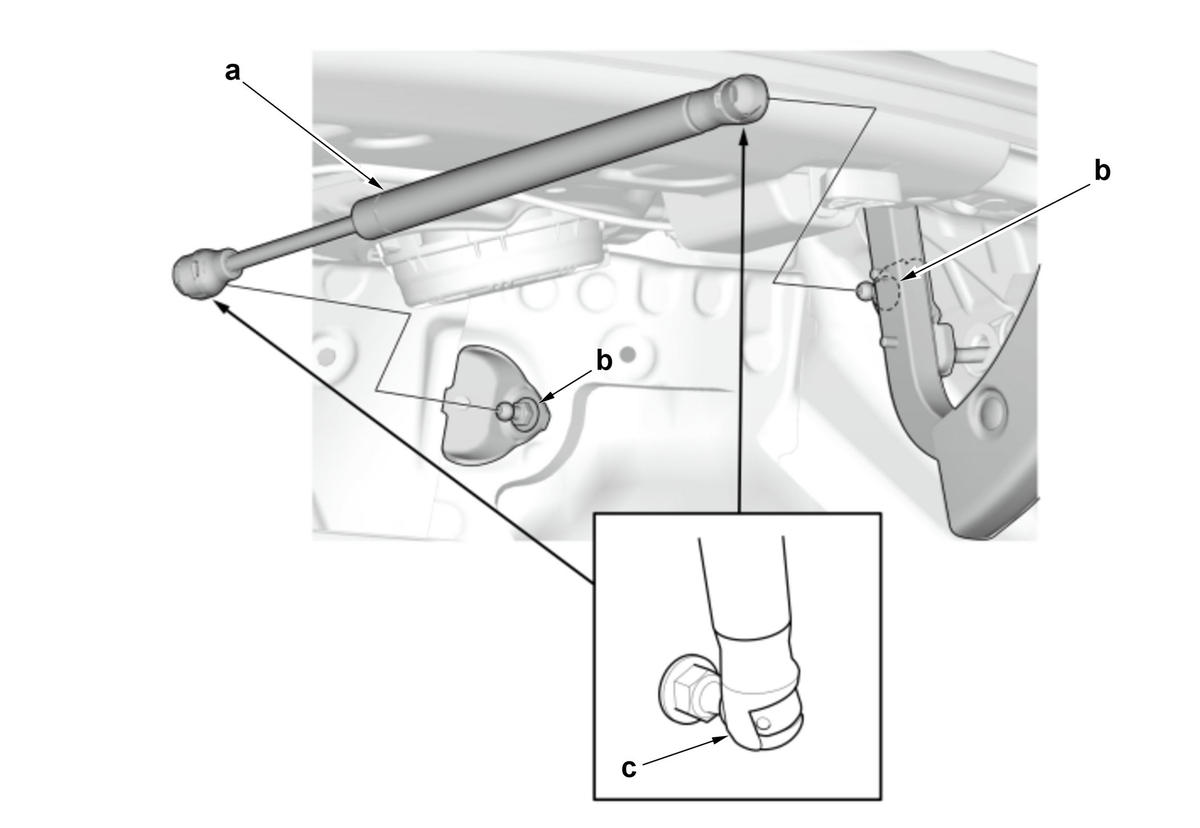

    Open and close the trunk lid after removing the trunk lid support strut (a) while holding it by hand.

    NOTE:

    The trunk lid support strut must be removed together with the ball stud (b). (If the trunk lid support strut joint (c) is removed form the ball stud, replace it with a new one.)

    Installation

    • When installing a new one, attach the ball stud to the body and then push the trunk lid support strut joint into the ball stud.
      NOTE:

      Make sure that the joint is securely set. Do not pull the joints strongly.

    Courtesy of HONDA, U.S.A., INC.

11. K.-

    Sub-Procedure

    Courtesy of HONDA, U.S.A., INC.

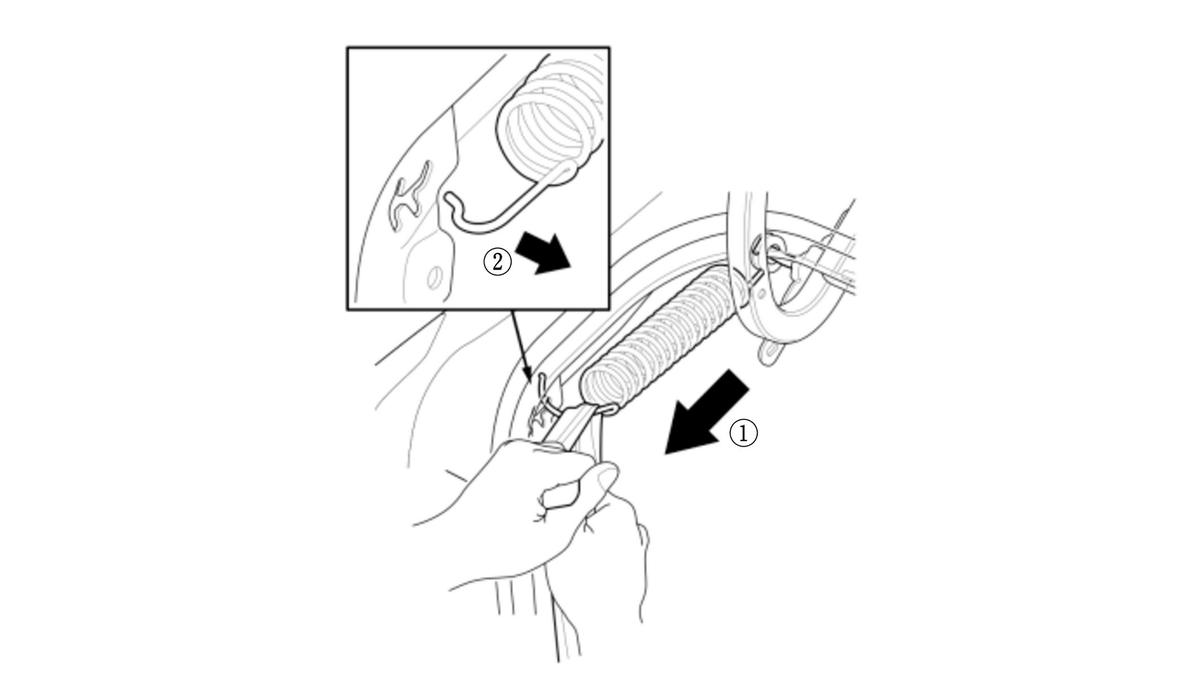

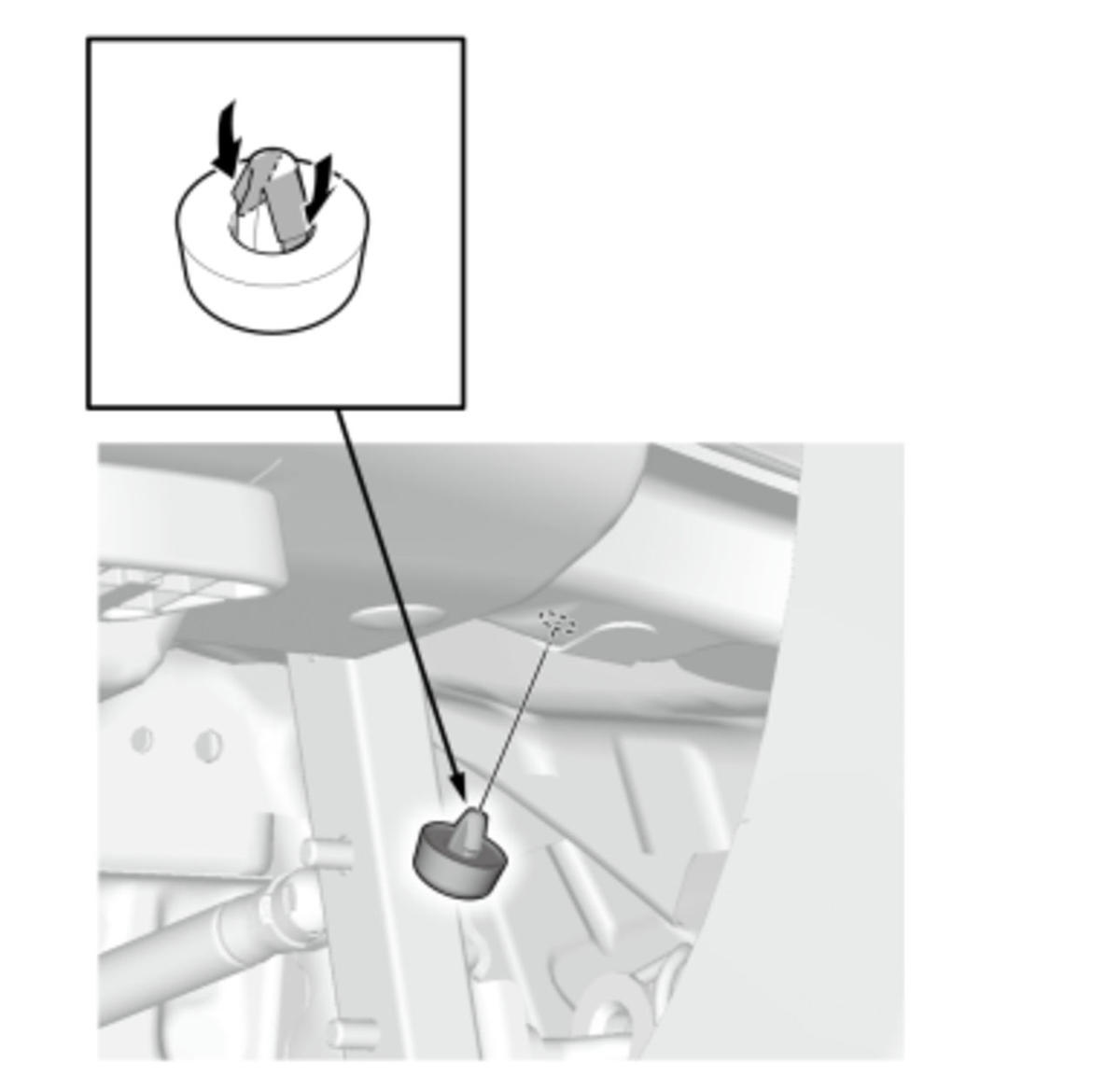

    Removal

    • Refer to the figure.
12. L.-

    After Installation

    • Trunk Lid Adjustment
