Repair Procedure

How to use this manual .

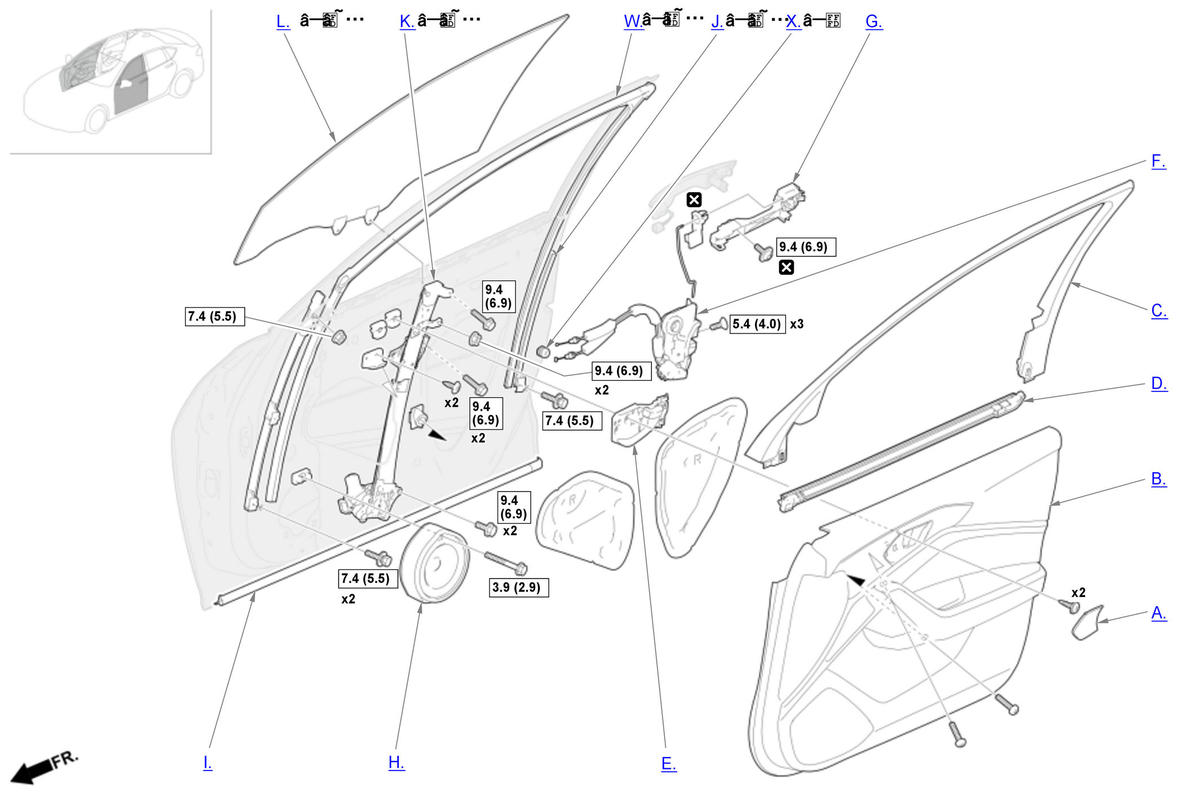

NOTE:  In the illustration, only one side is shown because the component parts and the removal/installation procedure are the same.

Courtesy of HONDA, U.S.A., INC.

: Torque, N.m (lbf.ft)

: Replace

: Warning/Caution

: Inspection/Adjustment

*: Learning

■: SPL Tool

: Required Removal

Courtesy of HONDA, U.S.A., INC.

: Torque, N.m (lbf.ft)

: Replace

: Warning/Caution

: Inspection/Adjustment

*: Learning

■: SPL Tool

: Required Removal

Courtesy of HONDA, U.S.A., INC.

: Torque, N.m (lbf.ft)

: Replace

: Warning/Caution

: Inspection/Adjustment

*: Learning

■: SPL Tool

: Required Removal

Courtesy of HONDA, U.S.A., INC.

: Torque, N.m (lbf.ft)

: Replace

: Warning/Caution

: Inspection/Adjustment

*: Learning

■: SPL Tool

: Required Removal

1. A.-

   Sub-Procedure

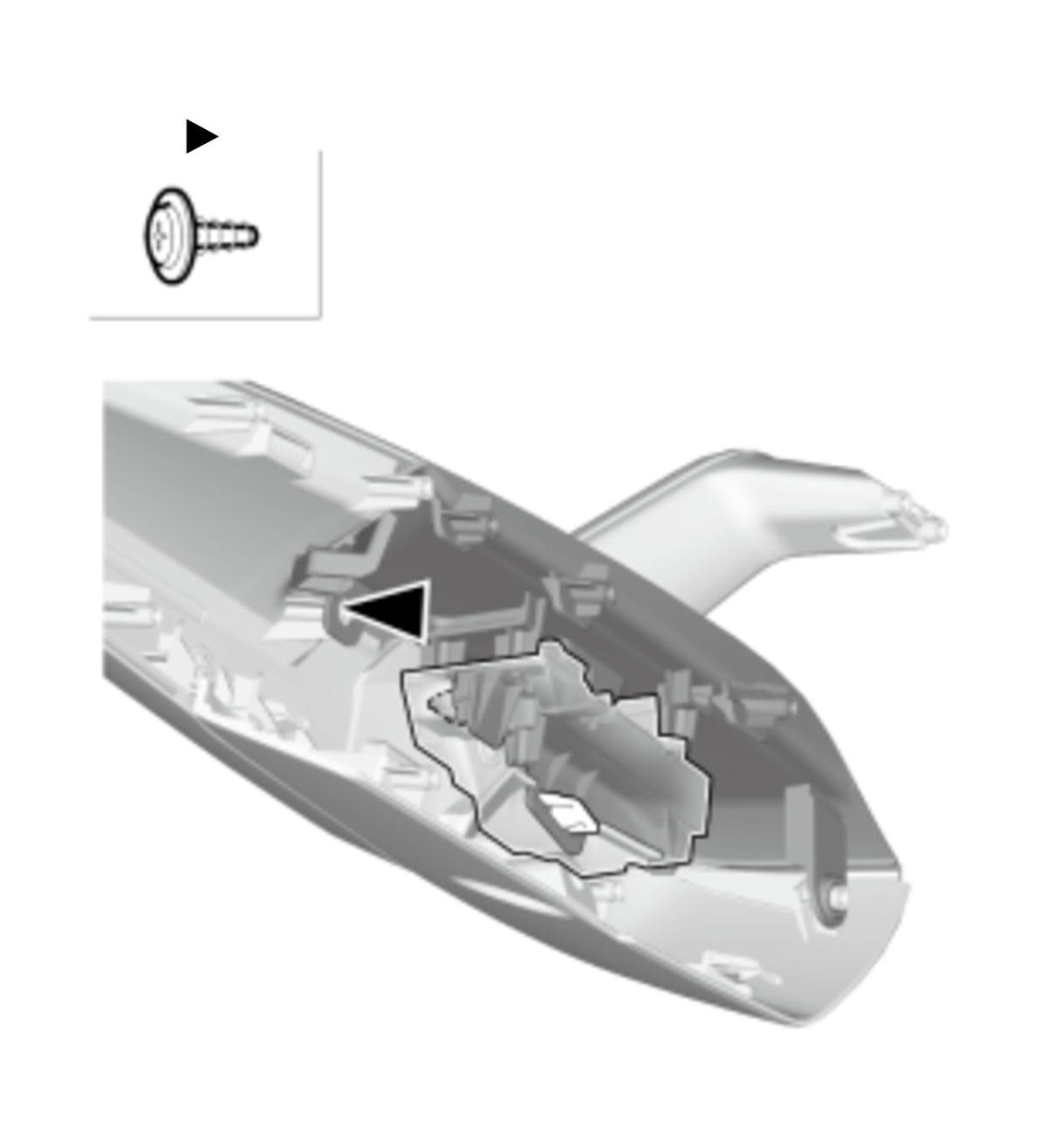

   Courtesy of HONDA, U.S.A., INC.

   Removal

   • Refer to the figure.

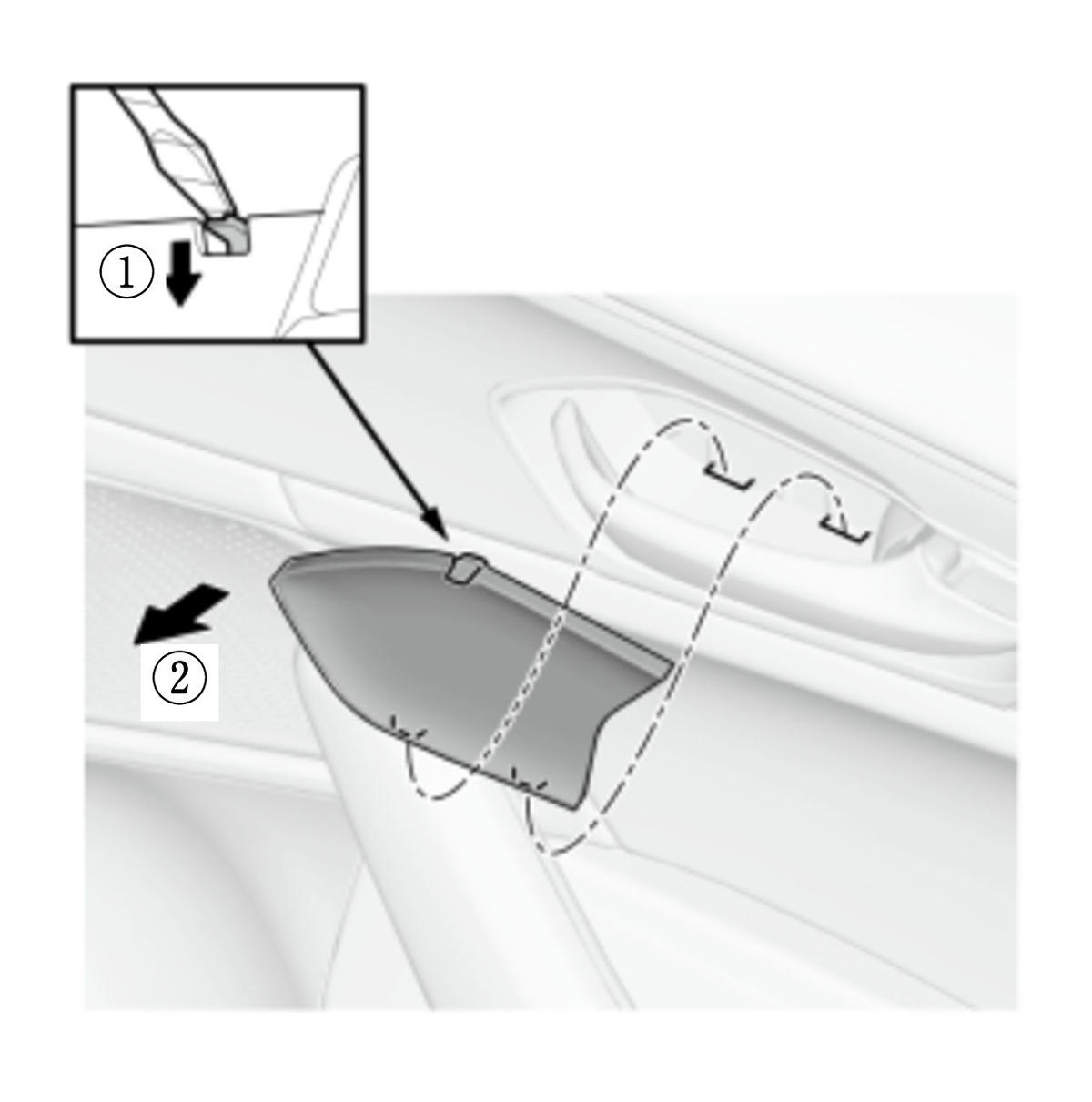

2. B.-

   Sub-Procedure

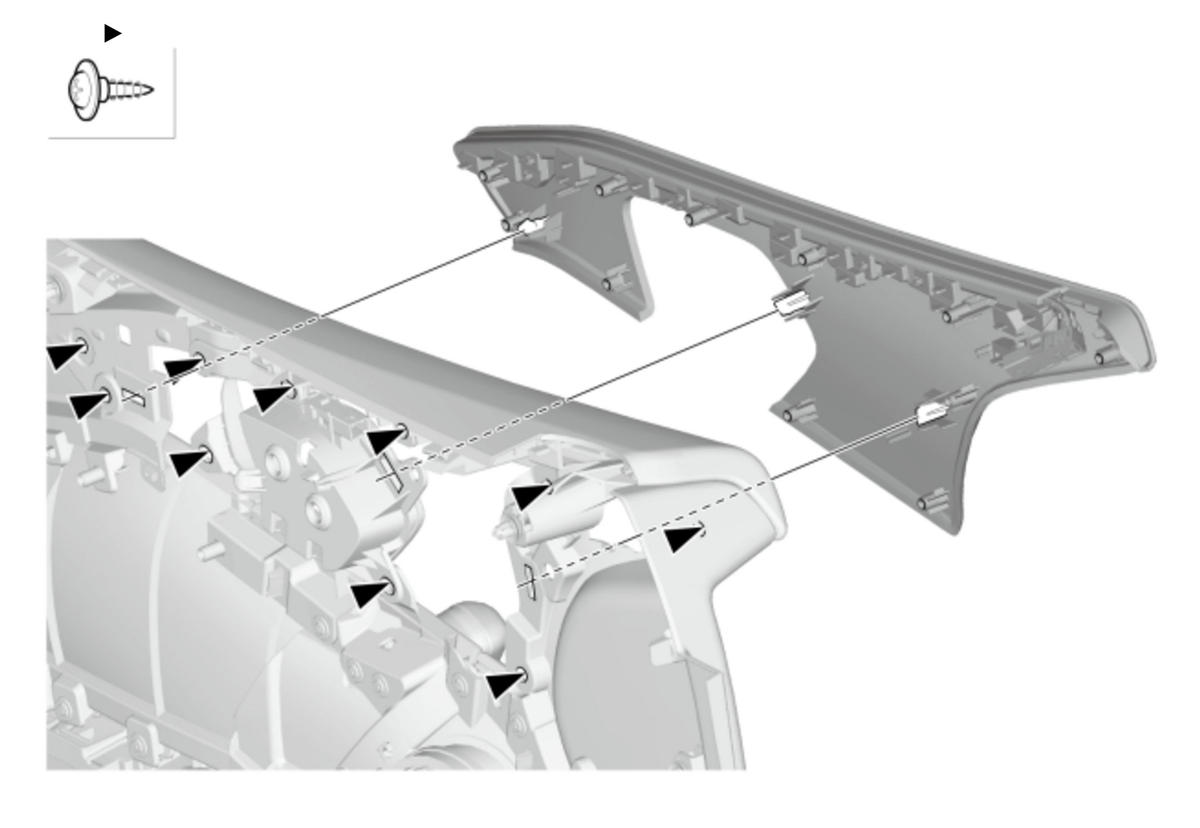

   Courtesy of HONDA, U.S.A., INC.

   Removal

   • Refer to the figure.

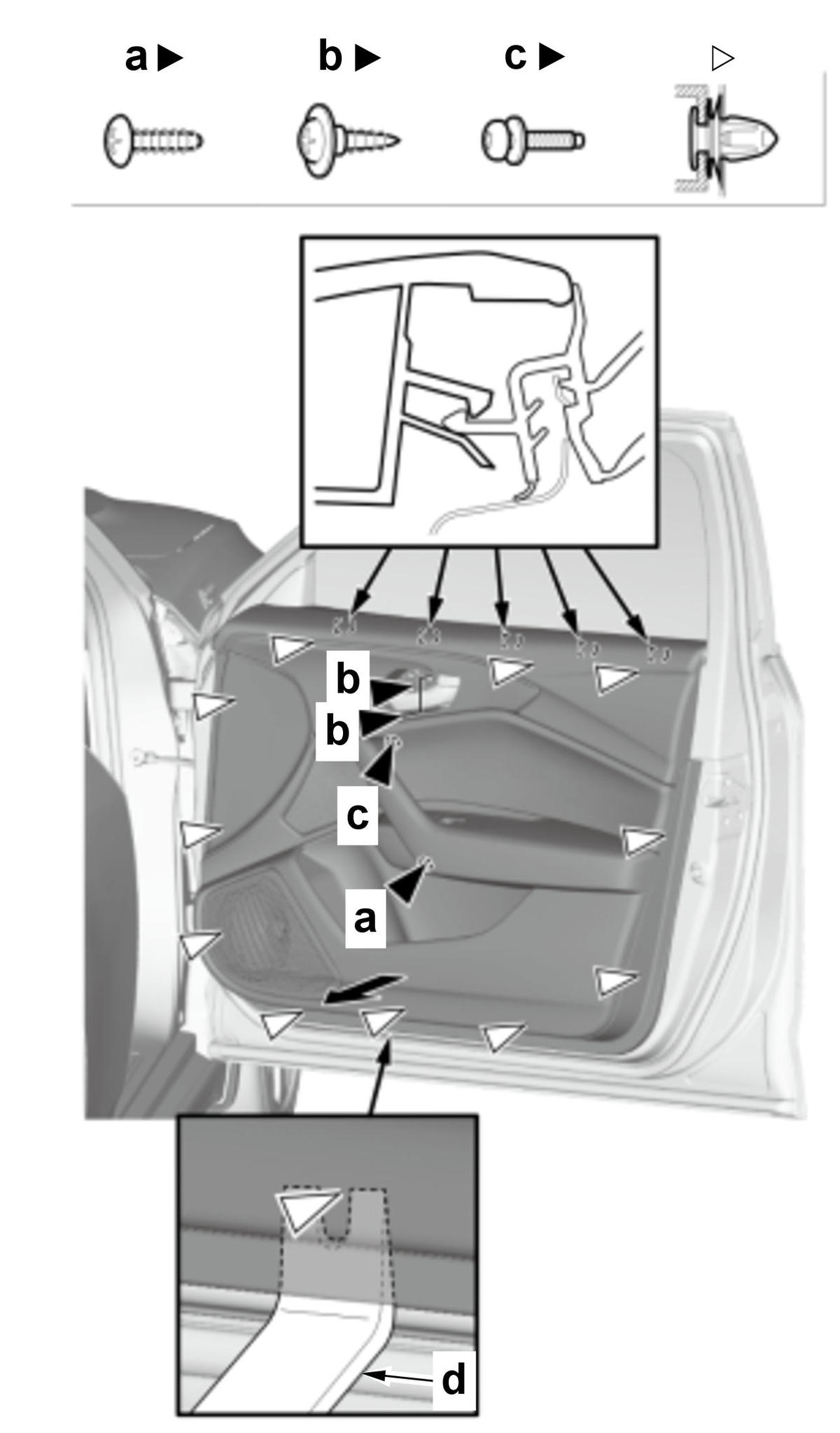

   Tool Details

   Name
   d	Trim tool (Commercially available tool)

3. C.-

   Sub-Procedure

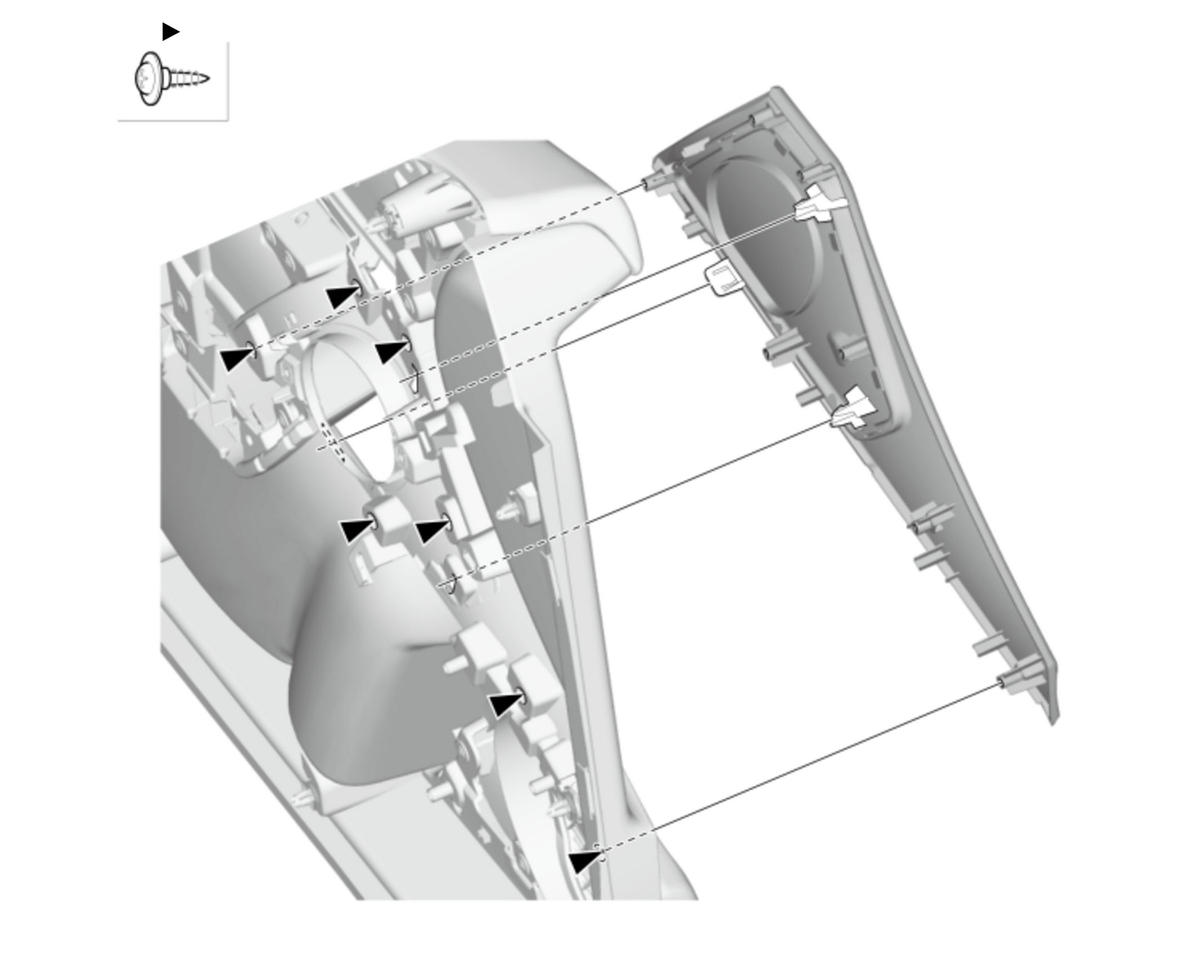

   Courtesy of HONDA, U.S.A., INC.

   Removal

   • Refer to the figure.

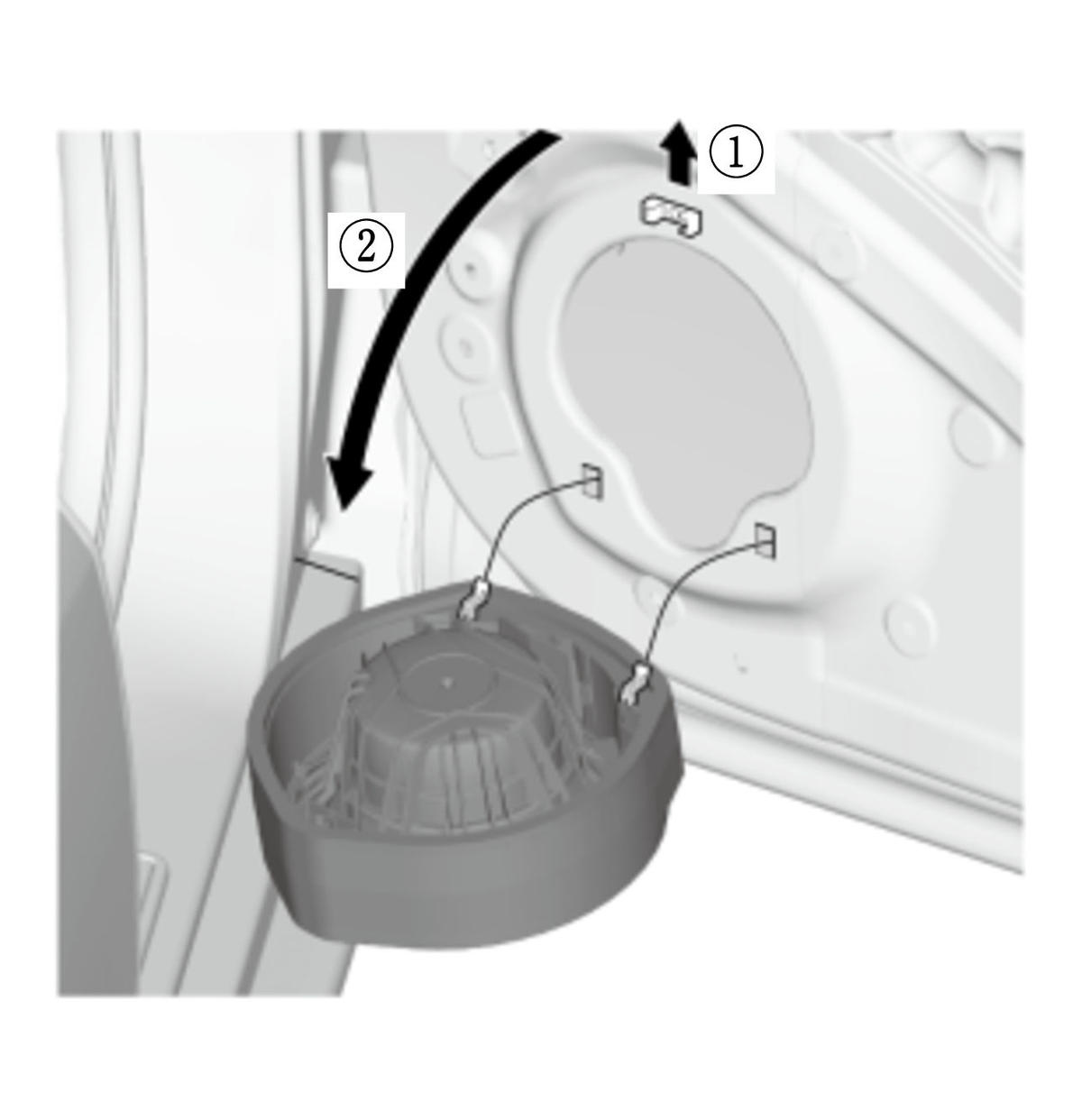

4. D.-

   Sub-Procedure

   Removal

   • Refer to the figure.

   Courtesy of HONDA, U.S.A., INC.

5. E.-

   Sub-Procedure

   Figure 1

   Courtesy of HONDA, U.S.A., INC.

   Figure 2

   Courtesy of HONDA, U.S.A., INC.

   Removal

   • Refer to figure 1 and 2.
6. F.-

   Key Information

   Do the following before starting your work.

   Remove:

   • Front Door Outer Handle Rod
   • Front Door Center Lower Channel (as needed)

   Sub-Procedure

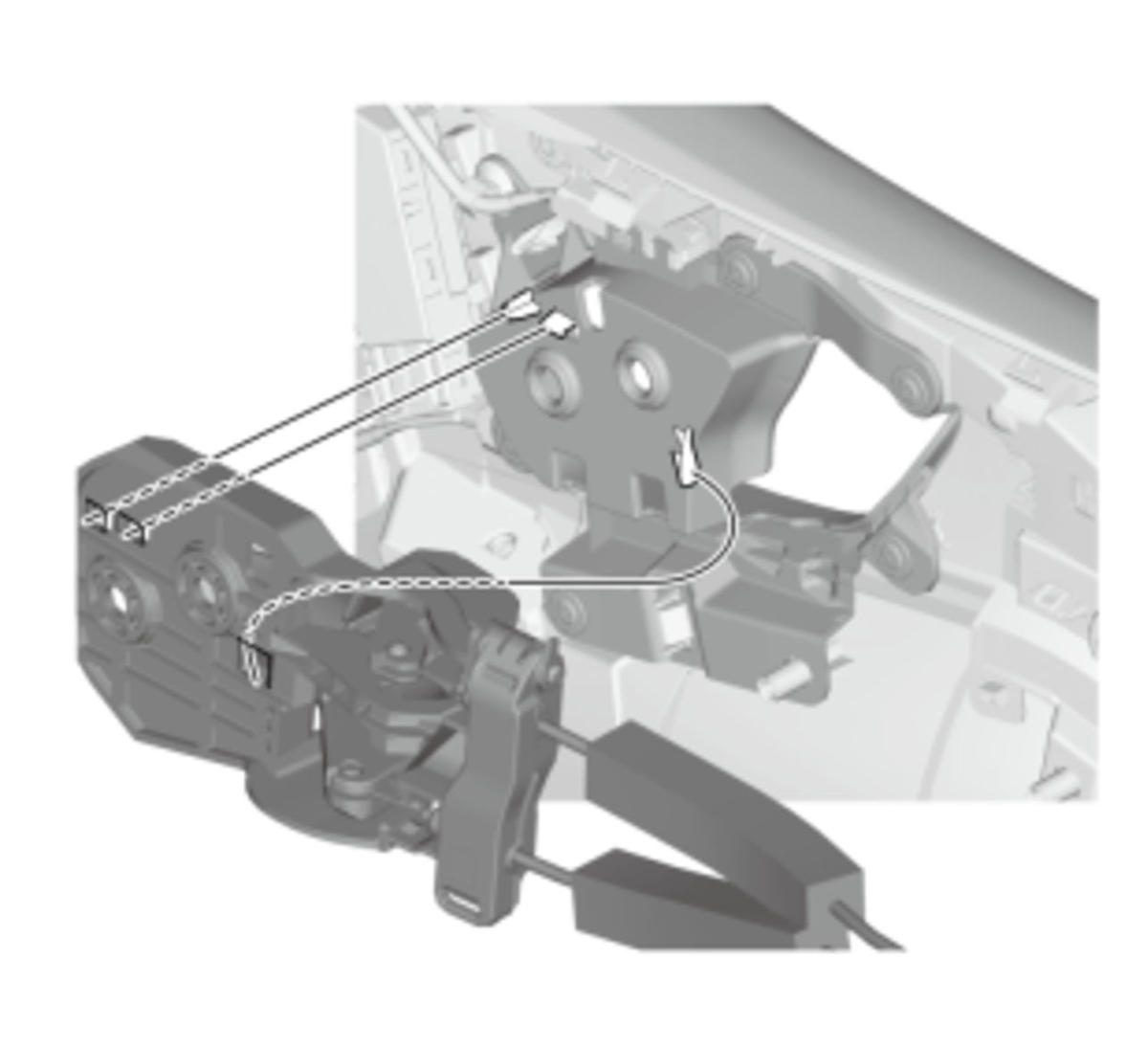

   Removal

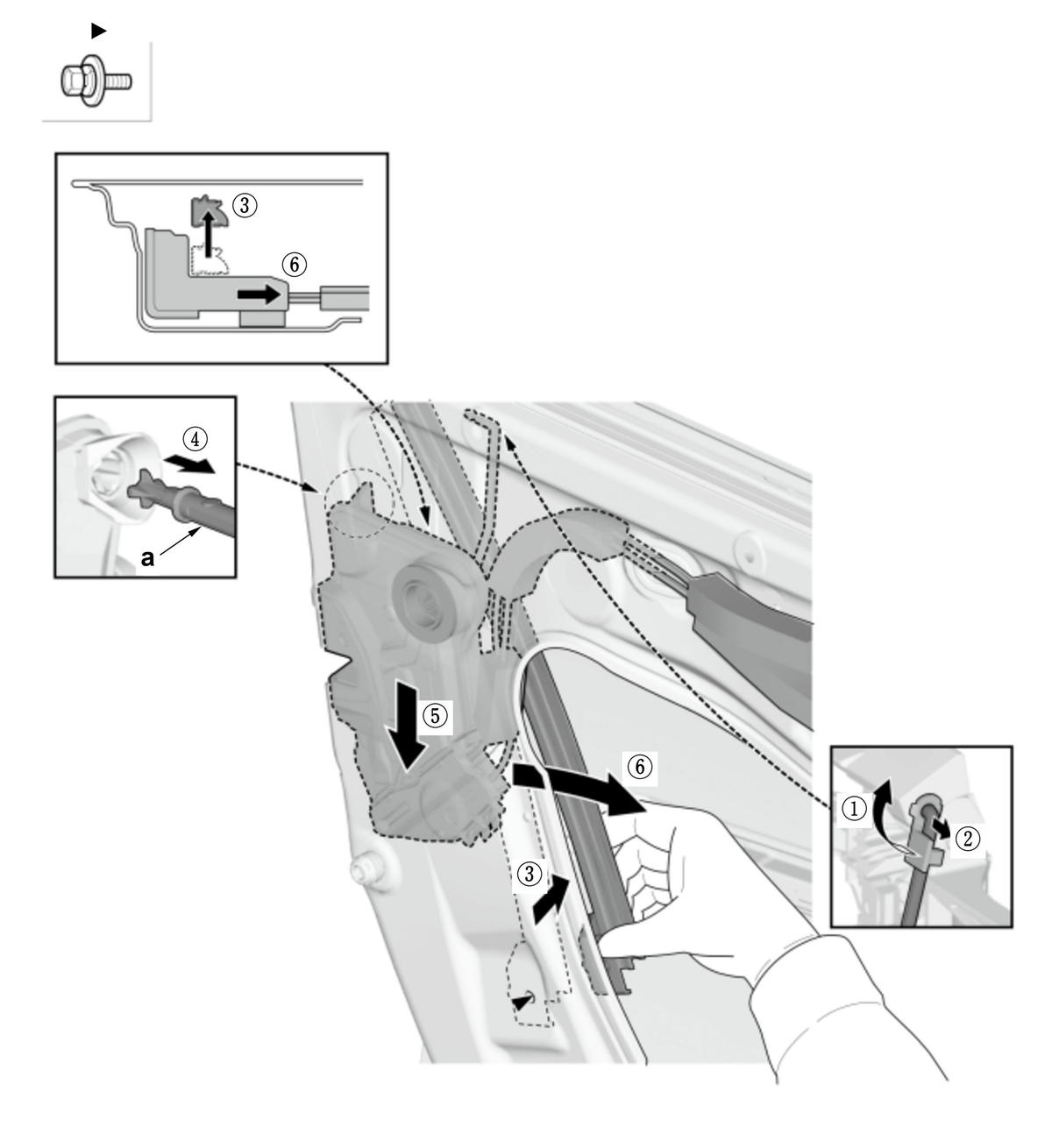

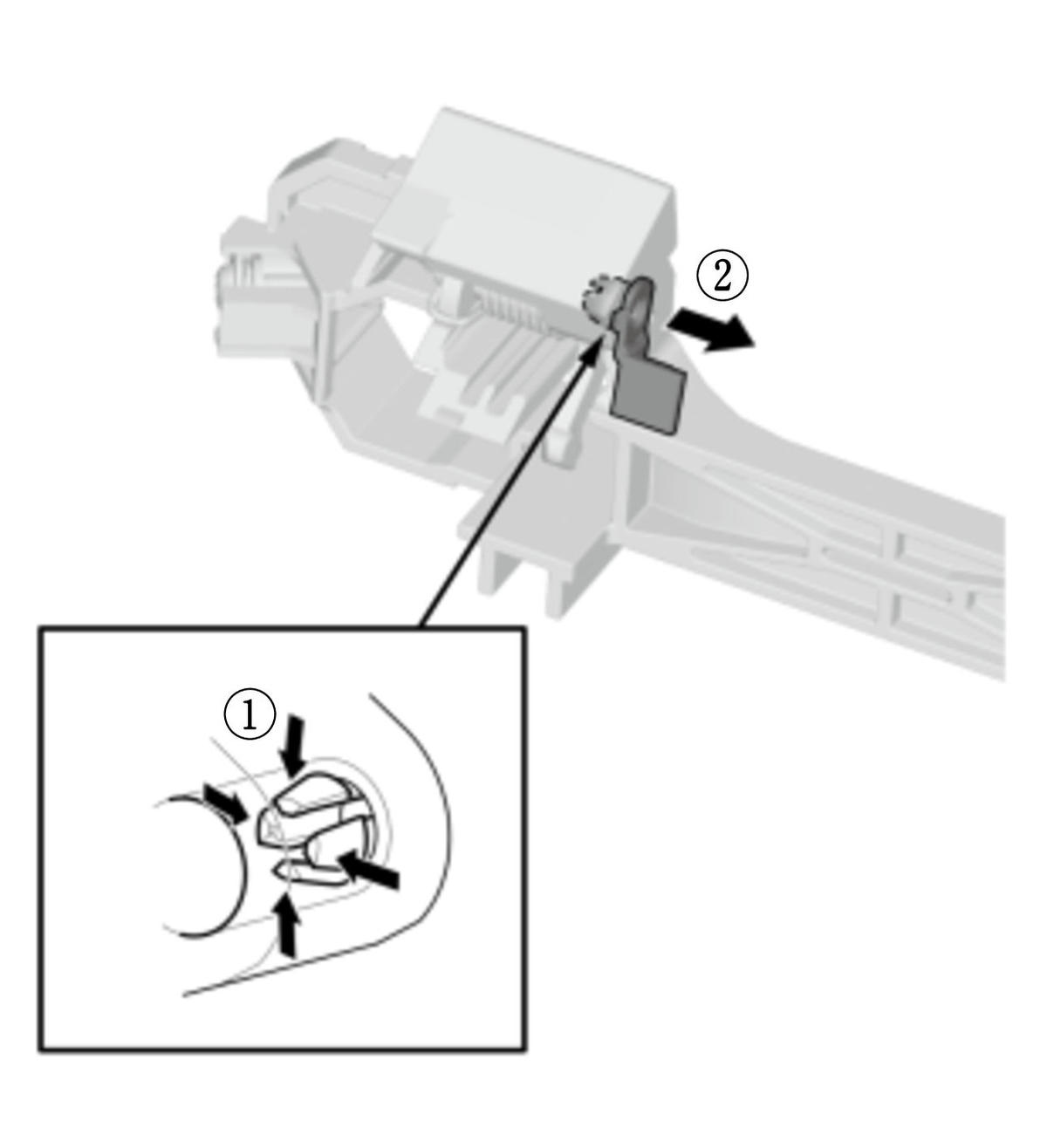

   • Driver's side: Disconnect the lock cylinder rod (a). (Figure 1)

   Figure 1

   Courtesy of HONDA, U.S.A., INC.

   Installation

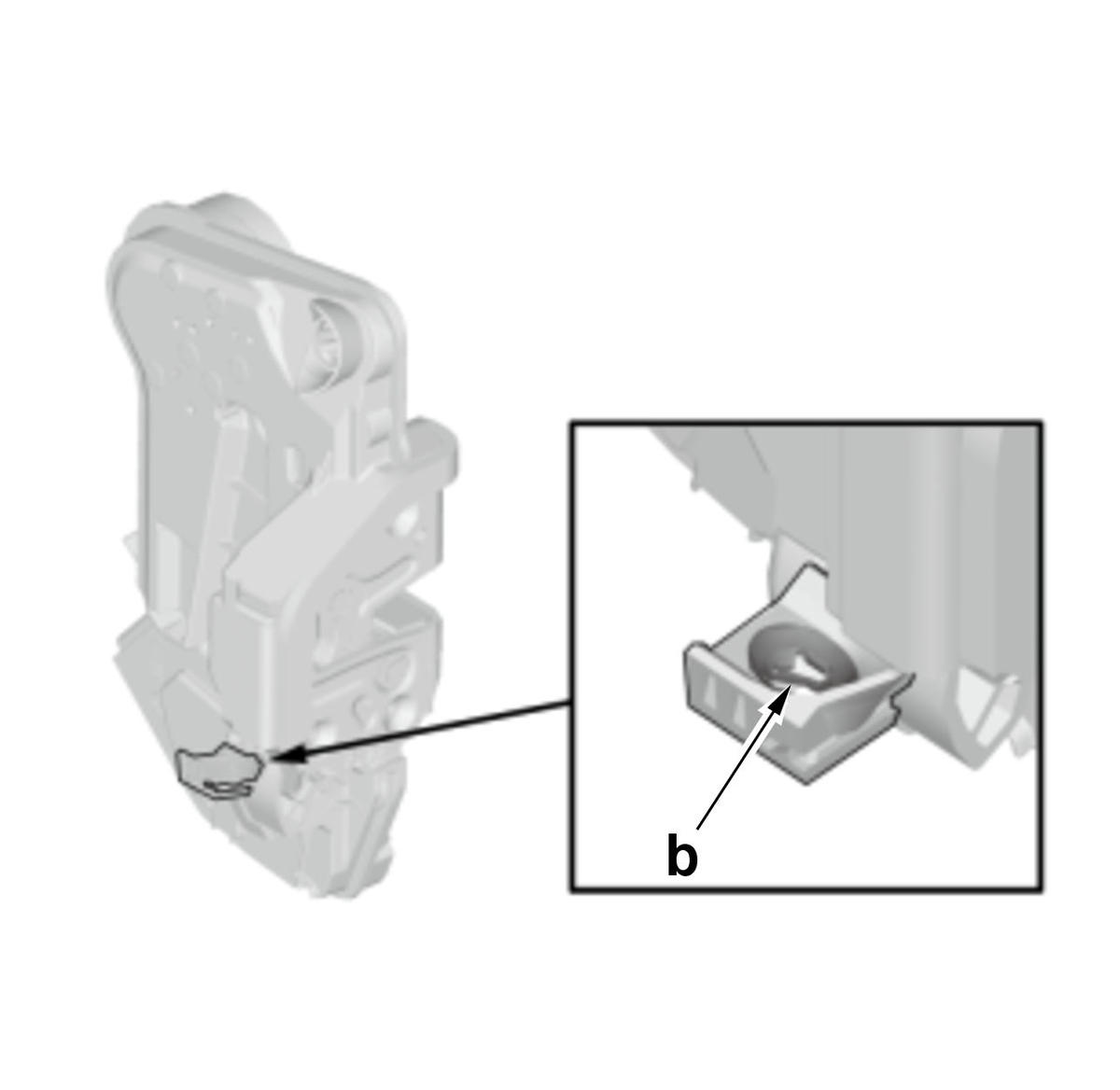

   Lubricant Specifications (Figure 2)

   Position	Type
   b	Multipurpose Grease

   Figure 2

   Courtesy of HONDA, U.S.A., INC.

7. G.-

   Key Information

   Do the following before starting your work.

   Remove:

   • Front Door Outer Handle Seal

   Sub-Procedure

   Courtesy of HONDA, U.S.A., INC.

   Removal

   • Refer to the figure.

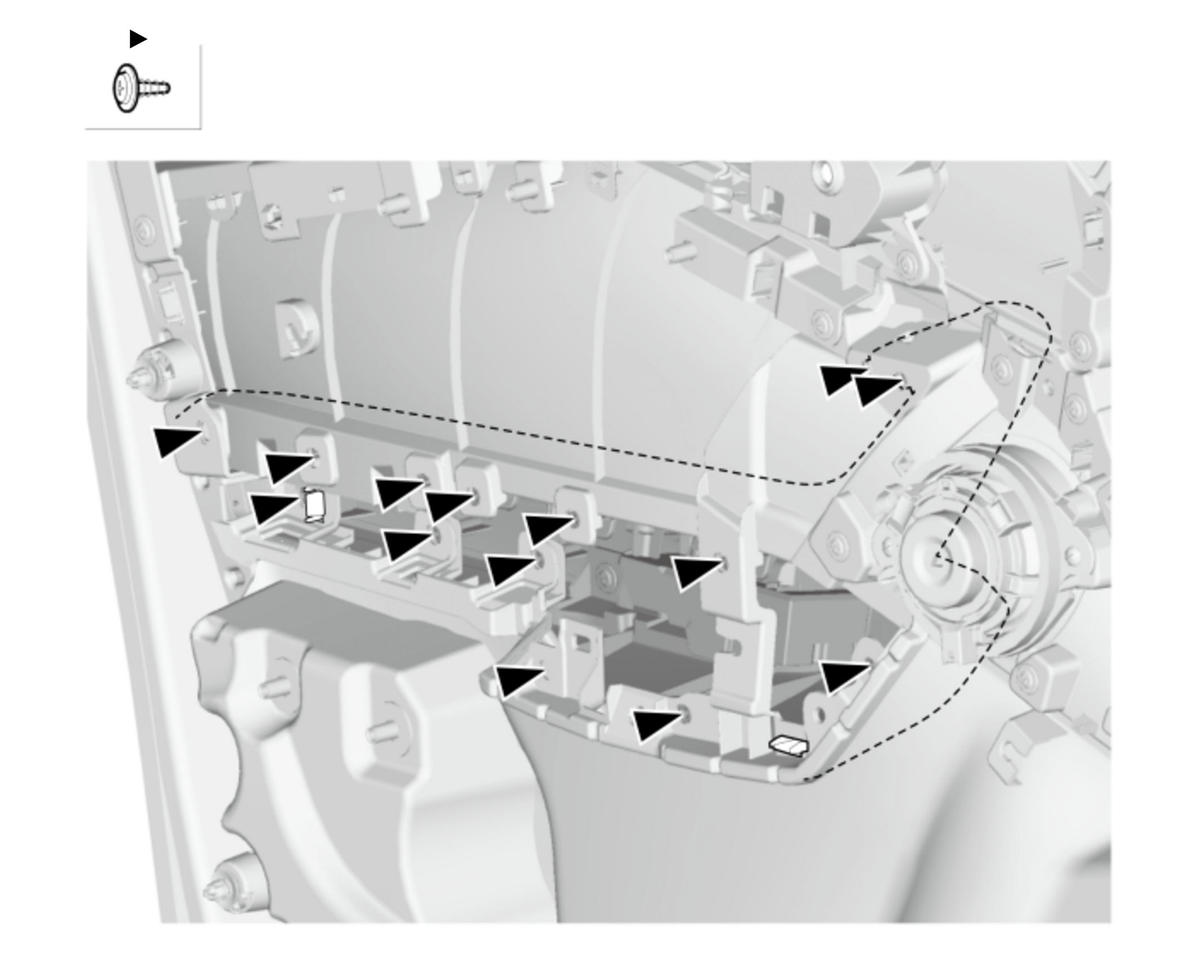

8. H.-

   Sub-Procedure

   Courtesy of HONDA, U.S.A., INC.

   Removal

   • Refer to the figure.
9. I.-

   Courtesy of HONDA, U.S.A., INC.

10. J.-

    Sub-Procedure

    Courtesy of HONDA, U.S.A., INC.

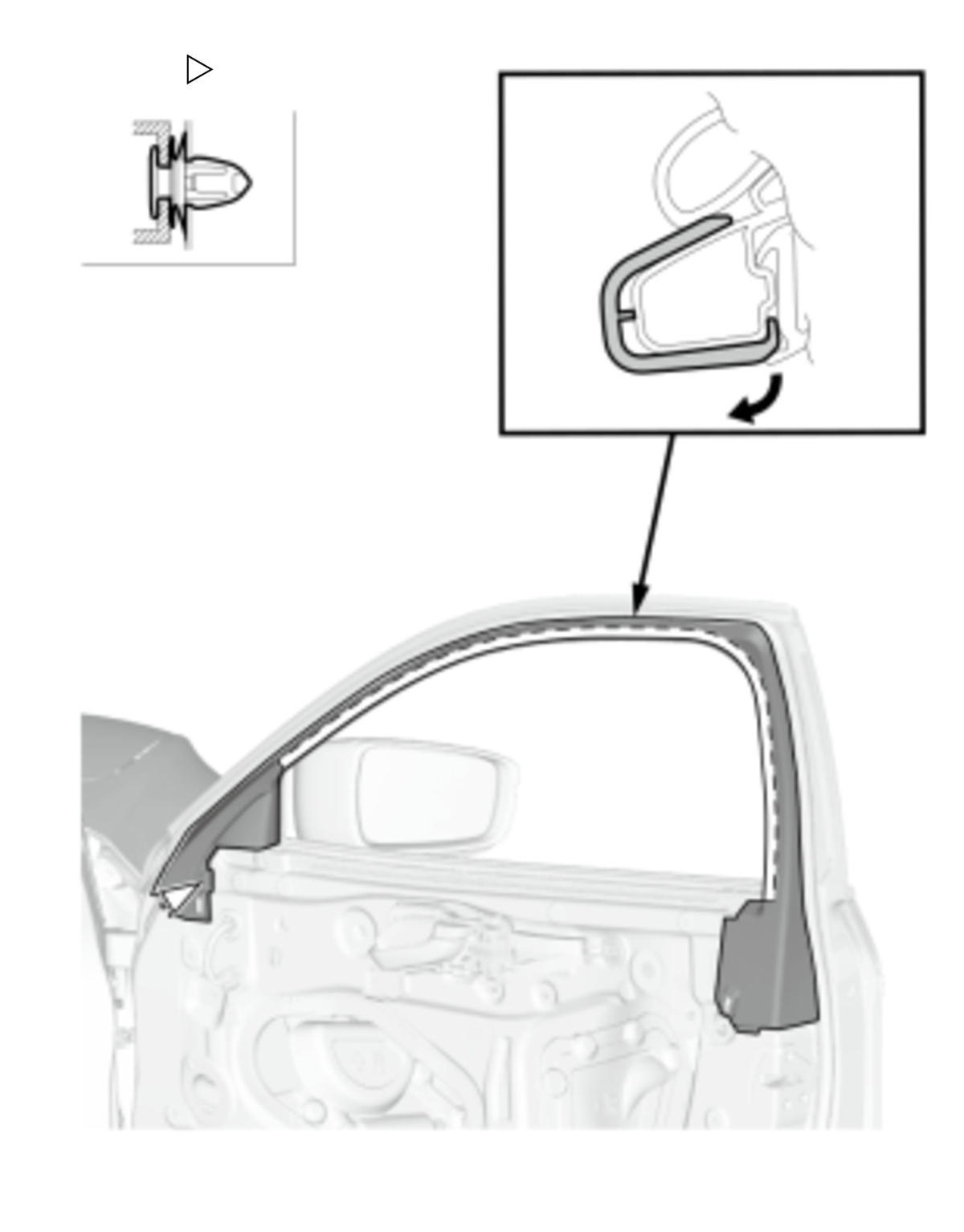

    Removal

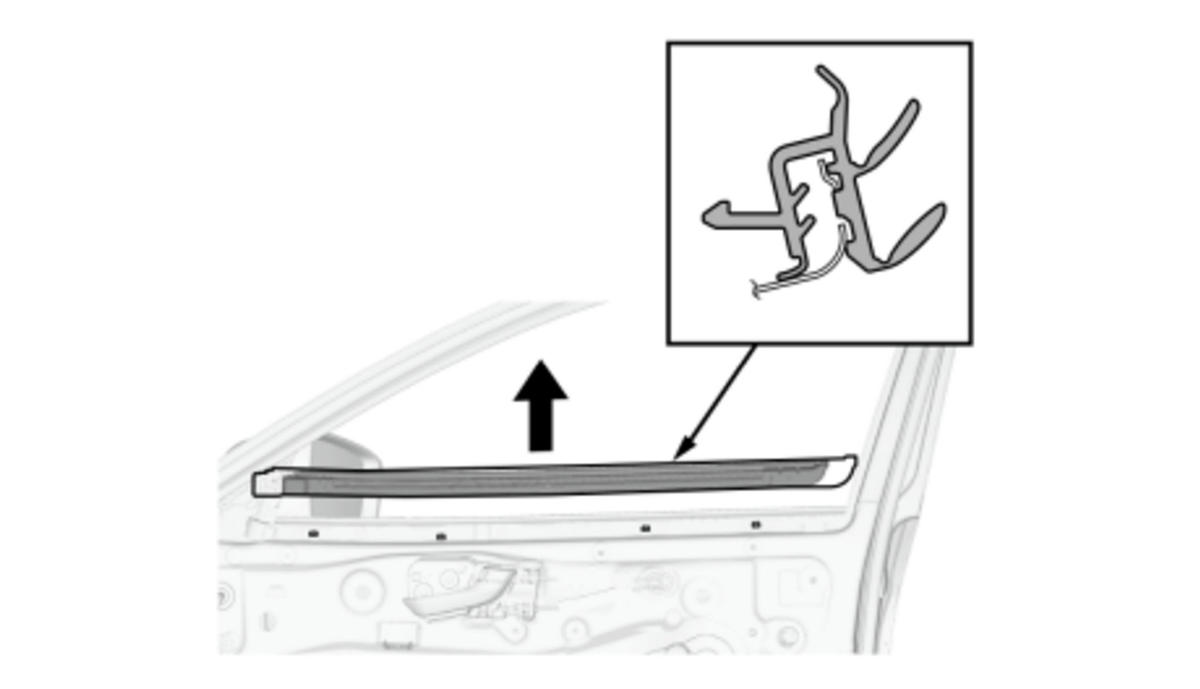

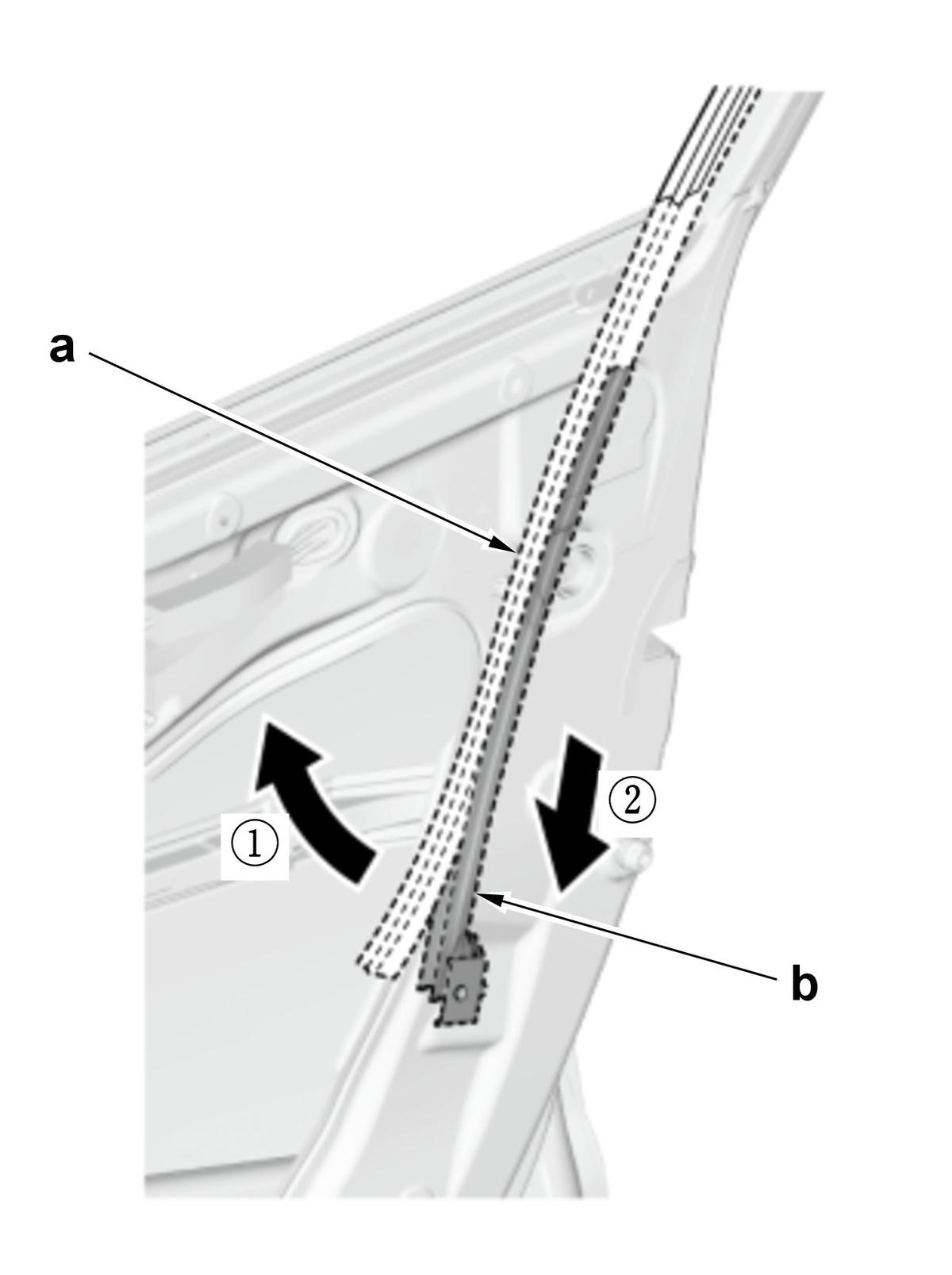

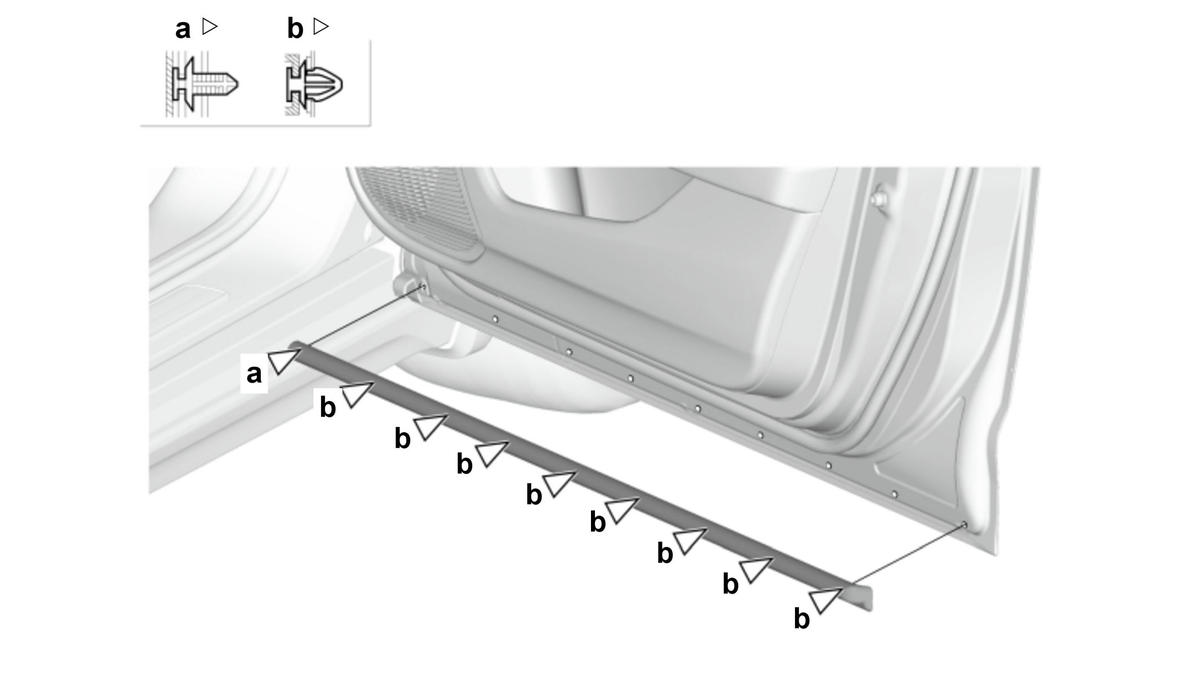

    1. Remove the front door glass run channel (a) as needed.

    2. Remove the front door center lower channel (b).

11. K.-

    Sub-Procedure

    Figure 1

    Courtesy of HONDA, U.S.A., INC.

    Figure 2

    Courtesy of HONDA, U.S.A., INC.

    Removal

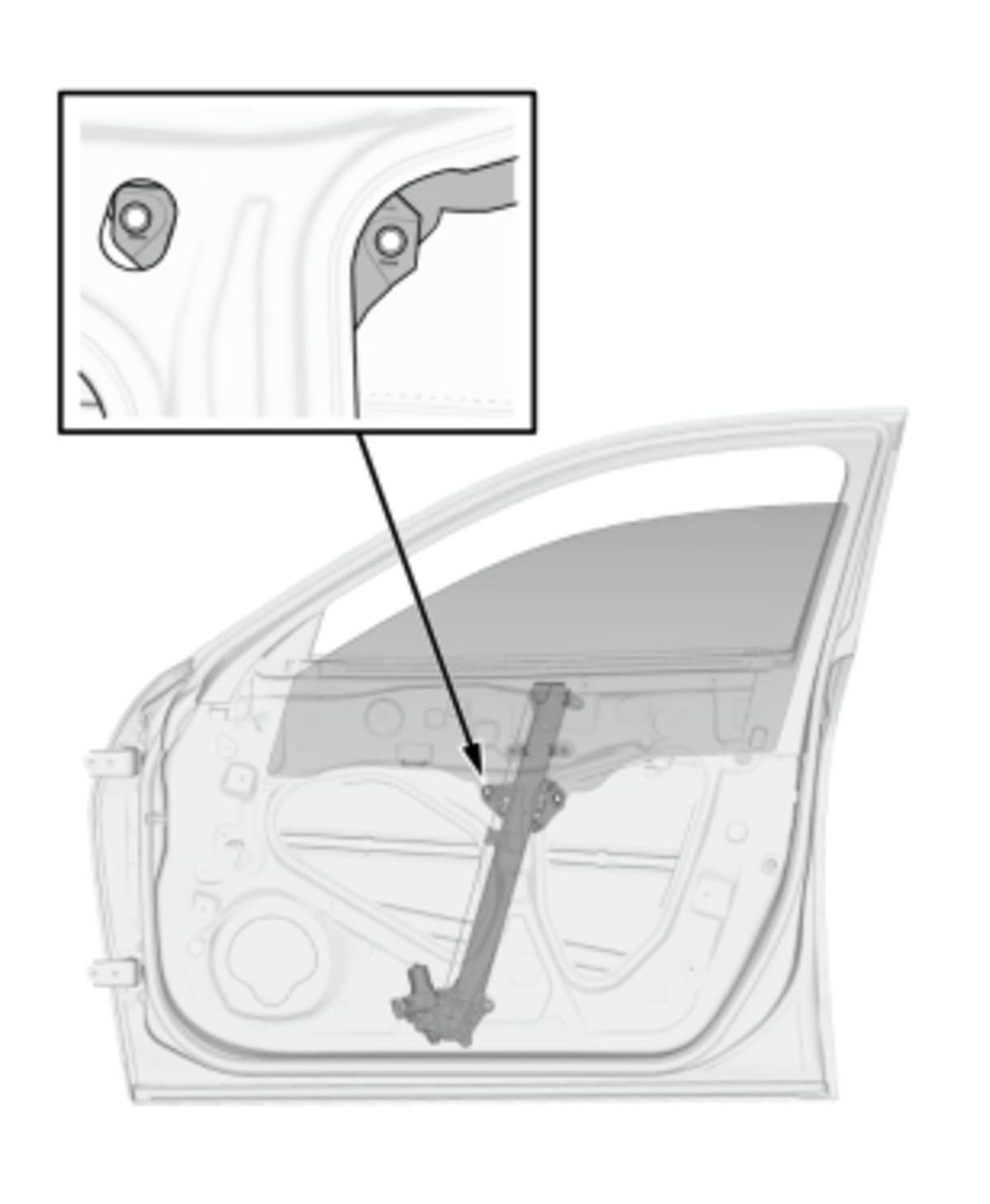

    1. Refer to figure 1.

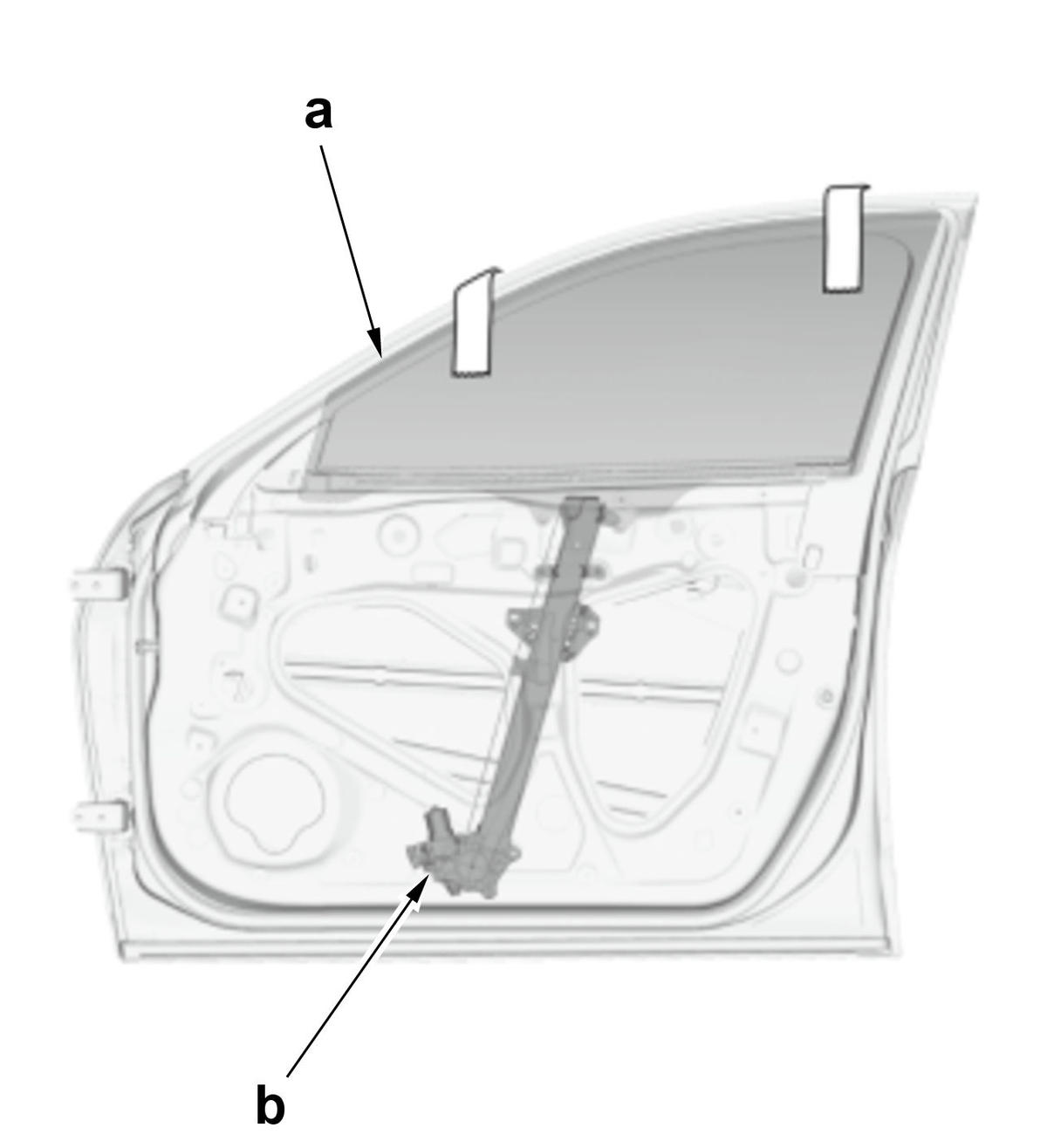

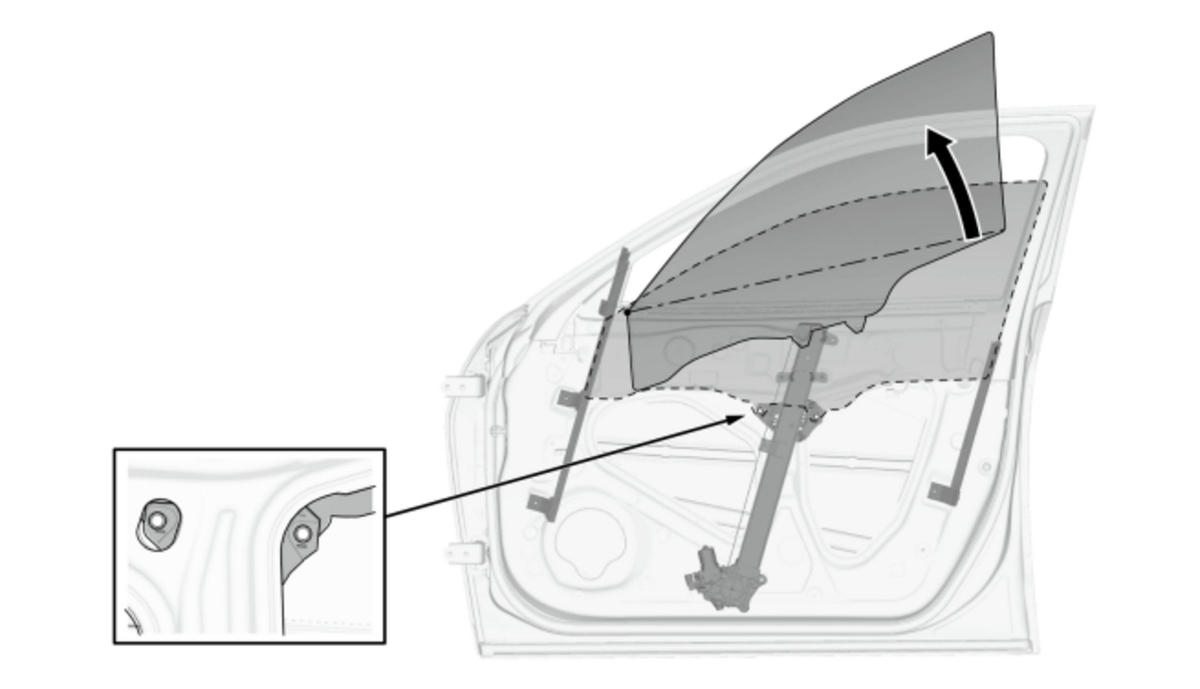

    2. Pull the front door glass (a) up to the fully closed position and hold it so that it does not drop. (Figure 2)

    3. Remove the front door regulator (b). (Figure 2)

    Figure 3

    Courtesy of HONDA, U.S.A., INC.

    Installation

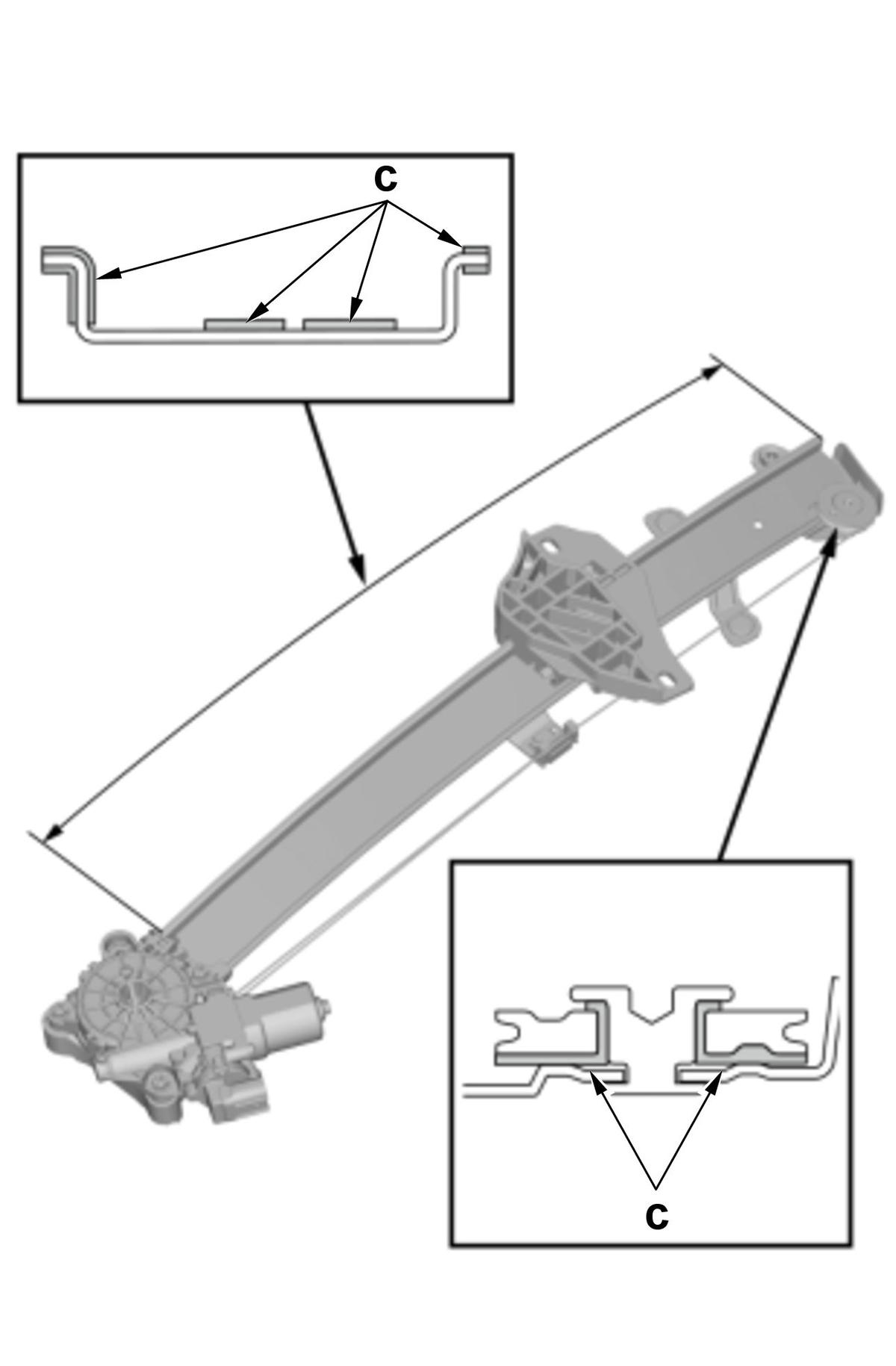

    Lubricant Specifications (Figure 3)

    Position	Type
    c	Multipurpose Grease

    After Installation

    • Front Door Glass Adjustment
    • Power Window Control Unit Reset
12. L.-

    Sub-Procedure

    Removal

    • Refer to the figure.

    Courtesy of HONDA, U.S.A., INC.

    After Installation

    • Front Door Glass Adjustment
    • Power Window Control Unit Reset

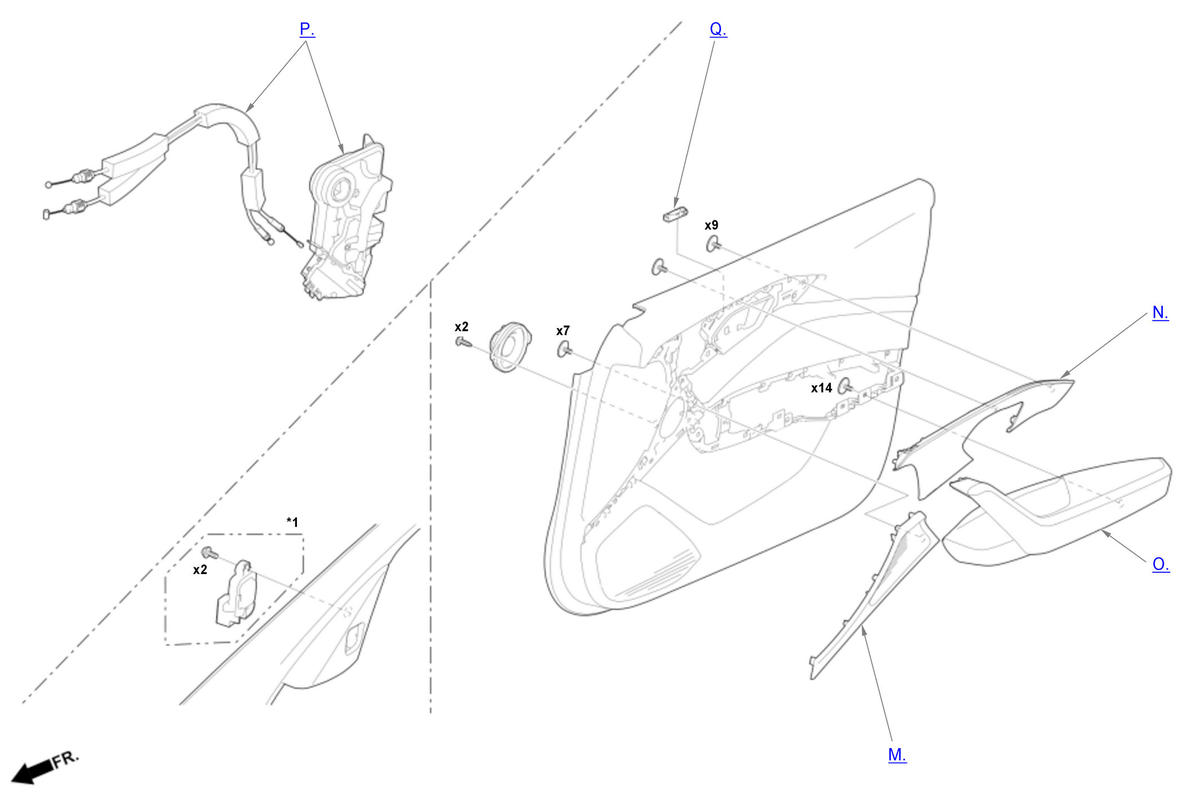

13. M.-

    Courtesy of HONDA, U.S.A., INC.

14. N.-

    Courtesy of HONDA, U.S.A., INC.

15. O.-

    Courtesy of HONDA, U.S.A., INC.

16. P.-

    Sub-Procedure

    Courtesy of HONDA, U.S.A., INC.

    Removal

    • Refer to the figure.
17. Q.-

    Sub-Procedure

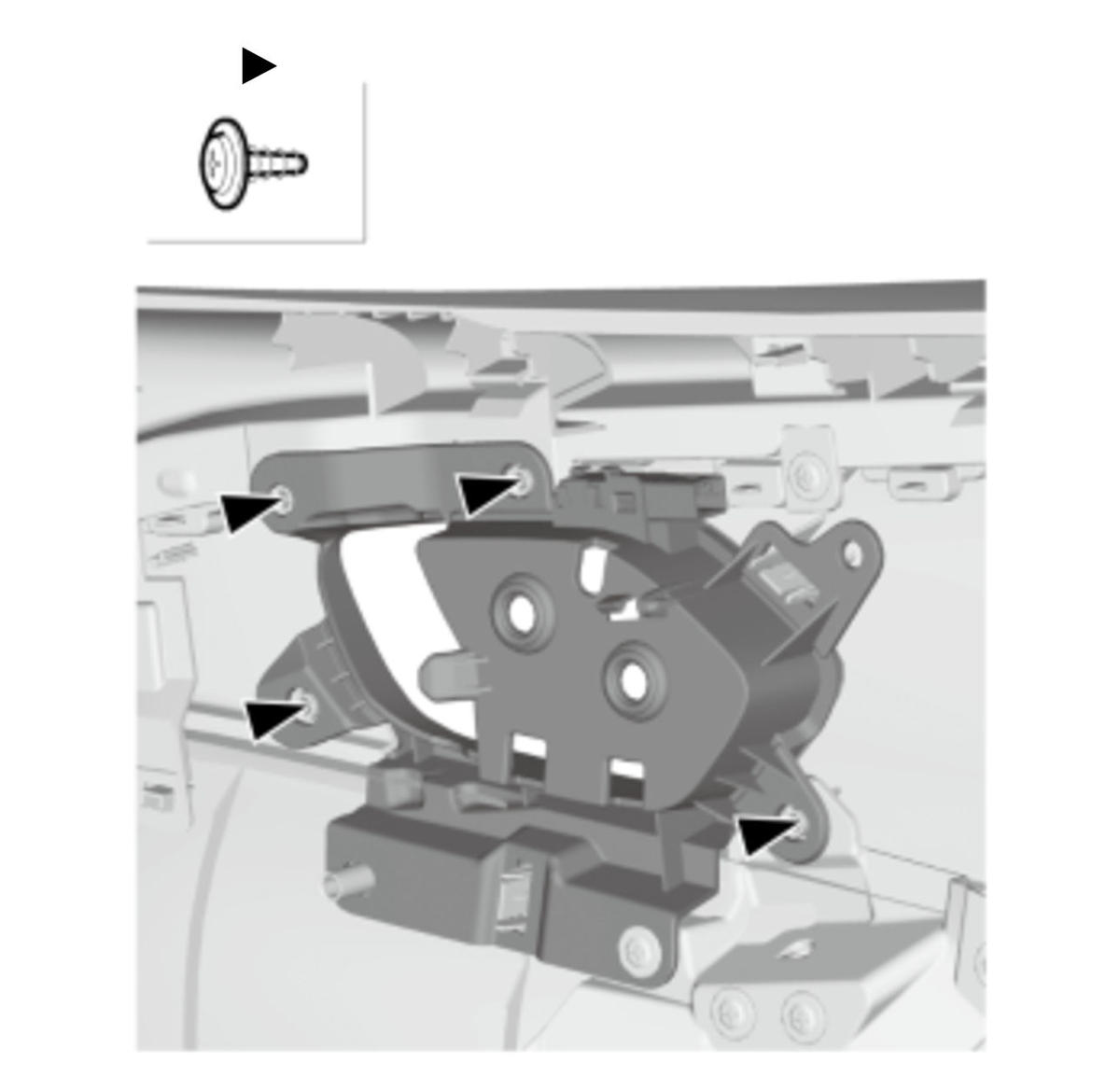

    Figure 1

    Courtesy of HONDA, U.S.A., INC.

    Removal

    1. Refer to figure 1.

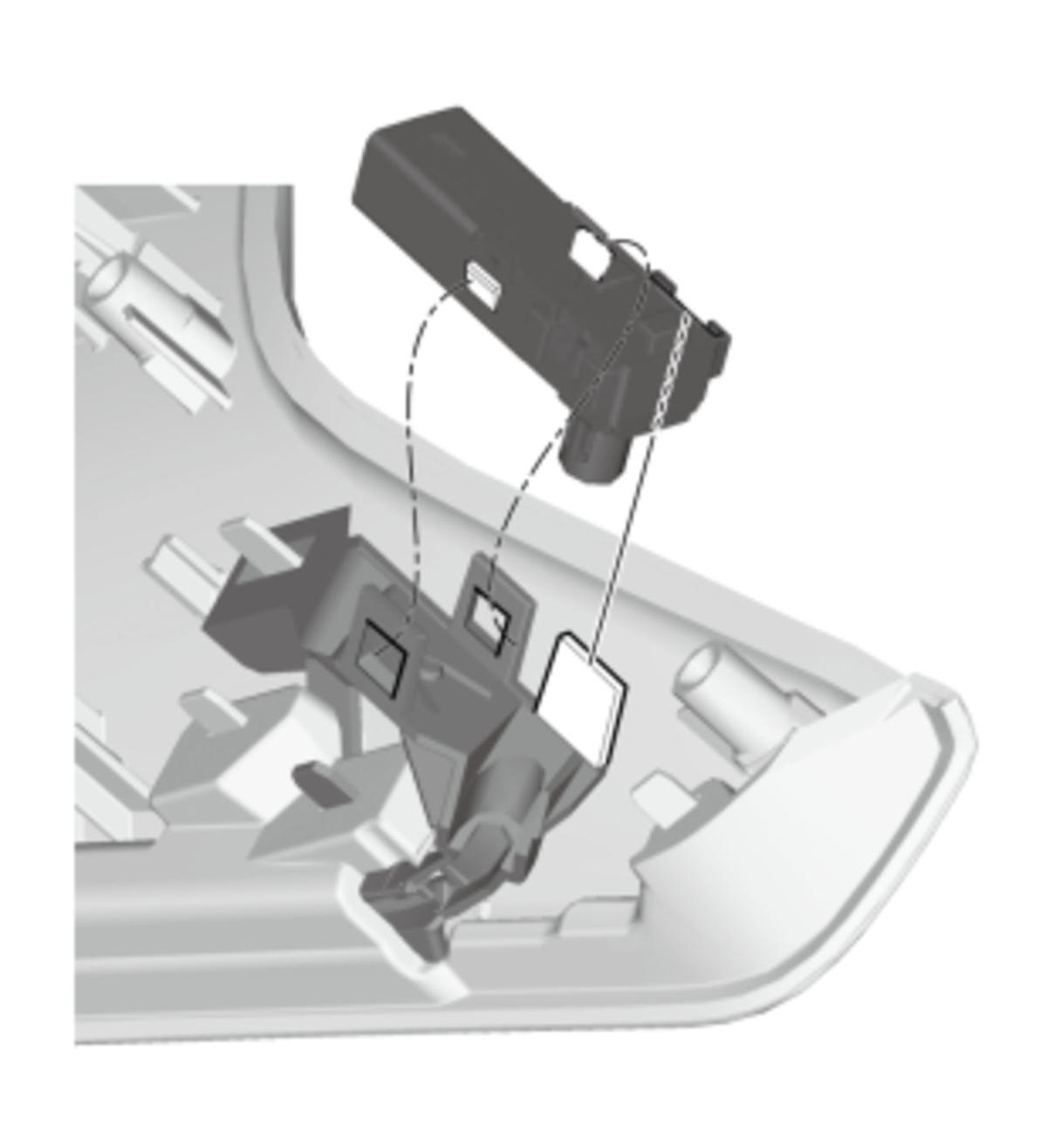

    Figure 2

    Courtesy of HONDA, U.S.A., INC.

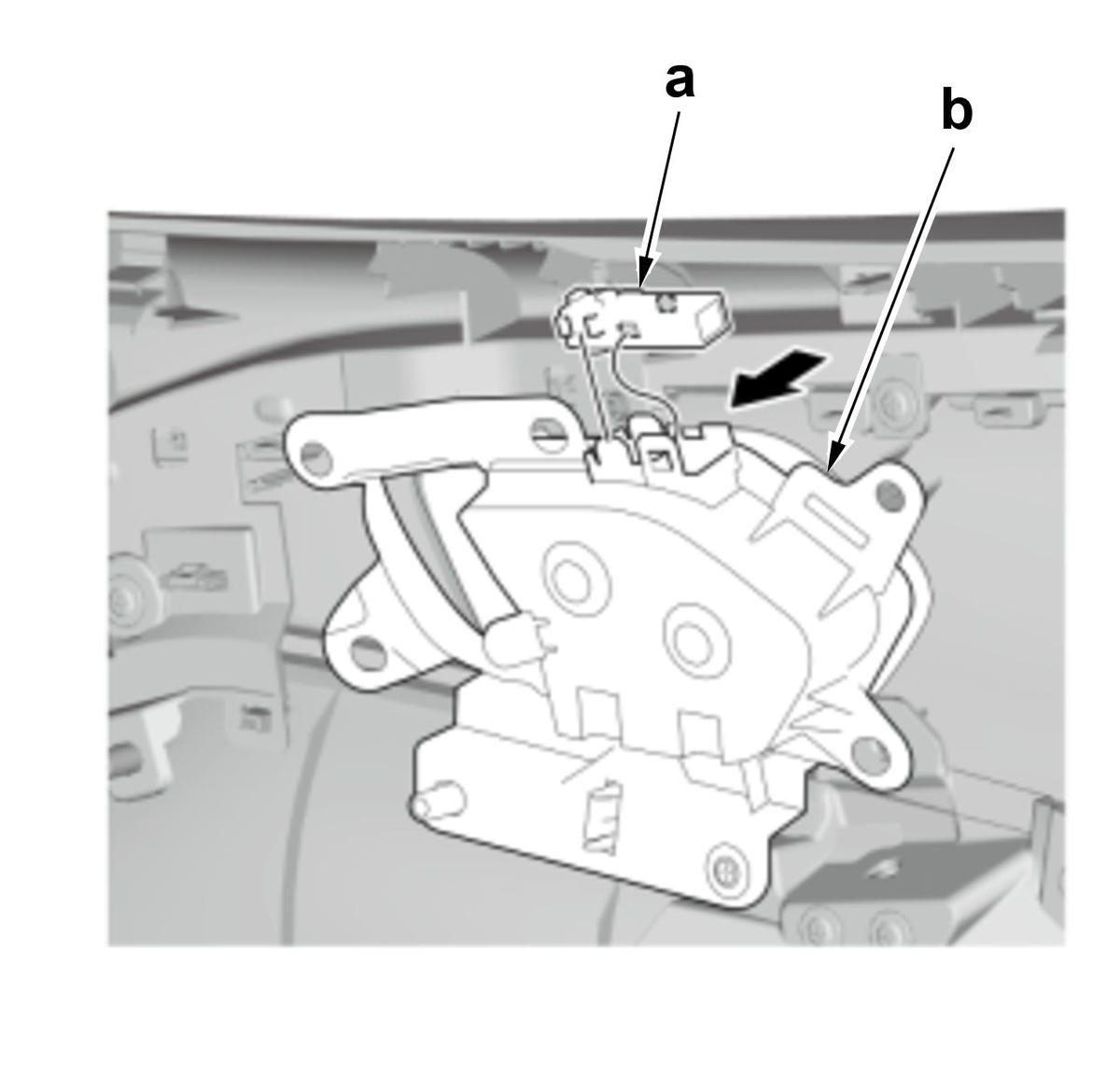

    2. Remove the door inner handle light (a) with pulling the case (b) as needed. (Figure 2)

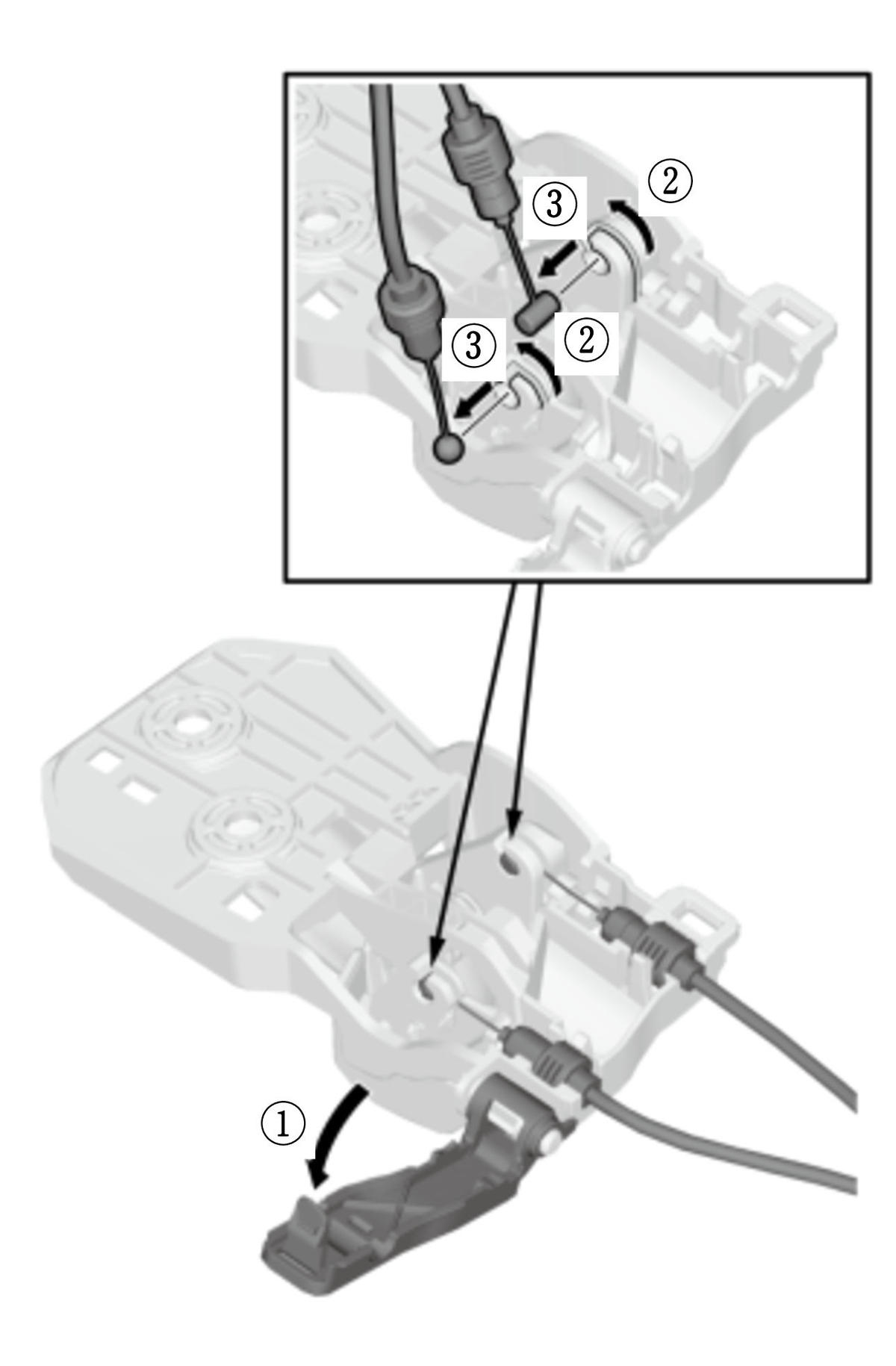

18. R.-

    Courtesy of HONDA, U.S.A., INC.

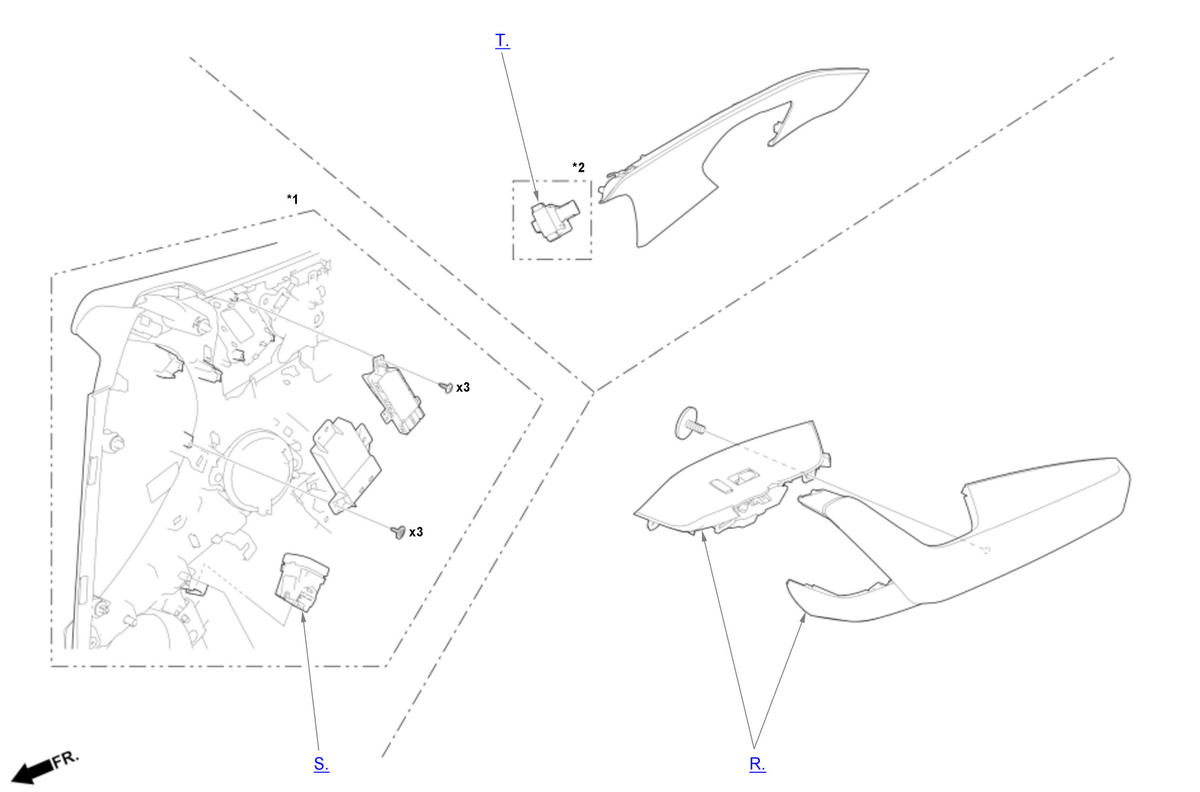

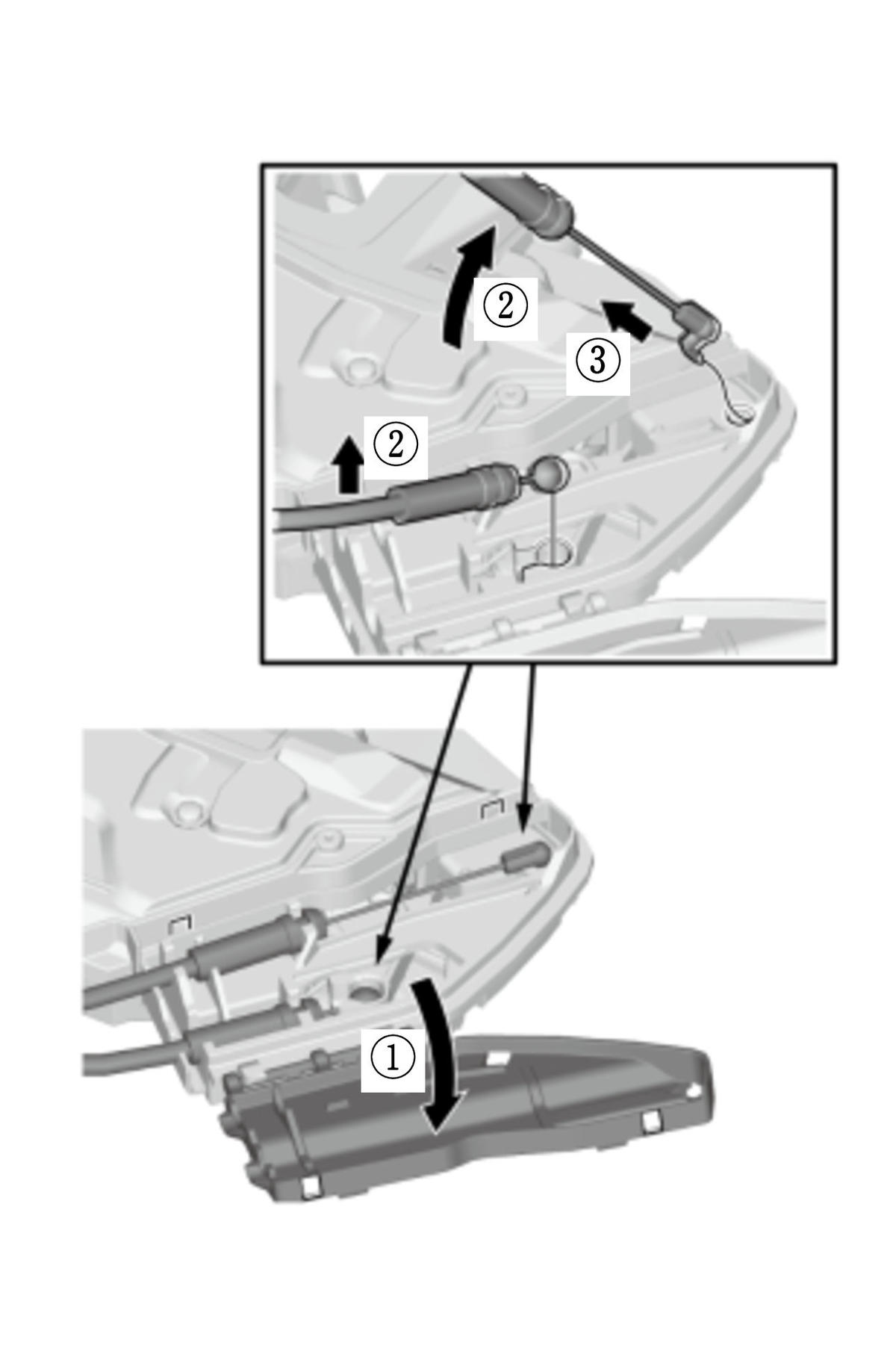

19. S.-

    Sub-Procedure

    Courtesy of HONDA, U.S.A., INC.

    Removal

    • Refer to the figure.

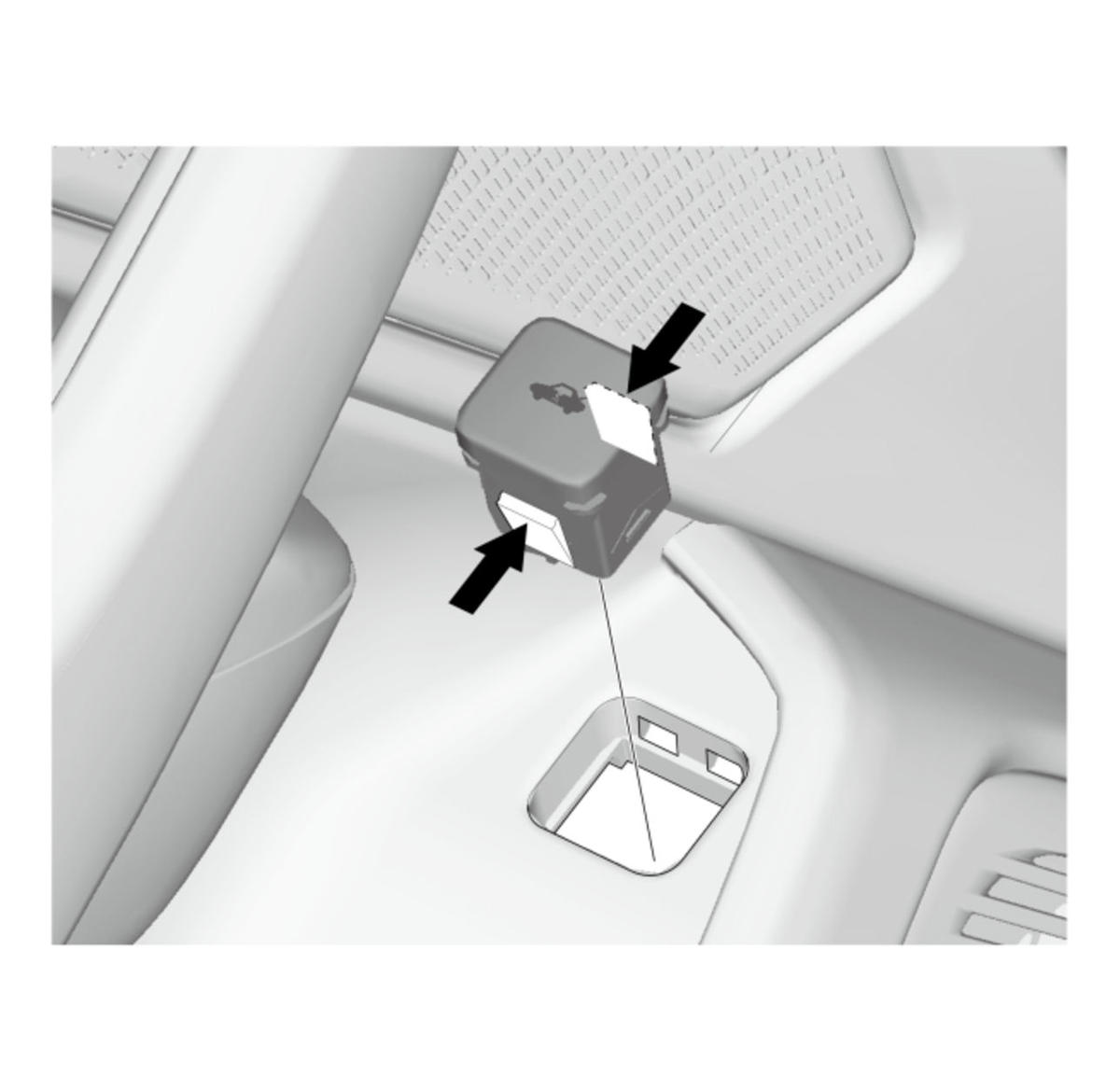

20. T.-

    Courtesy of HONDA, U.S.A., INC.

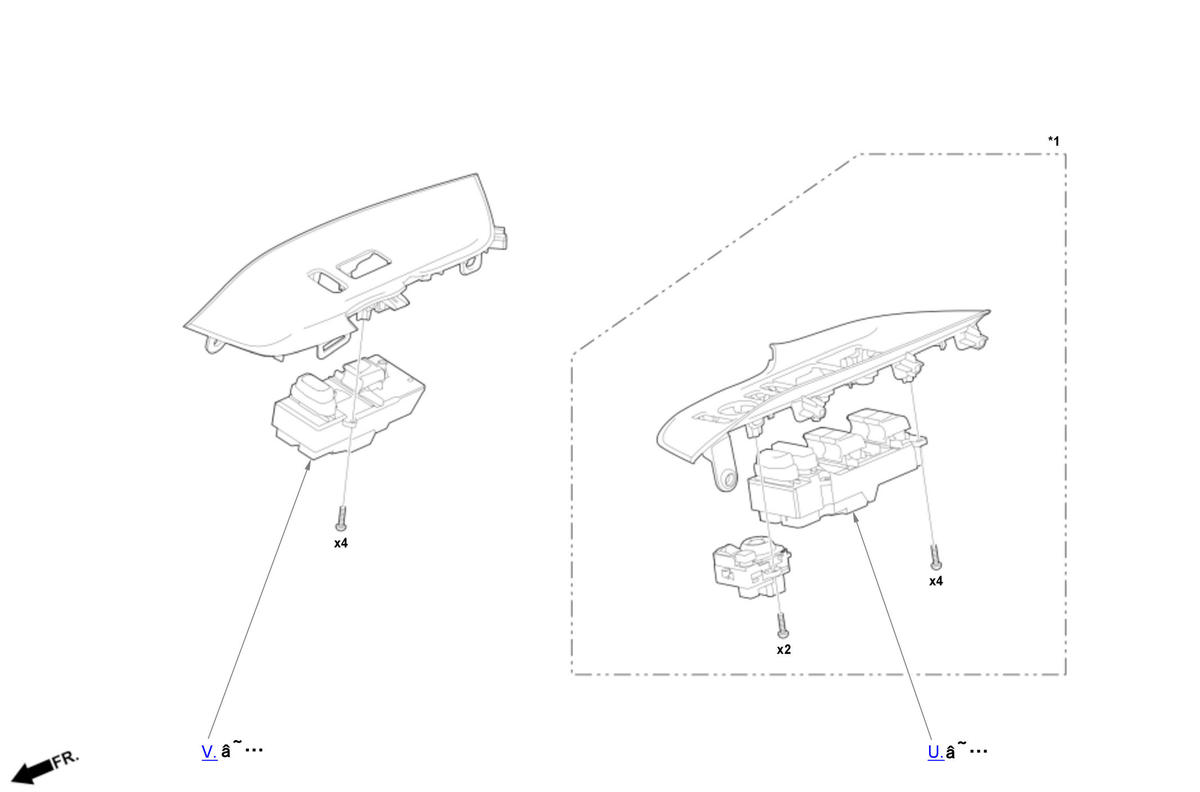

21. U.-

    NOTE:  If the power window switch is replaced, reset the power window control unit . If the original power window switch is installed, confirm that the power window works properly.

    After Installation

    • Power Window Control Unit Reset
22. V.-

    NOTE:  If the power window switch is replaced, reset the power window control unit . If the original power window switch is installed, confirm that the power window works properly.

    After Installation

    • Power Window Control Unit Reset
23. W.-

    After Installation

    • Front Door Glass Adjustment
    • Power Window Control Unit Reset
24. X.-

    After Installation

    • Front Door Position Adjustment
