Exploded View Legend

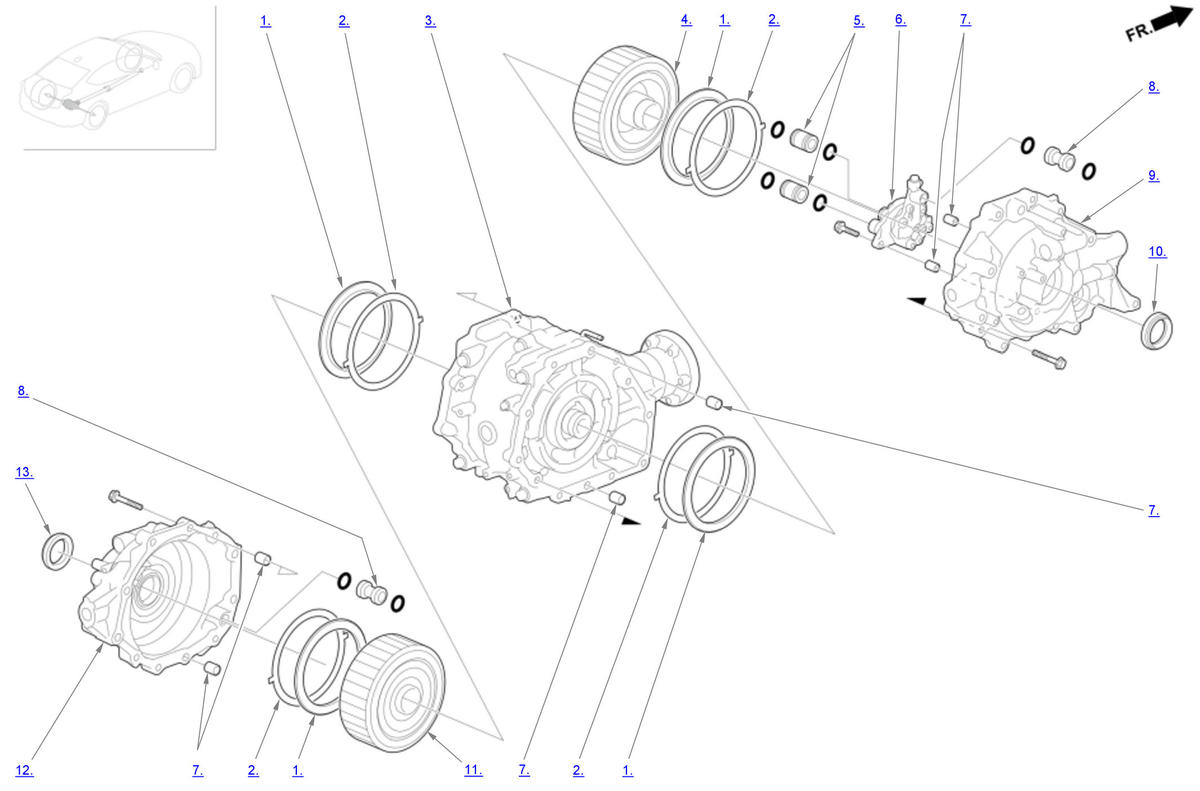

GHH562462Courtesy of HONDA, U.S.A., INC.
  1. Thrust Needle Bearing
  2. Shim
  3. Sub Carrier Assembly
  4. Right Clutch Assembly
  5. Pipe
  6. Oil Pump Assembly
  7. Dowel Pin
  8. Choke Pipe
  9. Right Side Case Assembly
  10. Right Side Case Oil Seal
  11. Left Clutch Assembly
  12. Left Side Case Assembly
  13. Left Side Case Oil Seal
