Inspection Outline

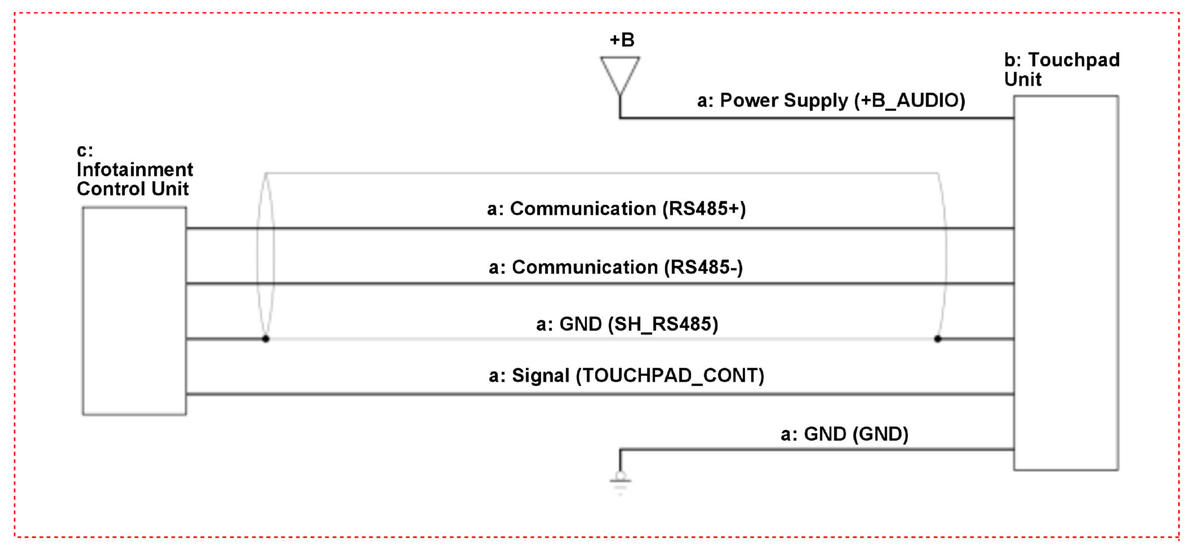

GHH477296Courtesy of HONDA, U.S.A., INC.
Inspection Items Work Items
a External Circuit +B_AUDIO, TOUCHPAD_CONT, RS485+, RS485-, GND, SH_RS485 Circuit Inspection
b Touchpad Unit Touchpad Unit Inspection
c Infotainment Control Unit Infotainment Control Unit Inspection
