Cross Traffic Monitor System Description - System Diagram

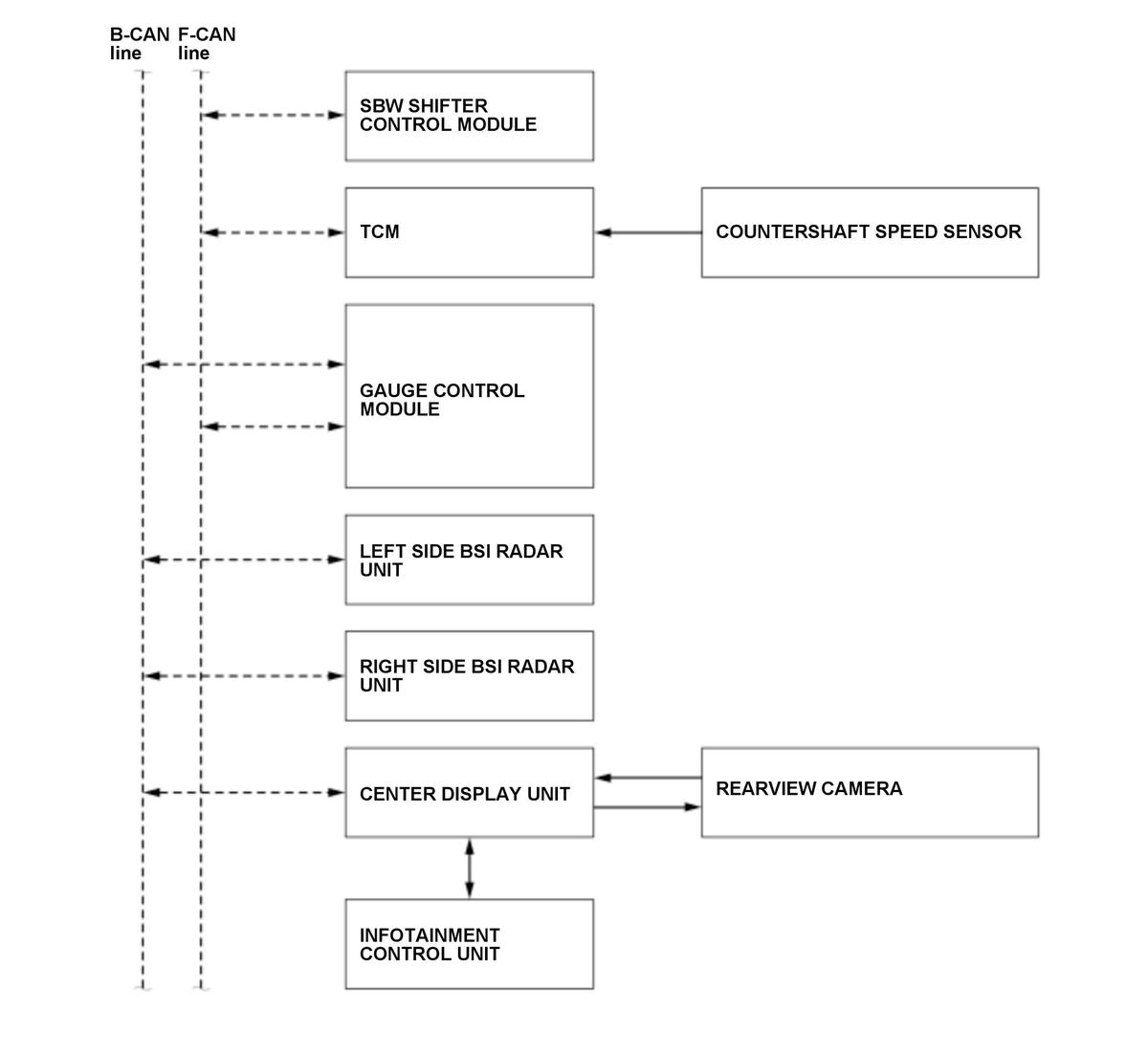

The system diagram of the Cross Traffic Monitor system is shown below.
For locations of each component on the vehicle, refer to Component Location Index:
- BSI radar unit - Refer to: Blind Spot Information (BSI) System Component Location Index or Cross Traffic Monitor Component Location Index
- Gauge control module
- Infotainment control unit, Center display unit, Rearview camera
- TCM, Countershaft speed sensor, SBW shifter control module
