Blind Spot Information (BSI) System Description - System Diagram

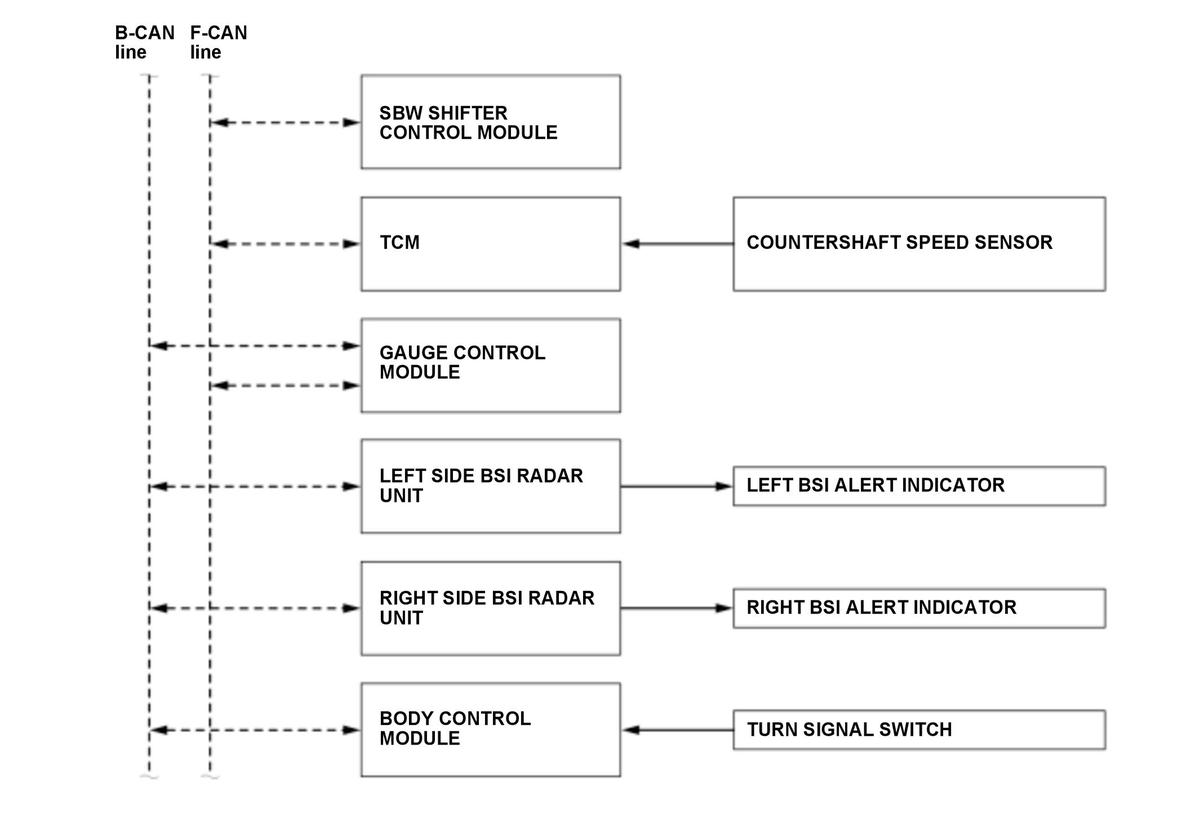

The system diagram of the Blind Spot Information (BSI) system is shown below.
For locations of each component on the vehicle, refer to Component Location Index:
- Body control module, Turn signal switch
- BSI radar unit, BSI alert indicator - Refer to: Blind Spot Information (BSI) System Component Location Index or Cross Traffic Monitor Component Location Index
- Gauge control module
- TCM, Countershaft speed sensor, SBW shifter control module
