DTC P0712, P0713
DTC P0712 : ATF Temperature Sensor Circuit Low
DTC P0713 : ATF Temperature Sensor Circuit High
General Description

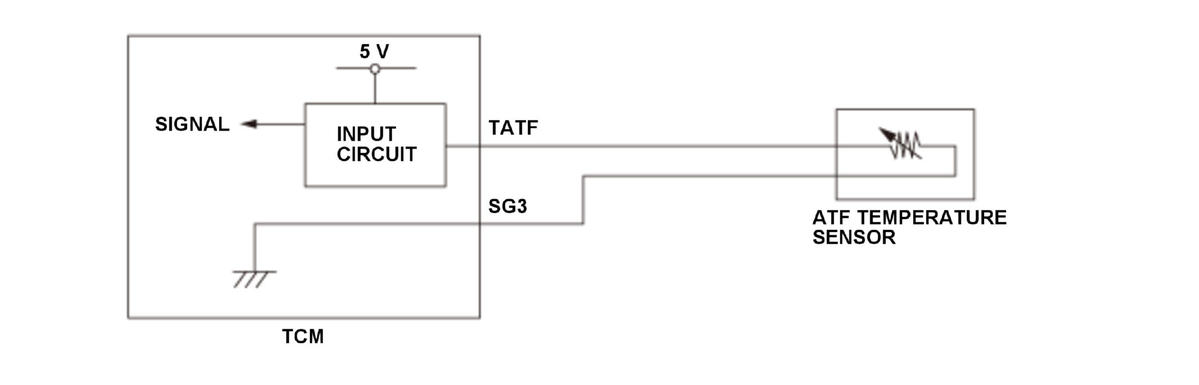

The ATF temperature sensor is a thermistor type sensor that changes resistance according to the change in ATF temperature. The transmission control module (TCM) sends a 5 V reference signal to the sensor through a pull-up resistor. When the ATF temperature is low, the sensor resistance increases and the TCM detects a high signal voltage. As the ATF temperature rises, the sensor resistance decreases and the TCM detects a low signal voltage. When the ATF temperature sensor signal voltage to the TCM is below specification or above specification, indicating that the temperature is above specification (a short to ground) or below specification (open), the TCM detects a malfunction and stores a DTC.
Monitor Execution, Sequence, Duration, DTC Type
| Execution | Continuous |
| Sequence | None |
| Duration | 2.6 seconds or more |
| DTC Type | Two drive cycles, MIL on, shift position indicator blinks |
Enable Conditions
| Condition | Minimum | Maximum |
|---|---|---|
| 12 volt battery voltage [Battery Voltage] | 10 V | - |
| Vehicle | ON mode | |
| [ ]: HDS Parameter | ||
Malfunction Threshold
DTC: P0712
The ATF temperature sensor output voltage [ ATF Temp Sensor (V) ] is less than 0.09 V for at least 2.6 seconds.
DTC: P0713
The ATF temperature sensor output voltage [ ATF Temp Sensor (V) ] is more than 4.92 V for at least 2.6 seconds.
Possible Cause
The causes shown may not be a complete list of all potential problems, and it is possible that there may be other causes.
- Solenoid wire harness failure
- Valve body assembly failure (ATF temperature sensor)
- TCM internal circuit failure
Confirmation Procedure
Operating Condition
Turn the vehicle to the ON mode, and wait for at least 5 seconds in P position/mode.
With the HDS
None.
Diagnosis Details
Conditions for setting the DTC
When a malfunction is detected during the first drive cycle, a Pending DTC is stored in the TCM memory. If the malfunction returns in the next (second) drive cycle, the MIL comes on, the shift position indicator blinks, and a Confirmed DTC and the freeze data are stored.
Conditions for clearing the DTC
The shift position indicator comes off by turning the vehicle to the OFF (LOCK) mode. The MIL is cleared if the malfunction does not return in three consecutive trips in which the diagnostic runs. The MIL, the Pending DTC, the Confirmed DTC, and the freeze data can be cleared with the scan tool Clear command.
