FTP Sensor Port Visual Inspection

Test Procedure

• Procedure
  • Remove the FTP sensor.

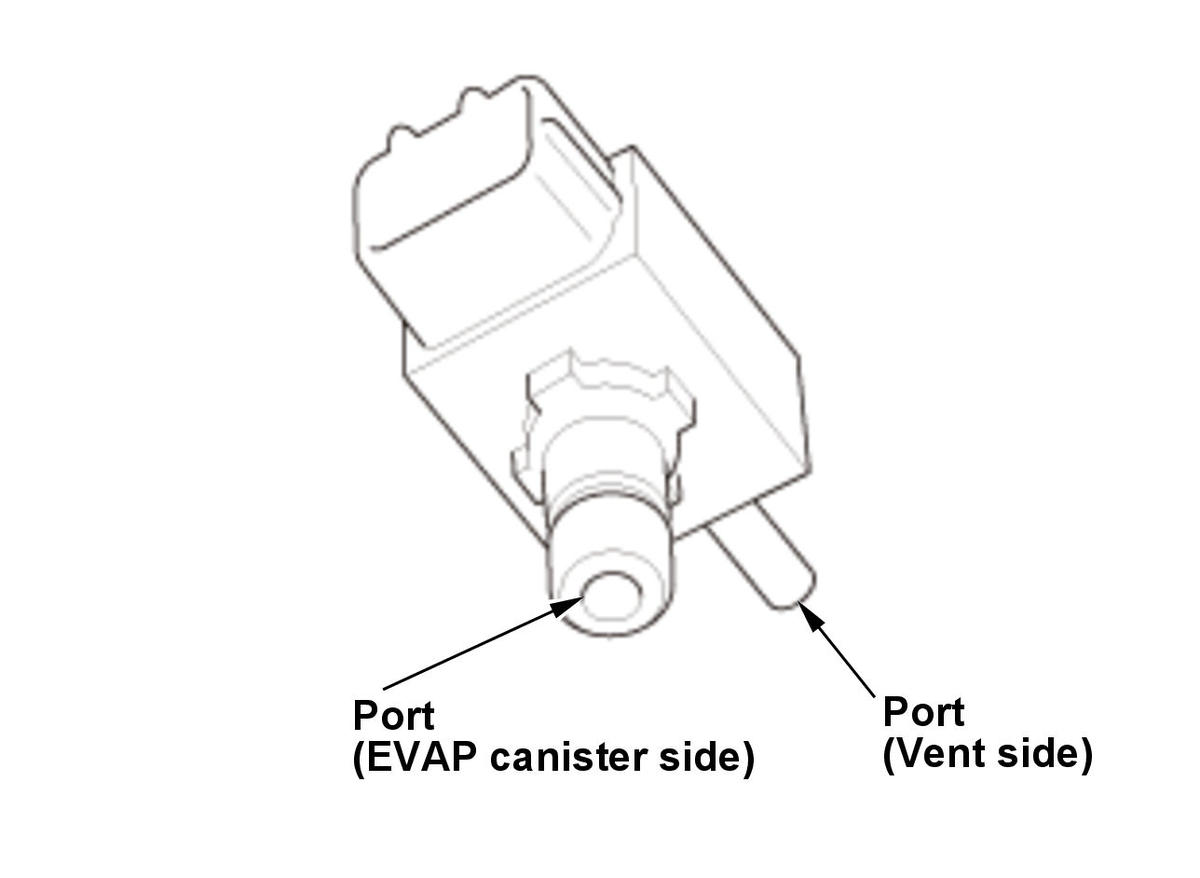

  • Check for a blockage or damage at the FTP sensor ports. (EVAP canister side and vent side)

  Courtesy of HONDA, U.S.A., INC.

Results

• If it is abnormal, there is a problem with the FTP sensor.
