Engine Support Hanger Installation: Installation: Procedure

When Removing Oil Pump Chain

1. Vehicle - Lift
2. Cowl Cover - Remove
   • Cowl Cover
3. Front Grille Cover - Remove
   • Front Grille Cover
4. Right Front Wheel - Remove
   • Right Front Wheel
5. Engine Undercover - Remove
   • Engine Undercover
6. Alternator Area Parts - Remove
   • Alternator Area
     • Drive Belt Auto-Tensioner
     • Drive Belt Idler Pulley
7. Cylinder Head Cover - Remove
   • Cylinder Head Cover
8. Turbocharger Inlet Joint Pipe - Remove
   • Turbocharger Inlet Joint Pipe
9. Turbocharger Bypass Control Valve Solenoid Pipe B - Remove
   • Turbocharger Bypass Control Valve Solenoid Pipe B
10. Cam Chain Guide B - Remove
    • Cam Chain Guide B
11. Cam Chain - Remove
    • Cam Chain
12. Engine Support Hanger - Install
    NOTE:

    • Be careful when working around the windshield.
    • Be careful not to damage the hood opener cable when installing the engine support hanger at the front bulkhead.

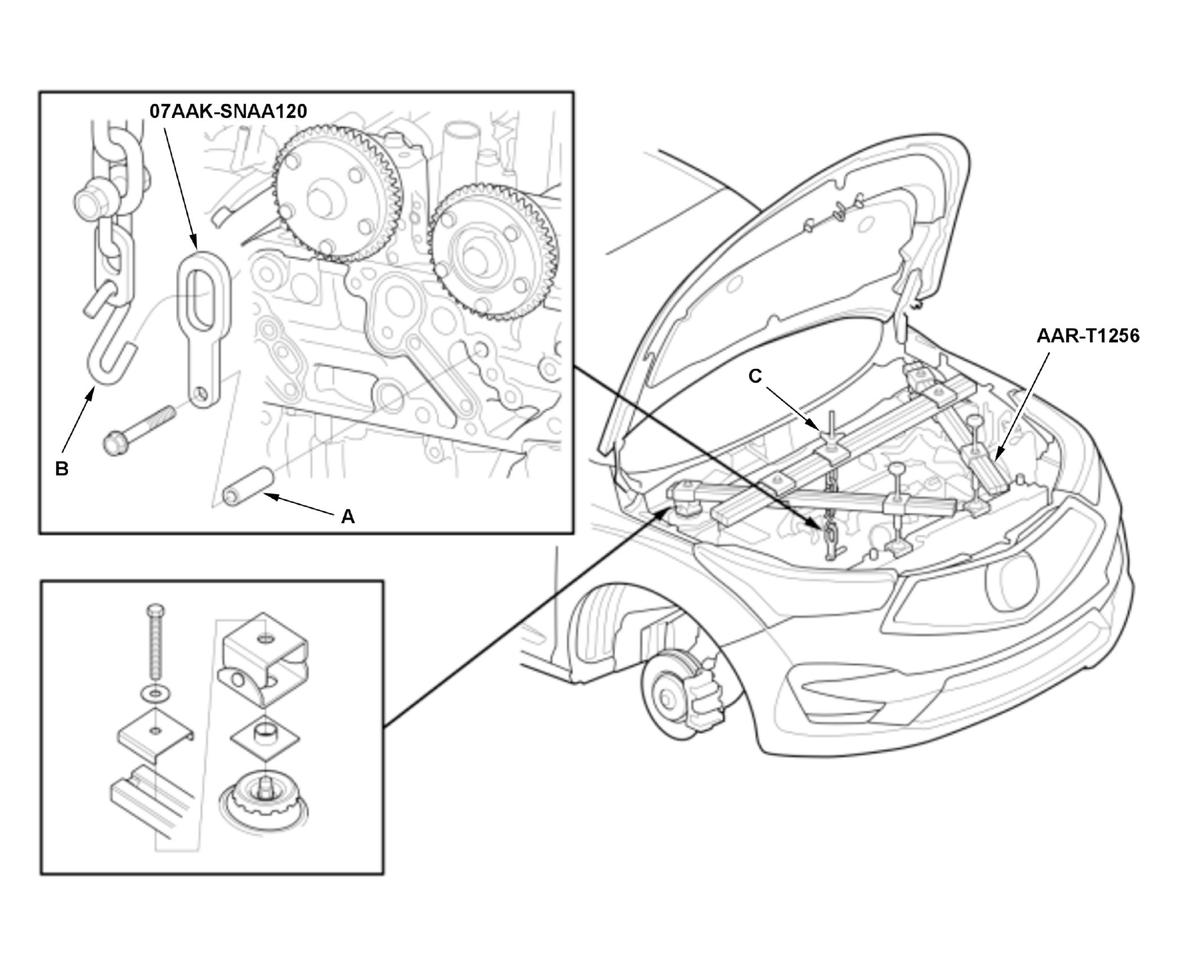

    1. Remove the front damper caps .

    Courtesy of HONDA, U.S.A., INC.

    2. Install the universal lifting eyelet with a commercially available spacer (A).

    NOTE: Make sure the universal lifting eyelet does not interfere with the surrounding parts.

    3. Install the engine support hanger onto the vehicle as shown.

    4. Attach the hook (B) to the slotted hole in the universal lifting eyelet.

    5. Tighten the wing nut (C) by hand to support the engine/transmission.

    When Removing Transmission

13. Vehicle - Lift
14. Cowl Cover - Remove
    • Cowl Cover
15. Engine Cover - Remove
    • Engine Cover
16. Front Grille Cover - Remove
    • Front Grille Cover
17. PCM - Remove
    • PCM
18. Air Intake Chamber - Remove
    • Air Intake Chamber
19. 12 Volt Battery Base - Remove
    • 12 Volt Battery Base
20. Throttle Body Inlet Pipe - Remove
    • Throttle Body Inlet Pipe - Refer to: Intercooler Area (2019 - 2020) or Intercooler Area (2021)
21. EVAP Canister Purge Valve - Remove
    • EVAP Canister Purge Valve
22. Engine Support Hanger - Install
    NOTE:

    • Be careful when working around the windshield.
    • Be careful not to damage the hood opener cable when installing the engine support hanger at the front bulkhead.

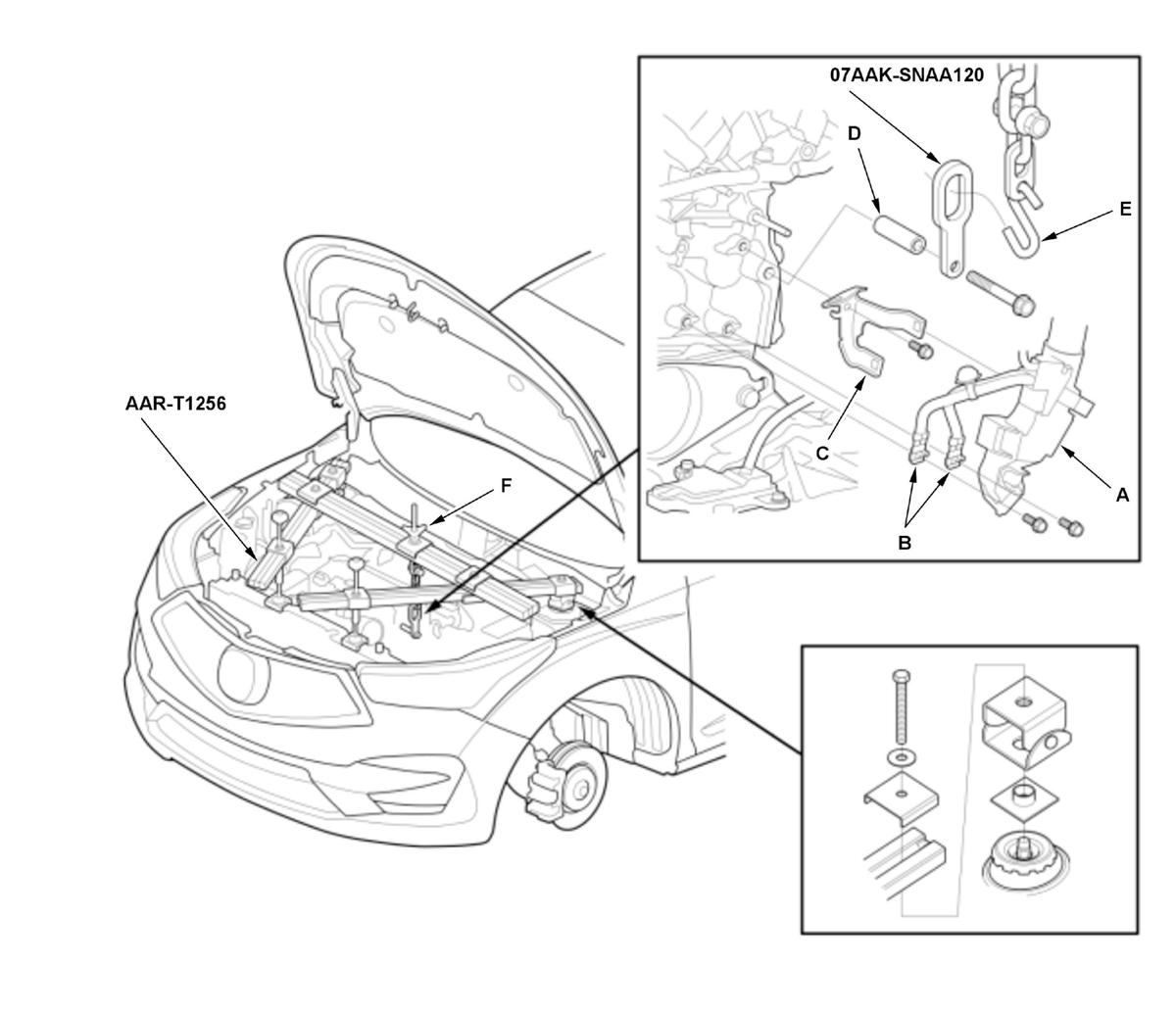

    1. Remove the front damper caps .

    Courtesy of HONDA, U.S.A., INC.

    2. Remove the harness cover (A) .

    3. Remove the ground cables (B) .

    4. Remove the bracket (C) .

    5. Install the universal lifting eyelet with a commercially available spacer (D).

    NOTE: Make sure the universal lifting eyelet does not interfere with the surrounding parts.

    6. Install the engine support hanger onto the vehicle as shown.

    7. Attach the hook (E) to the slotted hole in the universal lifting eyelet.

    8. Tighten the wing nut (F) by hand to support the engine/transmission.
