Home >> Acura >> 2021 >> RDX Base >> Repair and Diagnosis >> Electrical >> Body Electrical >> Electrical System - Service, Testing And Troubleshooting >> Relay Box Locations And Control Unit Locations >> Relay Locations >> Dashboard

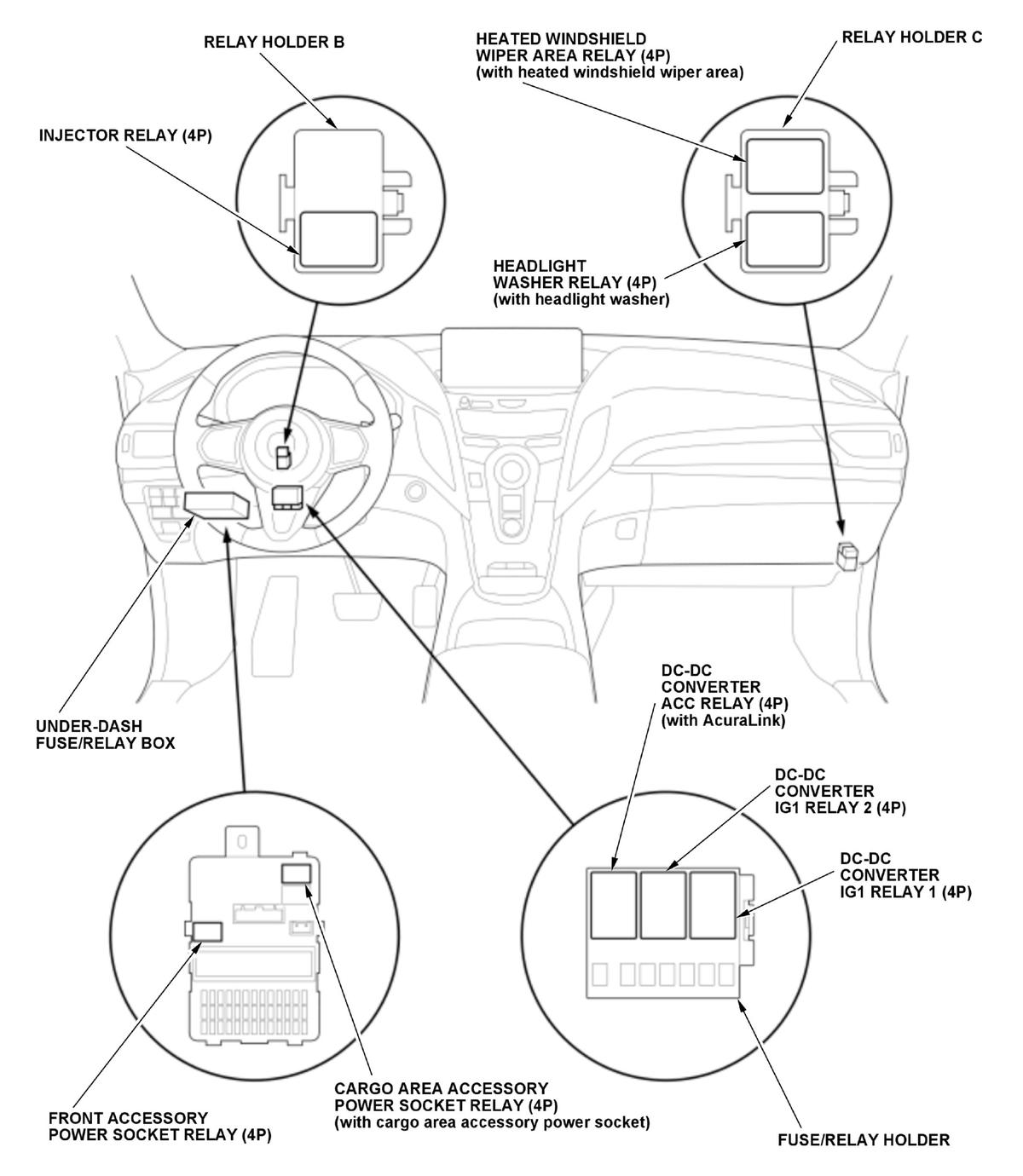

Relay Locations: Dashboard

GHH554588Courtesy of HONDA, U.S.A., INC.
