1. Power Mirror Switch - Test

   Preconditions

   • Driver's Door Switch Panel Removed

   Procedure/Specifications

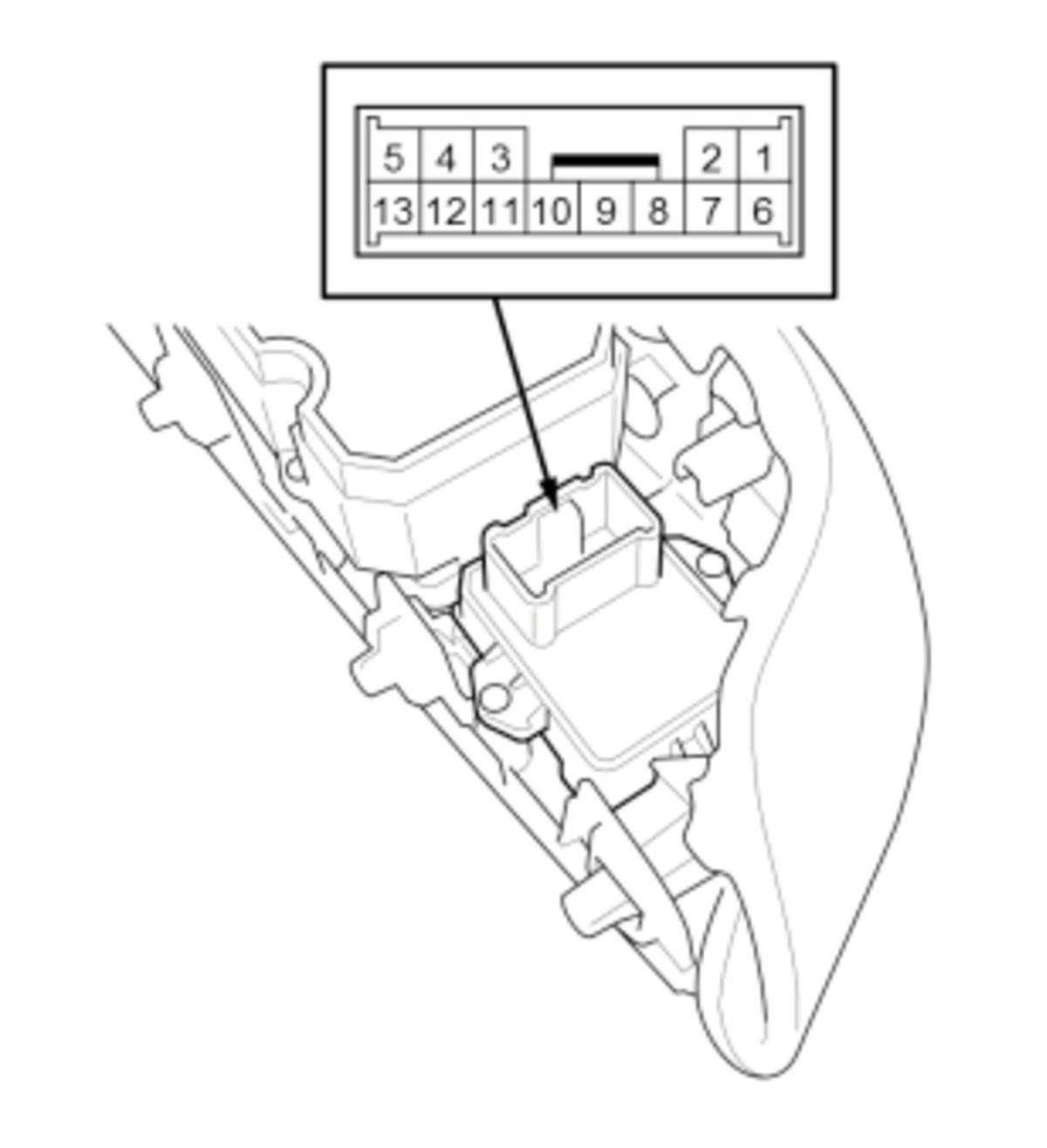

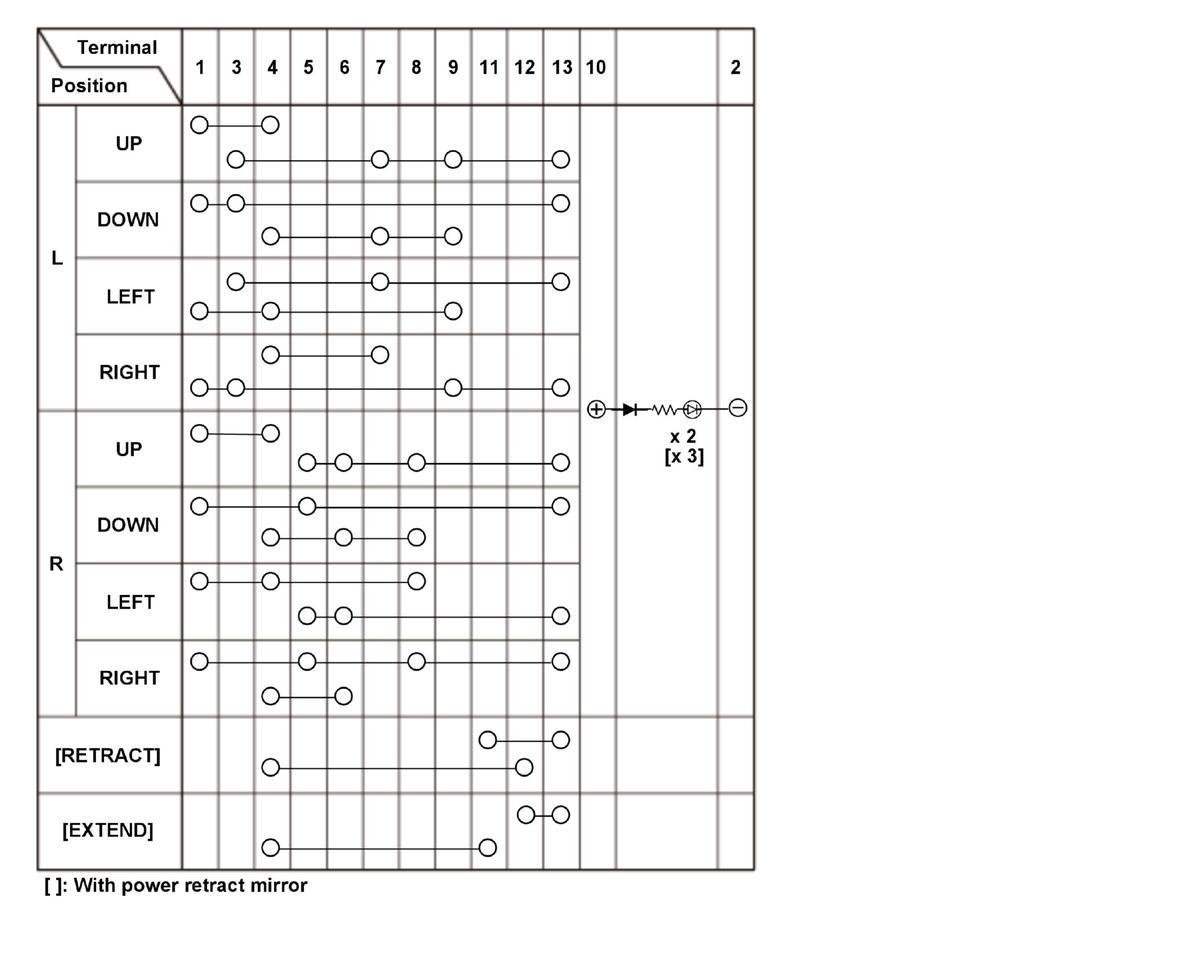

   • Check the switch according to the table. (Figure 1 and 2)

     Figure 1

     Courtesy of HONDA, U.S.A., INC.

     Figure 2

     Courtesy of HONDA, U.S.A., INC.

   NOTE:

   • When an LED is located between terminals, check if the LED lights by connecting power and ground to the LED.
   • Remember this important operating characteristic; diode bias causes a diode to fully conduct electricity in one direction (forward), while not at all in the opposite direction (reverse).

   Result

   • If the result is not as specified, replace the power mirror switch .
