Integrated Control Systems - Service, Testing And Troubleshooting
>>
Circuit Diagram
>>

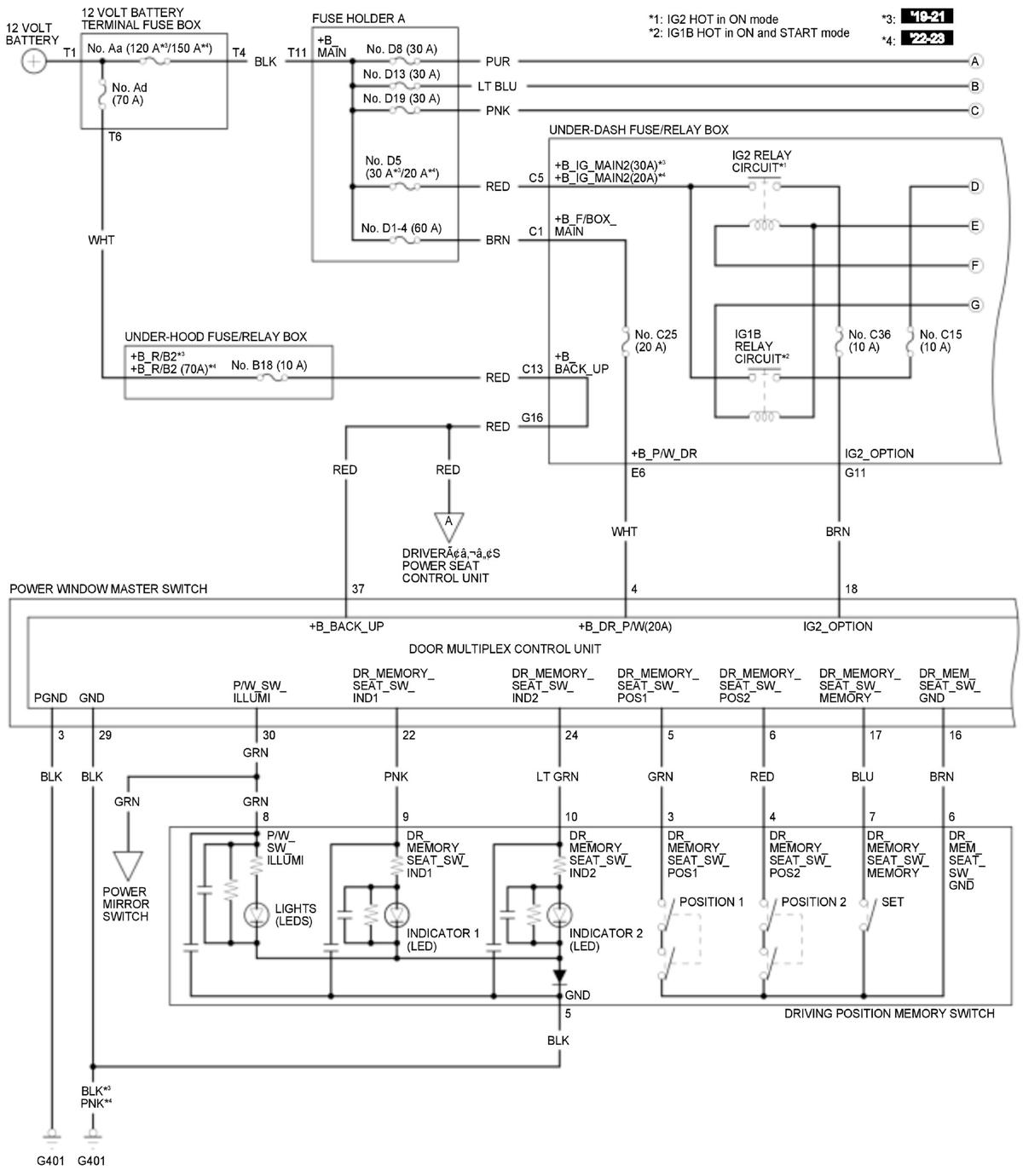

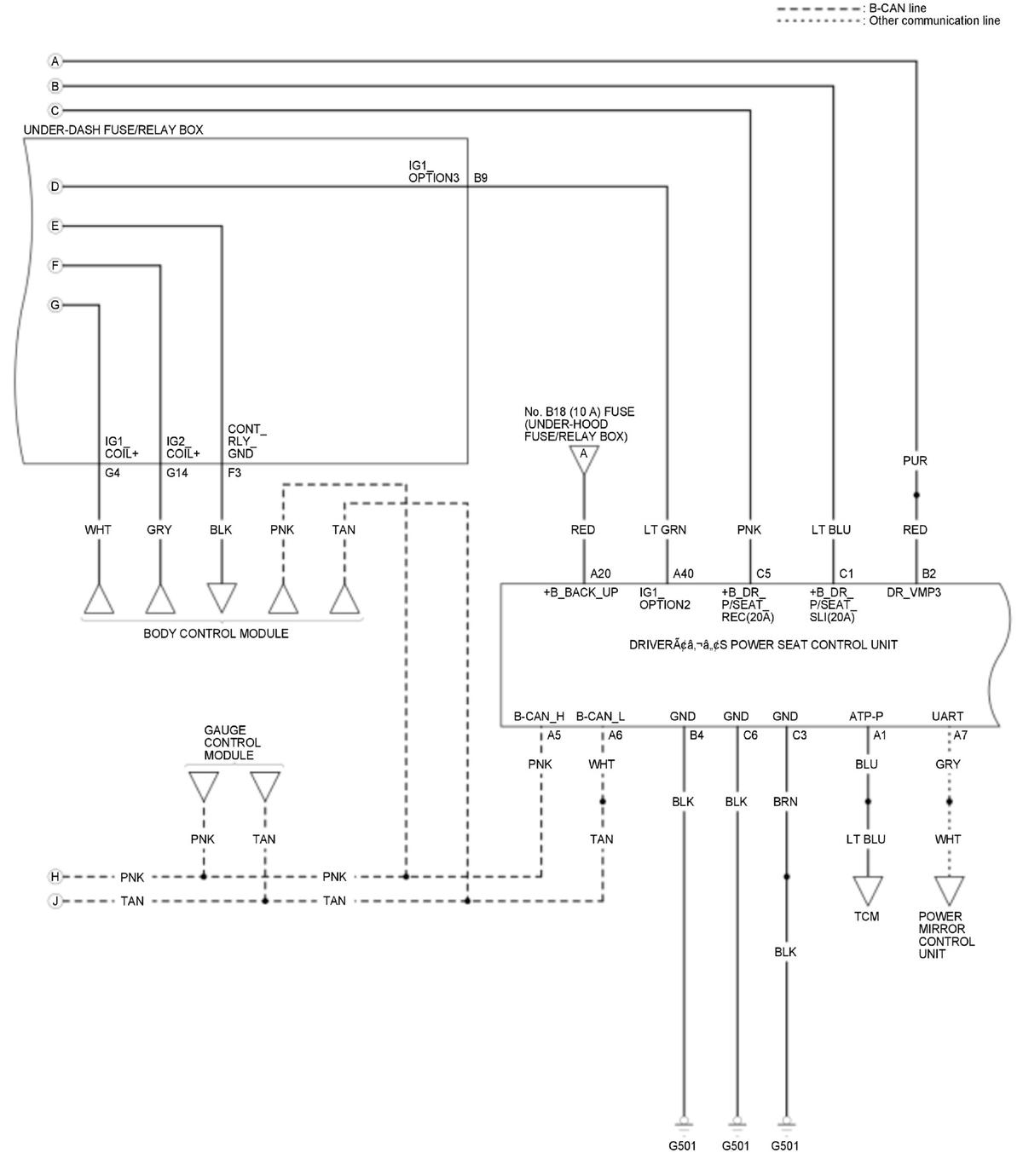

Driving Position Memory System (DPMS) Circuit Diagram
>>

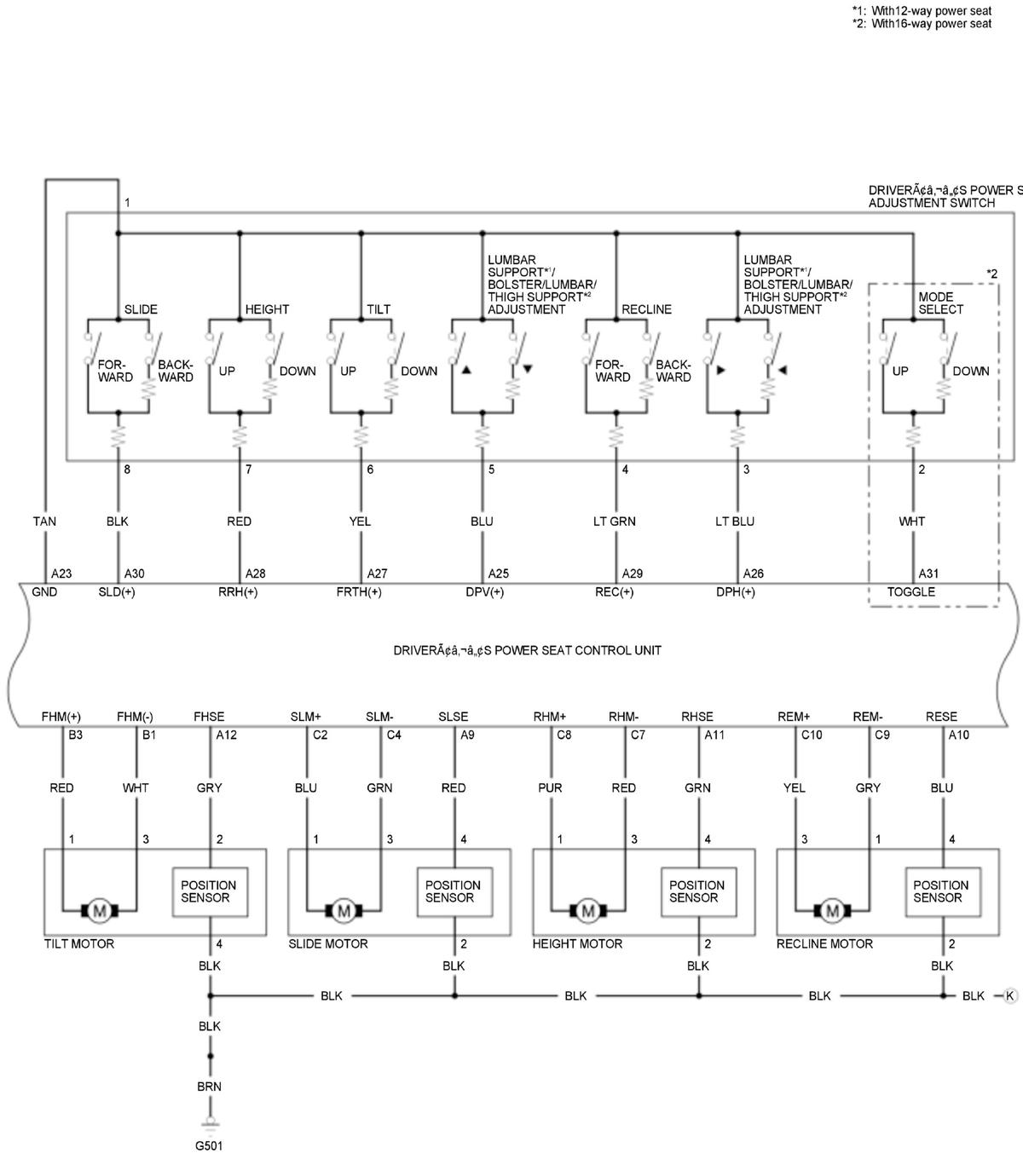

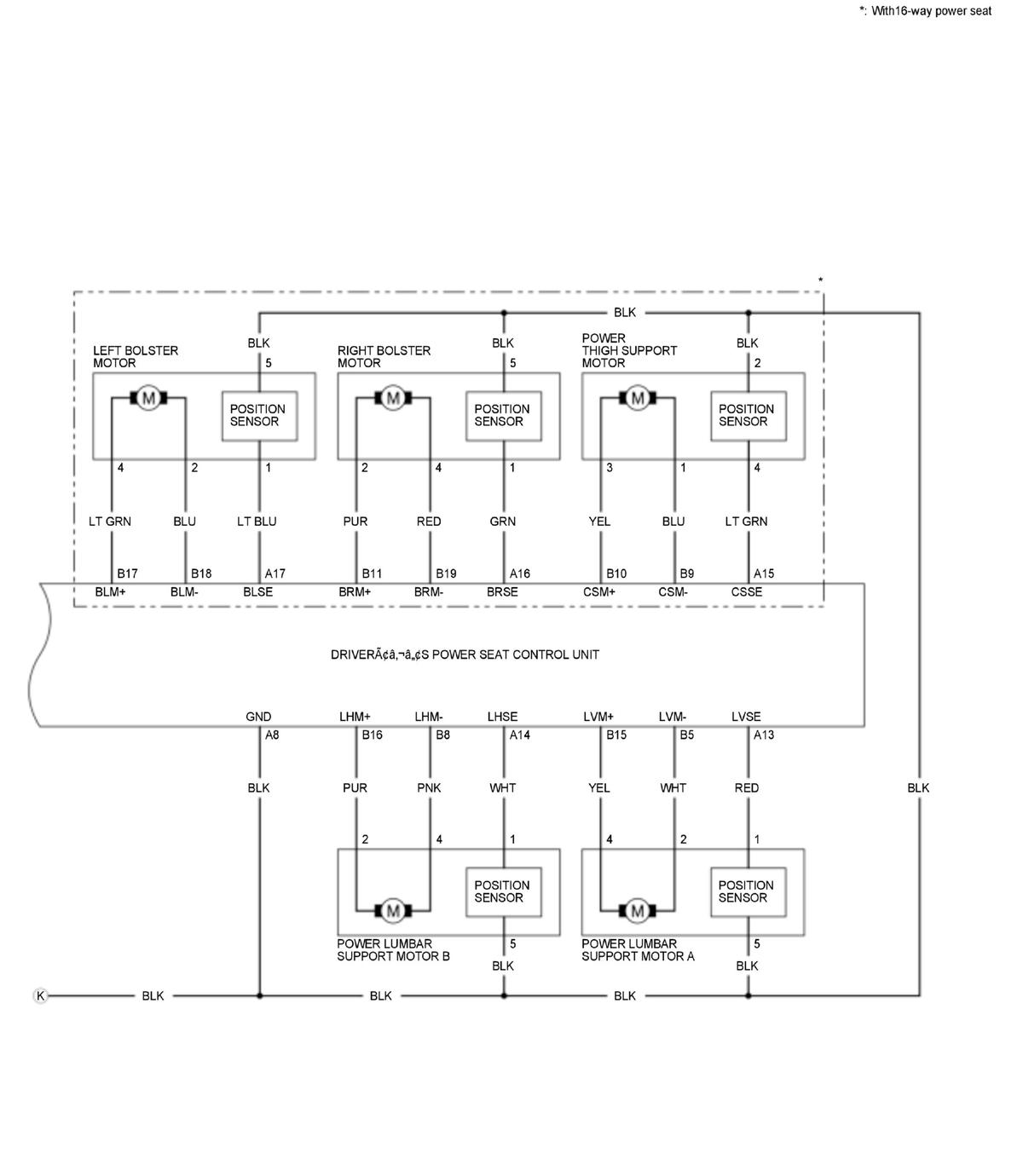

Driver's Power Seat
Driver's Power Seat
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
