Exploded View
NOTE:
In the illustration, only one side is shown because the component parts and the removal/installation procedure are the same.
For replacement of components listed below, see Repair Procedure .

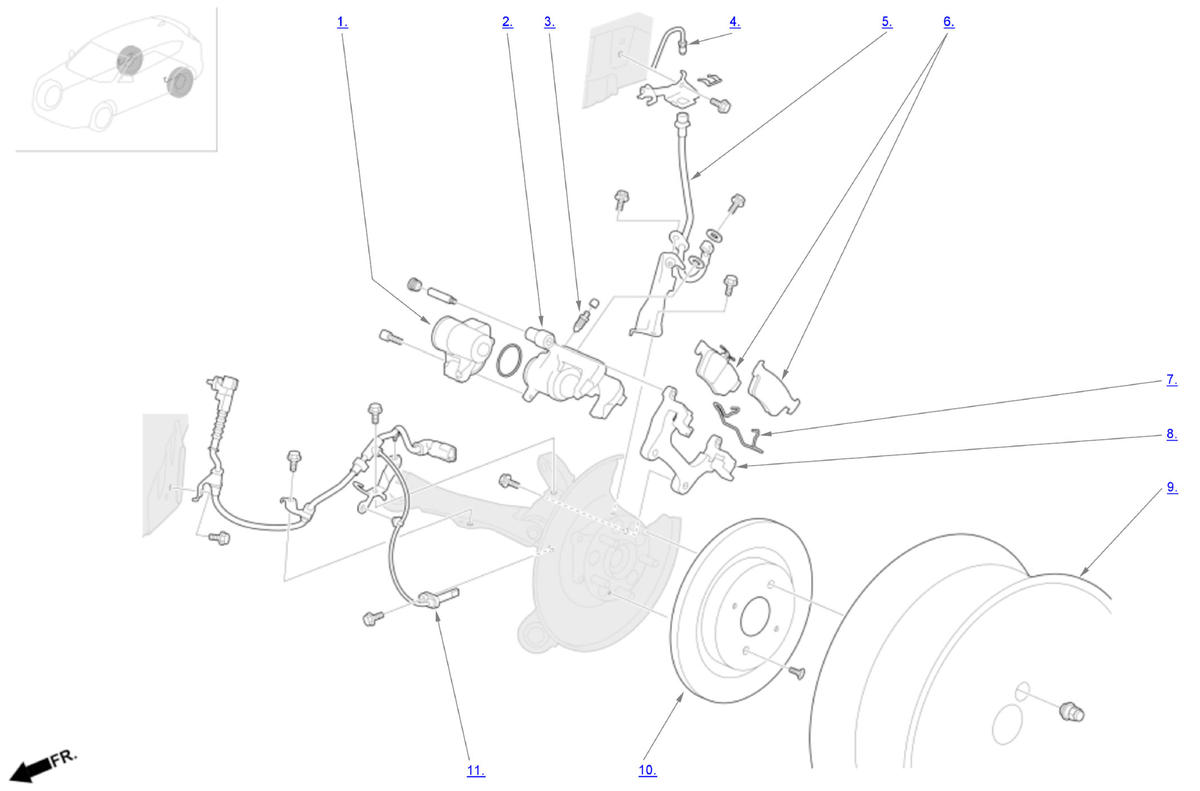

Rear Brake Area Components
| Component Name | Callout |
|---|---|
| Electric Parking Brake Actuator | 1 |
| Caliperf Body | 2 |
| Bleed Screw | 3 |
| Brake Line | 4 |
| Brake Hose | 5 |
| Brake Pad | 6 |
| Housing Clip | 7 |
| Caliper Bracket | 8 |
| Wheel | 9 |
| Brake Disc | 10 |

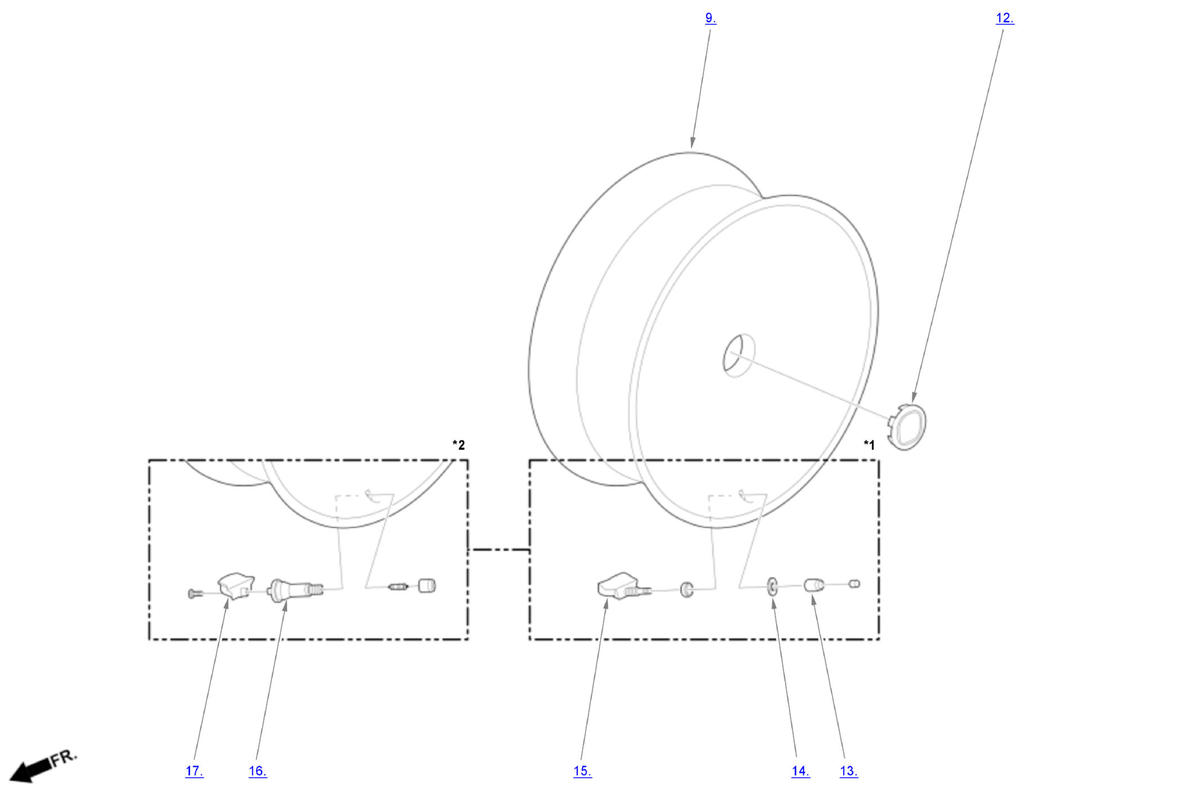

| Wheel Speed Sensor (integrated with Electric Parking Brake Harness) | 11 |
| Wheel Cap | 12 |
| Valve Stem Nut | 13 |
| Valve Stem Washer | 14 |
| Tire Pressure Sensor | 15 |
| Valve Assembly | 16 |
| Tire Pressure Sensor Housing | 17 |
