EVAP Canister: Installation

  1. FTP Sensor and EVAP Canister Vent Shut Valve - Install (USA and Canada models)
    1. USA and Canada models: Install the FTP sensor on the EVAP canister .

    2. USA and Canada models: Install the EVAP canister vent shut valve on the EVAP canister .
  2. EVAP Canister - Install
    USA and Canada models

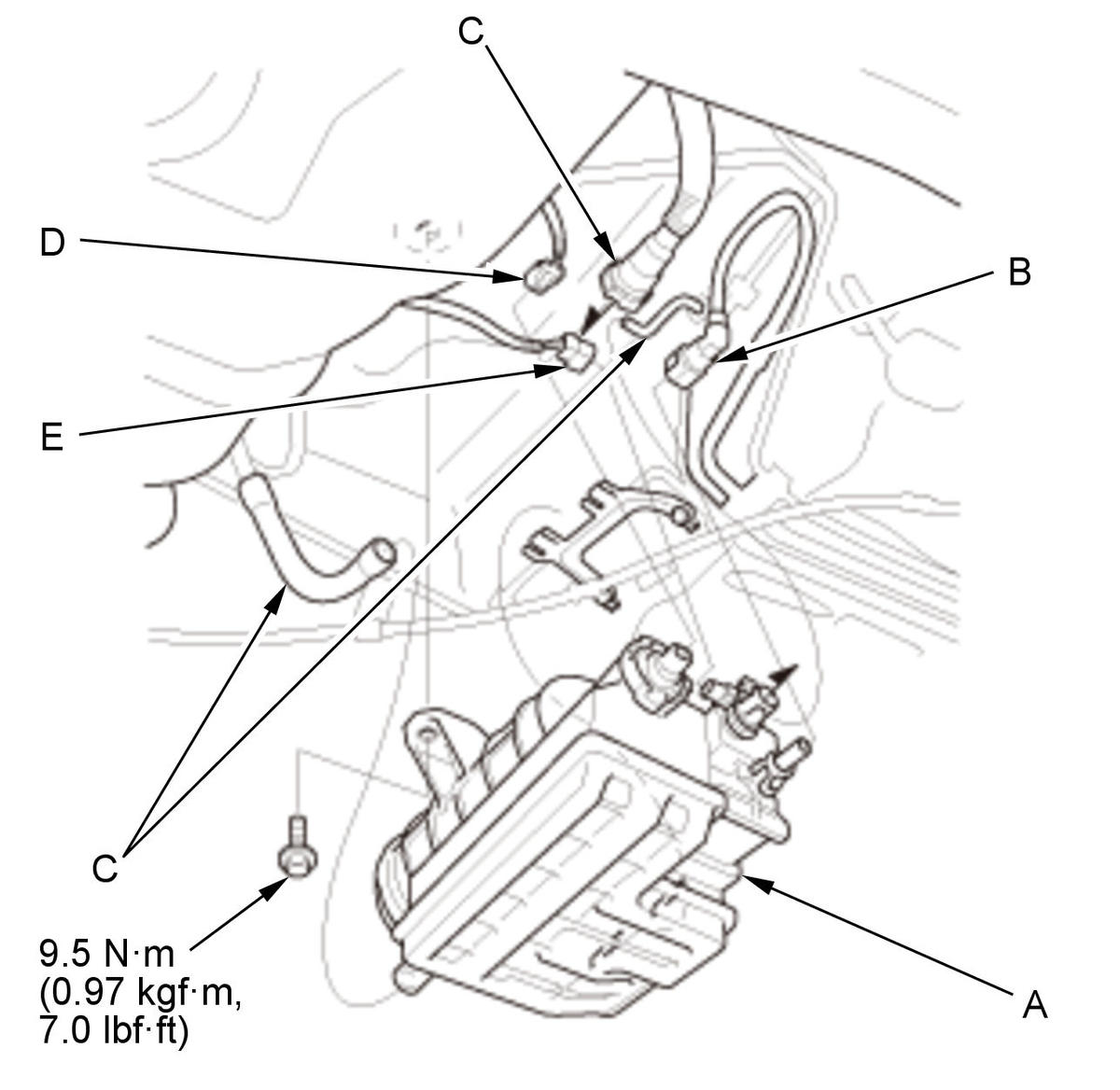

    GHH467768Courtesy of HONDA, U.S.A., INC.
    		 1. USA and Canada models: Install the EVAP canister (A).

    2. USA and Canada models: Connect the quick-connect fitting

    (B), the hoses (C), the FTP sensor connector (D), and the EVAP canister vent shut valve connector (E).
  3. Left Floor Undercover - Install
    1. Install the left floor undercover .
