Multiplex Integrated Control System Circuit Diagram (2018 2019 2020)

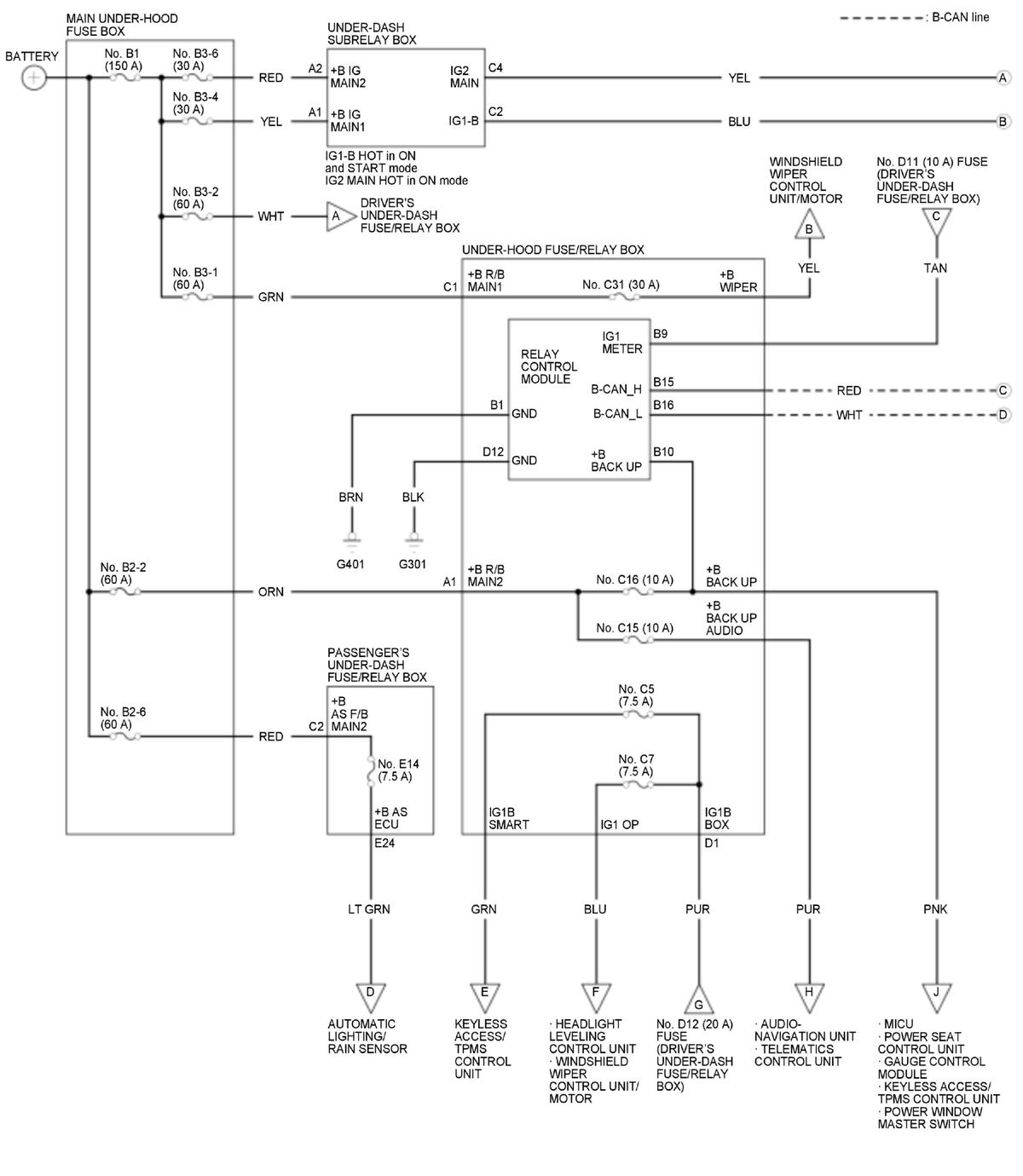

GHH348192Courtesy of HONDA, U.S.A., INC.

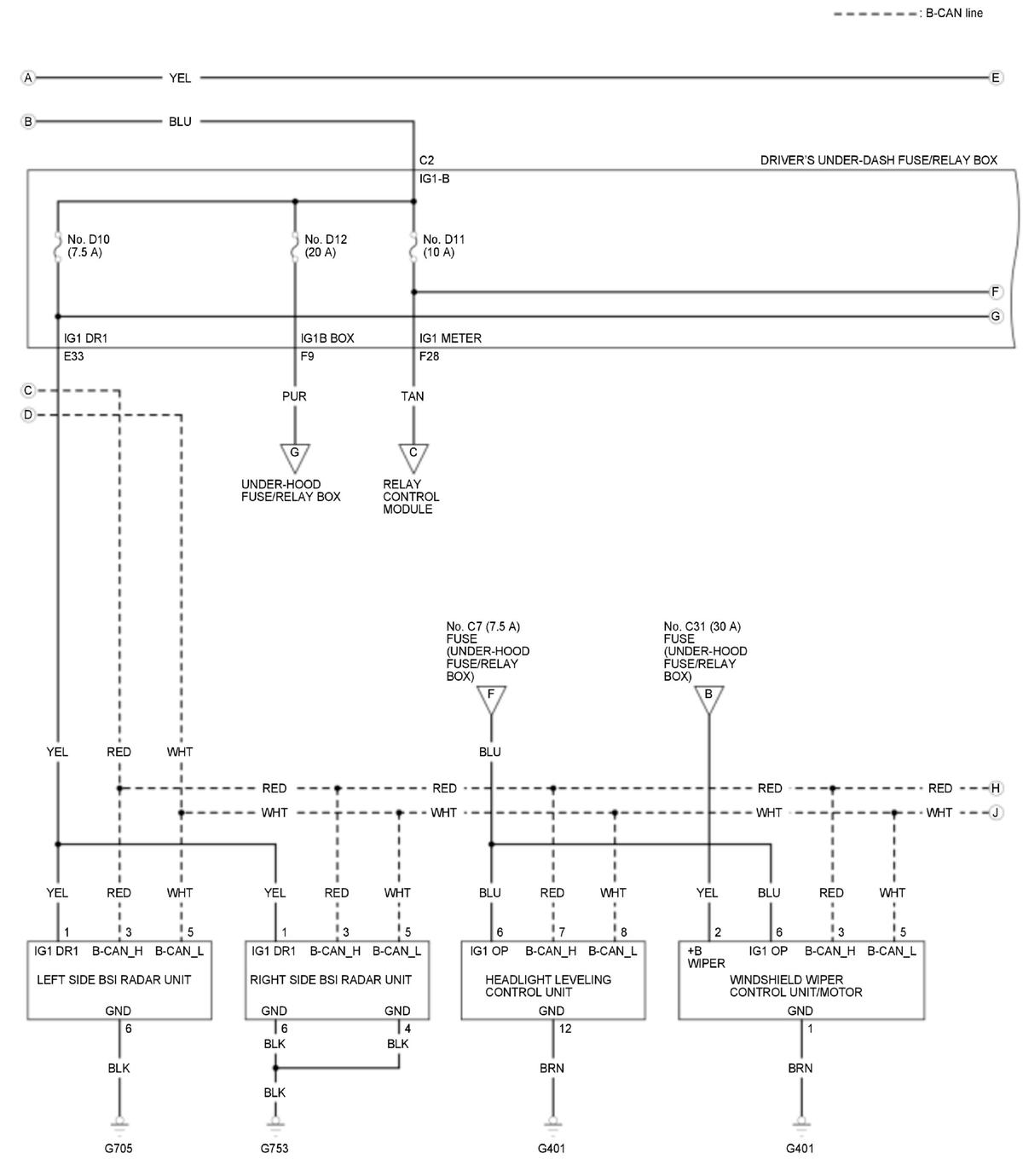

GHH348193Courtesy of HONDA, U.S.A., INC.

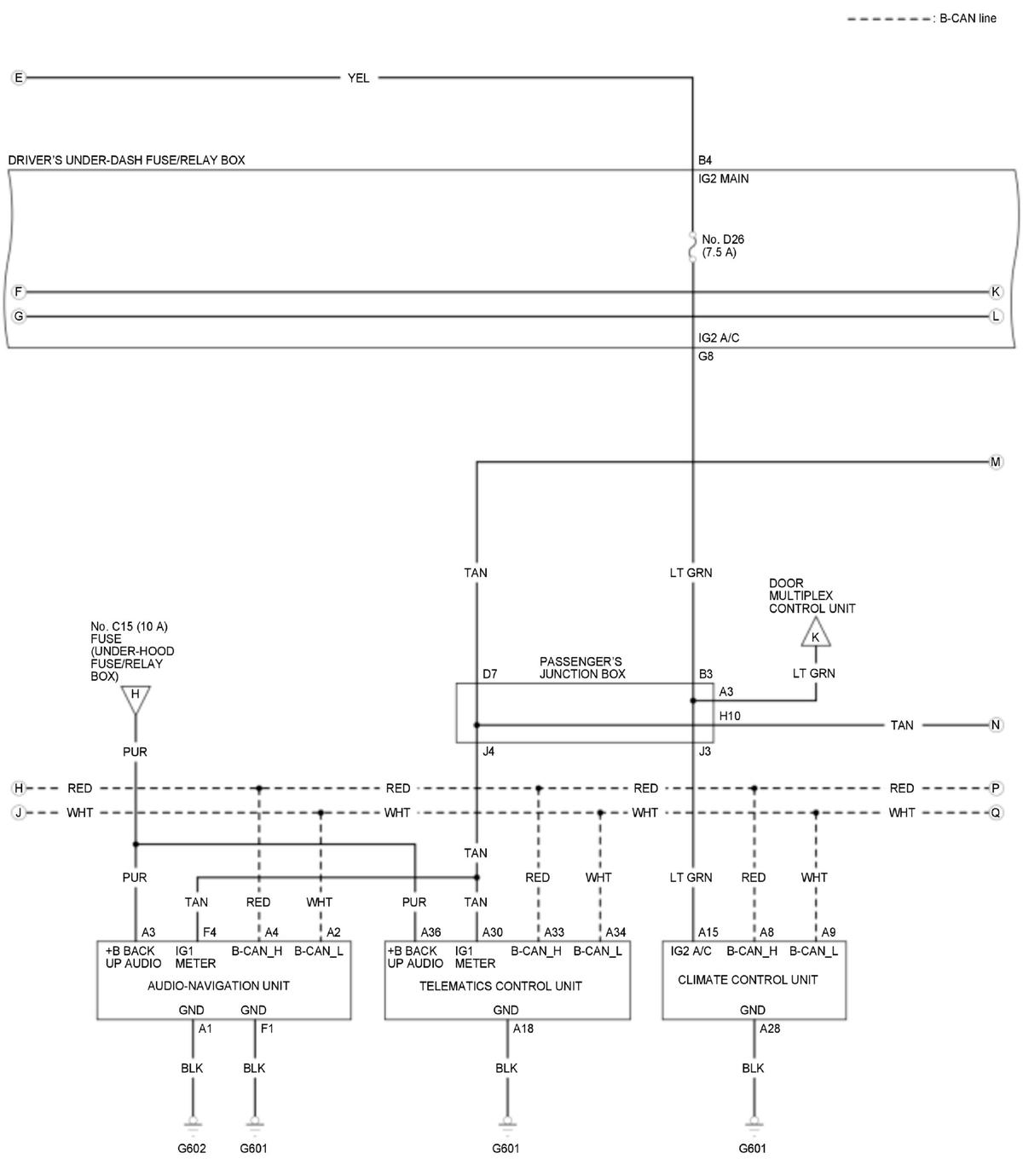

GHH348194Courtesy of HONDA, U.S.A., INC.

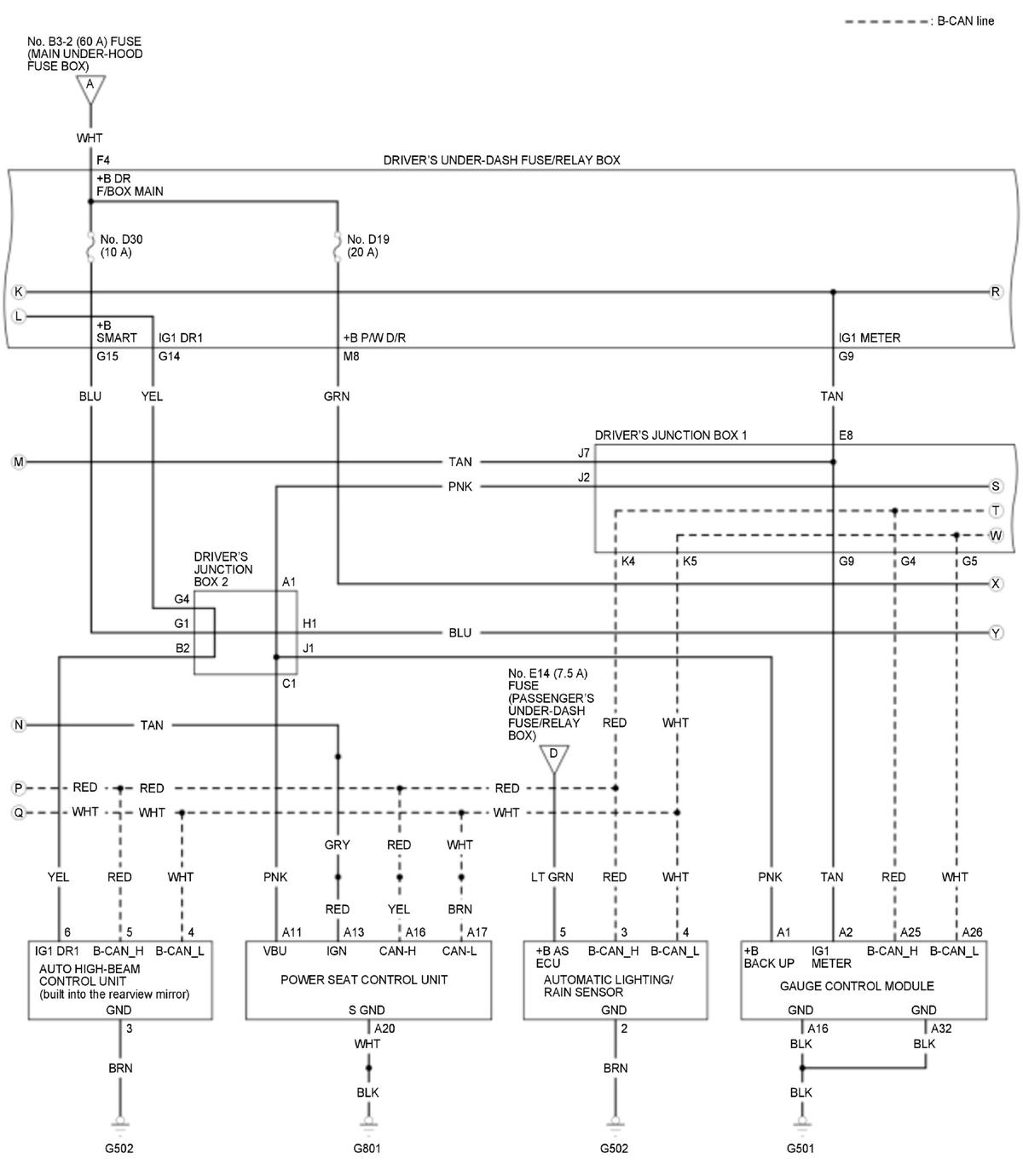

GHH348195Courtesy of HONDA, U.S.A., INC.

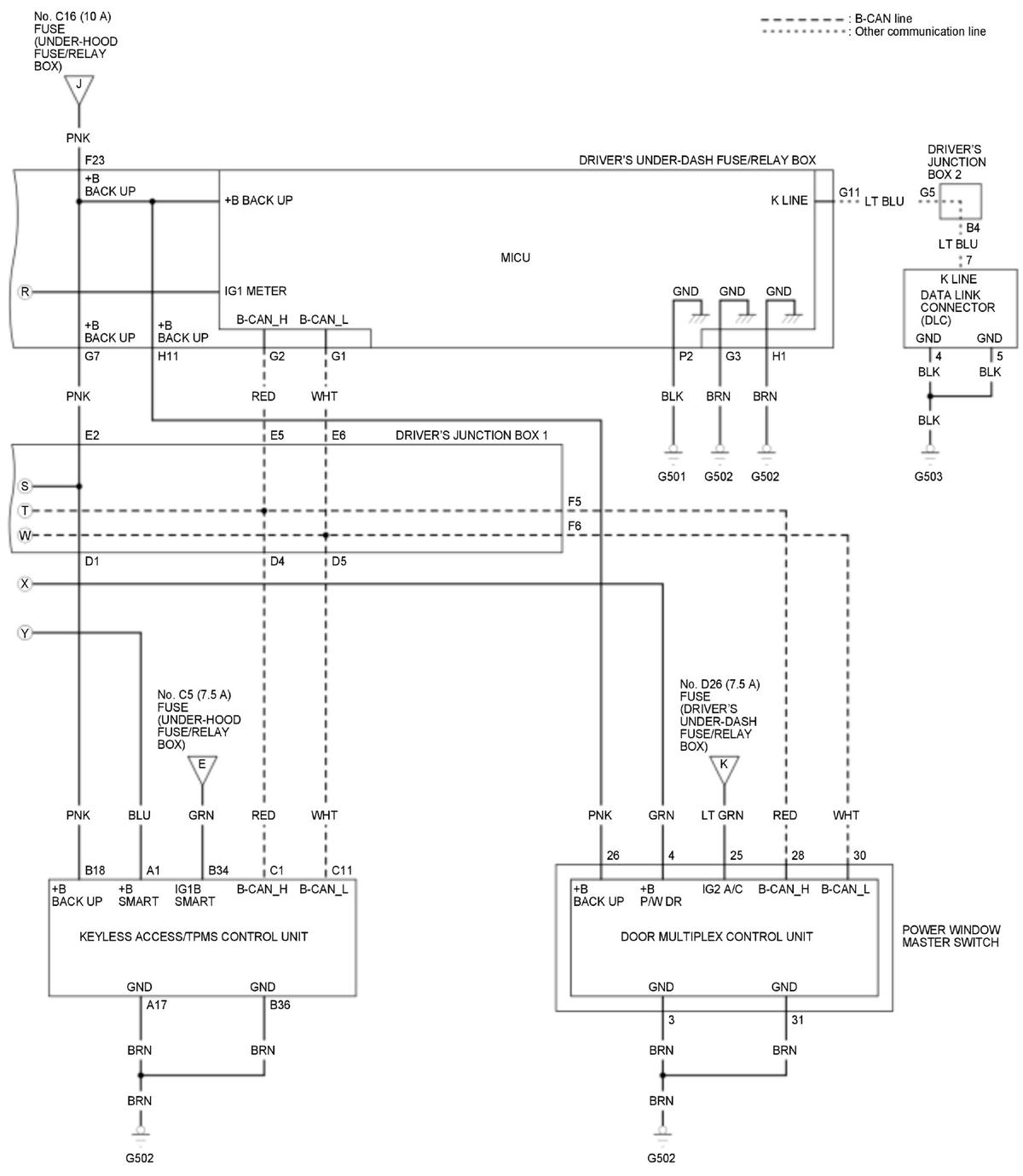

GHH348196Courtesy of HONDA, U.S.A., INC.
