Exploded View

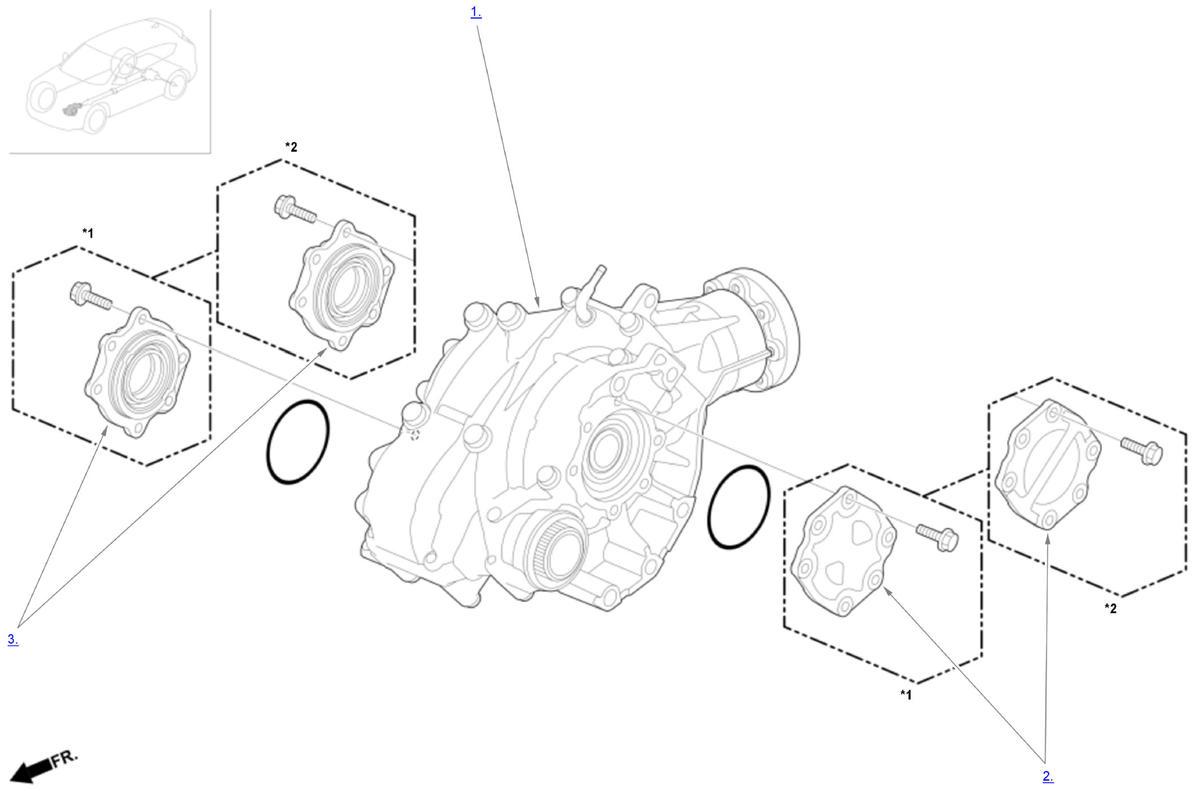

GHH558151Courtesy of HONDA, U.S.A., INC.
*1: '19-21
*2: '22-23

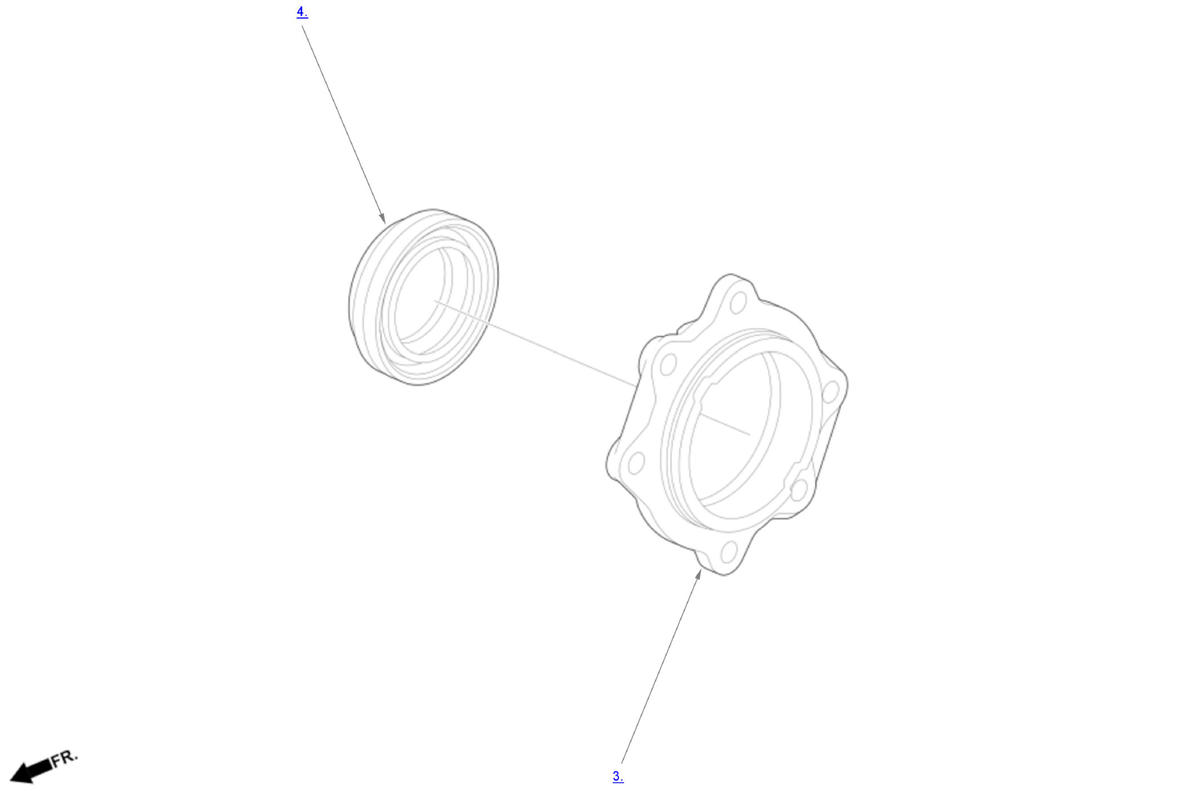

GHH558152Courtesy of HONDA, U.S.A., INC.
  1. Transfer Assembly
  2. Left Side Cap
  3. Right Side Cap
  4. Transfer Oil Seal
