Exploded View
For replacement of components listed below, see Repair Procedure .

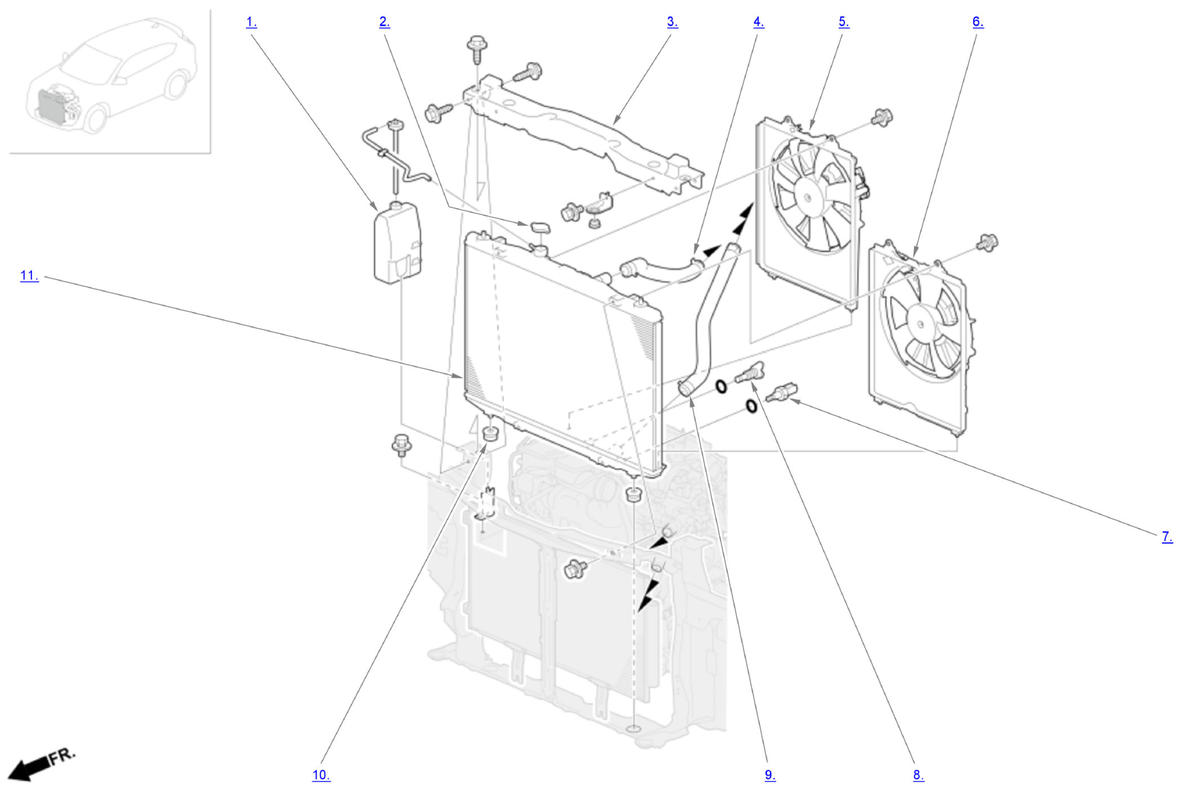

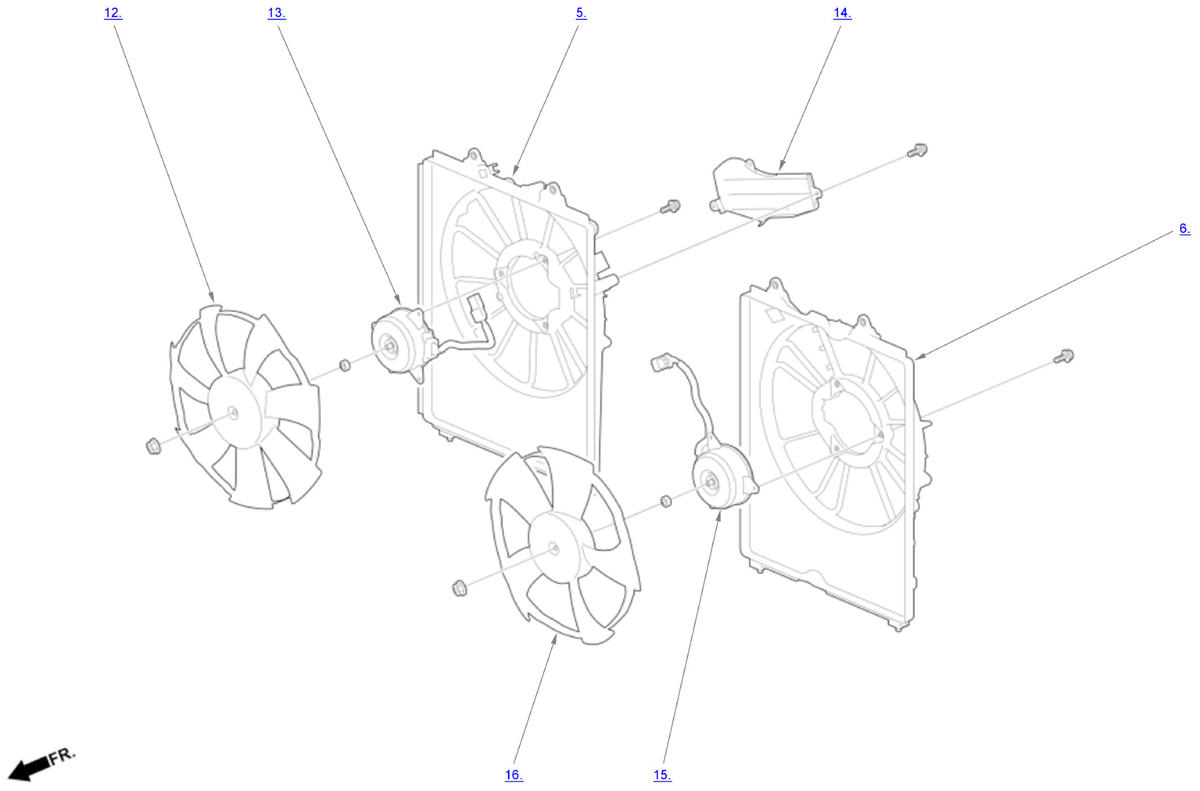

Radiator Area Components
| Component Name | Callout |
|---|---|
| Coolant Reservoir | 1 |
| Radiator Cap | 2 |
| Front Bulkhead | 3 |
| Upper Radiator Hose | 4 |
| A/C Condenser Fan Shroud | 5 |
| Radiator Fan Shroud | 6 |
| Engine Coolant Temperature (ECT) Sensor 2 | 7 |
| Drain Plug | 8 |
| Lower Radiator Hose | 9 |
| Lower Cushion | 10 |
| Radiator | 11 |
| A/C Condenser Fan | 12 |
| A/C Condenser Fan Motor | 13 |
| Fan Motor Cover | 14 |
| Radiator Fan Motor | 15 |
| Radiator Fan | 16 |
