Rear Rocker Arm Oil Control Valve Removal and Installation: Installation

  1. Rear Rocker Arm Oil Control Valve - Install

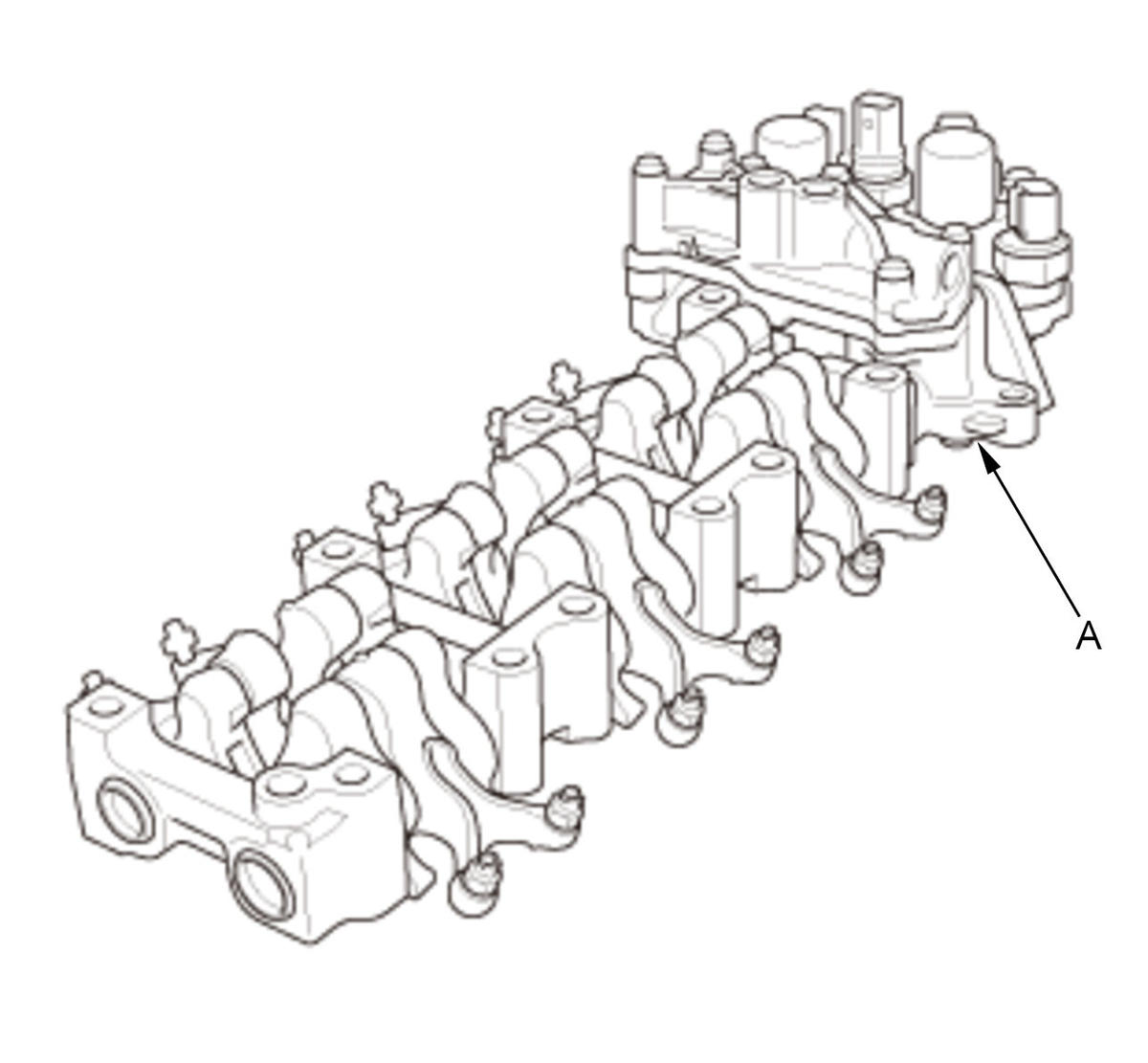

    GHH346130Courtesy of HONDA, U.S.A., INC.

    Install the rear rocker arm oil control valve (A).

  2. Rear Rocker Arm Assembly - Install

    Install the rear rocker arm assembly .
