Center switch panel button illumination does not work

NOTE:

• Check the vehicle battery condition first .
• Check the connectors for poor connections or loose terminals.

1. Problem verification

   -1. Turn the vehicle to the ON mode.

   -2. Turn the combination light switch to the parking light position.

   -3. Check if the navigation switch panel buttons are illuminated.

   Are the buttons illuminated?

   YES

   Intermittent failure, the system is OK at this time.

   NO

   The failure is duplicated, go to step 2.

2. Determine possible failure area (interior lights circuit, others)

   -1. Check if several other buttons that are not related to the audio system are illuminated.

   Are the buttons illuminated?

   YES

   Go to step 3.

   NO

   Troubleshoot the interior lights.

3. Open wire check (ILLUMI+ line)

   -1. Turn the combination light switch off.

   -2. Turn the vehicle to the OFF (LOCK) mode.

   -3. Disconnect the following connector.

   Center switch panel 5P connector

   -4. Turn the vehicle to the ON mode.

   -5. Turn the combination light switch to the parking light position.

   -6. Measure the voltage between test points 1 and 2.

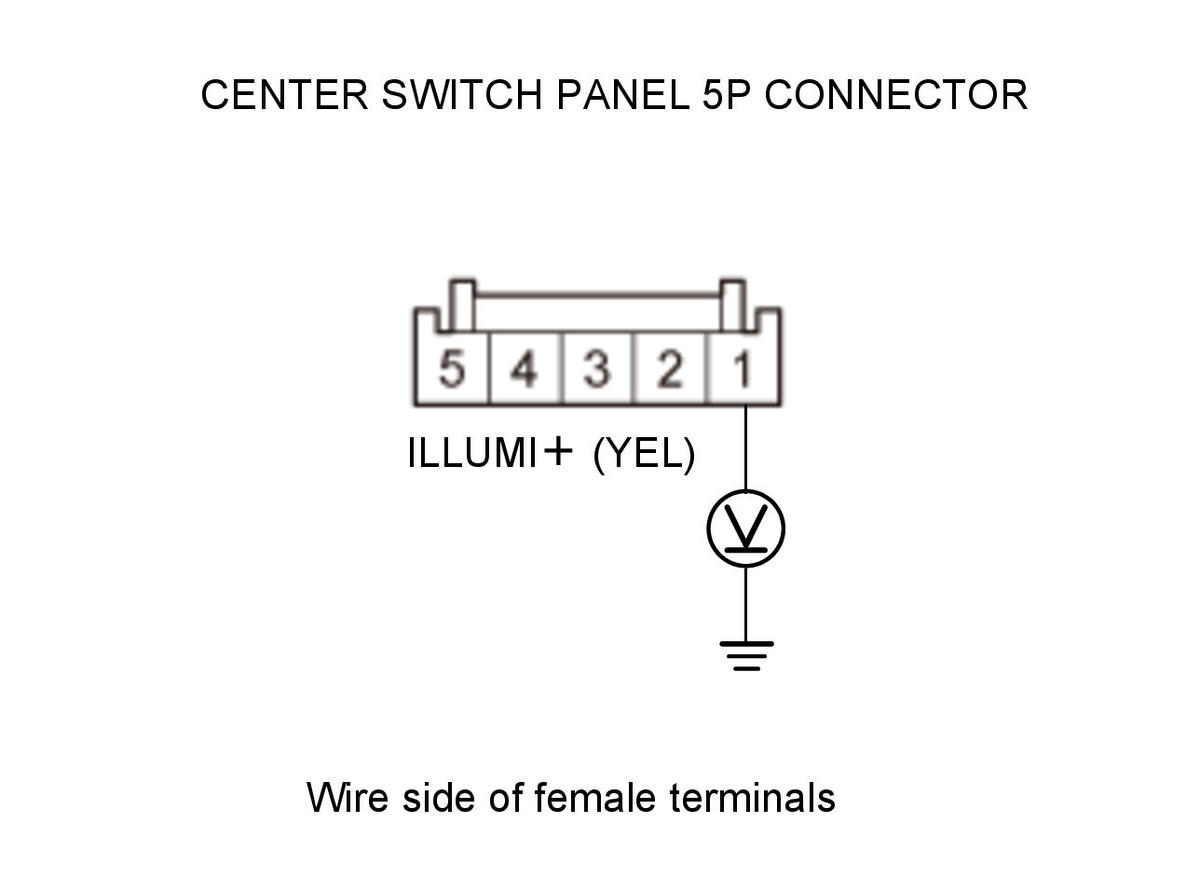

   Test condition	Vehicle ON mode
   Test circuit	ILLUMI+
   Test point 1	Center switch panel 5P connector No. 1 (YEL)
   Test point 2	Body ground

   Courtesy of HONDA, U.S.A., INC.

   Is there battery voltage?

   YES

   The ILLUMI+ wire is OK. Go to step 4.

   NO

   Repair an open in the wire between the No. D25 (7.5 A) fuse in the passenger's under-dash fuse/relay box and the center switch panel.

4. Open wire check (ILL- (LED) line)

   -1. Turn the combination light switch off.

   -2. Turn the vehicle to the OFF (LOCK) mode.

   -3. Disconnect the following connector.

   Gauge control module connector A (32P)

   -4. Check for continuity between test points 1 and 2.

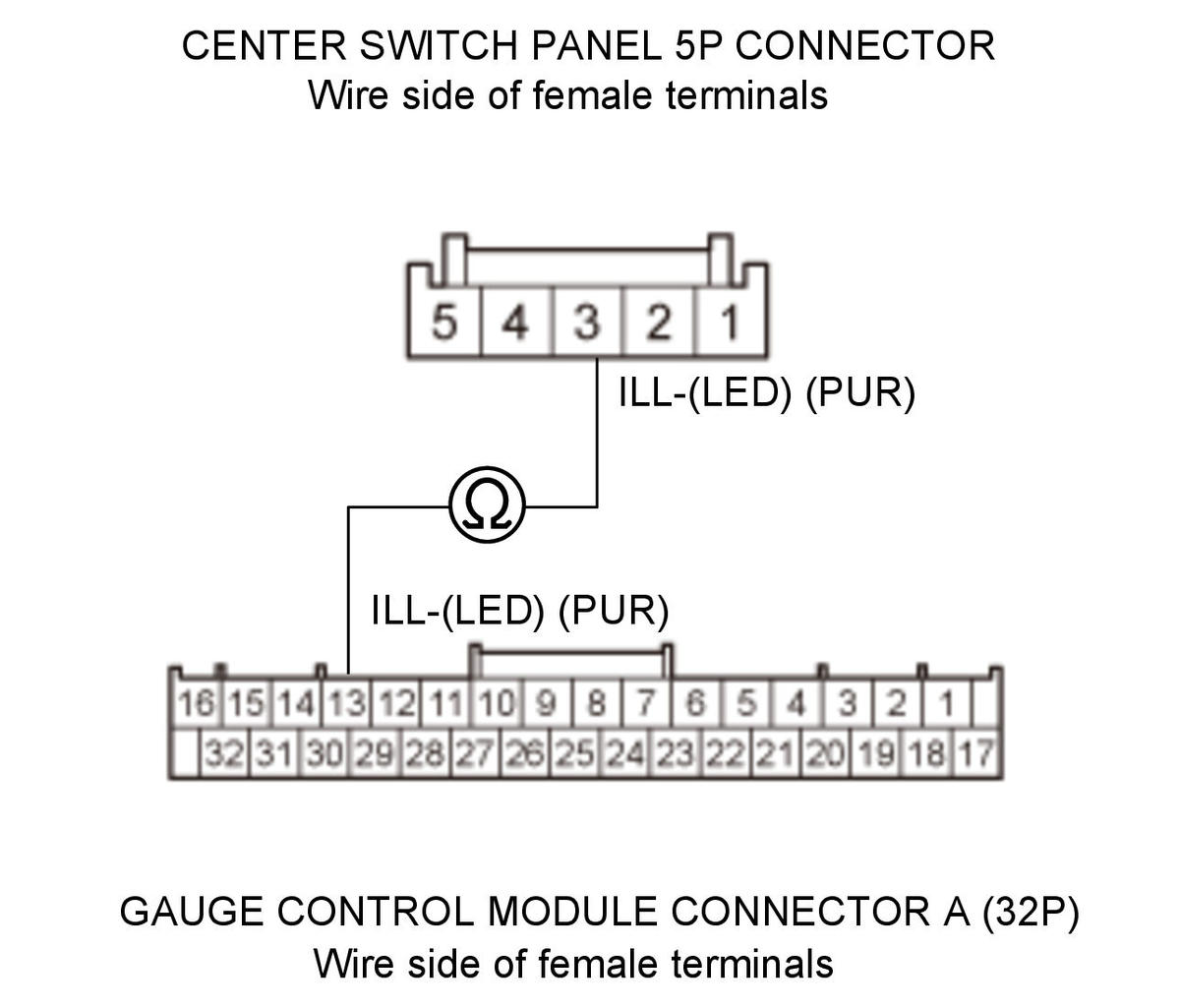

   Test condition	Vehicle OFF (LOCK) mode
   	Center switch panel 5P connector: disconnected
   	Gauge control module connector A (32P): disconnected
   Test circuit	ILL- (LED)
   Test point 1	Center switch panel 5P connector No. 3 (PUR)
   Test point 2	Gauge control module connector A (32P) No. 13 (PUR)

   Courtesy of HONDA, U.S.A., INC.

   Is there continuity?

   YES

   Replace the center switch panel .

   NO

   Repair an open in the wire between the center switch panel and the gauge control module.
