Gear Change Mechanism: Notes

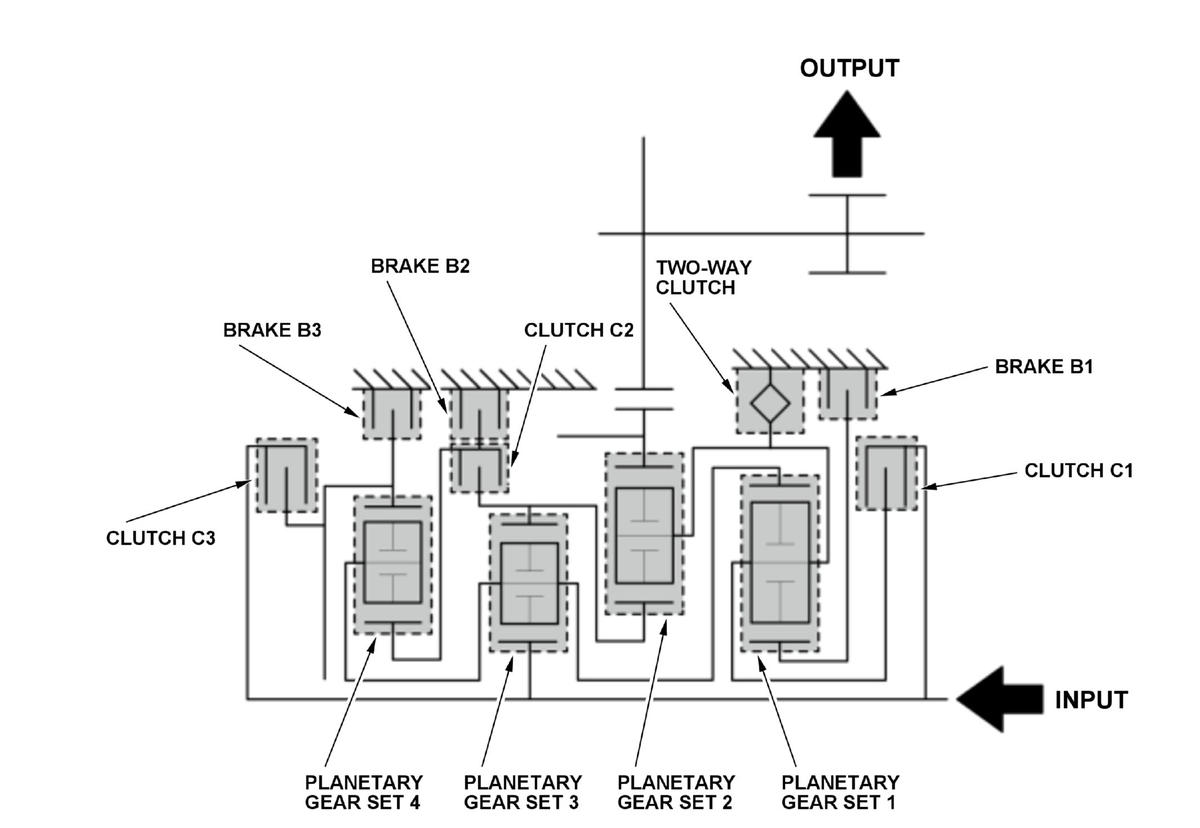

To change the gears, the TCM actuates the shift solenoid valves and the clutch pressure control solenoid valves in the valve body assembly, and switches hydraulic passages, then four planetary gear sets, three clutches, three brakes, and two-way clutch are engaged in a specific sequence by the hydraulic pressure.
