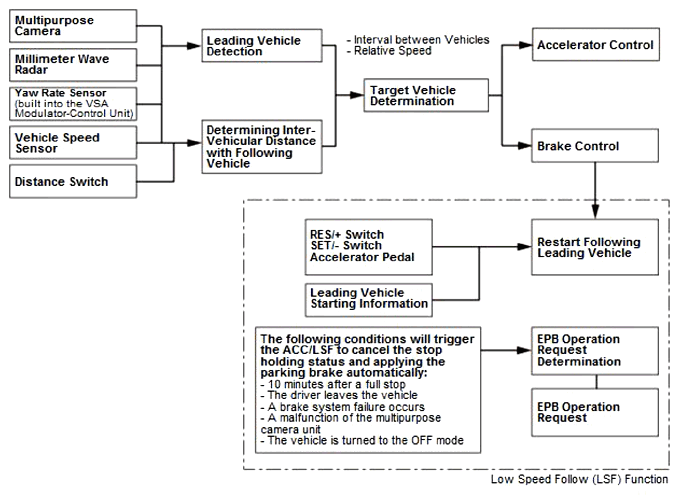

Home >> Acura >> 2019 >> RLX Base >> Repair and Diagnosis (Single Page) >> Accessories & Equipment >> Collision/Avoidance >> Driving Assistance Systems (Except Hybrid) >> Adaptive Cruise Control (ACC) System Description - Overview >> Function >> Control Block Diagram
