Throttle Body Component Inspection

Before disconnecting the PCM connector, jump the SCS line with the HDS, and wait more than 1 minute.

Preconditions

NOTE: This procedure can be done before any other inspections are completed because this test procedure includes all of the following inspection items. However, if this test fails, it will be necessary to continue with each inspection item individually to determine which item failed.

External circuit is normal

Test Procedure

Preparation
- PCM connector E (80P) : disconnected

Procedure

Perform the inspection according to the following table.

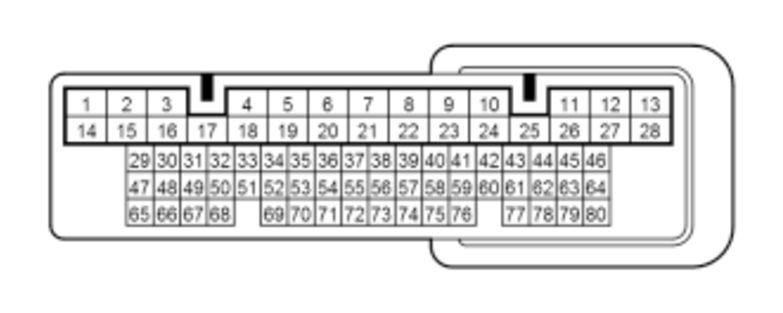

		(Disconnected) PCM connector E (80P) female terminals
	IG Mode	Courtesy of HONDA, U.S.A., INC.	Normal Conditions
Throttle body internal circuit inspection	OFF		There is no continuity

Results

If it is abnormal, there is a problem with the throttle body.
