VSA System Circuit Diagram

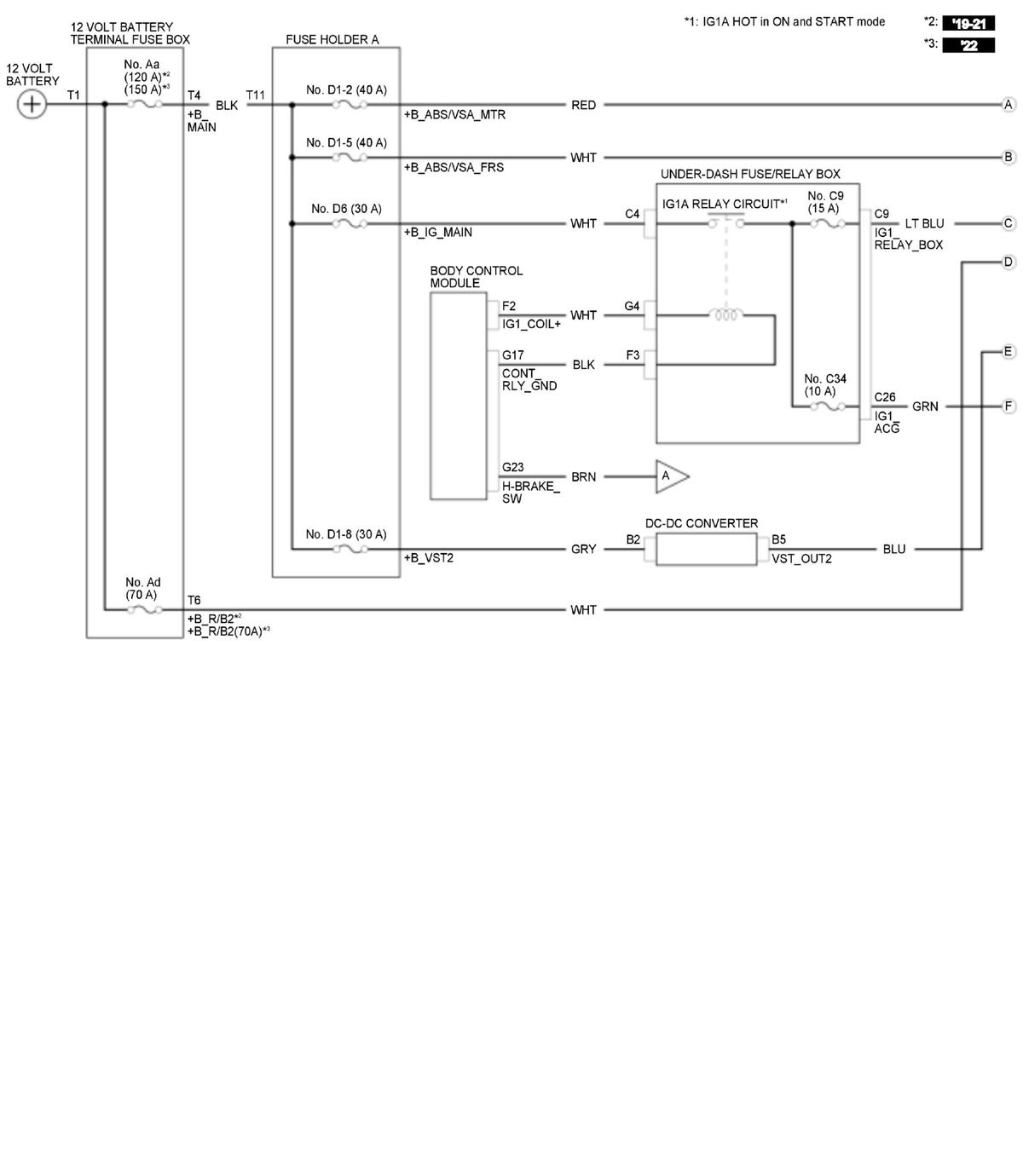

GHH558197Courtesy of HONDA, U.S.A., INC.

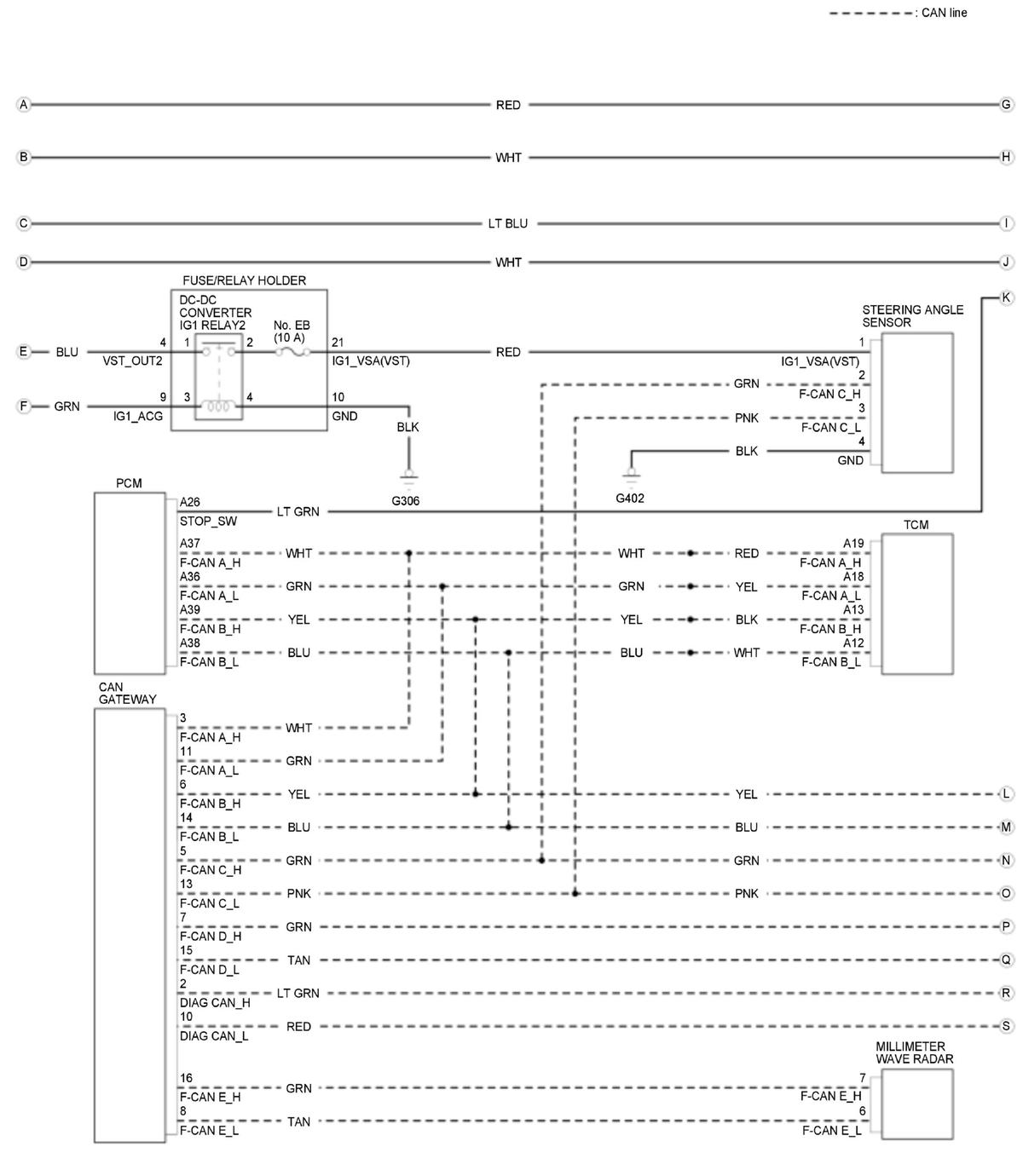

GHH558198Courtesy of HONDA, U.S.A., INC.

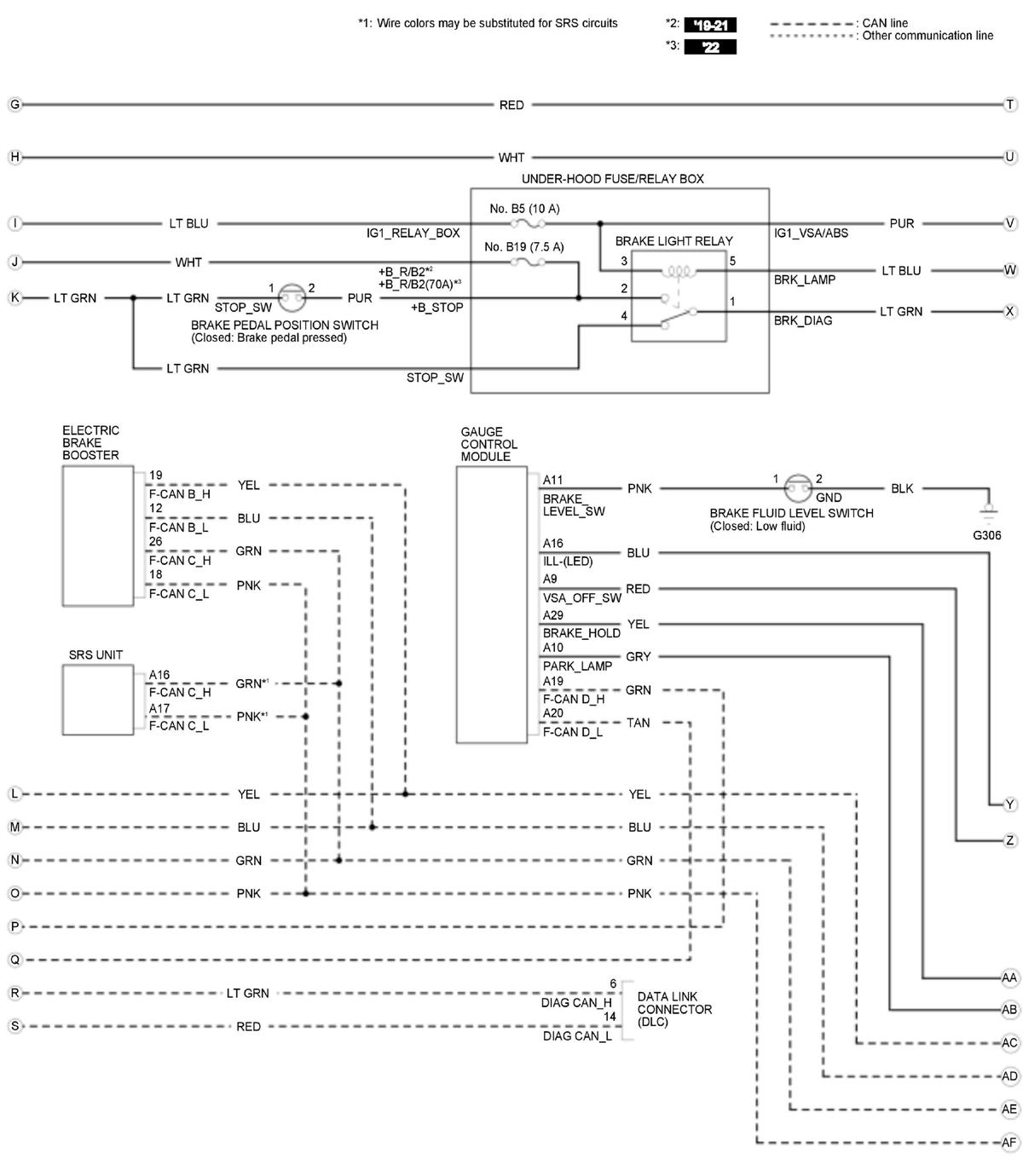

GHH558199Courtesy of HONDA, U.S.A., INC.

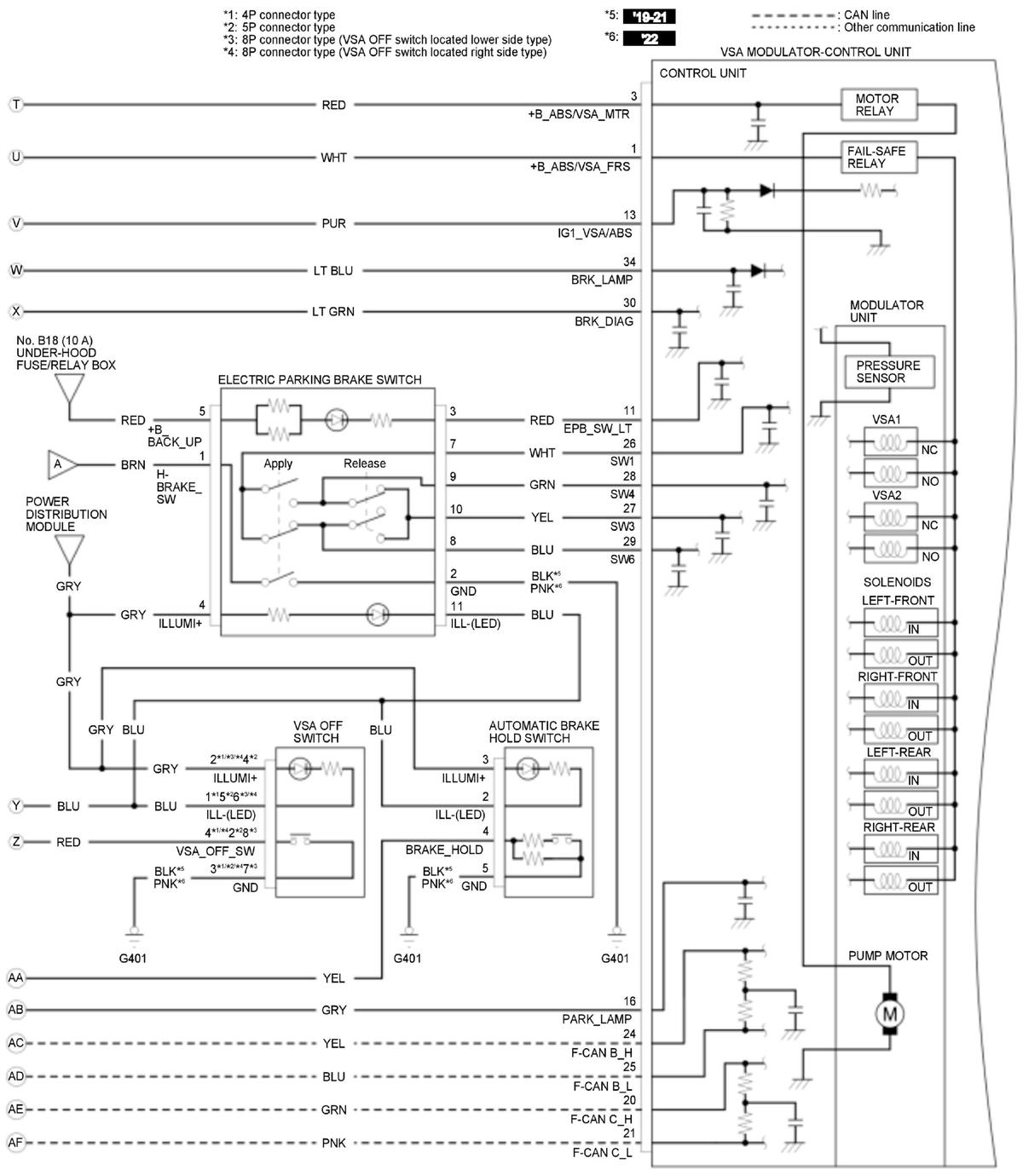

GHH558200Courtesy of HONDA, U.S.A., INC.

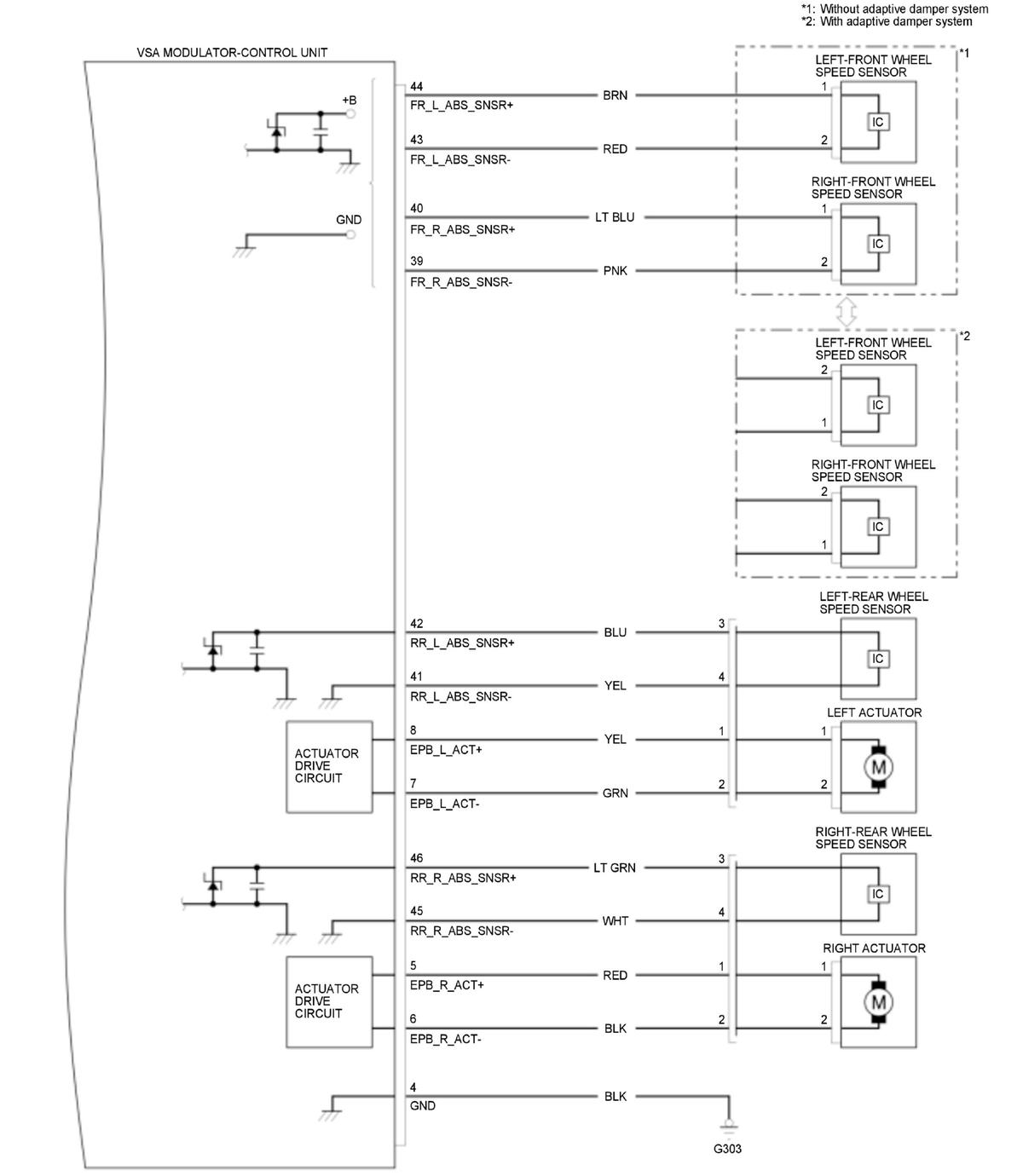

GHH558201Courtesy of HONDA, U.S.A., INC.
