Canada Models

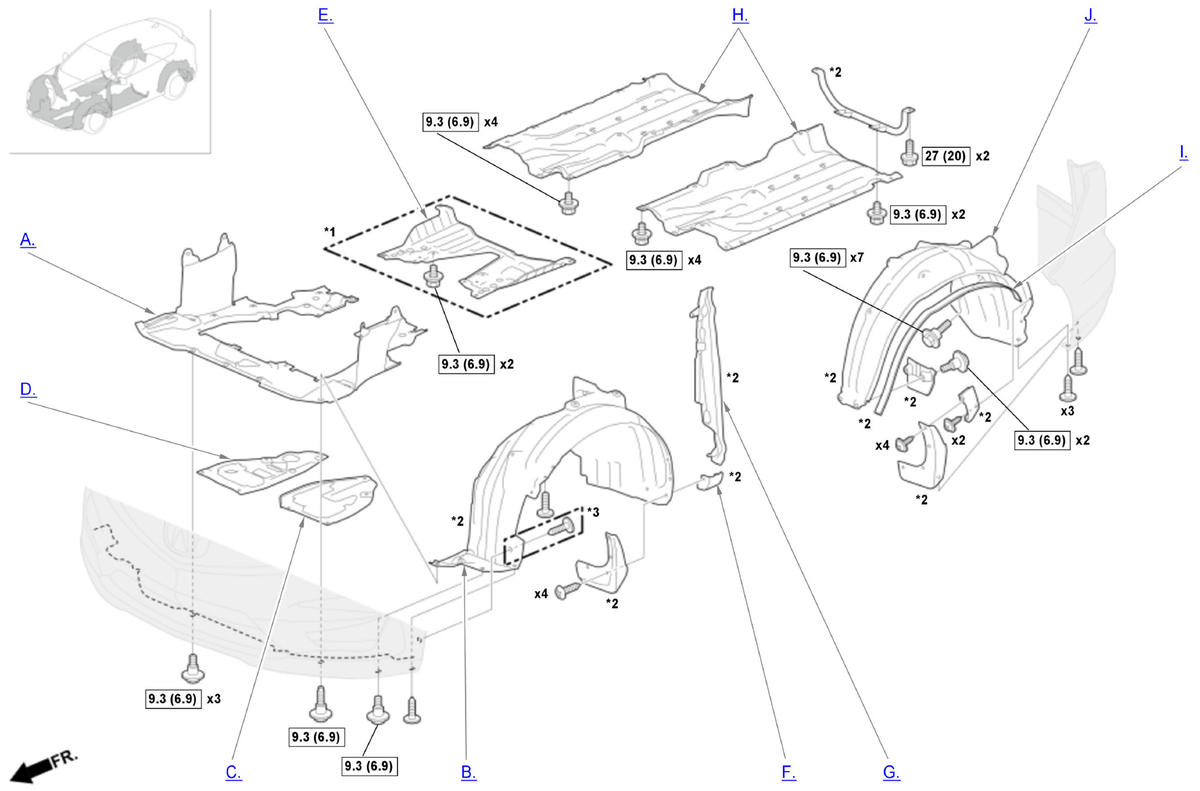

Fig 1: Undercover Area Replacement Components With Torque Specifications (Canada Models)

Courtesy of HONDA, U.S.A., INC.

: Torque, N.m (lbf.ft)	: Replace	: Warning/Caution	: Inspection/Adjustment	*: Learning	■: SPL Tool	: Required Removal
1: With rear engine undercover 2: Part(s) are shown for one side only as the procedure is the same for both sides. *3: '22-23
