Front Passenger's Power Window Switch Connector for Inputs and Outputs

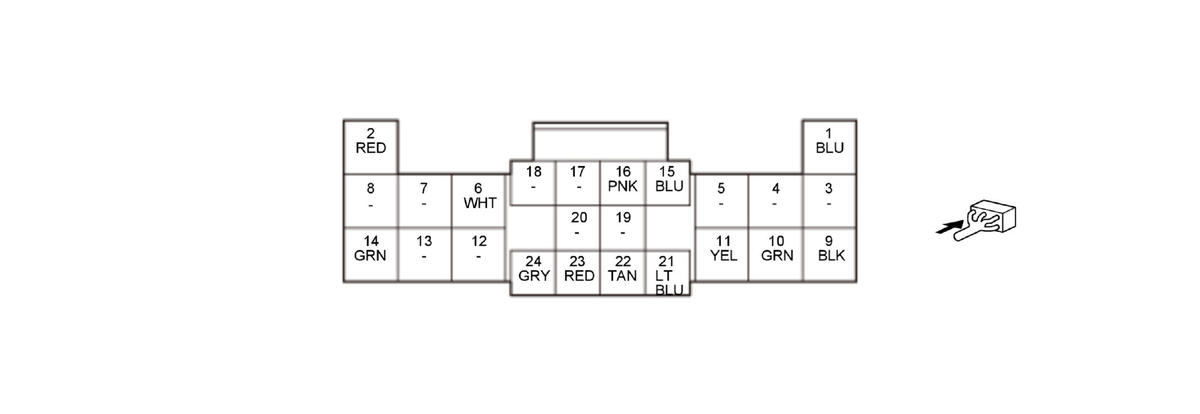

Front Passenger's Power Window Switch 24P Connector (female terminals)

Courtesy of HONDA, U.S.A., INC.
Terminal number	Terminal name	Description	Signal
1	P/W_AS_MTR_DOWN	Drives front passenger's power window motor	With front passenger's power window motor DOWN operation: about battery voltage If none of the above conditions are met: less than 0.2 V
2	P/W_AS_MTR_UP	Drives front passenger's power window motor	With front passenger's power window motor UP operation: about battery voltage If none of the above conditions are met: less than 0.2 V
3	Not used	---	---
4	Not used	---	---
5	Not used	---	---
6	H/MIRROR_AS	Outputs H/MIRROR_AS signal	With mirror defogger ON: about battery voltage
7	Not used	---	---
8	Not used	---	---
9	PGND	Ground for front passenger's power window switch	Less than 0.2 V at all times
10	P/W_AS_MTR_SGND	Ground for front passenger's power window motor pulser	Less than 0.2 V at all times
11	AS_SILCON_UNLOCK	Detects AS_SILCON_UNLOCK signal	With front passenger's power window control unit is wake up mode and front passenger's door lock knob switch LOCK: about 5 V With front passenger's door lock knob switch UNLOCK: less than 0.2 V
12	Not used	---	---
13	Not used	---	---
14	+B_P/W_AS	Power source for front passenger's power window switch	About battery voltage at all times
15 *	AS_RETRA_CLOSE	Drives retract actuator	With the vehicle in the ON mode and power mirror RETRACT operation: about battery voltage If none of the above conditions are met: less than 0.2 V
16 *	AS_RETRA_OPEN	Drives retract actuator	With the vehicle in the ON mode and power mirror EXTEND operation: about battery voltage If none of the above conditions are met: less than 0.2 V
17	Not used	---	---
18	Not used	---	---
19	Not used	---	---
20	Not used	---	---
21	P/W_AS_MTR_VCC	Outputs P/W_AS_MTR_VCC signal	With front passenger's power window control unit is wake up mode and front passenger's power window motor operation: about battery voltage If none of the above conditions are met: less than 0.2 V
22	P/W_AS_MTR_PLSB	Detects P/W_AS_MTR_PLSB signal	---
23	P/W_AS_MTR_PLSA	Detects P/W_AS_MTR_PLSA signal	---
24	LIN (P/W)	Communication line	---
*: With power retract mirror
