ACC Combination Switch Inspection

Test Procedure

• Preparation
  • ACC combination switch 16P connector: disconnected
• Procedure
  • Perform the inspection according to the following table.

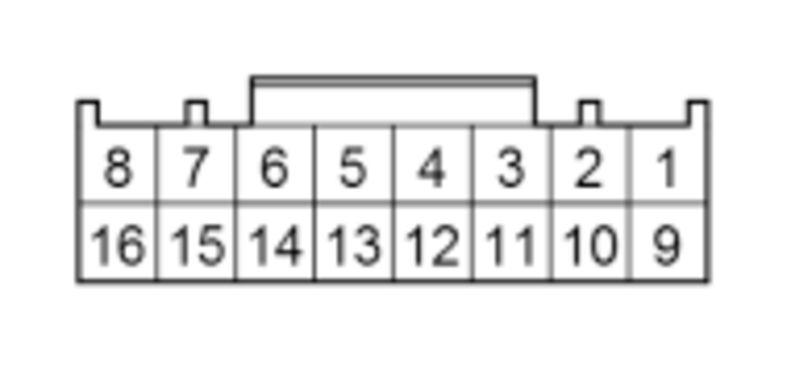

    			(Disconnected) ACC combination switch 16P connectorfemale terminals
    		IG Mode	Courtesy of HONDA, U.S.A., INC.	Normal Conditions
    	ACC combination switch circuit inspection	ON		About 5 V

Results

• If it is normal, there is a problem with the ACC combination switch.
• If it is abnormal, there is a problem with the related components.
