Tailgate Outer Handle Switch Test: Test

How To Use This Service Information .

1. Tailgate Outer Handle Switch - Test

   Preconditions

   • License Plate Light Removed

   Procedure/Specifications

   • Check the switch according to the table. (Figure 1 and 2)

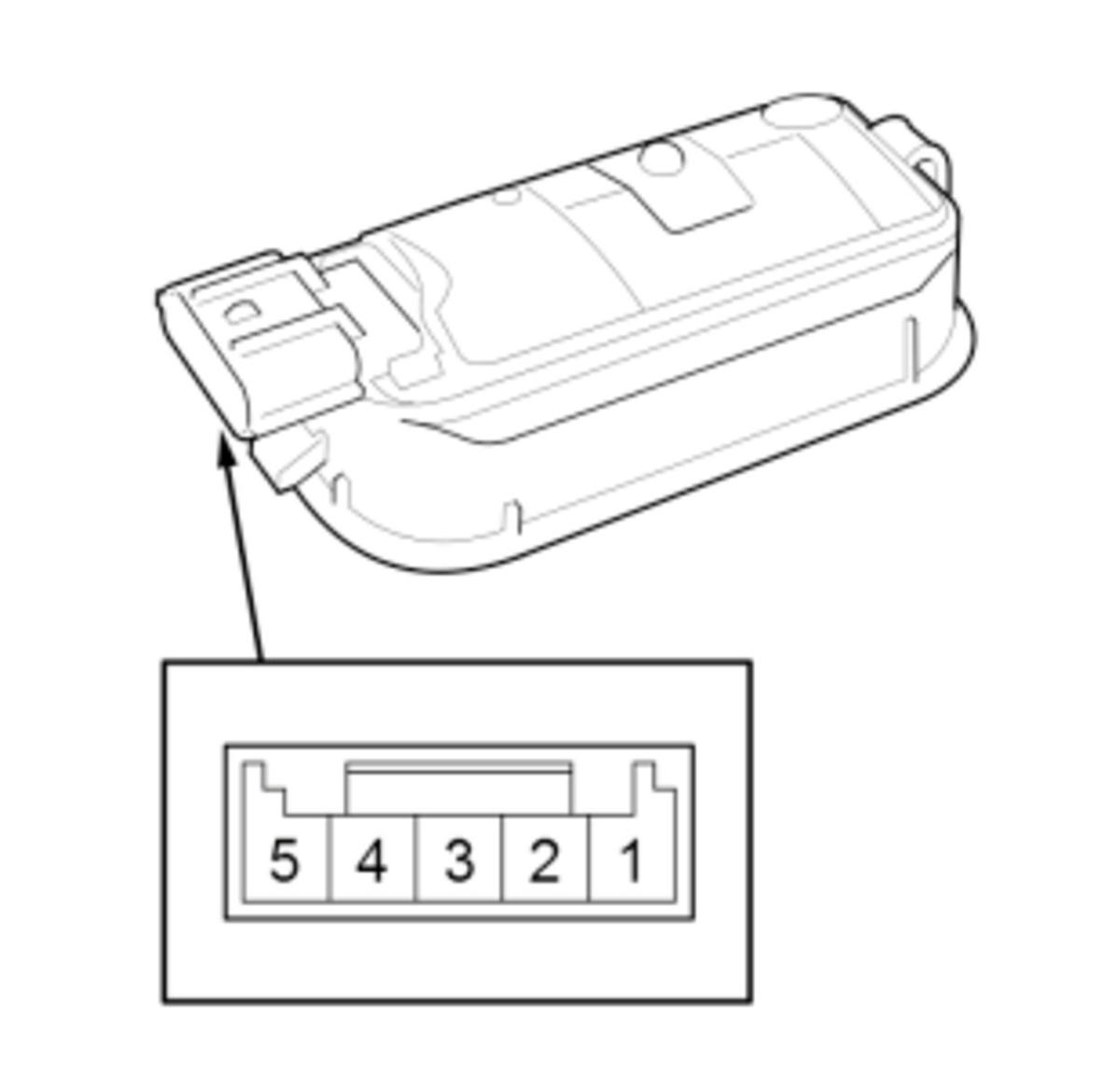

     Figure 1

     Courtesy of HONDA, U.S.A., INC.

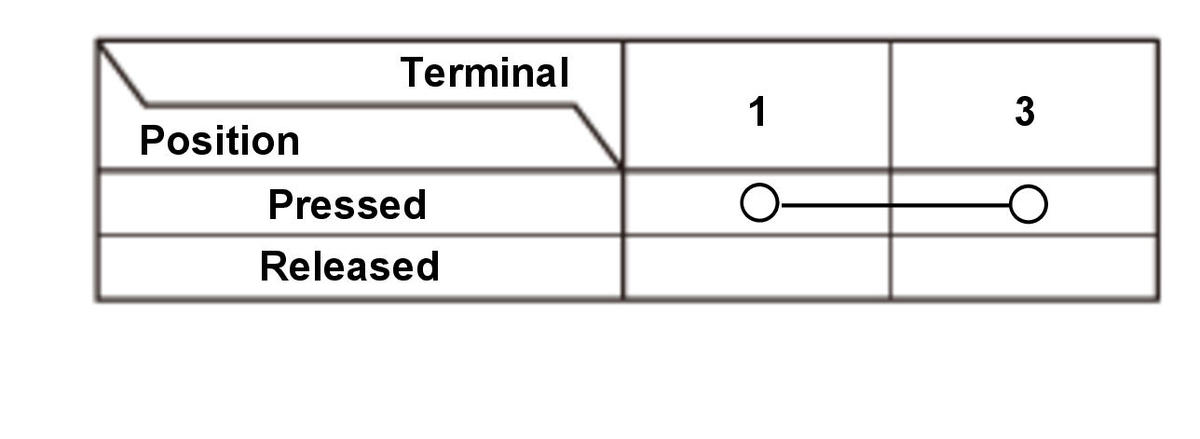

     Figure 2

     Courtesy of HONDA, U.S.A., INC.

   Result

   • If the result is not as specified, replace the license plate light.
